Parallel Board Description

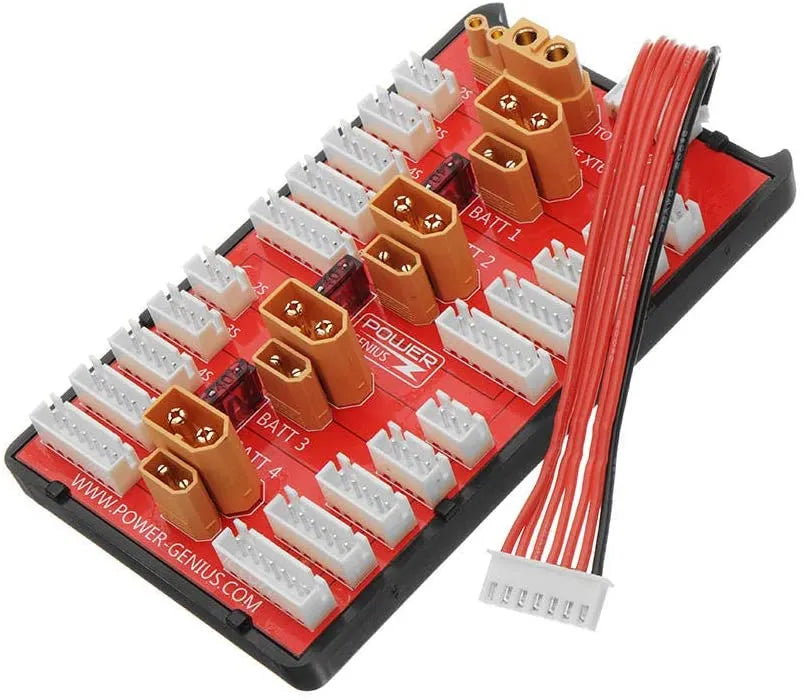

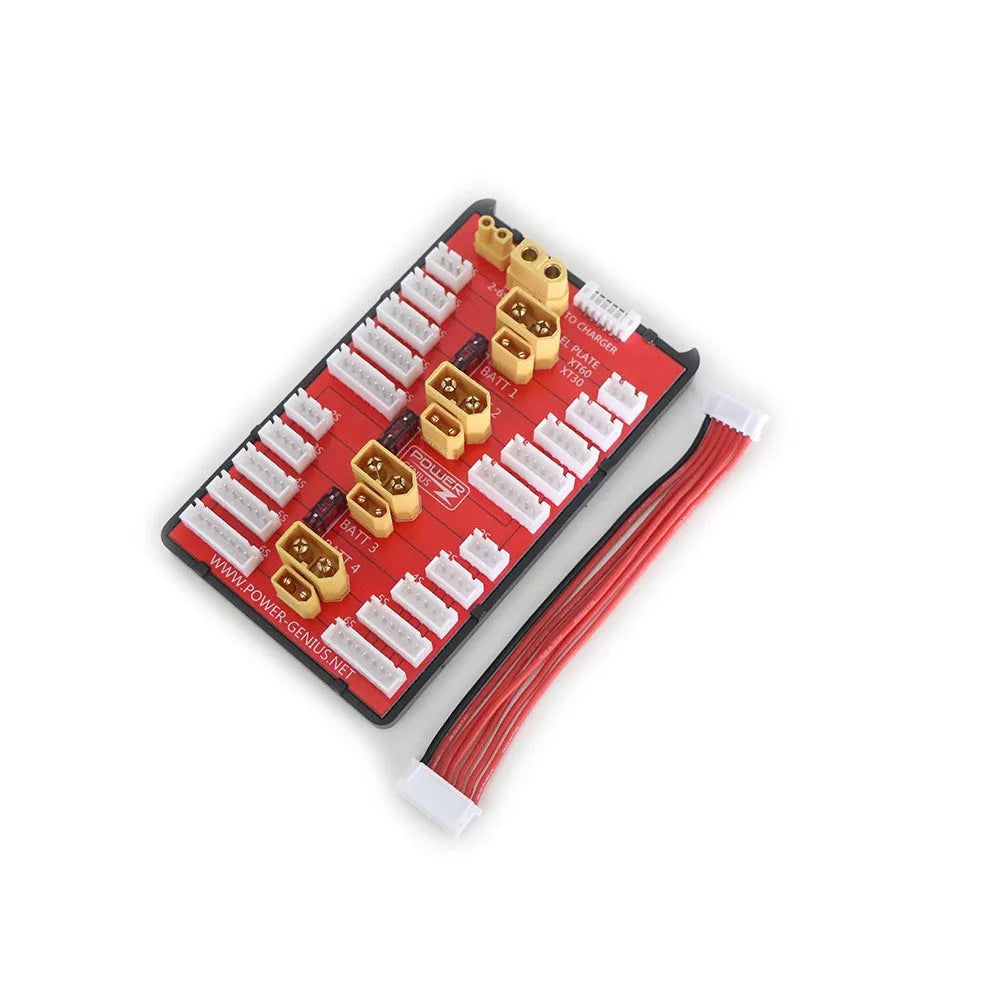

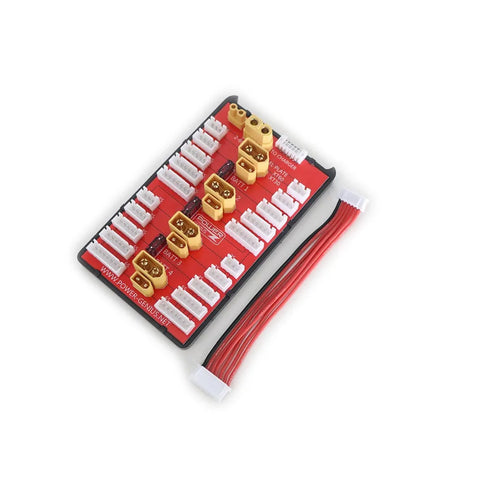

Item: 2-In-1 XT30 /XT60 Parallel Charging Board
Balance Output Cable: 18AWG silicon cable
Current: Support MAX. 35A charge current
Output Connector:XT30 /XT60 Connector
Support 4 packs 2S, 4 packs 3S, 4 packs 4S, 4 packs 5S, 4 packs 6S balance charge.
1.Specification
1). It can support up to 4 groups of 2-6S lithium batteries of the same type with the same number of sections (the same 4 4S batteries)
(The same 4 3S batteries)
2). The output line of the balance port adopts 22AWG multi-strand silicone wire.
3). Equipped with safety protective T plug silicone cap.
4). Use high-quality gold-plated connectors.
5). Thicker PCB copper foil, up to 35A charging current.
6). A 40A fuse is installed between any two groups of batteries to prevent the circuit from burning out due to excessive battery voltage difference.
2. Instructions for Use
1). Using this parallel charging board can simultaneously charge no more than 4 groups of lithium battery packs with the same number of cells. Avoid the tedious operation of repeatedly changing the battery and charging.
2). After multiple single cells are connected in parallel with each other, the average voltage difference between the cells after weak discharge is smaller, which effectively shortens the balance time of charging.
3). A single set of charging needs to be balanced 4 times, and the parallel charging board only needs to be balanced once, and the charging time is greatly shortened.
4). When 4 groups of batteries are connected in parallel at the same time, even batteries that do not support high C-number charging can be safely charged at 4 times the original single group charging current, effectively shortening the charging time.
【Parallel charging, the number of battery cells (S number) remains unchanged, and the capacity is superimposed. For example, if two 4S 5000mAh batteries are connected in parallel, it becomes a 4S 10000mAh battery, and if 4 batteries are connected in parallel, it becomes a 4S 20000mAh battery. Battery, 1C charge can support 20A]
Note:
1. When the battery is connected and charged to the board, first connect the main output and then the balance head. The initial voltage difference should not be too large (it is recommended that a single cell does not exceed 0.1V), otherwise the fuse may be burned.
2. When charging the battery with the Kailian charging board, each connector is charged. Please cover the unused T-head with a silicone cap, or be careful not to drop metal objects into the connector to avoid short-circuit accidents.

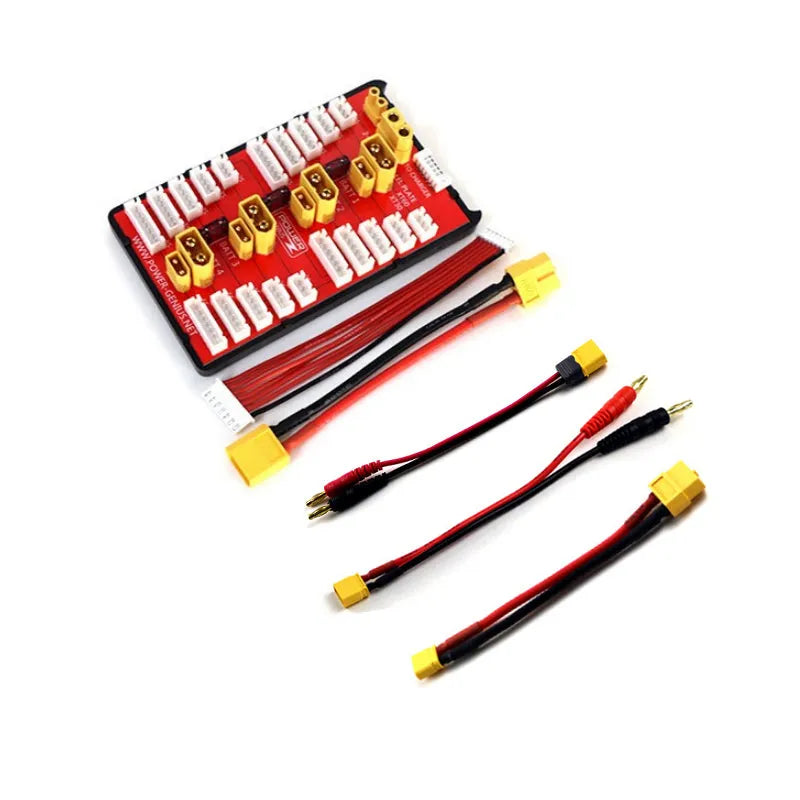

Package Included:
1*XT30 XT60 Charging Board
1*Balance Cable

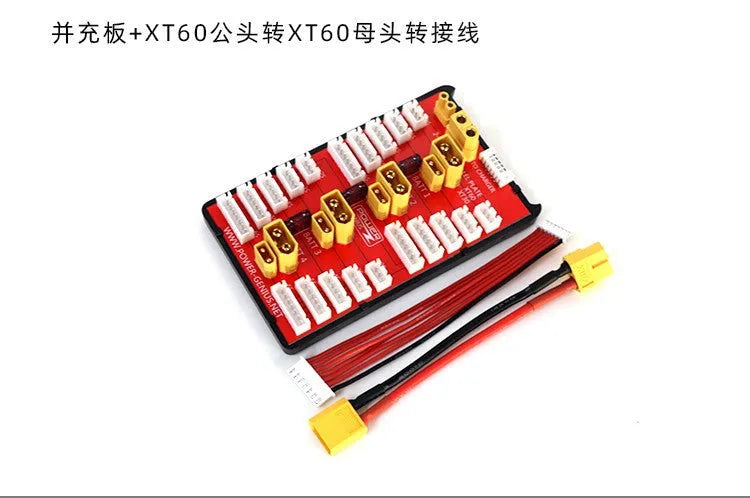

1*XT60 male to XT60 female adapter cable

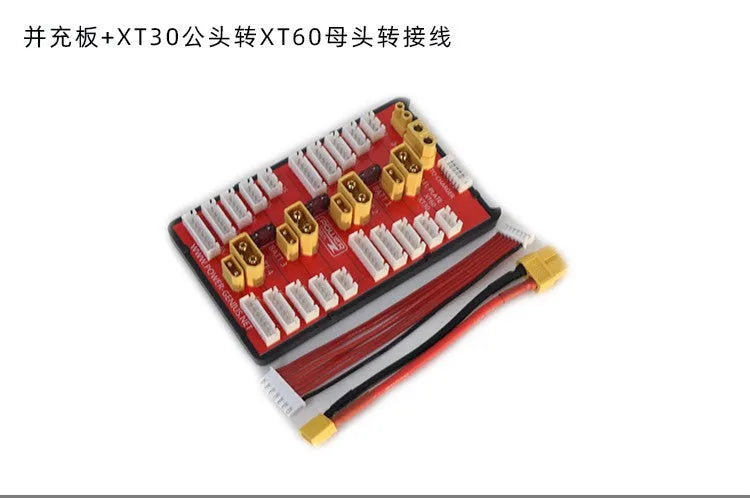

1*XT30 male to XT60 female adapter cable

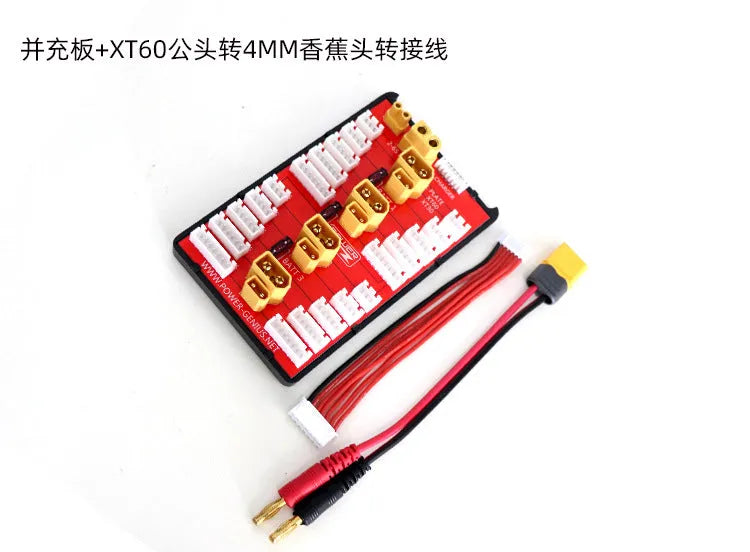

1*XT60 male to 4.00mm banana

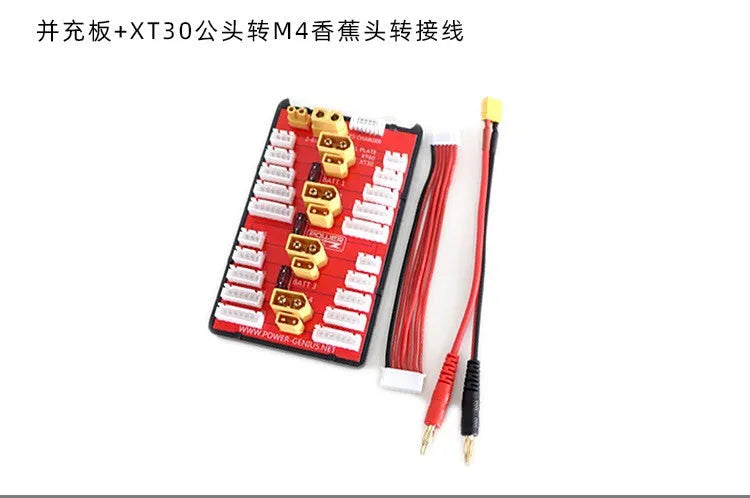

1*XT30 male to 4.00mm banana
