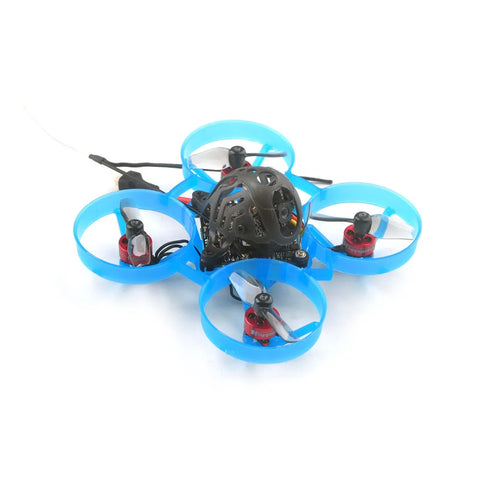

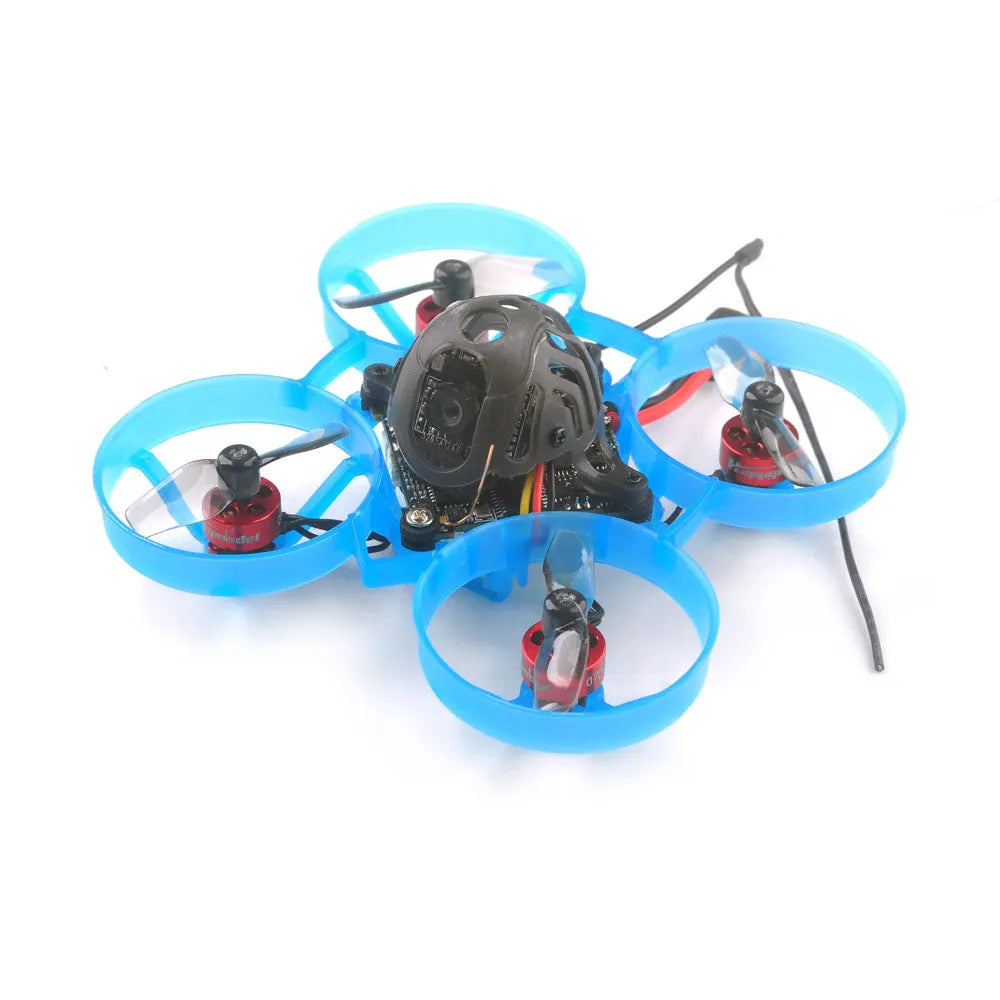

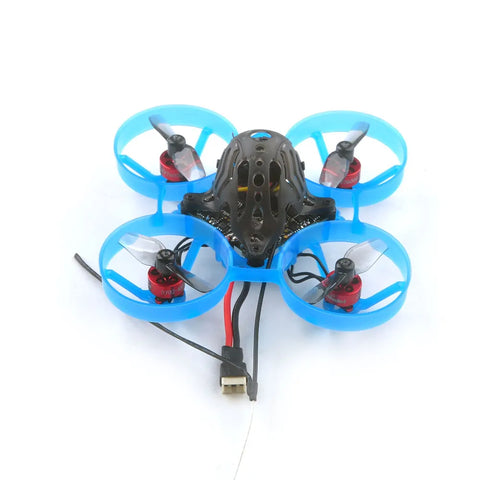

Happymodel Mobula6 ELRS 1s 65mm Brushless FPV Brushless Whoop Drone

FPV Brushless Whoop Drone Happymodel Mobula6 ELRS Overview:

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We're sure this would be a good option for you in the Tiny Whoop Season.

Features:
AIO Flight controller with ELRS Receiver and 5.8G VTX
Super light 1S 65mm Brushless whoop only 18.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV

Specifications:
Brand Name: Happymodel
Item Name: Mobula6 ELRS 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm

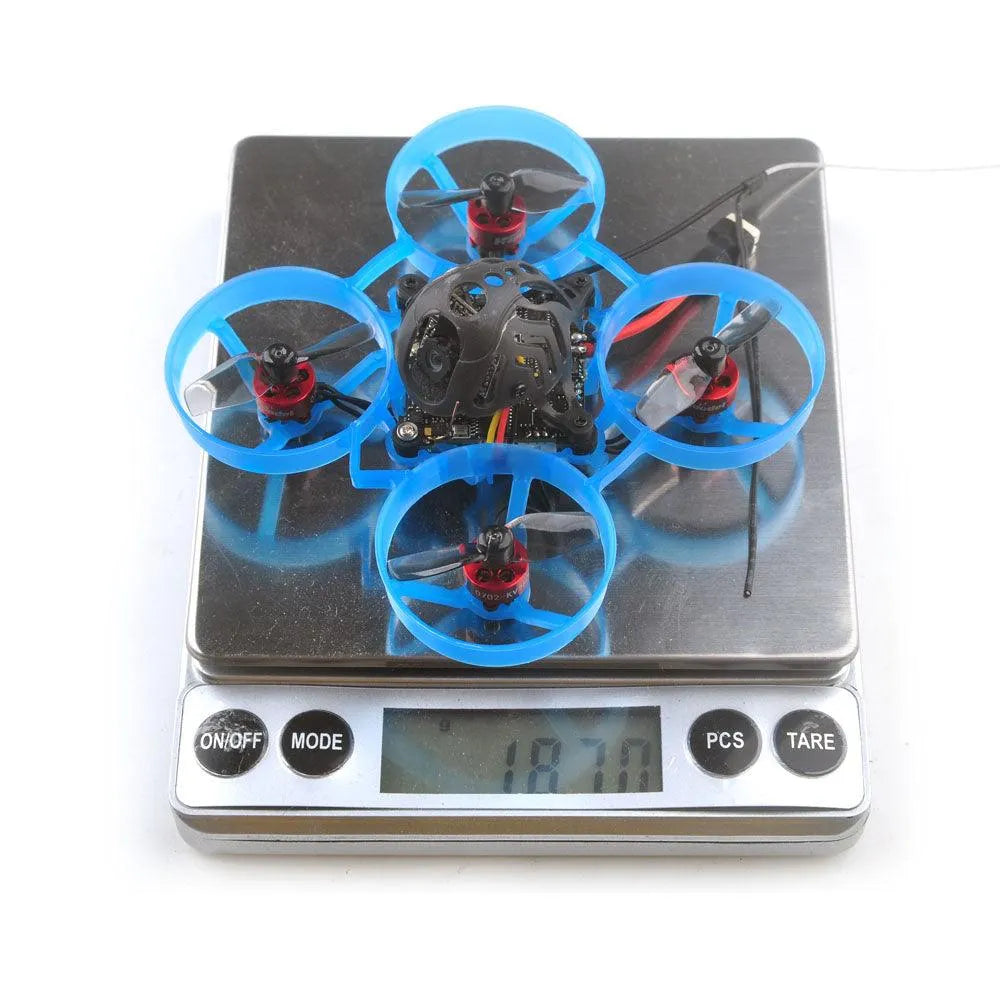

Weight: 18.7g

Receiver option:
2.4GHz ExpressLRS SPI receiver
915MHz ExpressLRS Serial-based receiver
868MHz ExpressLRS Serial-based receiver

Spare parts specifications:
Motor:
Mode: SE0702 KV26000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.46g
No.of Cells(Lipo):1S only

Propellers:
HQprop31mmx2
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.2g

Flight Controller:
ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver
CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver
CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in ExpressLRS 2.4G/915MHz/868MHz receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible

Onboard Serial-based ELRS Receiver
Operation current: ~100Ma
Rx To FC protocol: CSRF
RF Frequency optional: 915mhz or 868mhz(EU)
Antenna connector:  IPEX4
Telemetry output Power: <17dBm
Firmware target: Happymodel_RX_ES915RX
Receiver protocol: CRSF
Could bind with Happymodel ES915TX , Frsky R9M and DIY ELRS TX module(need to flash the same version ELRS firmware)
Firmware flash via Betaflight pass-through

Onboard 5.8g VTX
Output power: 25mw~200mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready

Runcam Nano3
Model: RunCam Nano 3
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens: 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery
Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g
Connector: PH2.0

Pacakge Included:
1*Mobula6 1S 65mm whoop Drone Frame

Receiver optional:
2.4GHz ExpressLRS SPI receiver Or
915MHz ExpressLRS Serial-based receiver Or
868MHz ExpressLRS Serial-based receiver

4*SE0702 KV26000 brushless motor
1*HQPROP 31mm bi-blade propellers(4cw+4ccw)
1*Runcam Nano3 1/3 CMOS 800TVL camera
1*Onboard 5.8G 25mw~200mw VTX
4*1S 300mah 30C LiHV Battery
1*1S Lipo/LIHV USB Charger
1*Propeller disassemble tool
