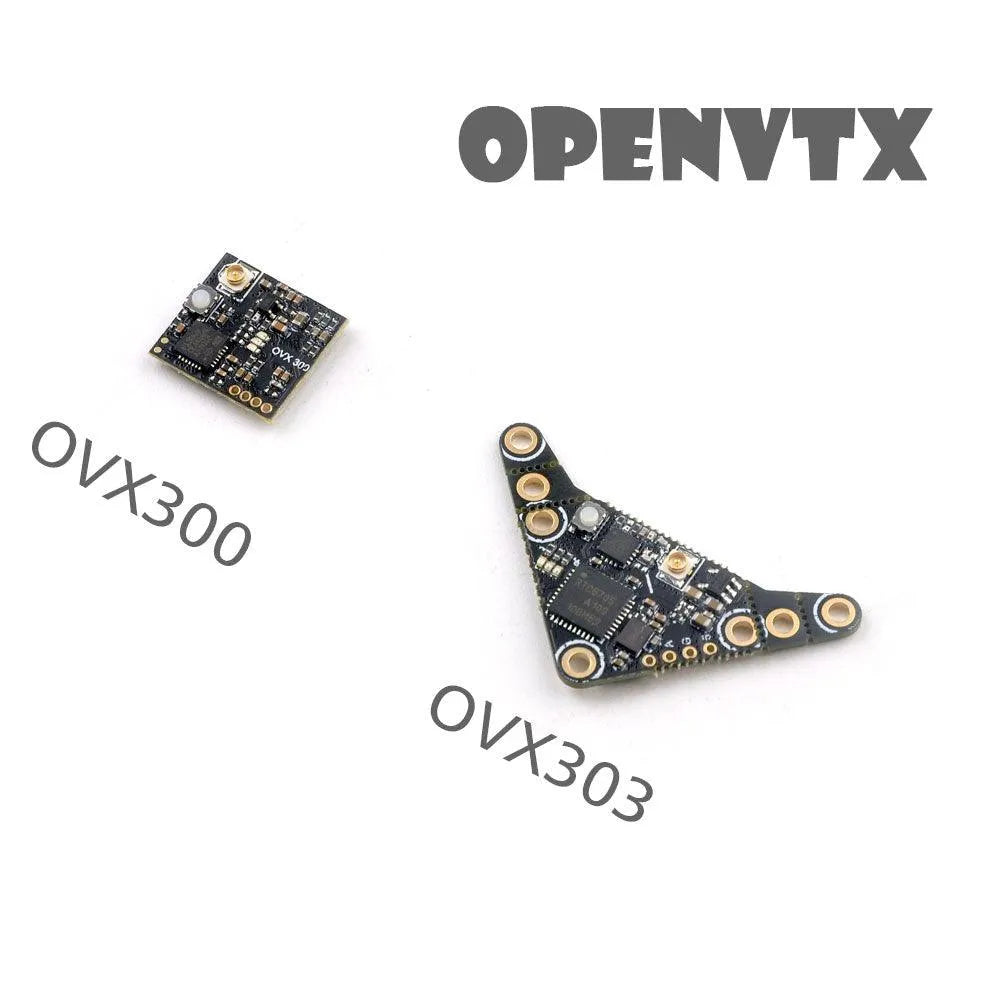

Happymodel OVX300 and OVX303 VTX are based on the Open source project OpenVTX powered by JyeSmith (EpxressLRS team)
OpenVTx aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol can be used on the flight controller and on VTx power up the protocol used is automatically detected by OpenVTx.
Currently SA is fully implemented and test against Rev. 09. To date IMRC has not released a protocol standard and implementation is based on information found within Betaflight.
Main Features
OpenVTX firmware preload
Smartaudio ready
Nano size and stable power output
Specification:

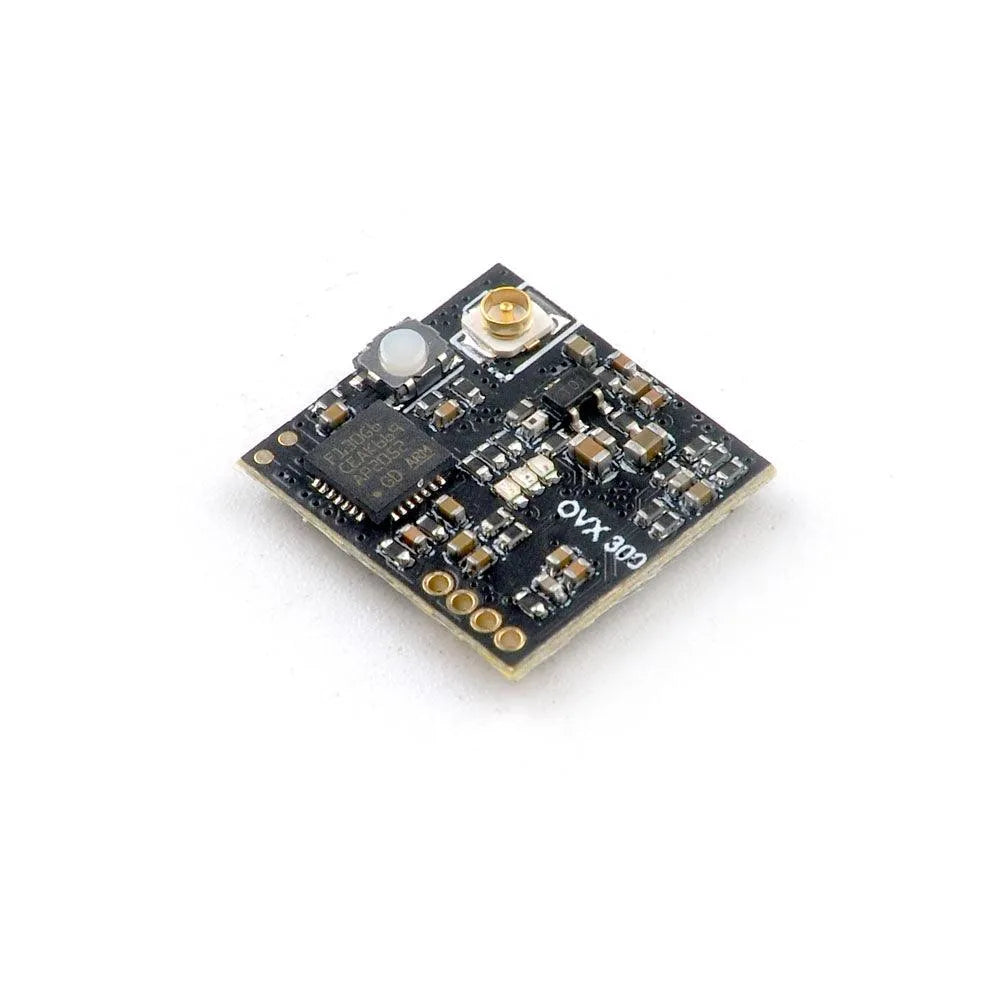

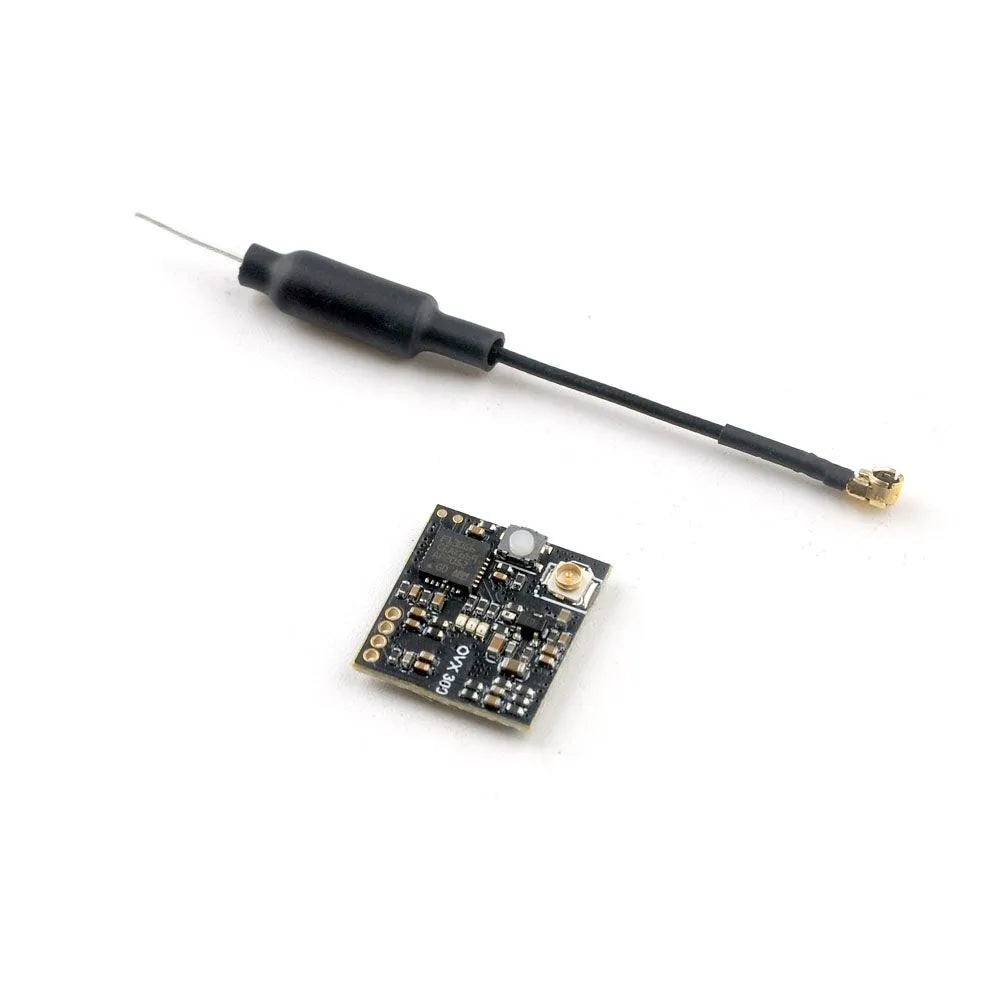

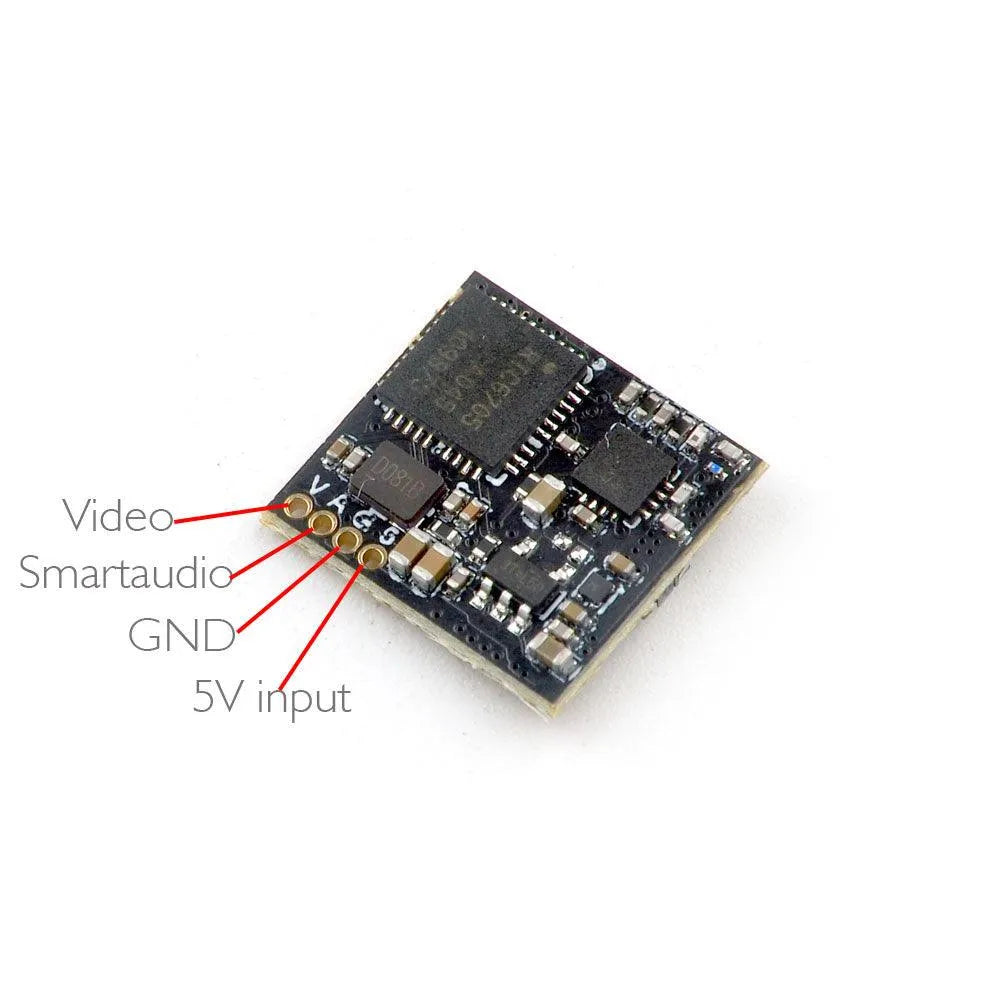

Model: OVX300
Frequency: 5.8G 40CH
Transmitting Power: 0/RCE/25mw/100mw/300mw
Power supply: DC 5V
Current (5v): <650ma (300mw)

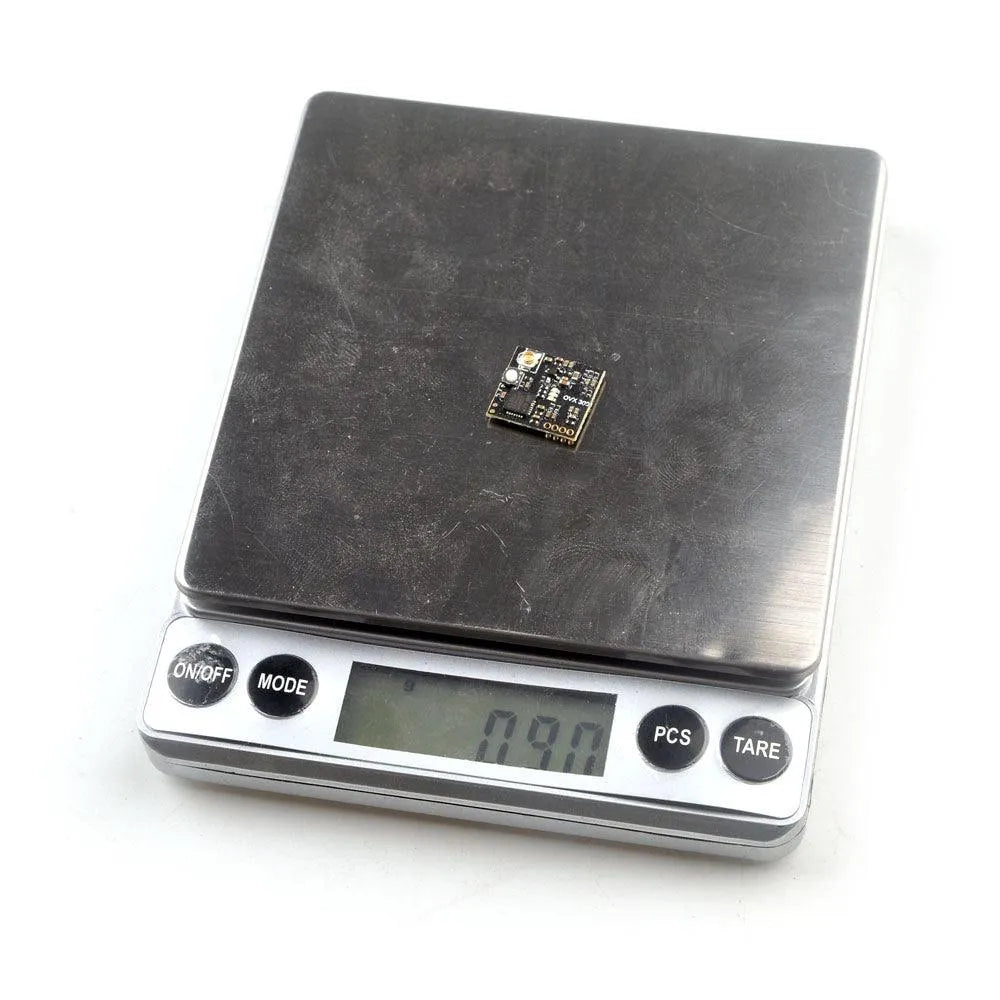

Weight: 0.9gram without antenna
Standard size: 14*15*3mm

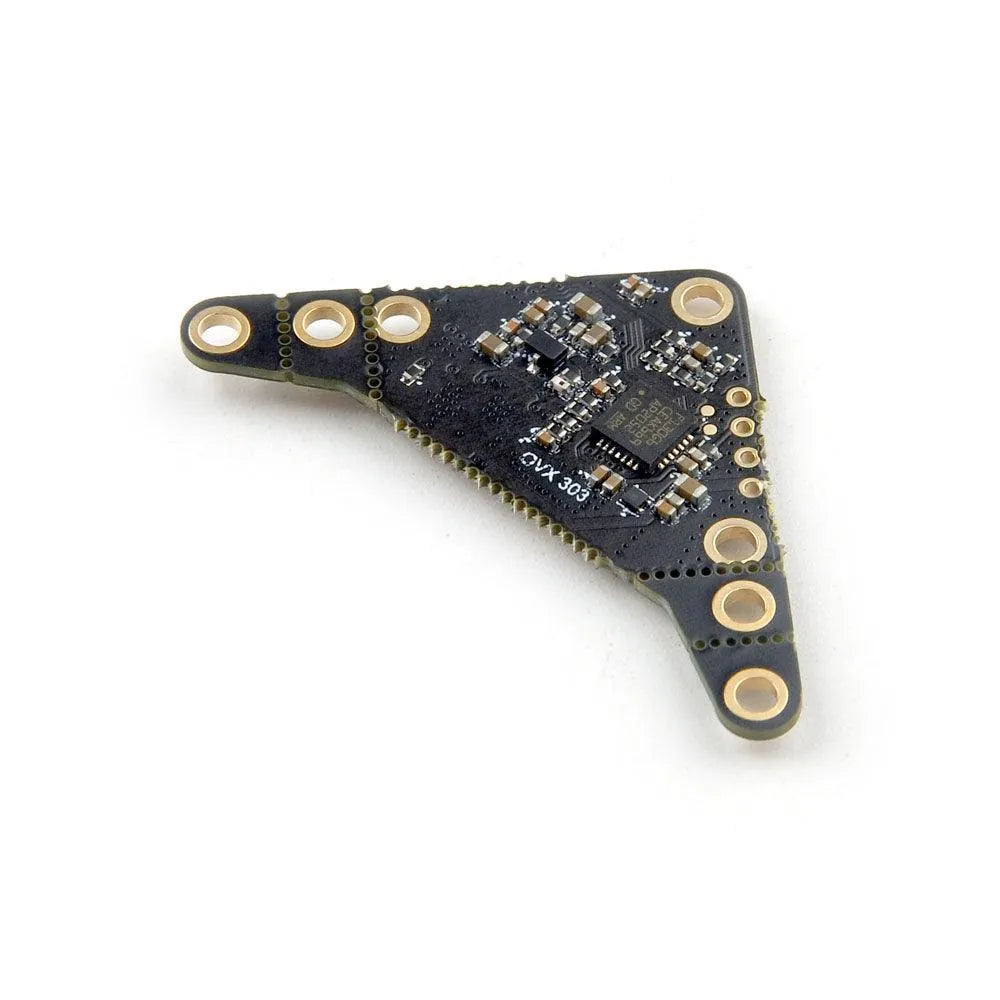

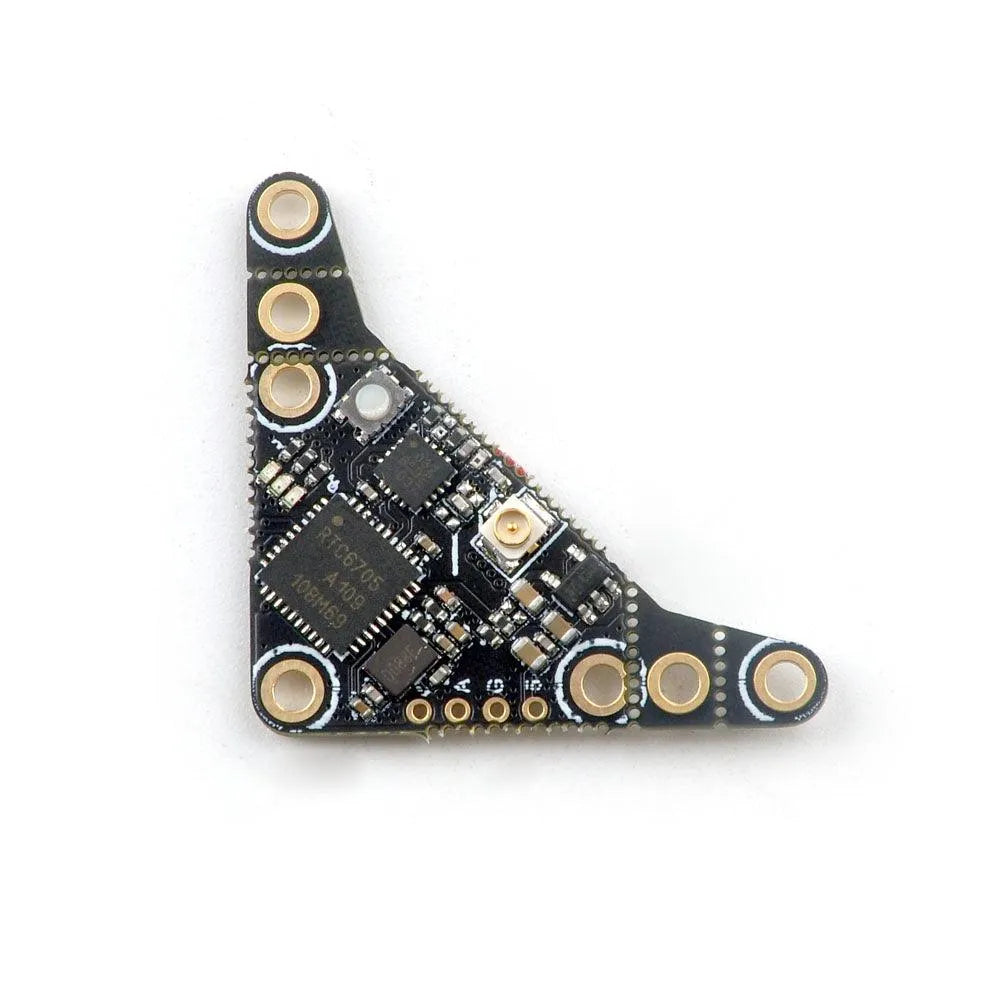

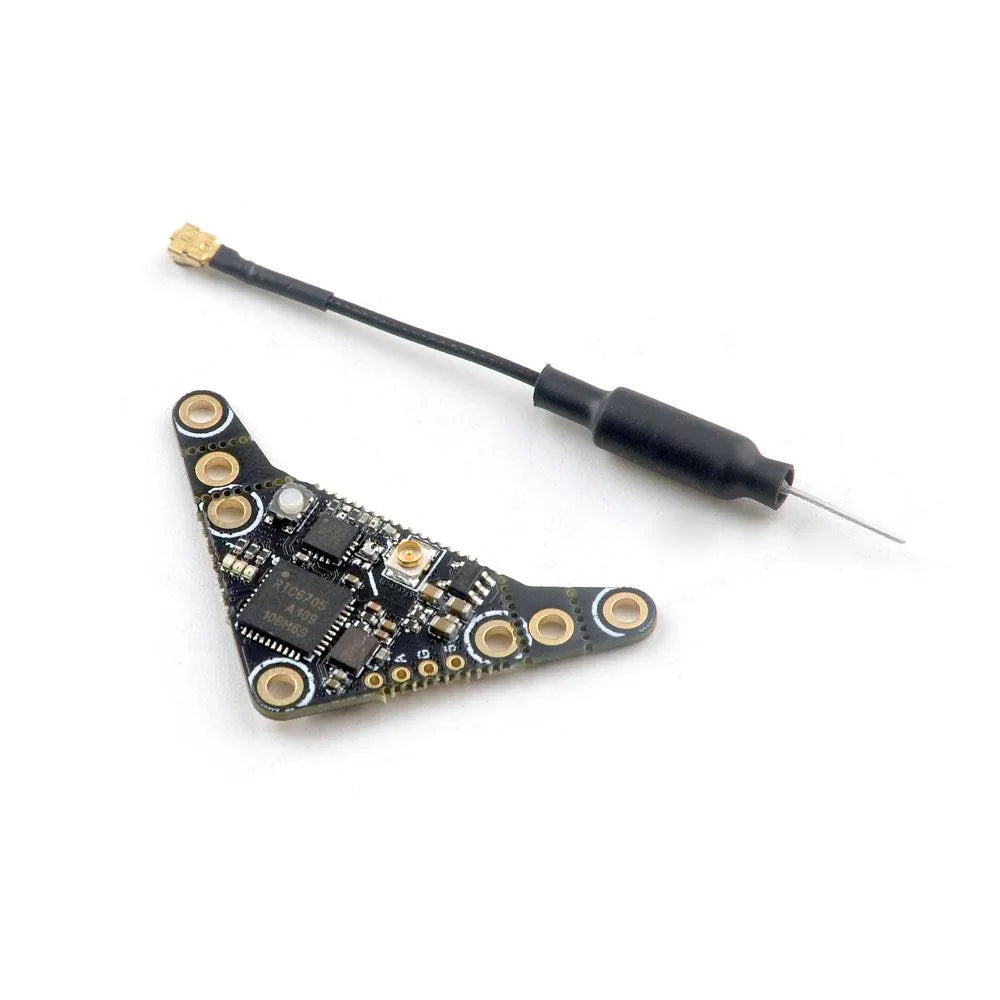

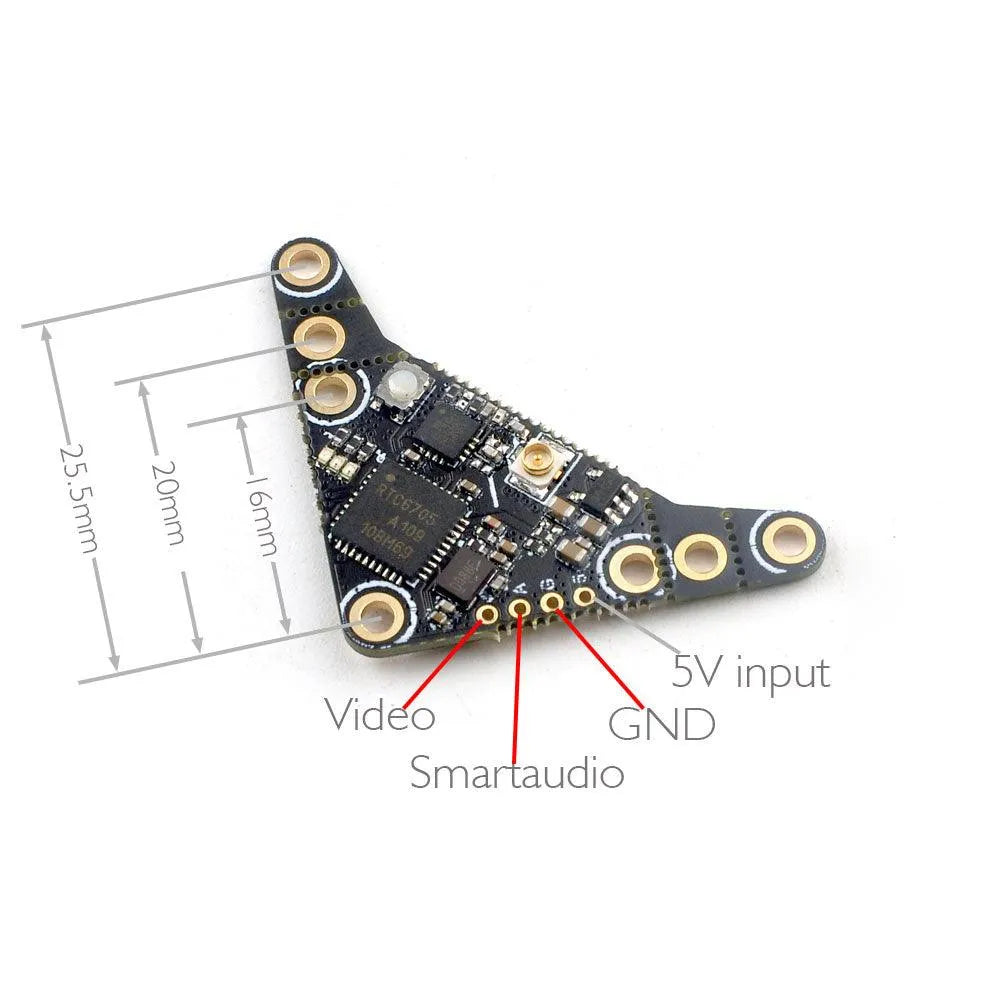

Model: OVX303
Frequency: 5.8G 40CH
Transmitting Power: 0/RCE/25mw/100mw/300mw
Power supply: DC 5V
Current (5v): <650ma (300mw)

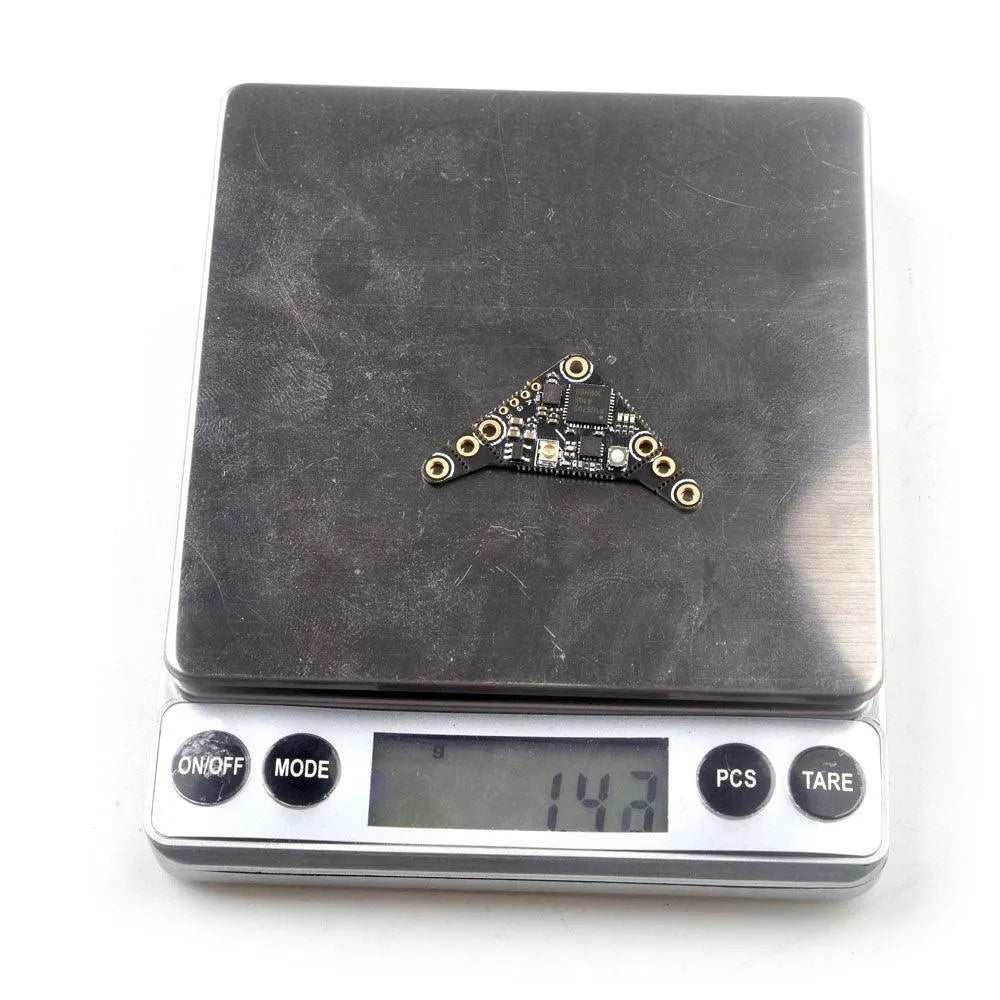

Weight: 1.5gram without antenna
Center distance of mounting holes:
16mmx16mm
20mmx20mm
25.5mmx25.5mm
Notes: Must work together with a flight controller that supports Smartaudio or Tramp
Package Included:
1*Happymodel OVX300 Or OVX303 VTX
