Happymodel EP1 TCXO and EP2 TCXO 2.4GHz ExpressLRS Receiver (ELRS)
This is a nano sized receiver for the ExpressLRS ELRS system. The EP1 TCXO uses a temperature...
- $19.99
$25.99- $19.99
- Unit price
- per
Save $6.00
Vendor:
HAPPYMODEL
Description
xThis is a nano sized receiver for the ExpressLRS ELRS system. The EP1 TCXO uses a temperature conpensated crystal oscillator which means accurate MCU clock frequency for improved performance and reliability of your RC link. The EP1, EP2, and EP1Dual modules are based on the ESP8285 MCU that allows for upgrading via WiFi, along with the SX1280(SX1281)IMLTRT RF Module.
Despite the small size the low latency and high refresh rate of the ELRS system allows these receiver to be used on full size/long range quads while also being small enough to be used on whoop size quads.

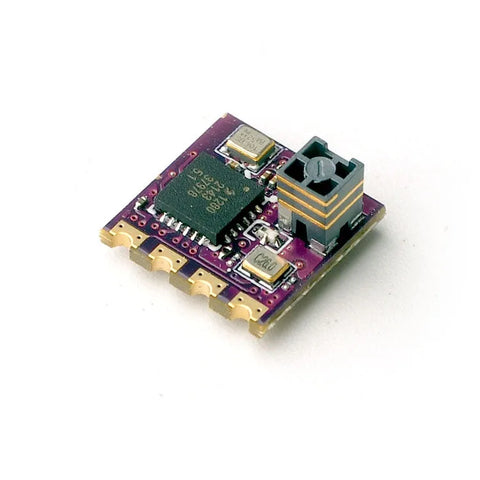

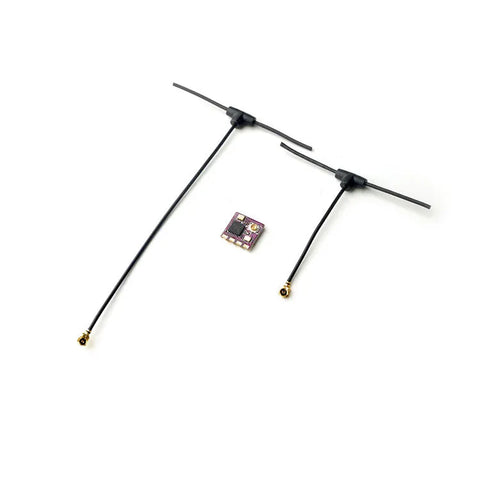

The Happymodel EP1 RX includes a IPEX connector for a dipole antenna, while the EP2 RX includes a built in SMD antenna.
Please note, ELRS is a new open source project so please only order this if you are comfortable with regular firmware updates as the firmware is still in beta. We will only be able to offer limited support due to the early nature of the firmware, but we think this project has great potential.
Specifications:

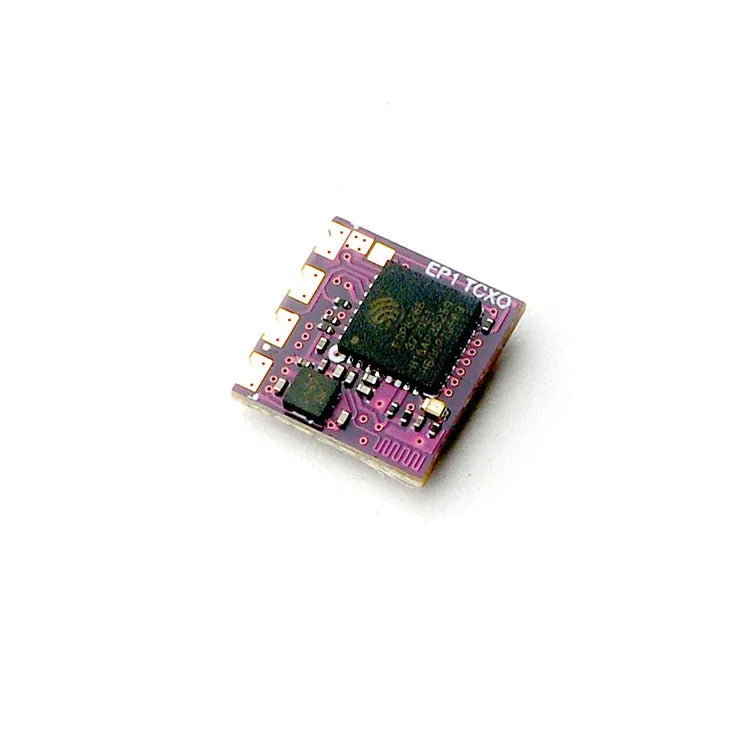

EP1 TCXO Receiver
Type: ISM2.4GHz
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
Omni directional antenna
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v

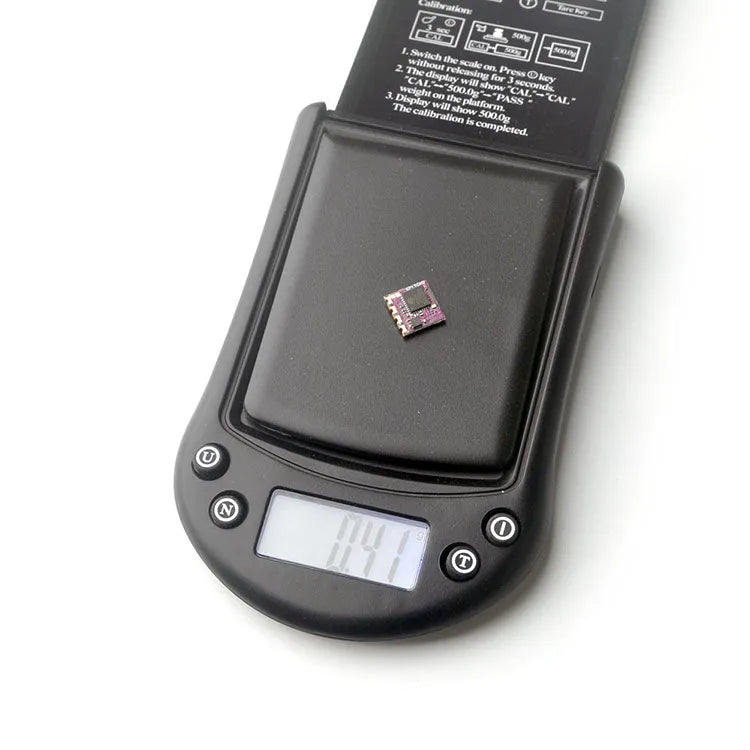

Weight: 0.41 gram(without antenna)
Dimension: 10mm*10mm*6mm
Peak gain: 2.23dB
Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version
Built-in a TCXO (temperature compensated crystal oscillator)

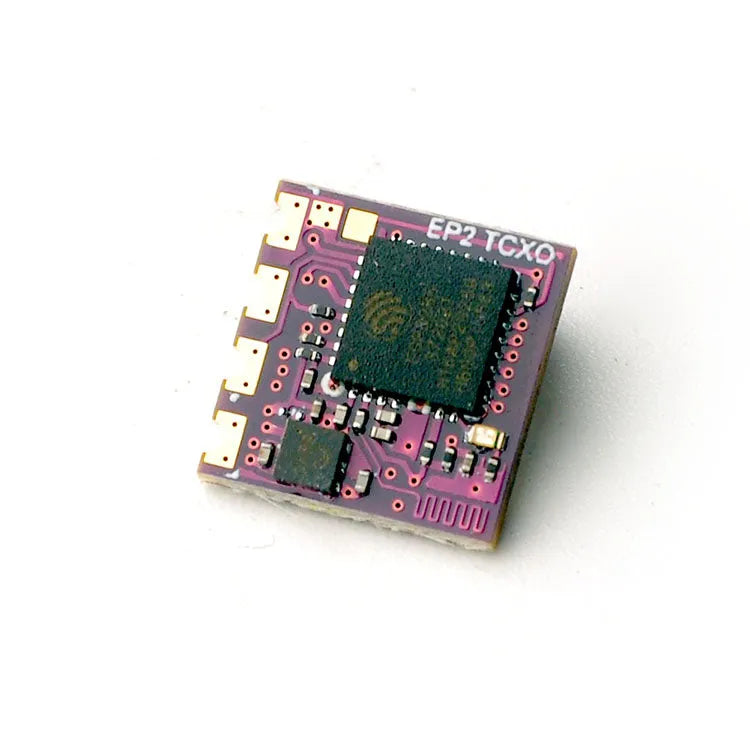

EP2 TCXO Receiver
Type: ISM2.4GHz
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v

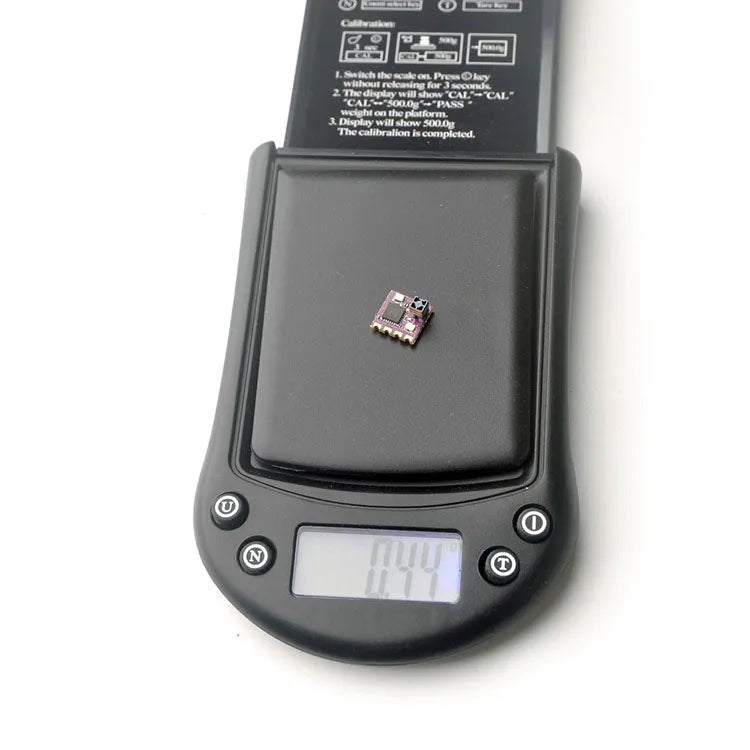

Weight: 0.44 gram
Dimension: 10mm*10mm*6mm
Peak gain: 3.7dB
Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version
Built-in a TCXO (temperature compensated crystal oscillator)
EP1 Dual TCXO Receiver (Buy it here)
Type: ISM2.4GHz
ESP32 PICO D4, dual SX1280(SX1281)
Antenna connector: IPEX MHF 1/U.FL
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: >19dbm
Receiver protocol: CRSF
Input voltage: +5V DC @ “+” pad
PCB size: 19mm x 14mm
Weight: 1gram exclude antenna
Built-in a TCXO (temperature compensated crystal oscillator)
Default Firmware out of factory: Unified_ESP32_2400_RX Could upgrade to HappyModel EP1 Dual 2400 RX 3.0FW
