DJI Digital FPV System – Reimagine Your FPV World

DJI has redefined the drone racing industry with the new Digital FPV System. It delivers lower latency rates within 28 ms, a 4km maximum transmission range, stunning HD 720p/120fps resolution, and, most importantly, an unforgettable FPV flying experience.

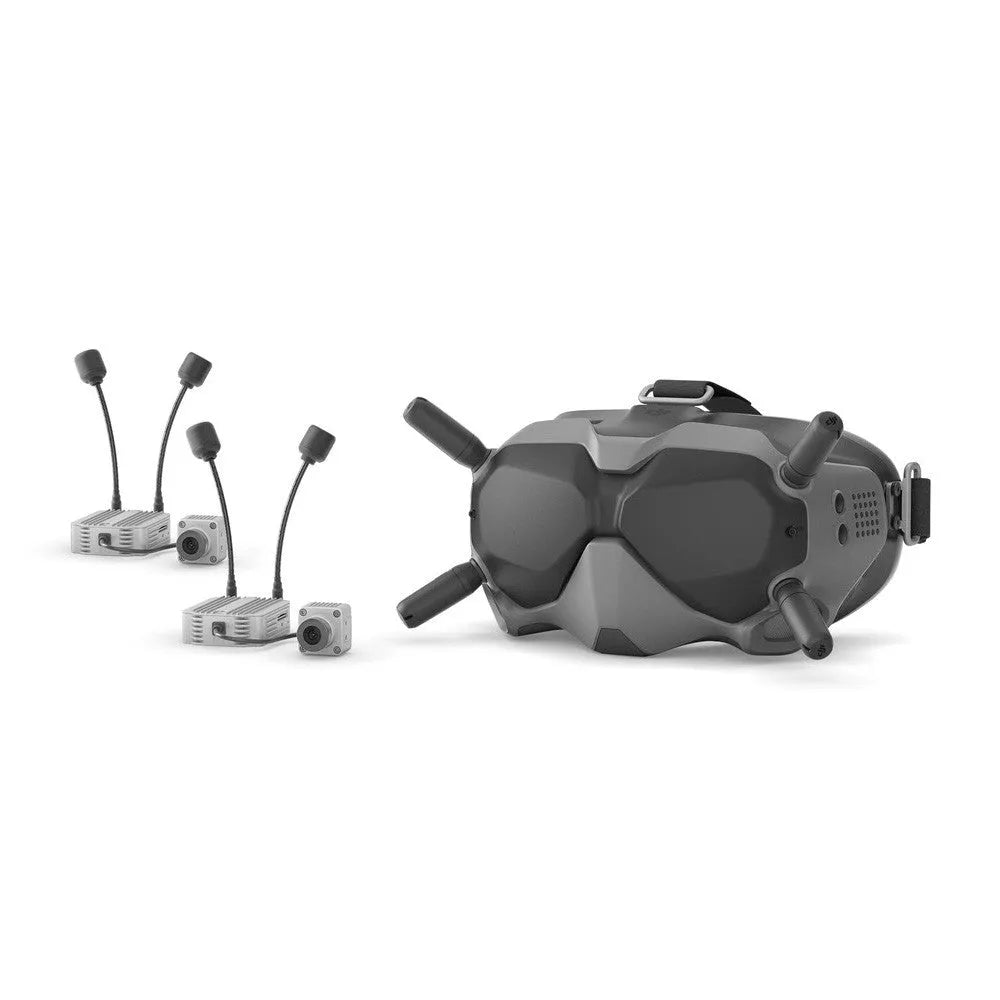

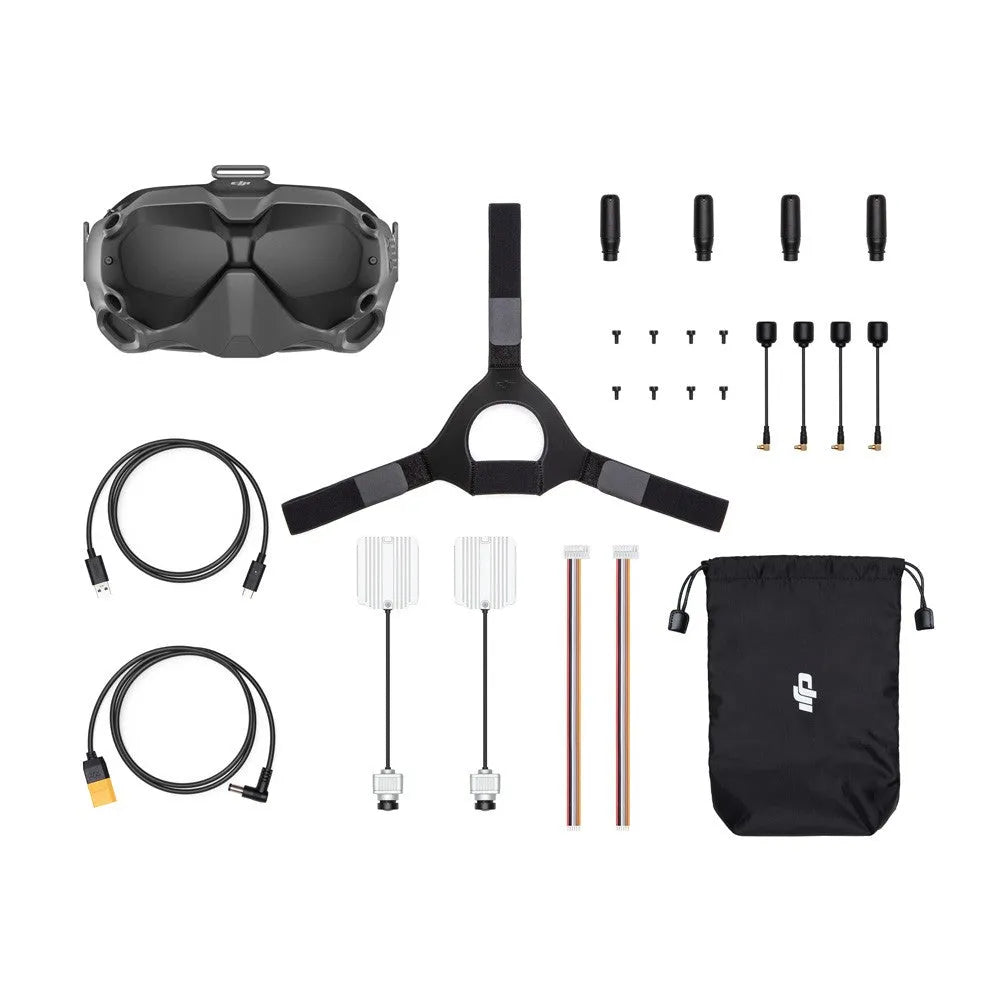

The DJI FPV Experience Combo includes one (1) DJI Digital HD FPV Goggle along with two (2) FPV Air Units. Use the Experience Combo to build or swap a pair of drones to the DJI system - or simply have an extra Air Unit as a backup!

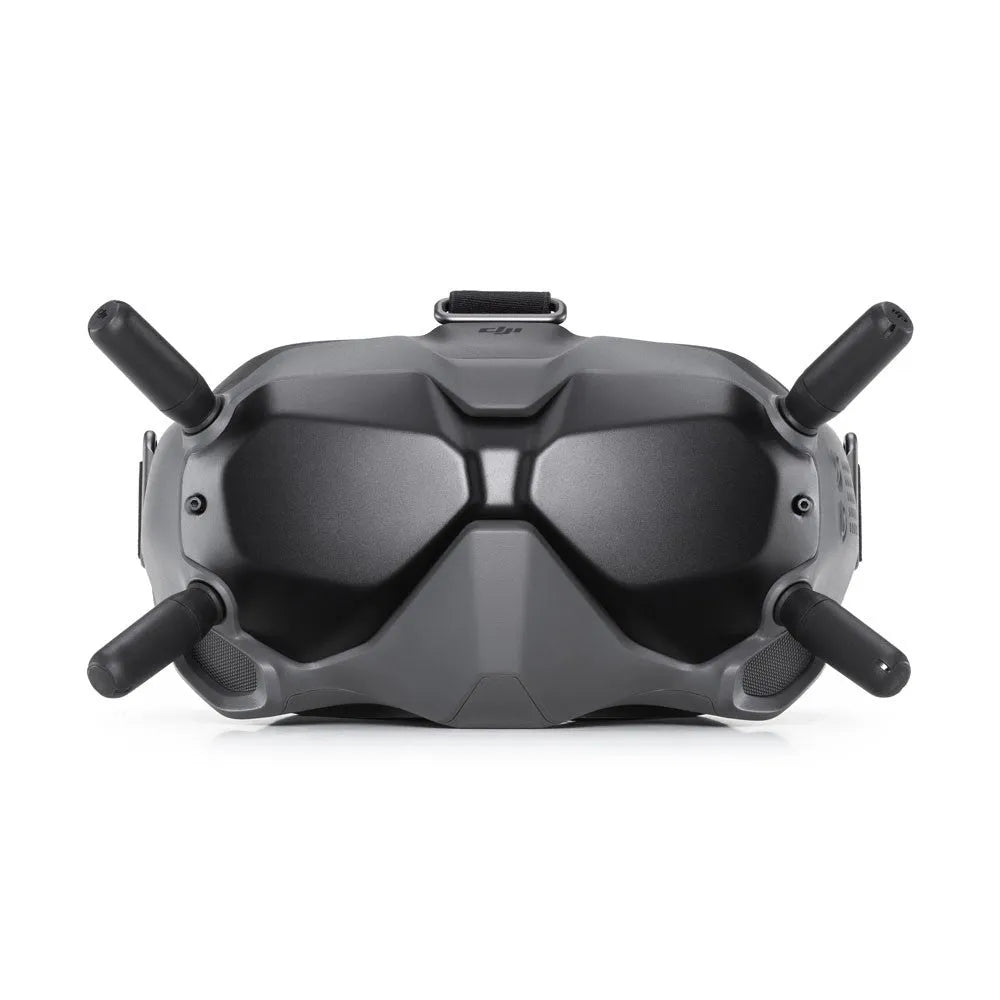

DJI FPV Goggles

The DJI Digital HD FPV Goggles are truly one-of-a-kind, in performance and style. DJI has created and honed its digital transmission system to satisfy the demands of drone pilots (no easy task).

Racing and freestyle drone pilots alike want the fastest response, lowest latency and clearest video in their FPV system in order to perform fast movements with the most accuracy. Analog video was the best way to achieve low latency and fast response, but the video was never very clear. And conversely with digital, the video was clear and crisp, but there was a noticeable delay that many pilots couldn't live with - plus digital HD systems were bulky and cumbersome to put on your drone.

Well, all of that is changed with DJI's entry to Digital HD. Crystal clear 720p 120fps video directly to your goggles, with the lowest latency ever before on a digital HD system!

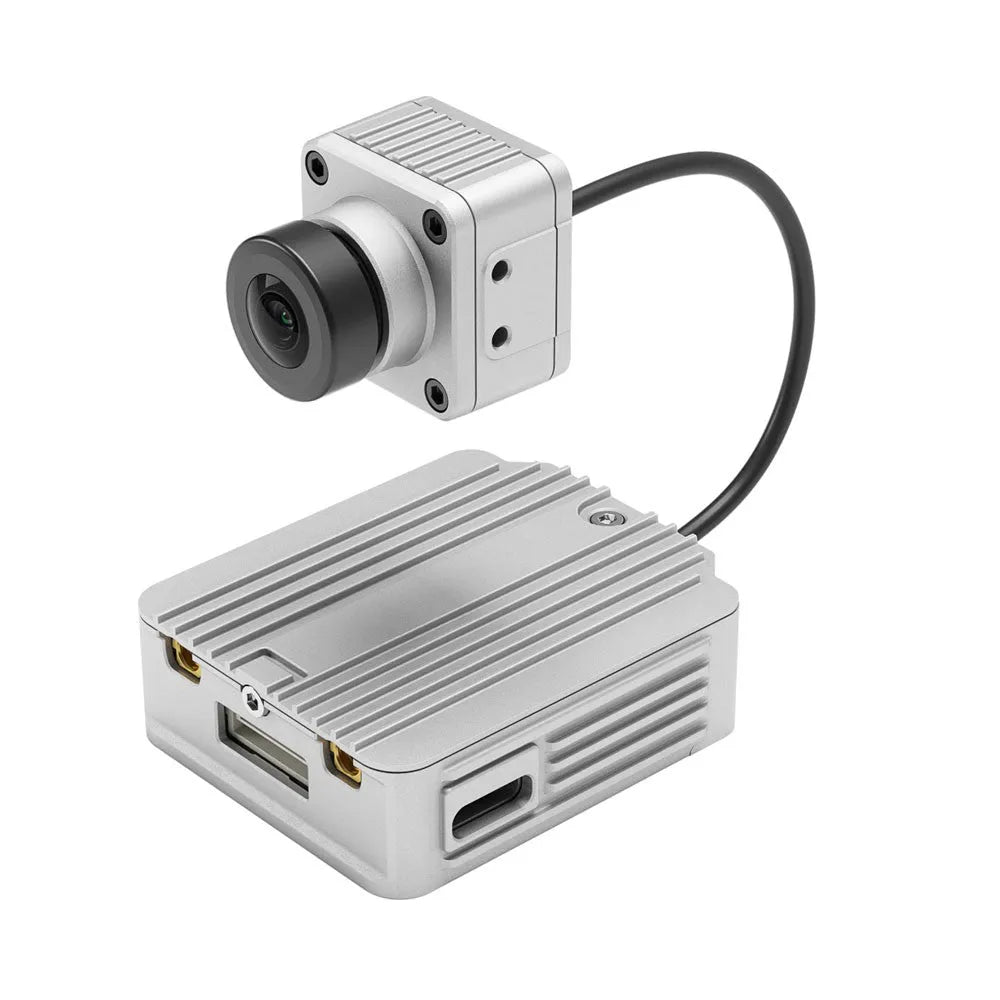

DJI FPV Air Unit

FPV through the DJI Digital HD Air Unit is the way FPV is meant to be. This 5.8Ghz air unit (FPV camera + VTX) provides amazing visual clarity that is able to be transmitted to your DJI Goggles through its built-in receiver module. The DJI FPV Air Unit provides ultra-low latency HD digital image transmission, built-in 1080p/60fps DVR recording, and eight frequency channels to allow up to eight pilots to fly simultaneously.

Digital HD systems have traditionally been rather bulky and unwieldy to mount on a mini quad. Not anymore. With this air unit, you can comfortably fit the module in your mini quad stack (probably not slammed frames). The 'mini' camera fits easily into your existing builds, no weird mounting adapters.

Specifications

DJI FPV Goggles

Weight: Approx. 415 g (headband and antennas included)

Dimensions:
202 × 126 × 110 mm (antennas included)
184 × 122 × 110 mm (antennas excluded)

Screen Size: 2-inch × 2
Screen Resolution (Single Screen) : 1440 × 810
Screen Renew Rate: 120 Hz
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) : FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm

Live View Mode
Low Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)

Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6 V
FOV Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70 mm
Battery: 6.6V-21.75V
External battery, total power consumption of 7W
Supported Storage Card: microSD cards with capacities of up to 128GB

DJI FPV Air Unit

Weight
Air Unit (Camera included): 45.8 g
3.9 g (MMCX elbow each)

Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Camera: 27.4 × 21.1 × 20.1 mm
Coaxial Cable: 100 mm

Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm

Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms

Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm
Weight: 8.2 g

Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

Note: The Air Unit Module does get very hot in use. Do not power on for an extended period of time without proper cooling (AKA flying).
