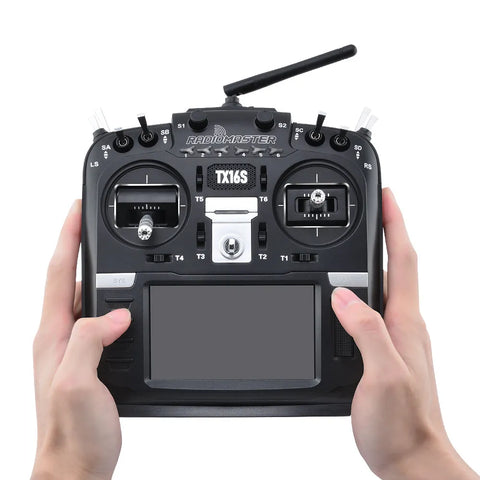

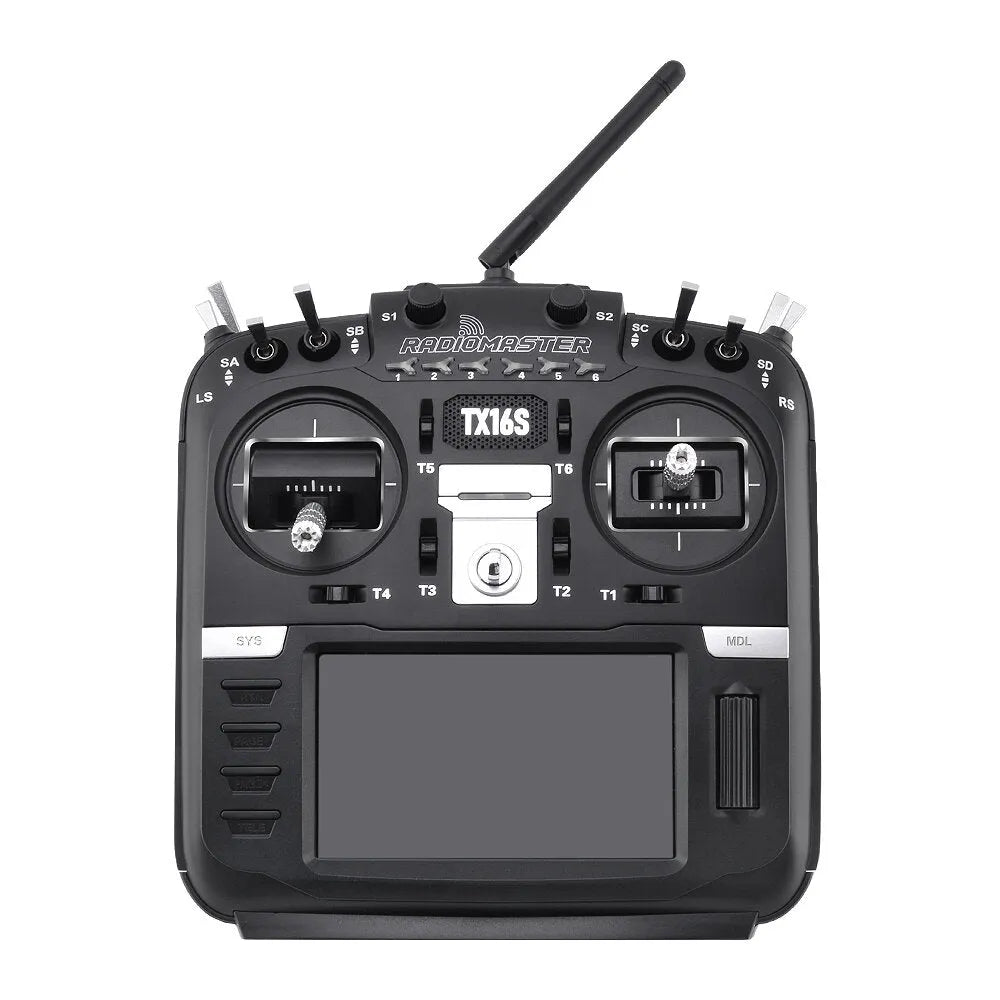

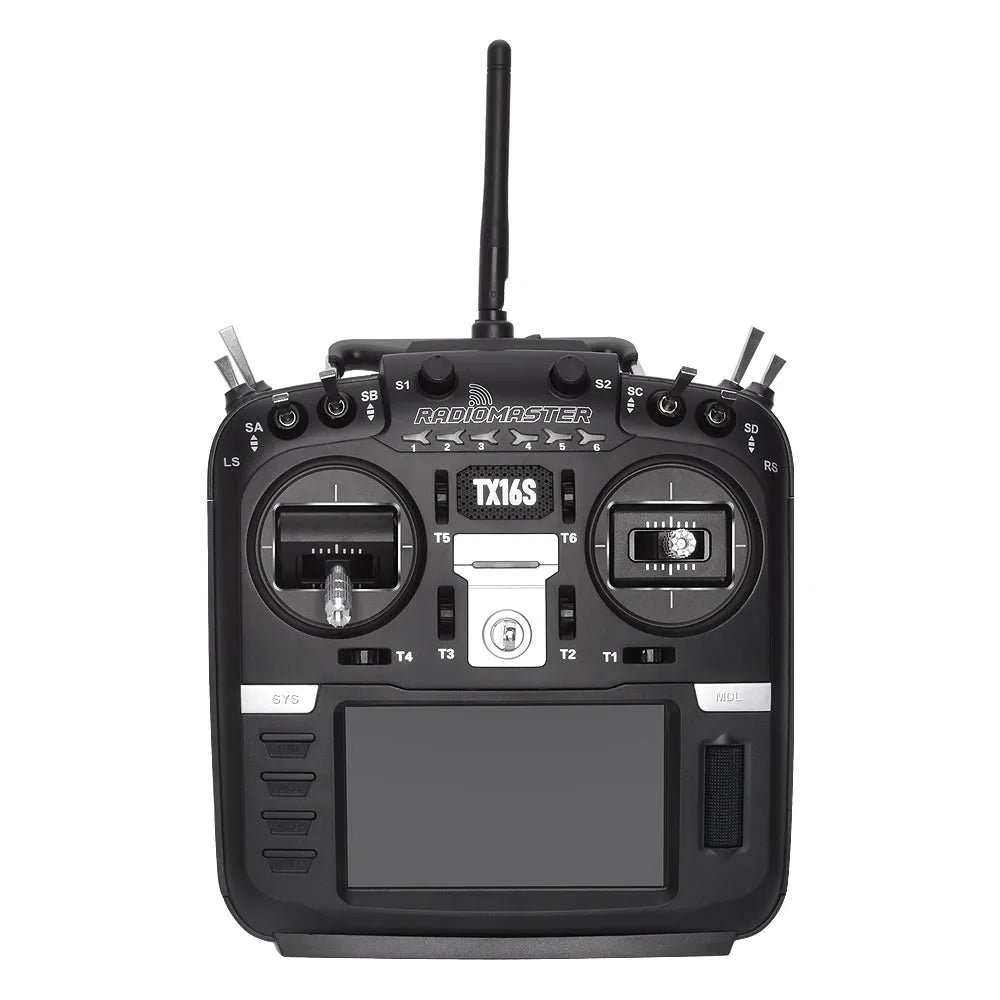

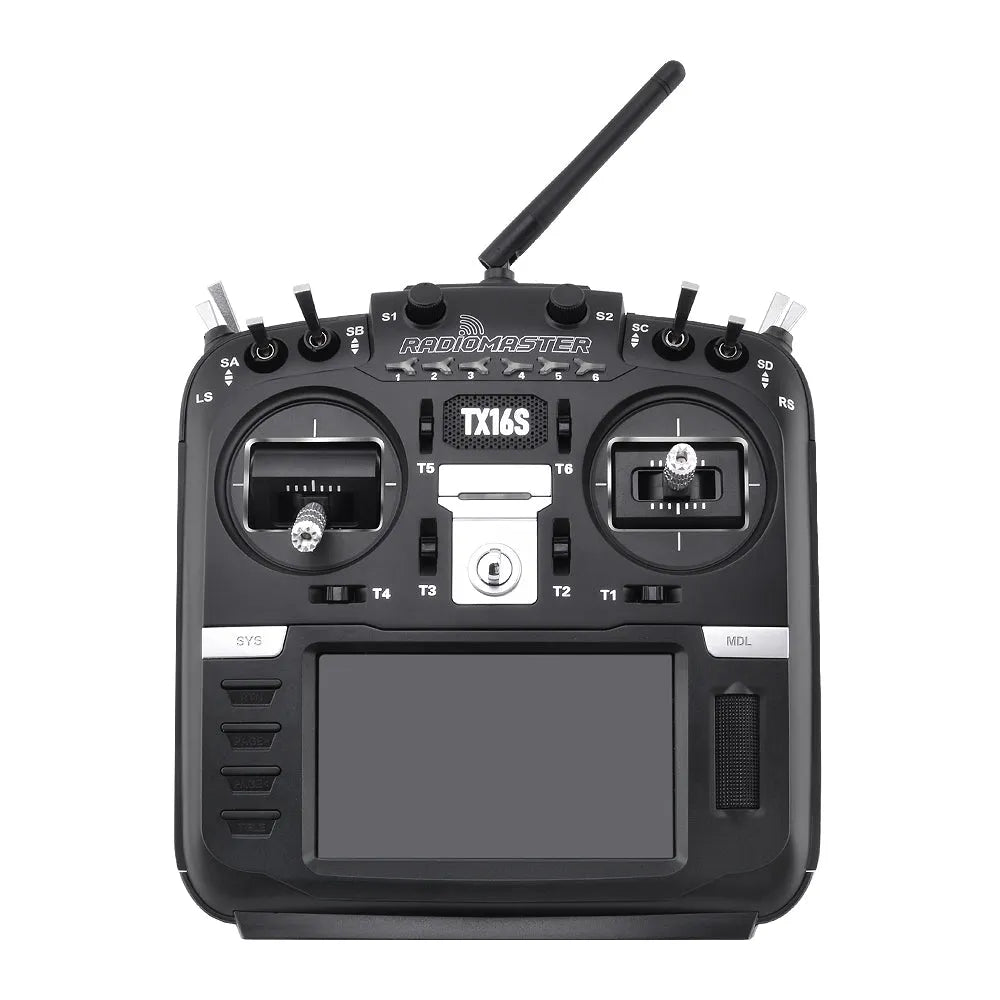

RadioMaster TX16S Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Transmitter with TBS MicroTX V2

RadioMaster TX16S Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Transmitter with TBS MicroTX V2

par RadioMaster

UGC 6457862
Économisez 30% Économisez 30%
$329.99
$12.99 - $369.99
$329.99
$229.99
$9.99 - $320.99
$229.99
Version: TX16S without TBS
Transmitter Mode: Mode 2 - Throttle on the Left
Warehouse: CN
Shipping Methods & Delivery Times

We offer three shipping methods:
1) Free Standard Shipping - takes 7-20 working days (except remote areas) and requires a remote fee for those areas.
2) Expedited Shipping - takes 4-10 working days and requires an additional fee. Contact us if you want to use express shipping.
3) Ocean Shipping (for USA only) - takes 18-35 working days. Contact us if you want to use sea shipping.

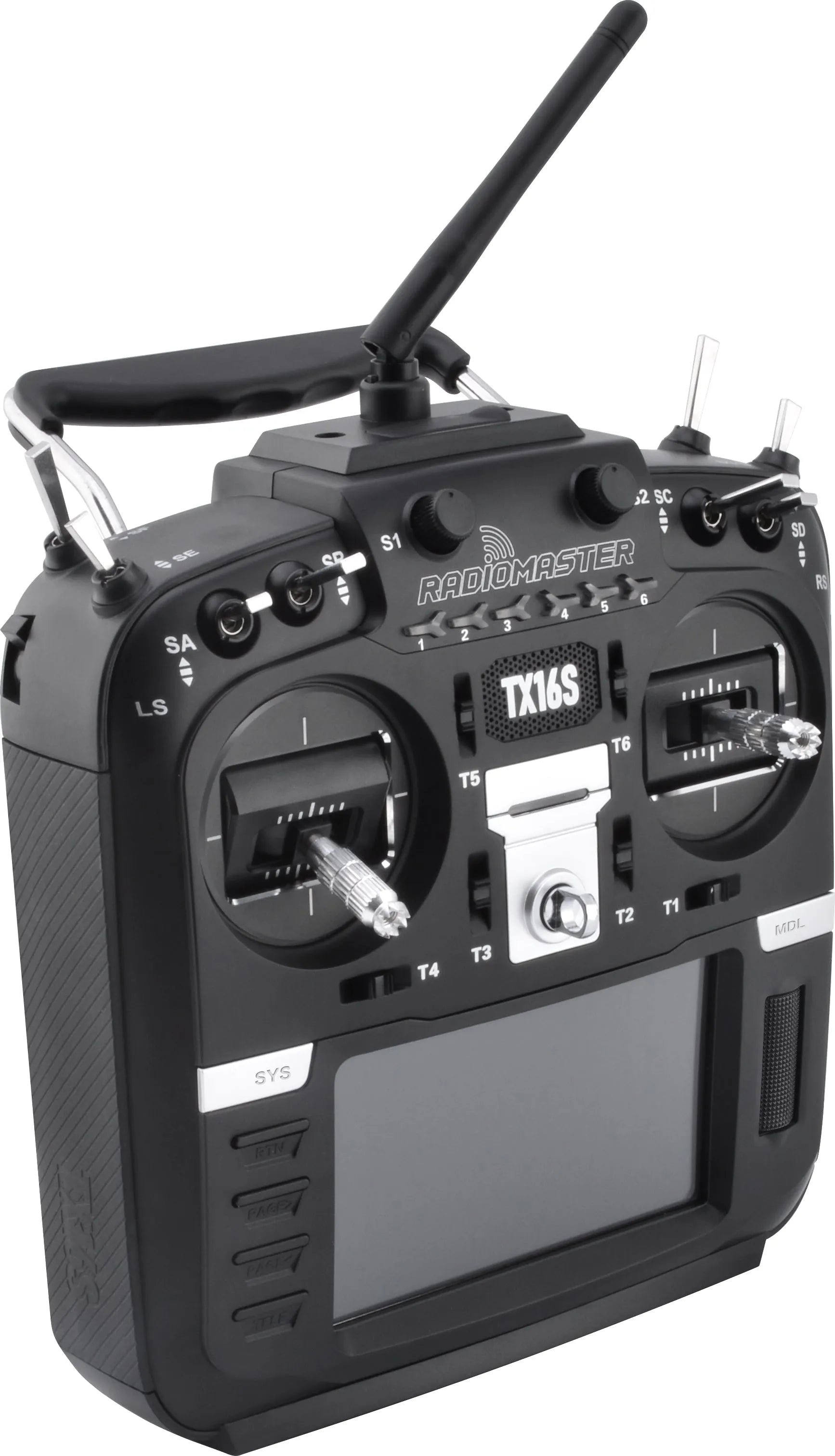

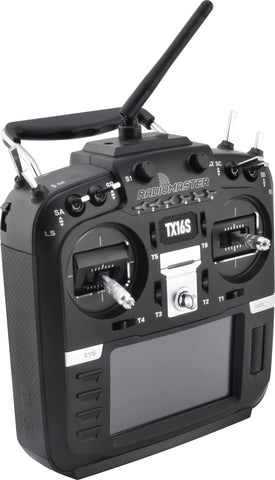

RadioMaster TX16S Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Transmitter with TBS MicroTX V2

Related files:

Crossfire shot will be implemented in the main OpenTX 2.4 branch. An experimental testing version can be downloaded from the TBS website.

Description:
Brand Name: RadioMaster

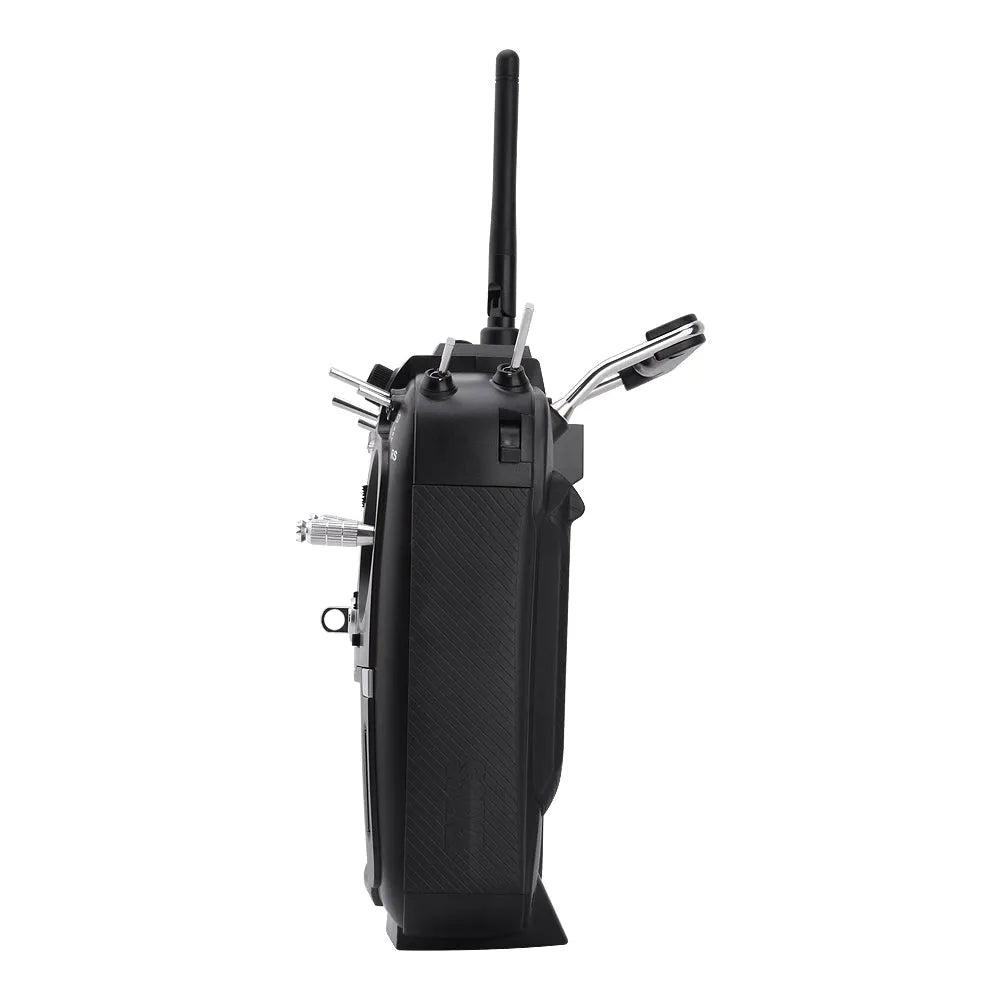

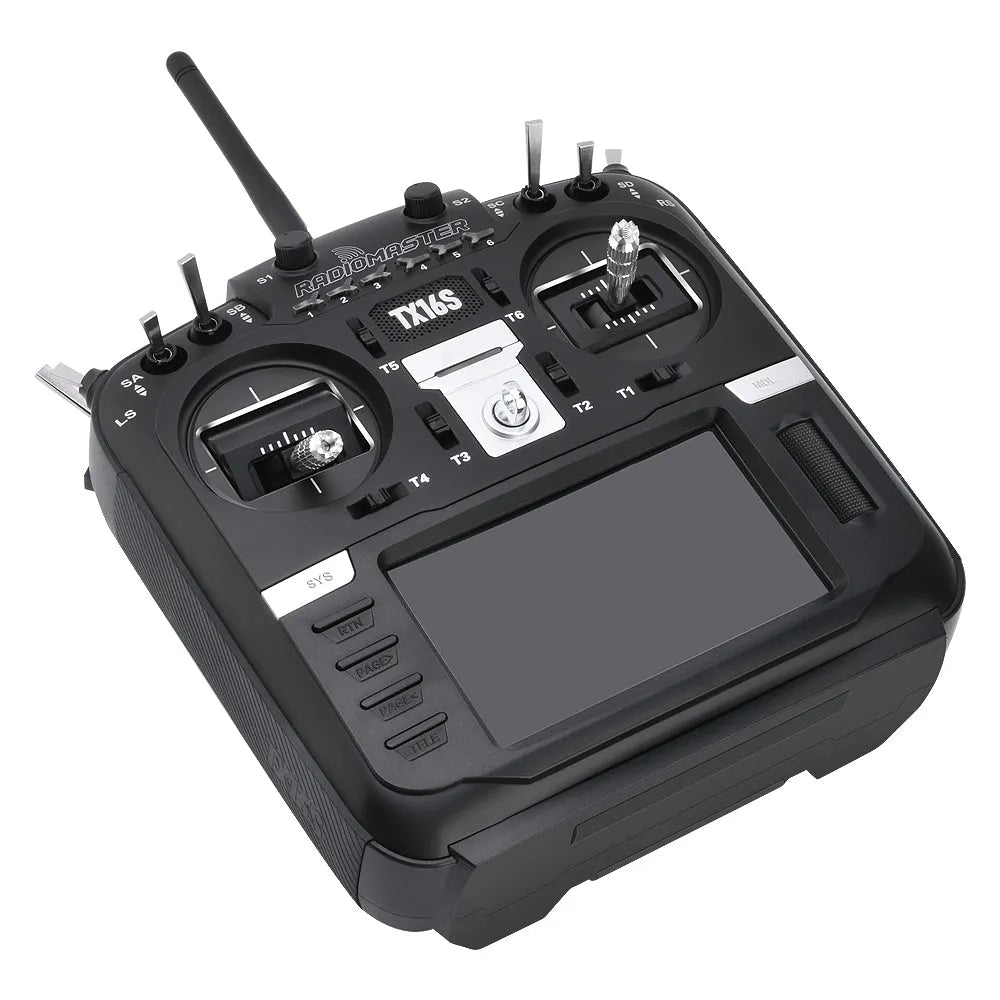

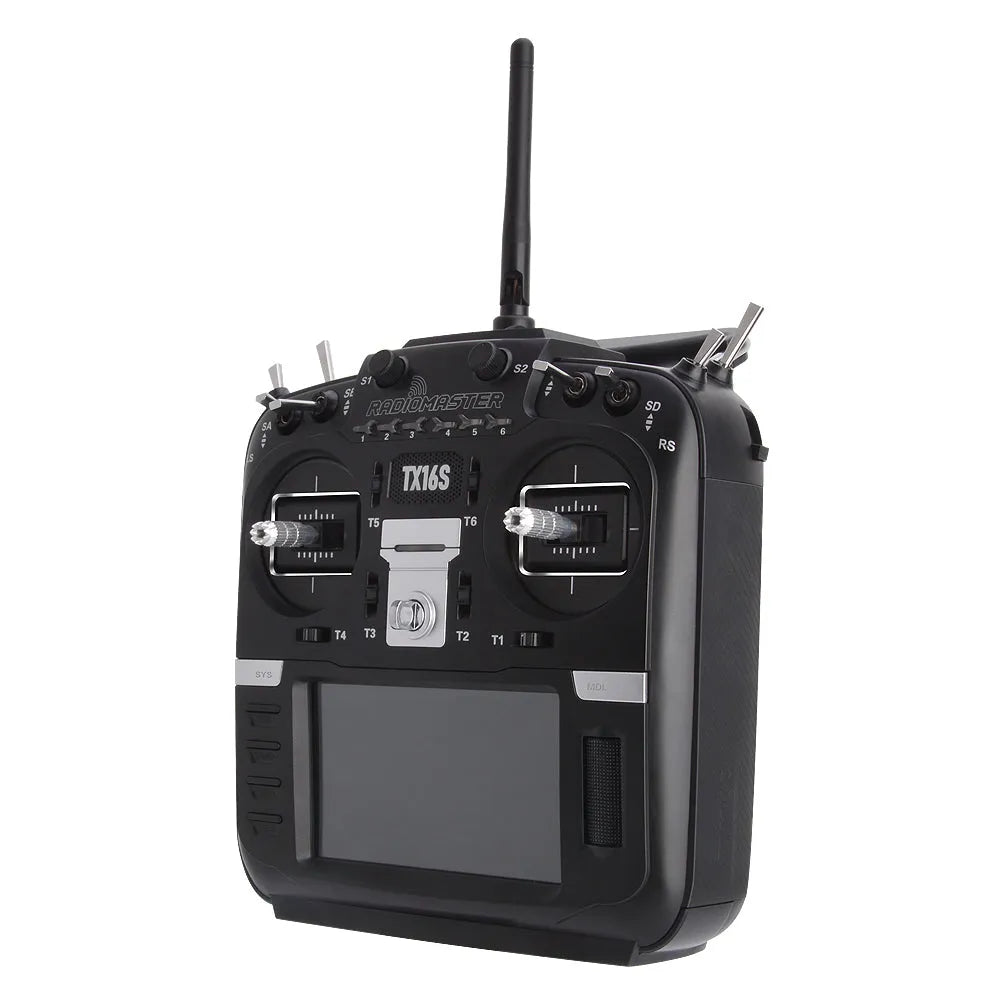

Item Name: TX16S Transmitter
Channel: 16CH
Mode: Mode2
Size: 183*212*66 mm
Weight: 736g (without battery)
Voltage: DC7-8.4V

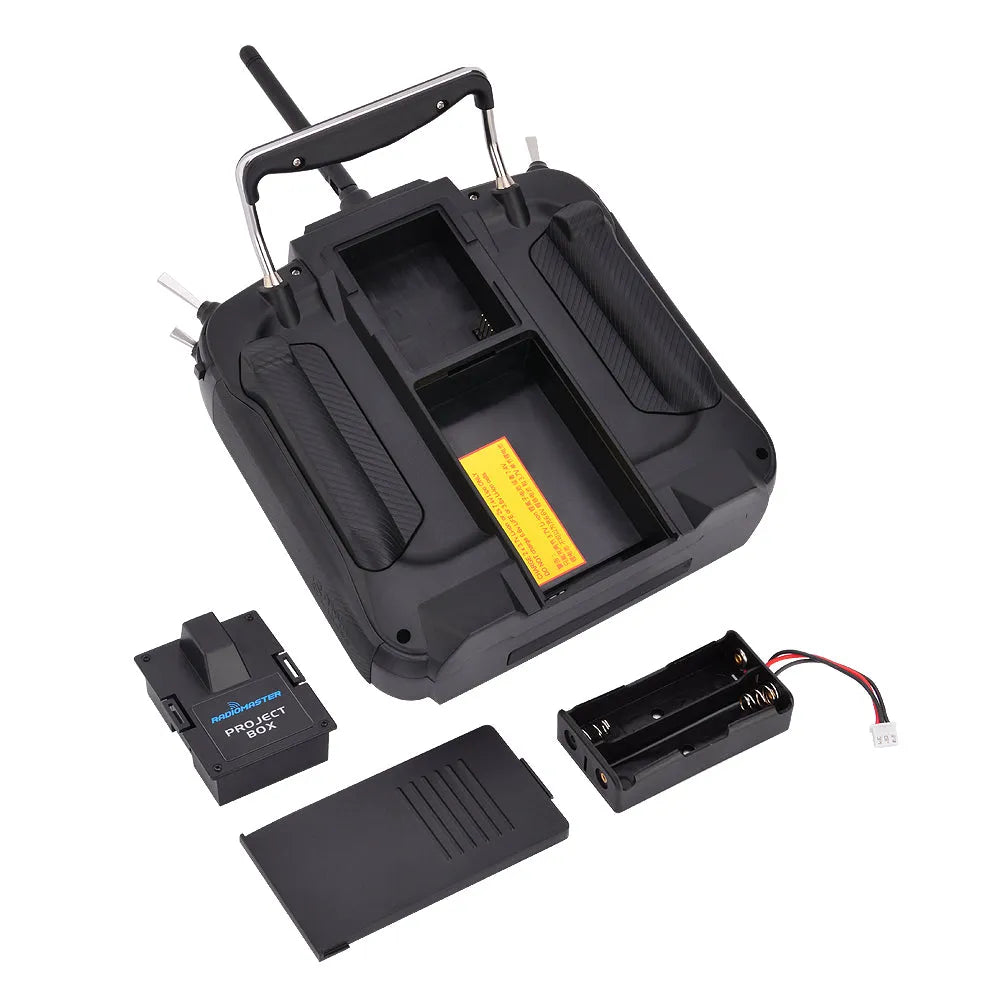

Battery Compartment: 25*52*97mm
2 x18650 (tray included) , 21700 7.4v 2s Pack or 7.4v 2s Lipoly (Batteries not included)
Current: 400mah (excluding external module)
External Micro SD slot: Card Included
2 x External UART Expansion Ports

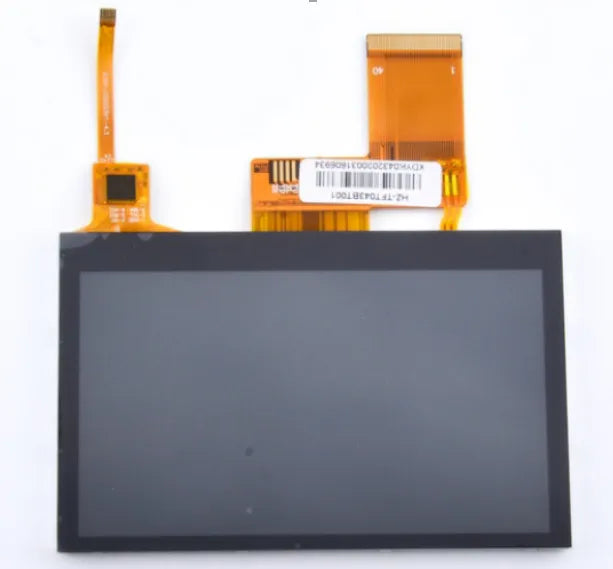

Touch Panel Ready (requires OpenTX 2.4 and Upgrade Panel Sold seperatly)

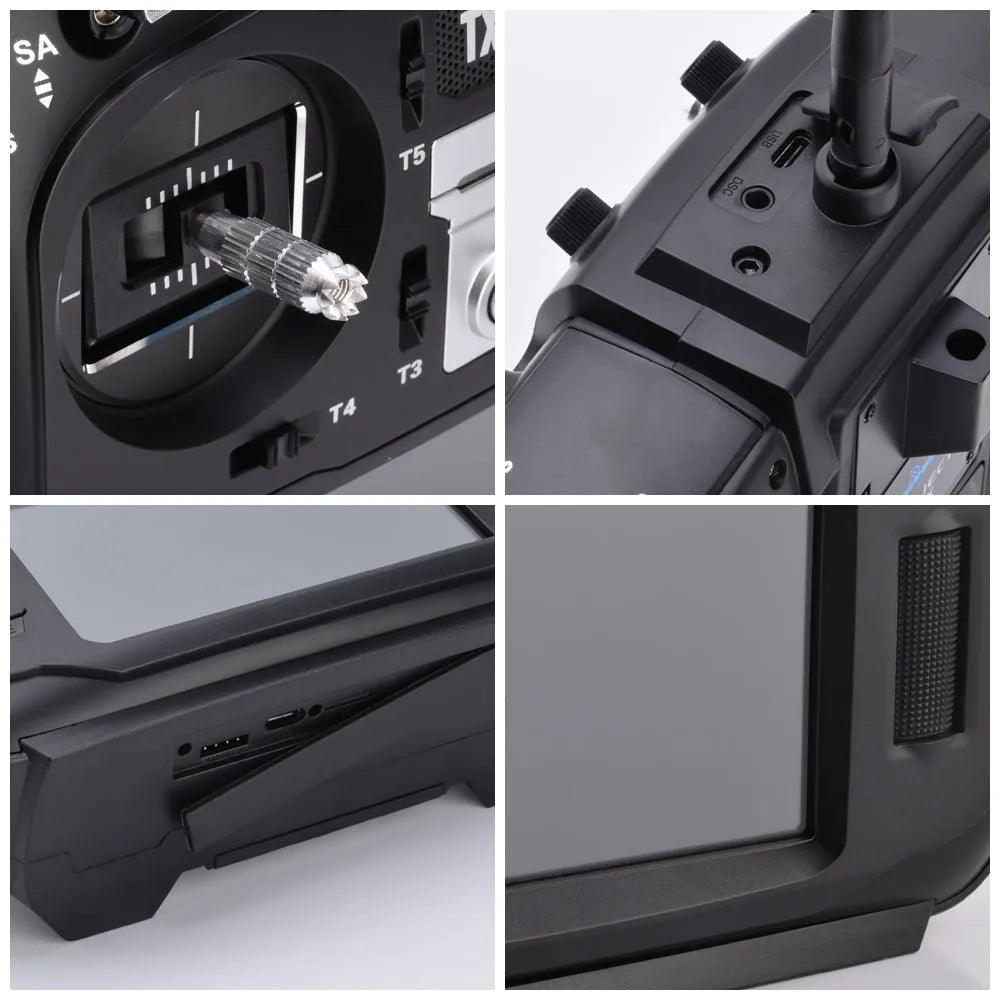

Features:

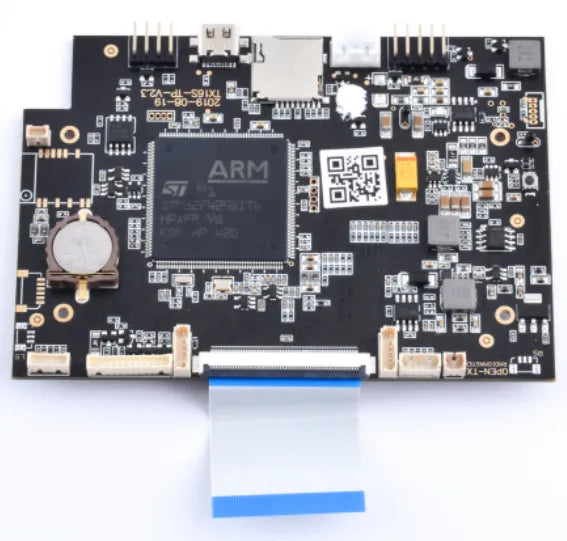

STM32F429BIT6 MCU
Industrial grade 4.3 inch 480*272 outdoor readable color screen
Compatible with OpenTX

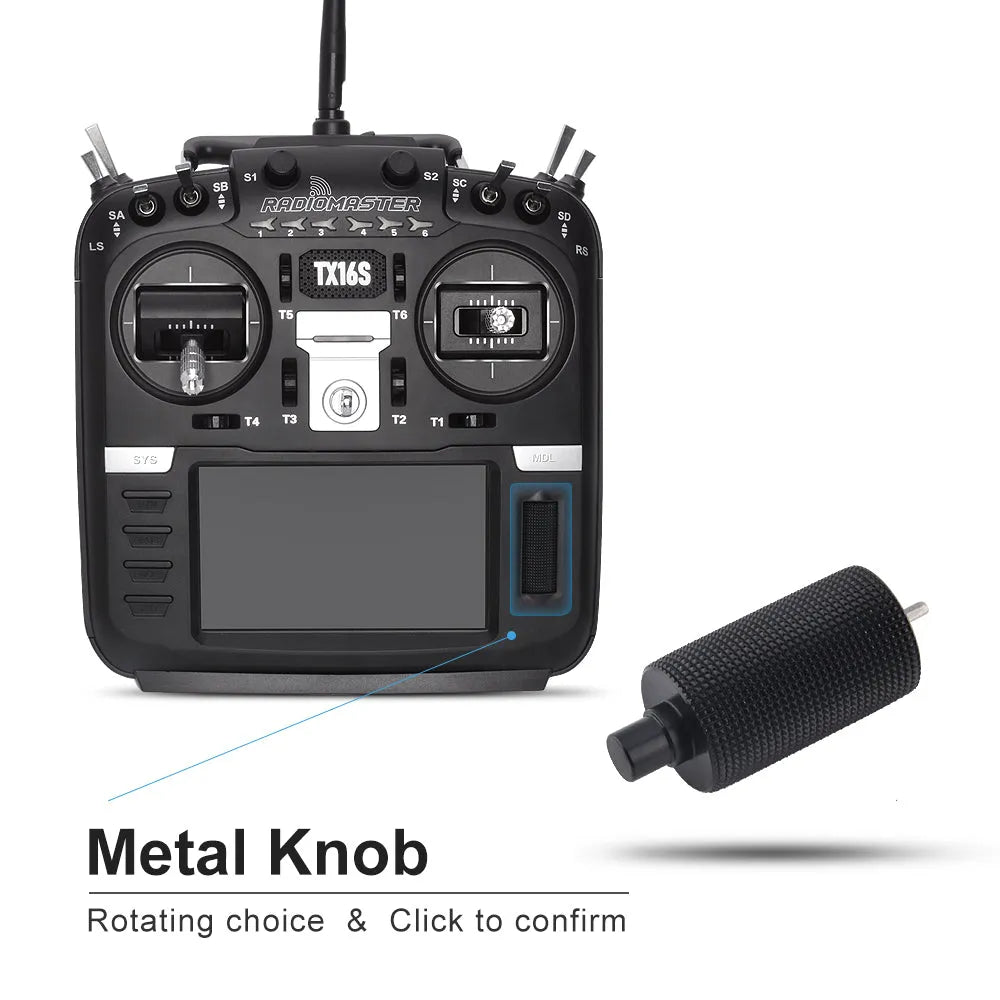

Wheel menu button

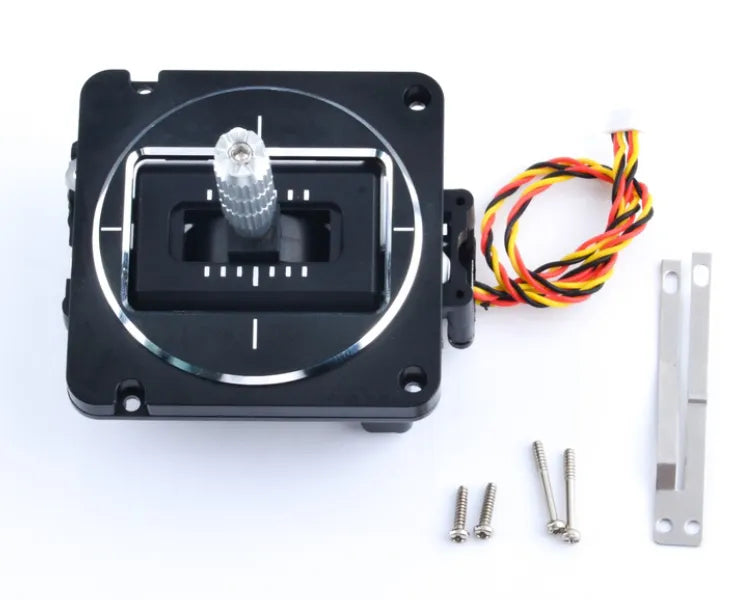

Full Size High Quality HALL sensor gimbals with CNC Aluminum Facias
Internal Multi-protocol RF System
Full Speed Native TBS Crossfire support (400K)
Supports Telemetry (Protocol and Receiver dependent)
Memory 16M (can be expanded by Micro SD card)
Voice function
Vibration reminder function
Improved JR module slot
6-Flight Mode Buttons (Pixhawk and more!)
Three-color LED status display

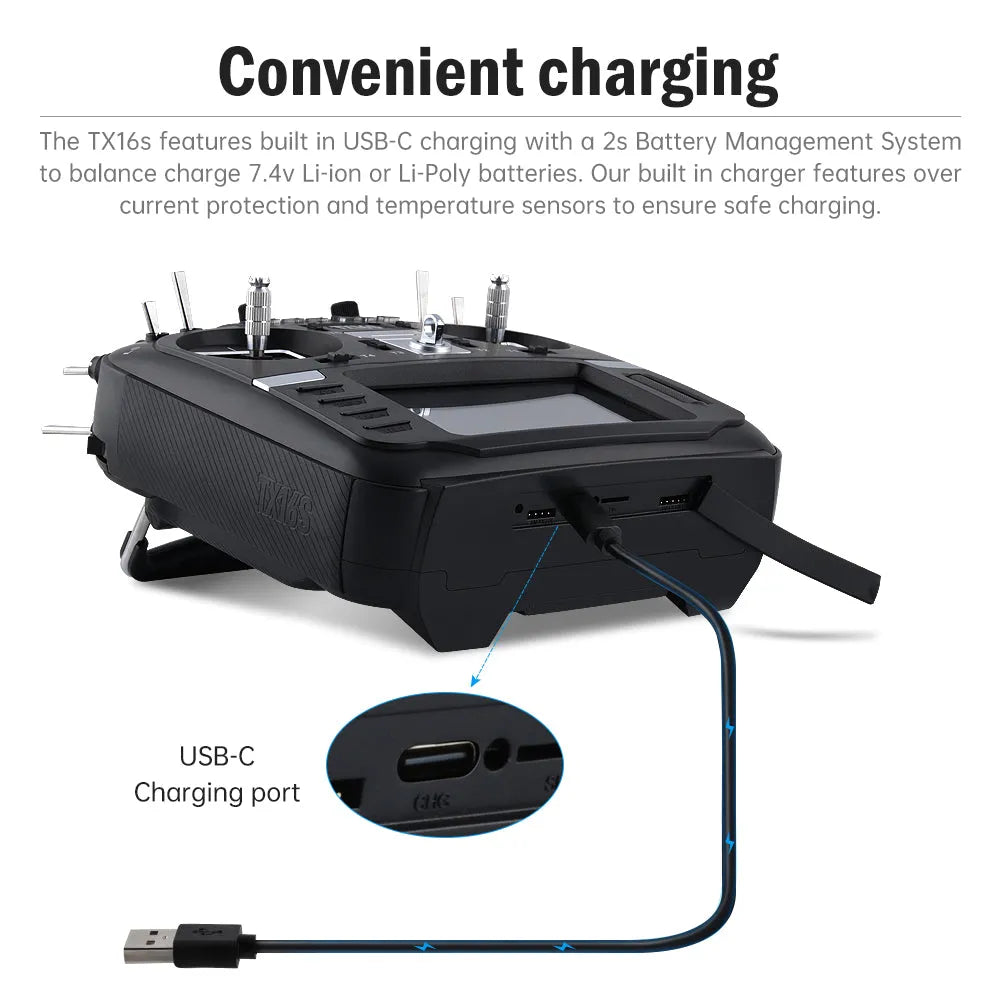

USB-C Charging port.
USB-C Simulator and PC connection port
External UART ports to expand the capabilities of your radio.

Internal Multi-protocol RF System
Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futabas SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

RF Chip Data

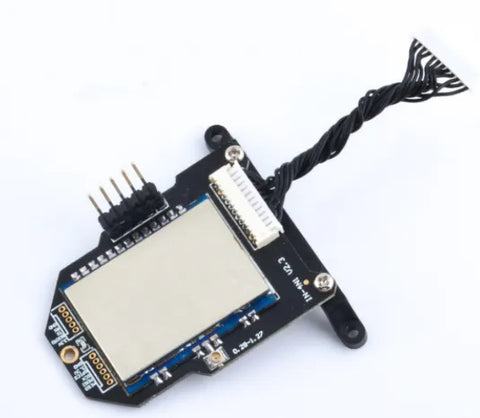

The TX16S internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of today’s prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system. No complicated update procedures.

Package included:

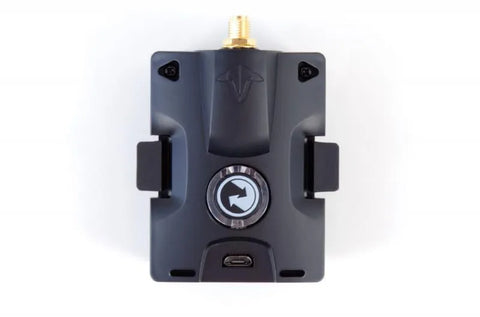

1 x TX16S/TX16S with TBS Crossfire MicroTX (Optional)
1 x USB-C Cable
1 x 18650 Tray
1 x Throttle Return Springs
