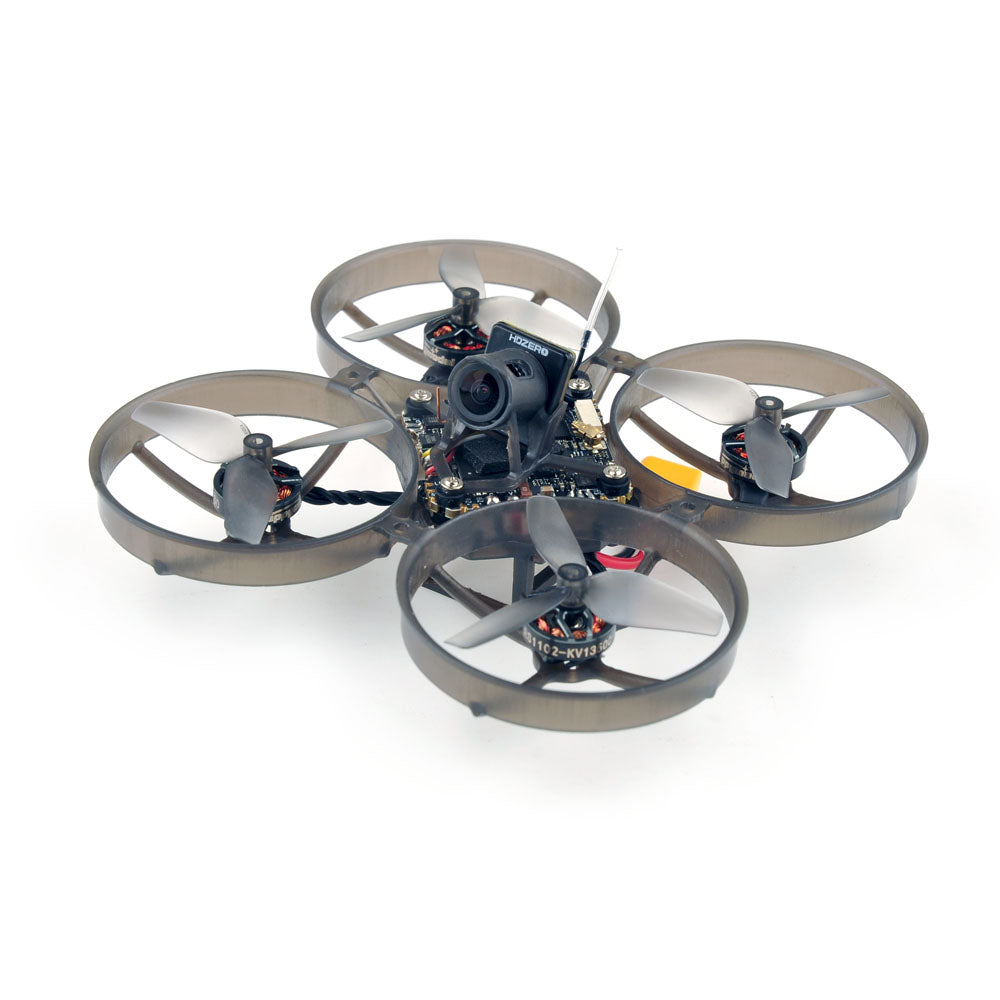

Happymodel M8 HDZero Lux 80mm 2S Micro Whoop FPV Racing Drone BNF - 15A AIO HD System, ELRS 2.4GHz

Happymodel M8 Freestyle HDZERO 80mm Digital HD Micro FPV Whoop

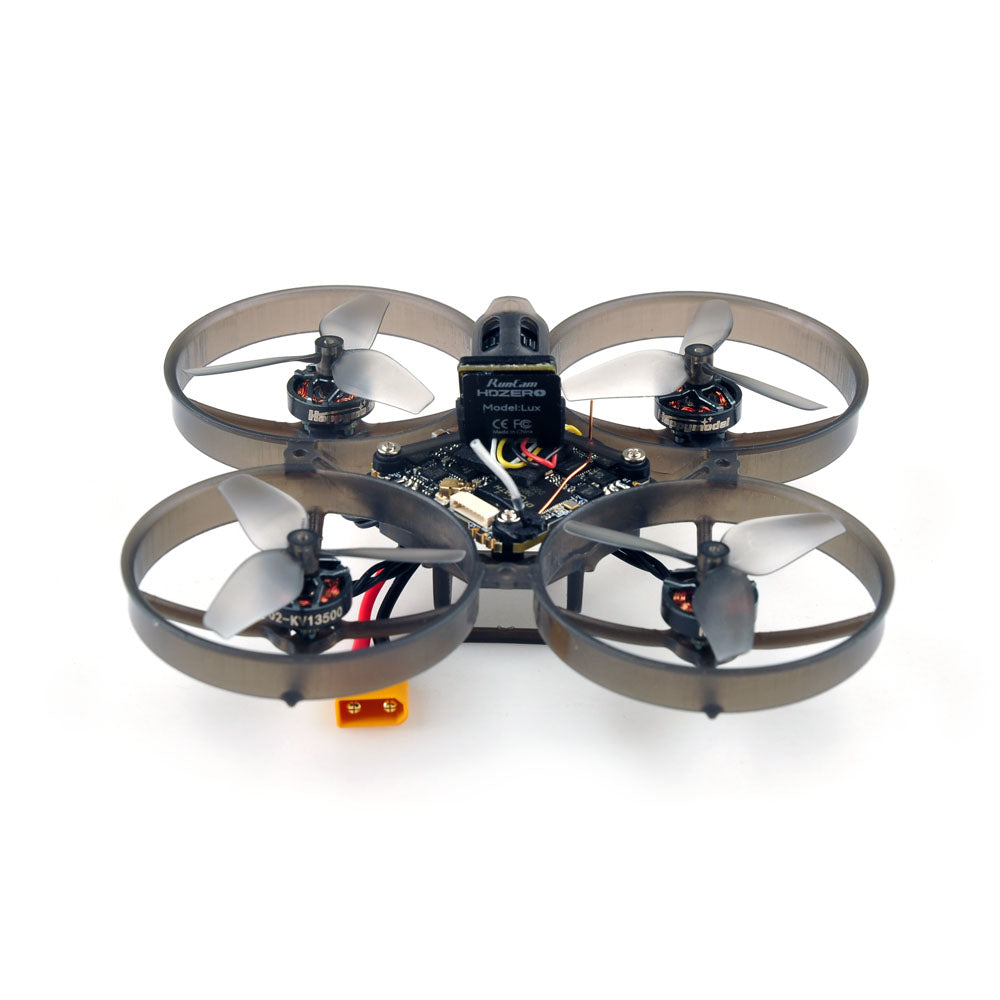

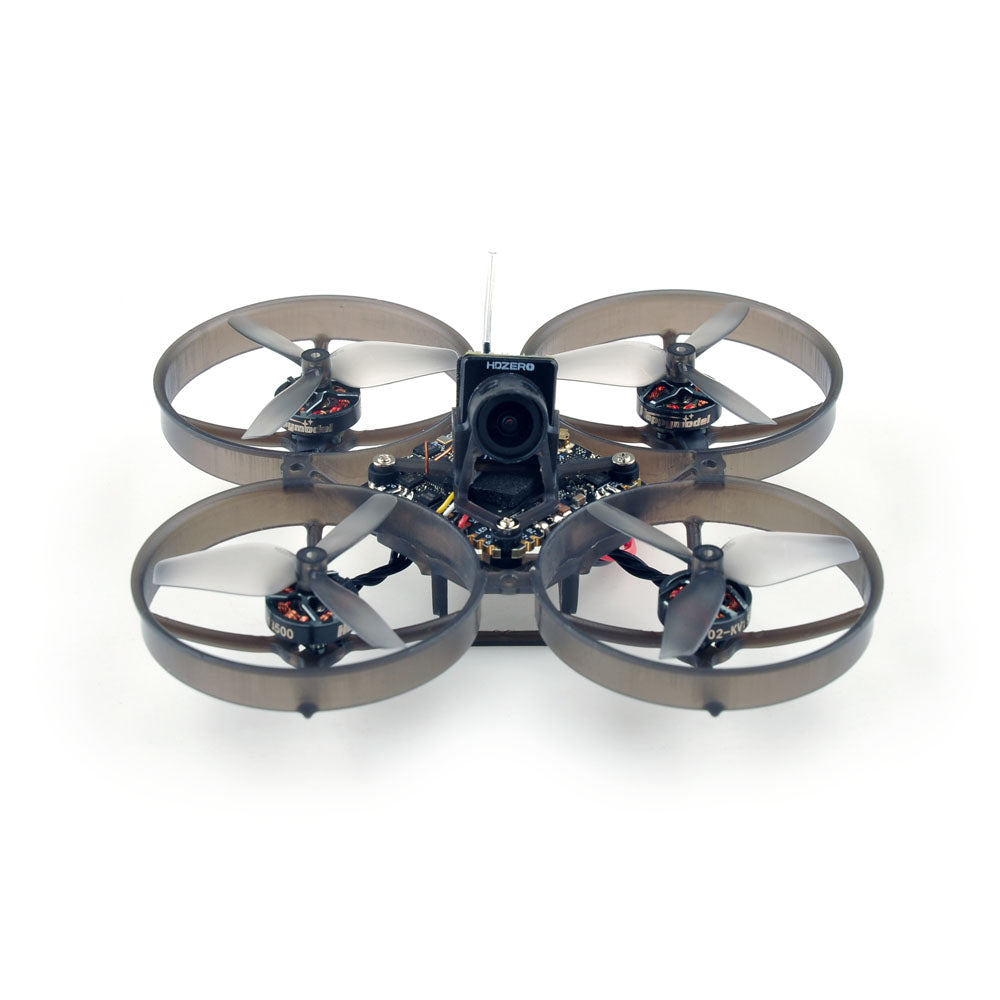

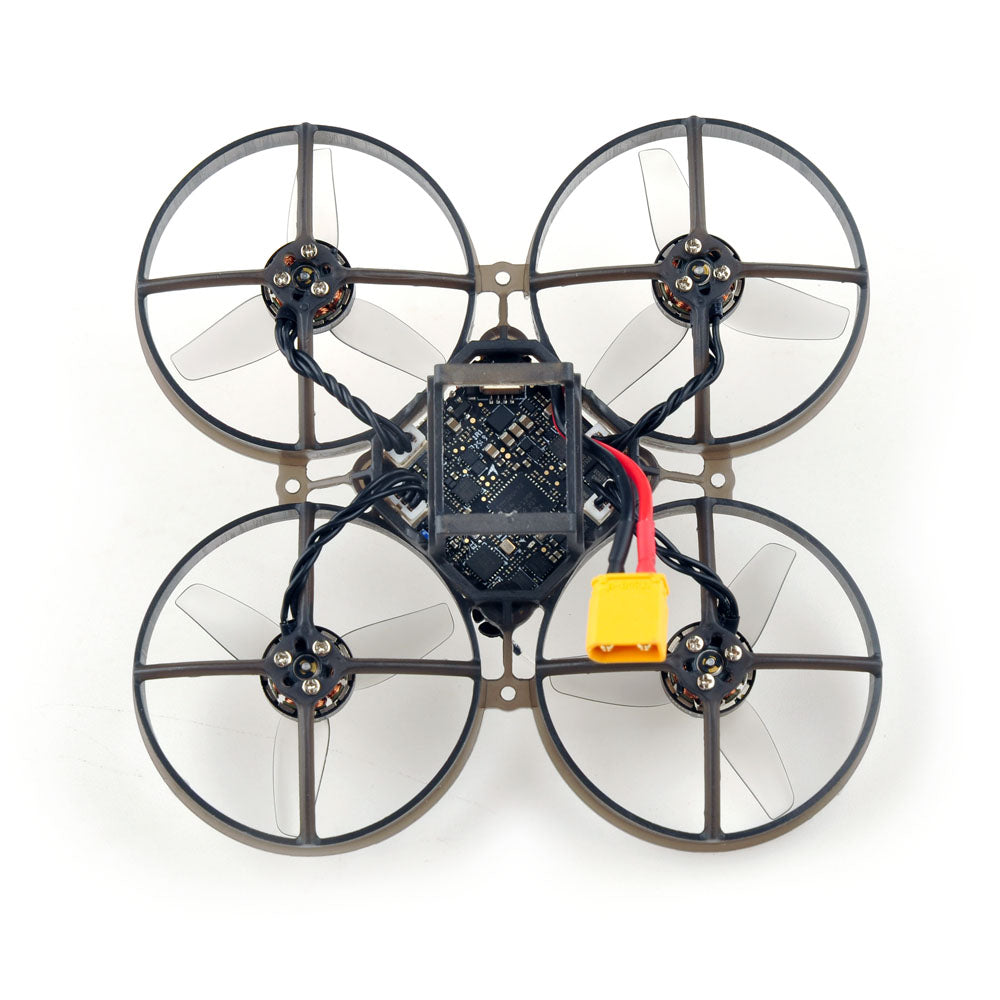

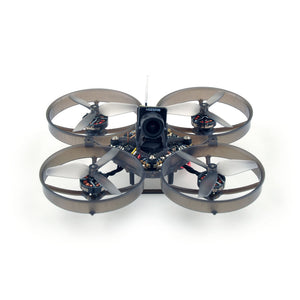

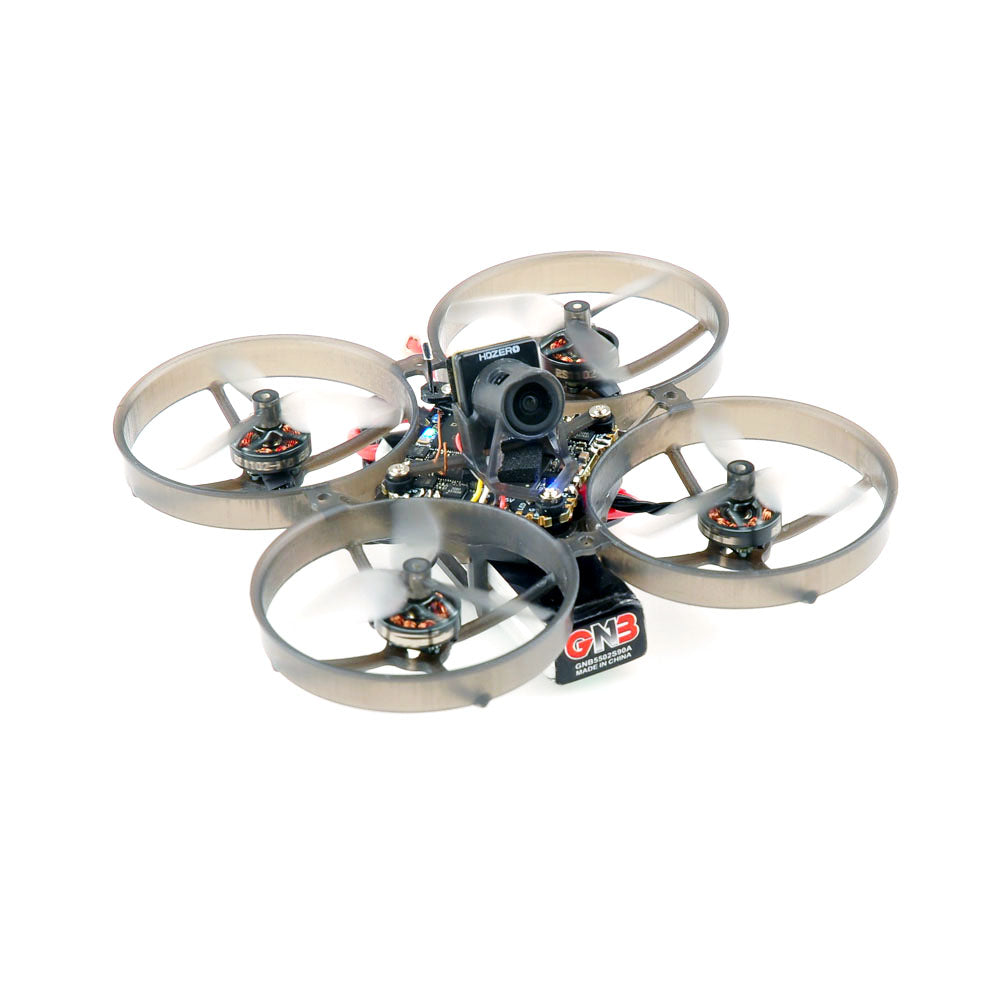

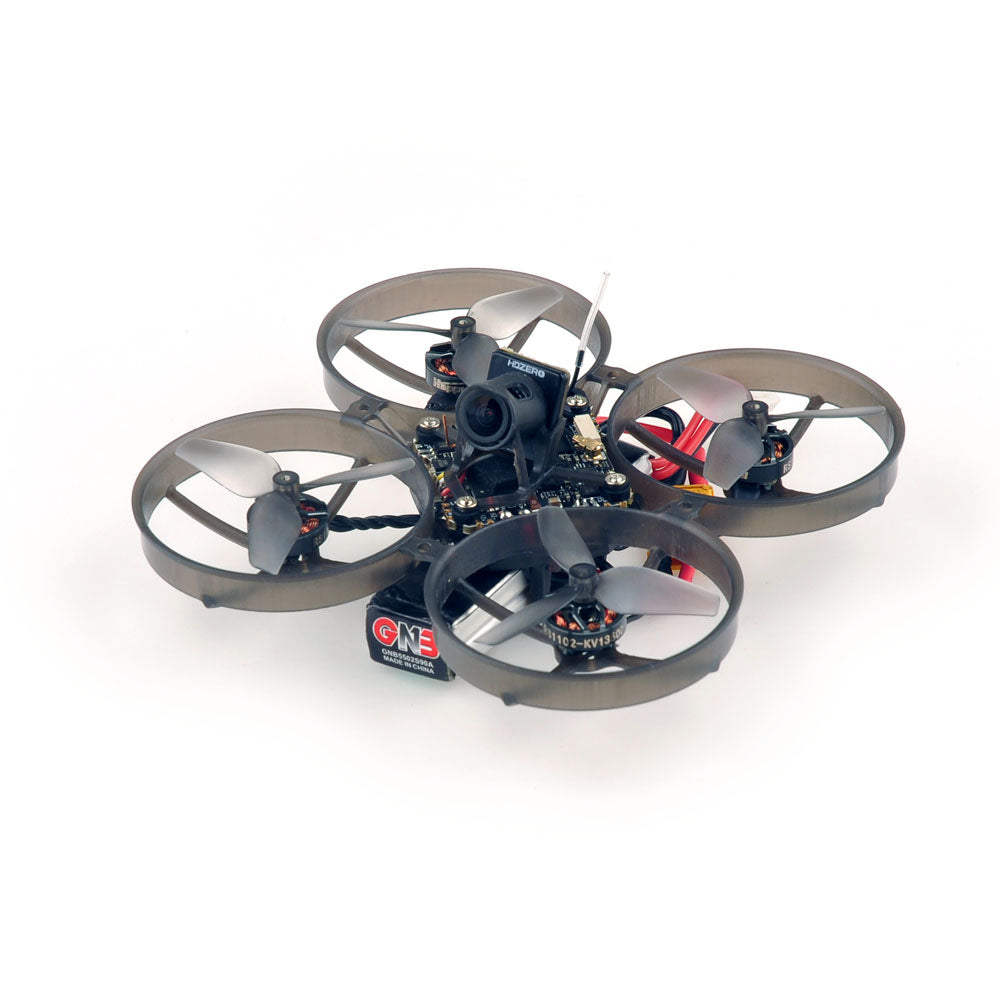

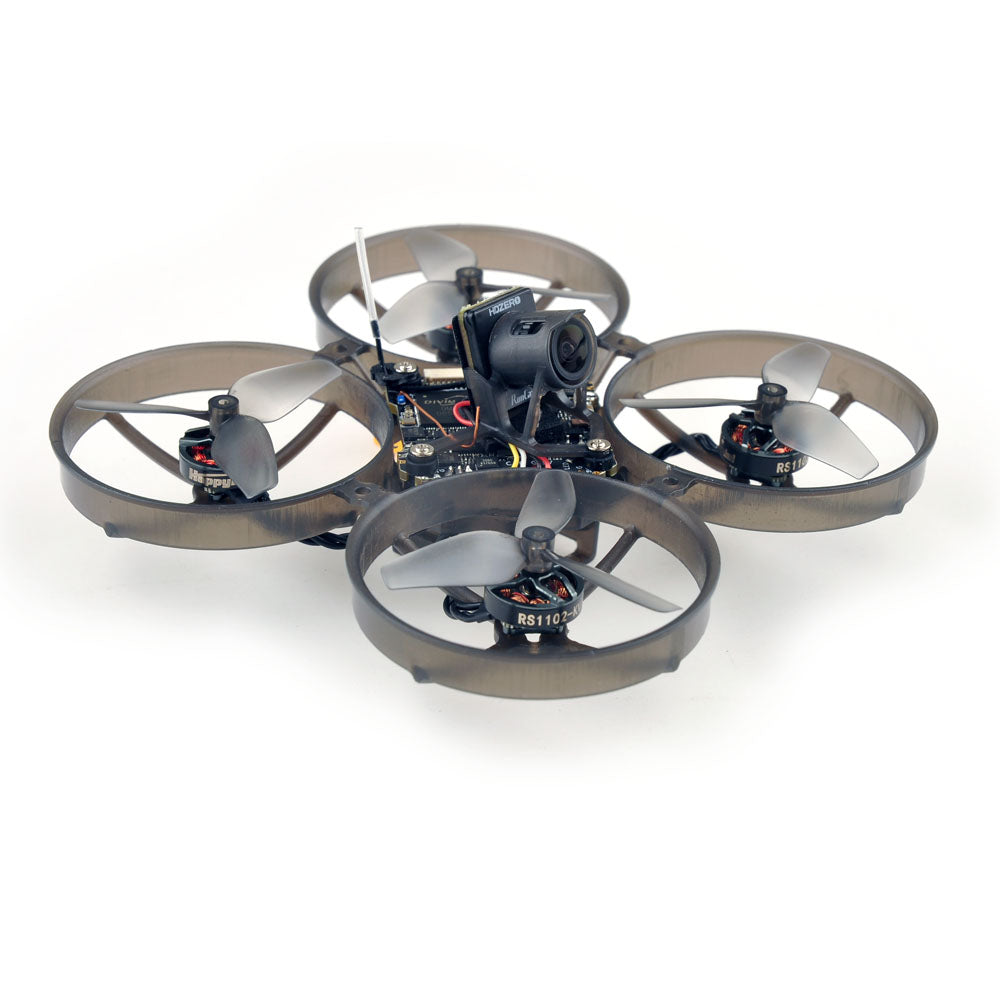

The Happymodel M8 Freestyle features the new HDZERO AIO15 5-IN-1 flight controller and RS1102 KV13500 motors with HQPROP 45mm propellers to deliver a powerful and smooth FPV flying experience. Lightweight and compact, it is perfect for backyard freestyle flights with high-quality HDZERO video.

Features

• Equipped with HDZERO AIO15 5-IN-1 flight controller
• Supports 2S battery for powerful, smooth freestyle flying
• UART ExpressLRS receiver for stable control link
• Lightweight yet powerful for backyard FPV
• HDZERO LUX camera delivers high-quality HD video

Parameters

• Wheelbase: 80mm
• Propellers: 45mm

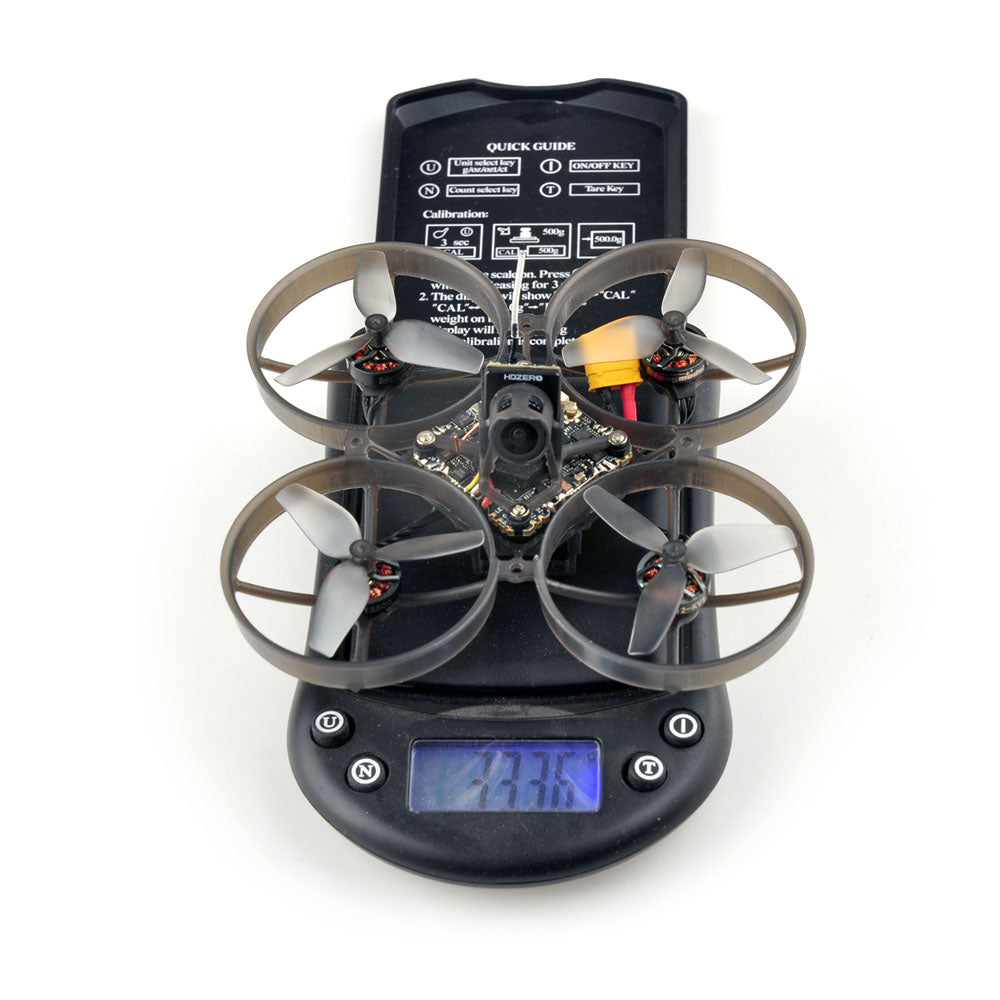

• Weight: 33.5 grams
• Motors: RS1102 KV13500 high speed
• Recommended Battery (not included): 2S 550mAh
• Control: 2.4G ExpressLRS ready

Specifications

Brand: Happymodel

Model: M8

Item Name: HDZero Lux Freestyle Micro FPV Whoop

Motor

• Mode: RS1102 KV13500
• Configuration: 9N12P
• Stator Diameter: 11mm
• Stator Length: 2mm
• Shaft Diameter: Φ1.5mm
• Dimensions: Φ13.5mm × 14mm
• Weight: 2.8g
• Supported Cells: 1–2S LiPo

Propellers

• Weight: 0.33g
• Material: Polycarbonate
• Pitch: 0.9
• Diameter: 45mm
• Hub Thickness: 5mm
• Shaft: 1.5mm

Flight Controller

• MCU: STM32G473 (170MHz, 512K Flash)
• Gyro: ICM42688
• Built-in 15A Blue Jay 4-in-1 ESC
• Built-in 5.8G HDZero VTX (25mW/200mW)
• Supported Channels: R1-R8, F2/F4, L1-L8
• Built-in UART ExpressLRS 2.4GHz receiver
• Built-in 5V 3A BEC
• Power Supply: 2S battery (6.4V–8.7V)
• Board Size: 31.3×31.3mm (mounting hole: 25.5×25.5mm)
• Weight: 7.2g (with motor plugs)

Onboard 4-in-1 ESC

• Power Supply: 2S LiPo/LiPo HV
• Current: 15A continuous, 18A peak (3 sec)
• Supports BLHeli_S Bluejay firmware
• Default Protocol: DSHOT300

Onboard UART ExpressLRS 2.4GHz Receiver

• Packet Rates: 50–1000 Hz
• RF Frequency: 2.4GHz
• Antenna: Pre-soldered 31mm enameled copper wire
• Telemetry Output Power: <12dBm

HDZERO LUX Camera

• Sensor Size: 1/2 inch
• Resolution: 720p60 (4:3 & 16:9)
• FOV (4:3): D155°, H126°, V94°
• FOV (16:9): D145°, H126°, V70°
• Wide Dynamic Range (WDR)

Package Includes

• 1 × Happymodel M80 Frame
• 1 × HDZERO AIO15 5-IN-1 Flight Controller
• 4 × RS1102 KV13500 Brushless Motors
• 12 × HQPROP 45mm Tri-blade Propellers (4 CW + 4 CCW)
• 1 × HDZERO LUX Camera
• 1 × Canopy
• 1 × Screwdriver

Experience smooth, powerful indoor and backyard freestyle flying with the M8’s HDZERO digital video and advanced flight controller system.

M8 Freestyle HD:

M8 Freestyle HD and HDZERO AIO 15 Manual

Betaflight 4.6.0 firmware with presettings for M8 FREESTYLE HD

M8 FREESTYLE HD dump file for Betaflight 4.6.0
