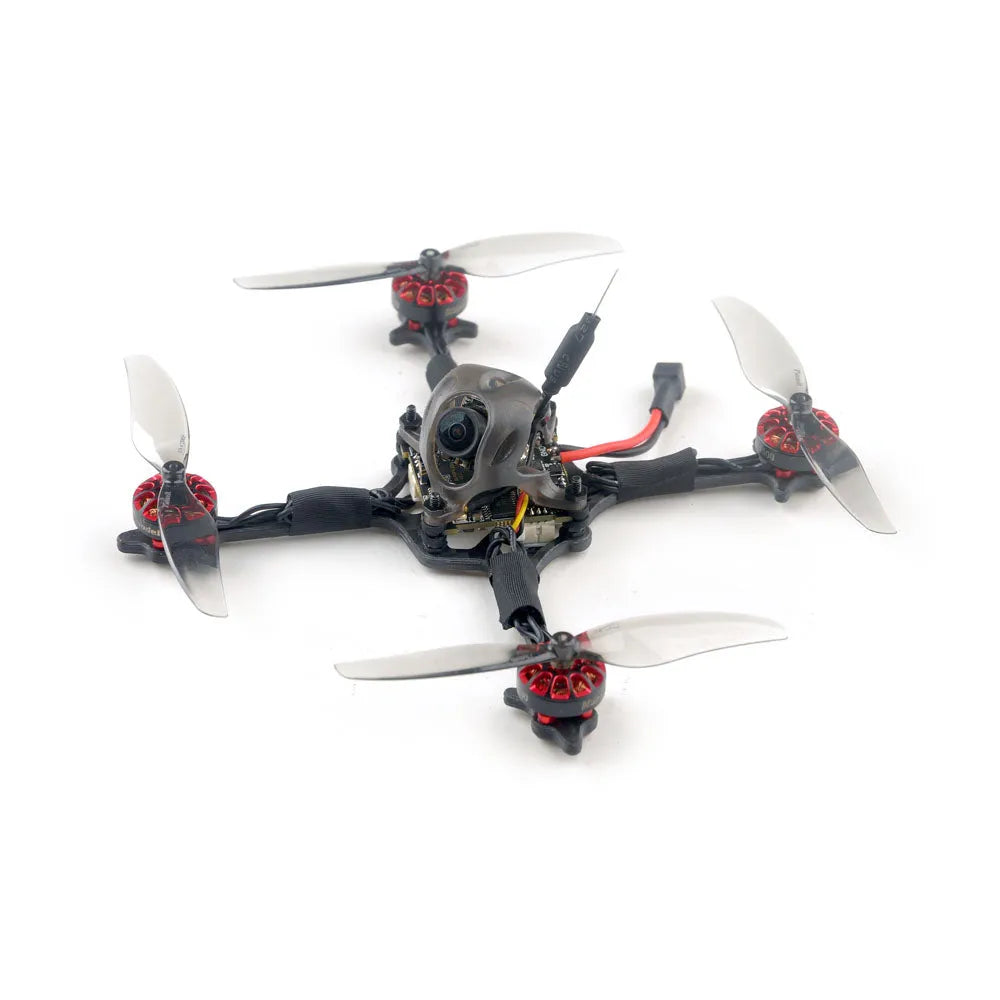

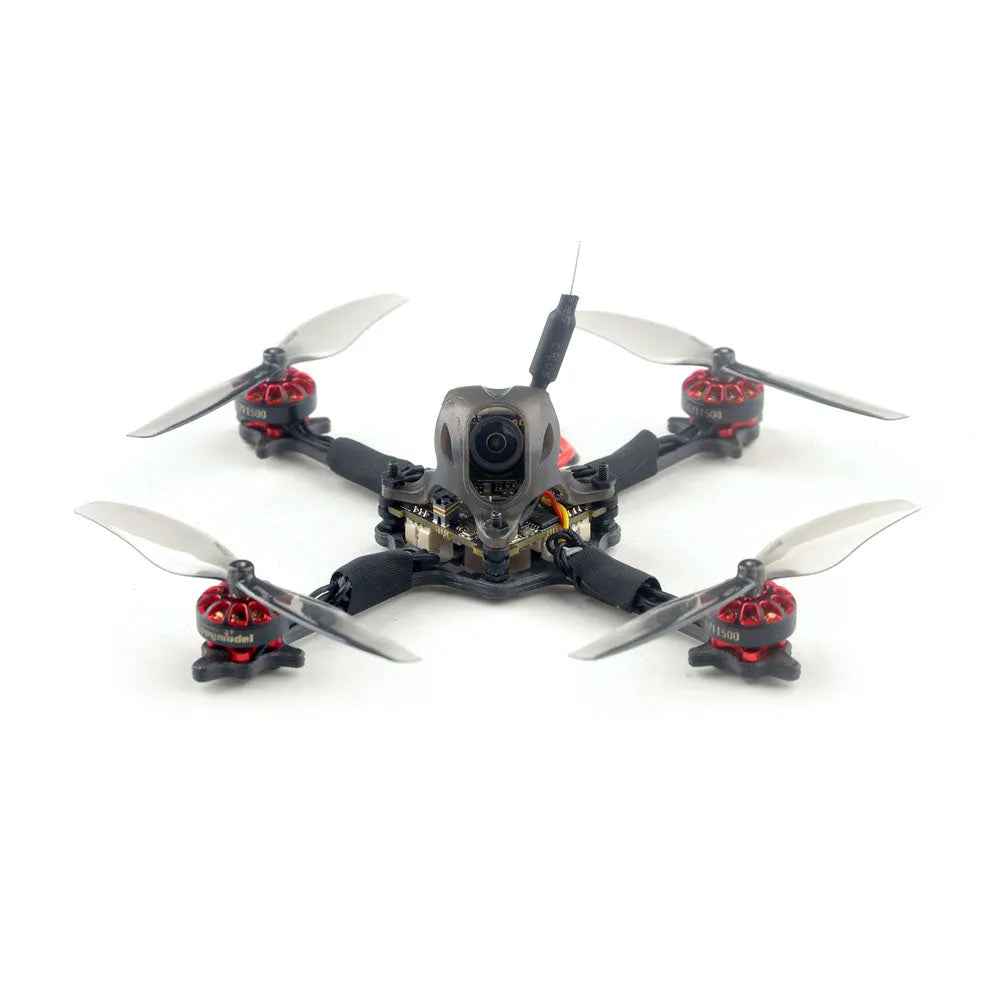

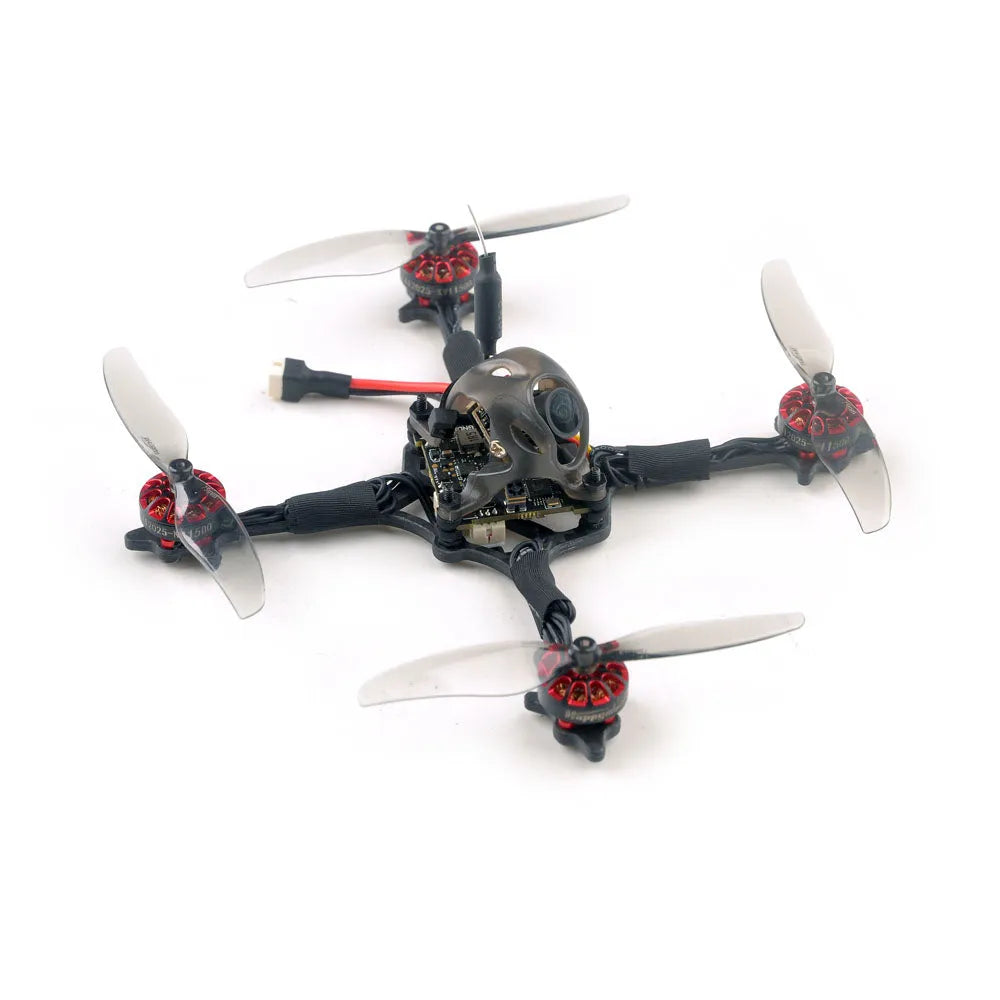

Happymodel Crux3 1S ELRS 3-tommers tannpirker FPV Racer Drone
Merk: Caddx peanøttkamera er ikke inkludert, du kan kjøpe det HER
Funksjoner:

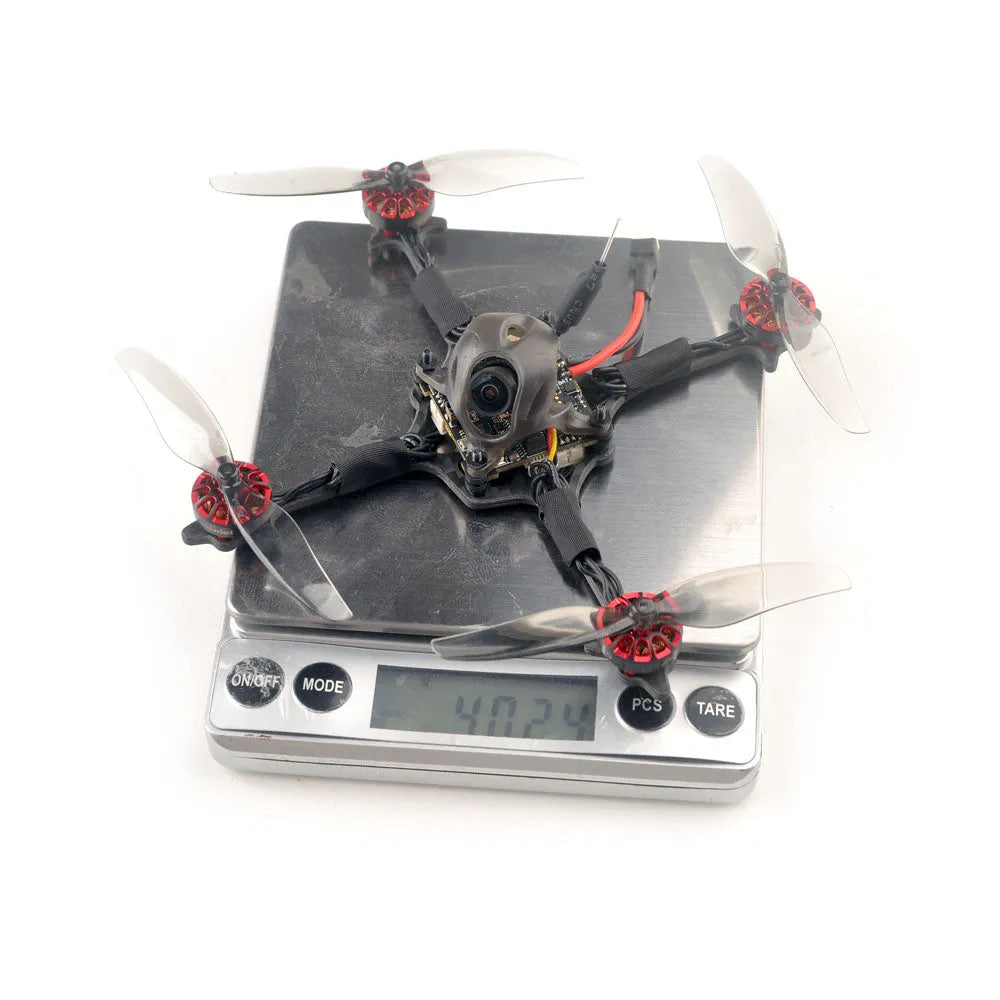

40 gram 1s børsteløs tannpirkerdrone
AIO-flykontroller med ELRS-mottaker og 5,8G VTX
CADDX ANT kamera
Ny 1202.5 KV11500 børsteløs motor
Anbefaler å bruke 1s 450mah/650mah/660mah/720mah batteri
Kompatibel med CaddxFPV peanøtt og Insta360 GO2
Bærer Caddxfpv peanøtt Fikk 4,5 minutters flytid med 1s 650 mah batteri
Anbefalte batterier (Klikk på bildet for produktlenken):
spesifikasjoner:
Merkenavn: Happymodel
Varenavn: Crux3 1S ELRS
Akselavstand: 115 mm
Størrelse: 97mmx97mmx35mm (uten propeller)
Vekt: 40g (uten batteri)
Motor:
Modus: EX1202.5 KV11500
Konfigurasjon: 9N12P
Statordiameter: 12mm
Statorlengde: 2,5 mm
Skaftdiameter: Φ1,5 mm
Motordimensjon (Dia.*Len): Φ14mm*14,5mm
Vekt (g): 4,4 g
Antall celler(Lipo):1S
Propeller
Gemfan 75mm
Sentrum Tykkelse: 5mm
Støttediameter: 75 mm
Senterhullsdiameter: 1,5 mm
Pitch: 0,9 tommer
Flykontrollør
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI-tilkobling)
Original whoop størrelse kompatibel
Strømforsyning: 1S batteriinngang (DC 2,9V-4,35V)
Innebygd 5A(hver) Blheli_S 4in1 ESC Dshot600 klar
Innebygd Betaflight OSD (SPI Control)
Innebygd 5.8G VTX
Innebygd SPI ExpressLRS 2.4GHz mottaker
Innebygd 5V 1A BEC flykontroller
fastvaremål: CRAZYBEEF4SX1280
Ombord 4in1 ESC
MCU oppgradert til EFM8BB21
Strømforsyning: 1S LiPo/LiPo HV
Strøm: 5A kontinuerlig topp 6A (3 sekunder)
Støtte BLHeliSuite programmerbar
Fabrikkfastvare: O_H_5_REV16_7.HEX
Standard protokoll: DSHOT300
Innebygd SPI ExpressLRS 2,4 GHz mottaker
Alternativ for pakkehastighet: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frekvens: 2,4 GHz
Antenne: SMD-antenne
Telemetri produksjon Makt: <12dBm
Mottaker protokoll til flykontrolleren: CRSF
Kunne binde med Alle ExpressLRS 2.4GHz TX-moduler, ExpressLRS-fastvare trenger 1.0.0 eller nyeste
Innebygd 5,8g VTX
Utgangseffekt: 25mw ~ 200mw kan byttes
Frekvens: 40CH
Inngangsspenning: 3,3V 5,5V
Strømforbruk: 300mA (type)
Frekvens: 5,8 GHz 5-bånds 40 kanaler
Med Race bånd
Smartaudio klar
Caddx ANT 1200tvl kamera
Bildesensor: 1/3" CMOS-sensor
Horisontal oppløsning: 1200 TVL
TV-system: NTSC eller PAL
BILDE: 16:9 eller 4:3
Synkronisering: Intern
Elektronisk lukker: PAL: 1/50~100 000; NTSC: 1/60~100 000
S/N-forhold: >52dB (AGC AV)
Videoutgang: CVBS
Objektiv: 1,8 mm
Min. Belysning: 0.001Lux@F1.2
WDR: Global WDR
DNR: 3D DNR
Dimensjoner: 14*14mm (med brakett til 19*19mm)
Bred strøminngang: DC 3,7-18V
Arbeidstemperatur: -20℃~+60℃
Vekt: 2g (NW)

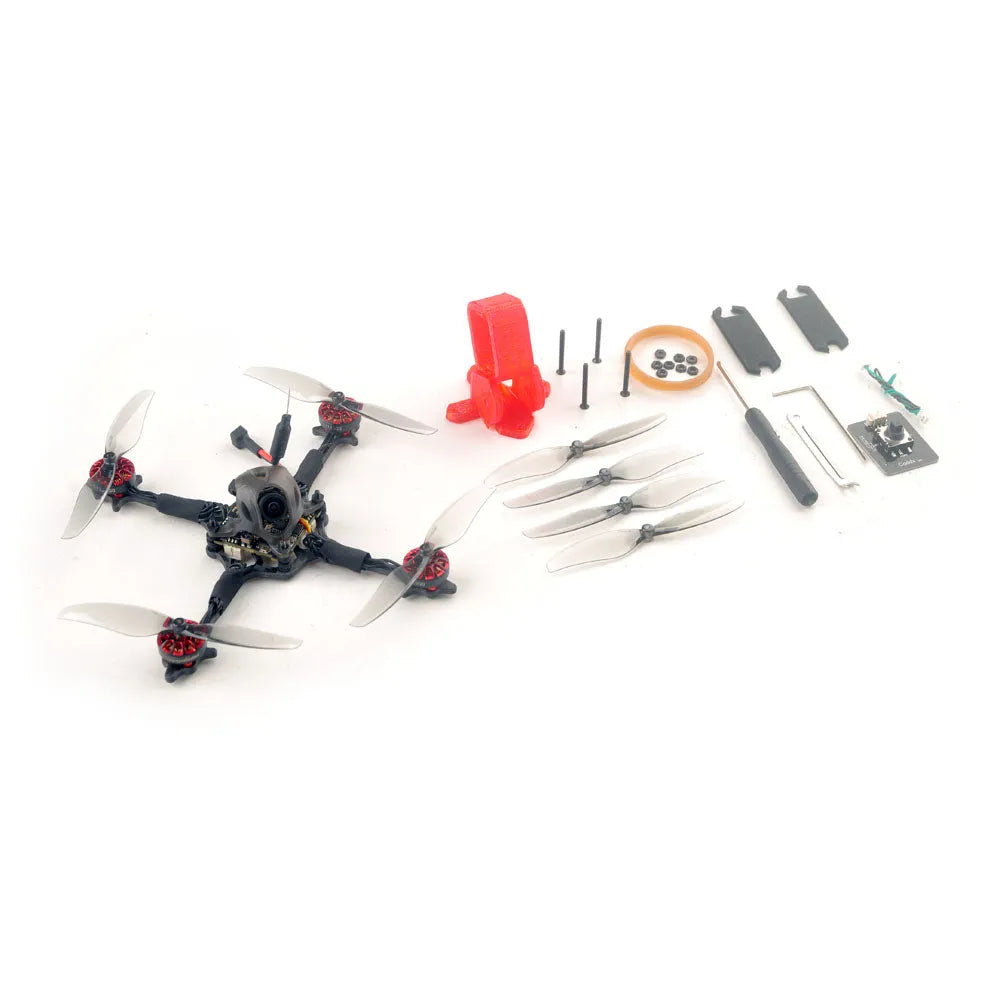

Pakke inkludert:
1x Crux3 Ramme og kalesje
1x ELRS F4 2G4 flykontroller innebygd SPI ExpressLRS 2.4G mottaker
4x Happymodel EX1202.5 KV11500 børsteløs motor
1x Gemfan 75 mm bi-blads propeller (4cw+4ccw)
1x Caddx Ant 1200TVL Global WDR med OSD 2g Ultra Light Nano FPV-kamera
1x 5,8G 25mw~200mw 40ch vtx (flykontroll innebygd)
1x skrutrekker
1x Propell demonteringsverktøy

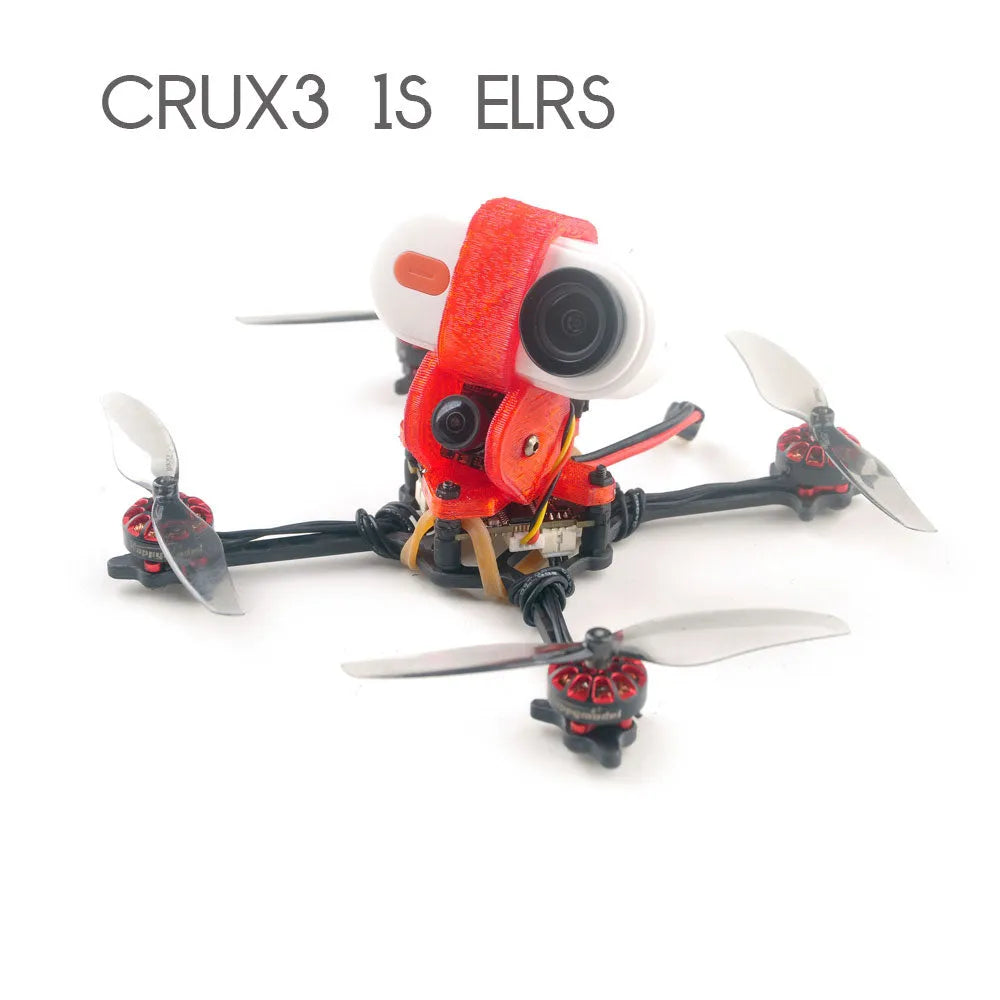

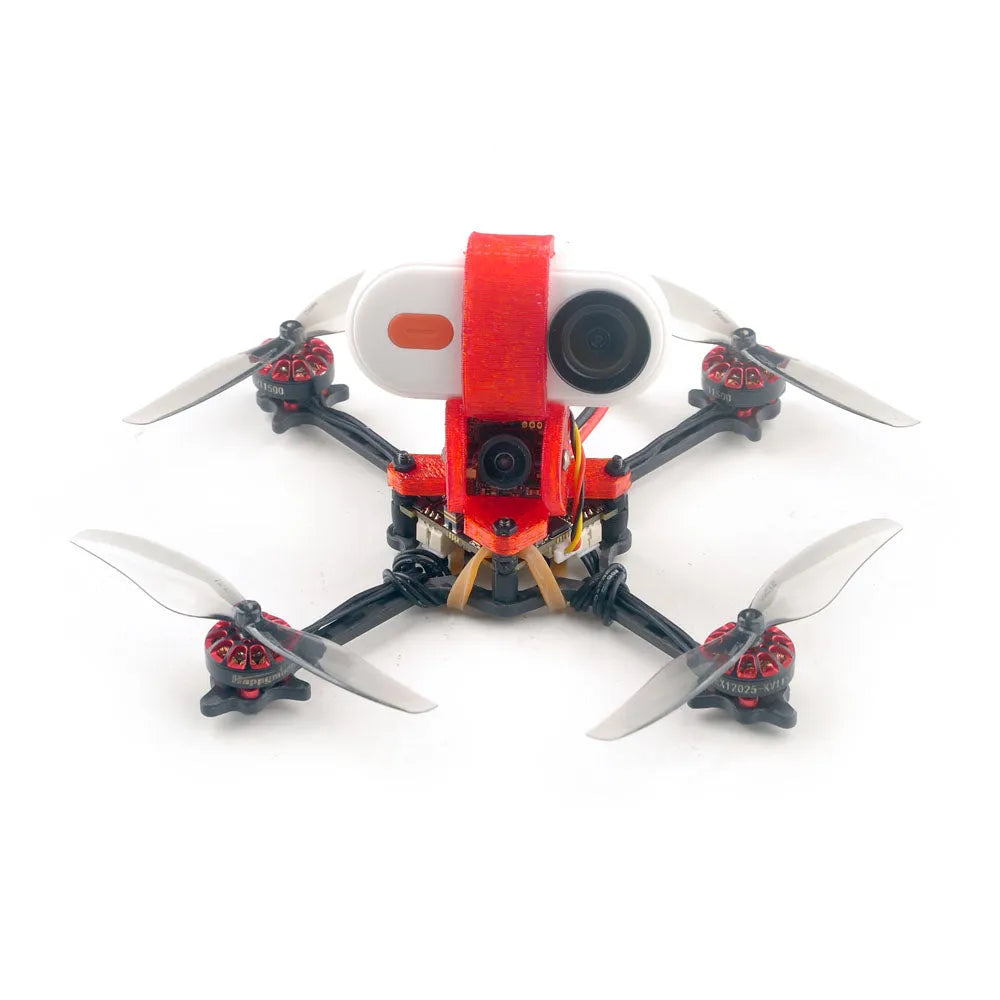

1x 3D-trykt baldakin for Insta360 GO2 og CaddxFPV Peanut
1x Happymodel veske
