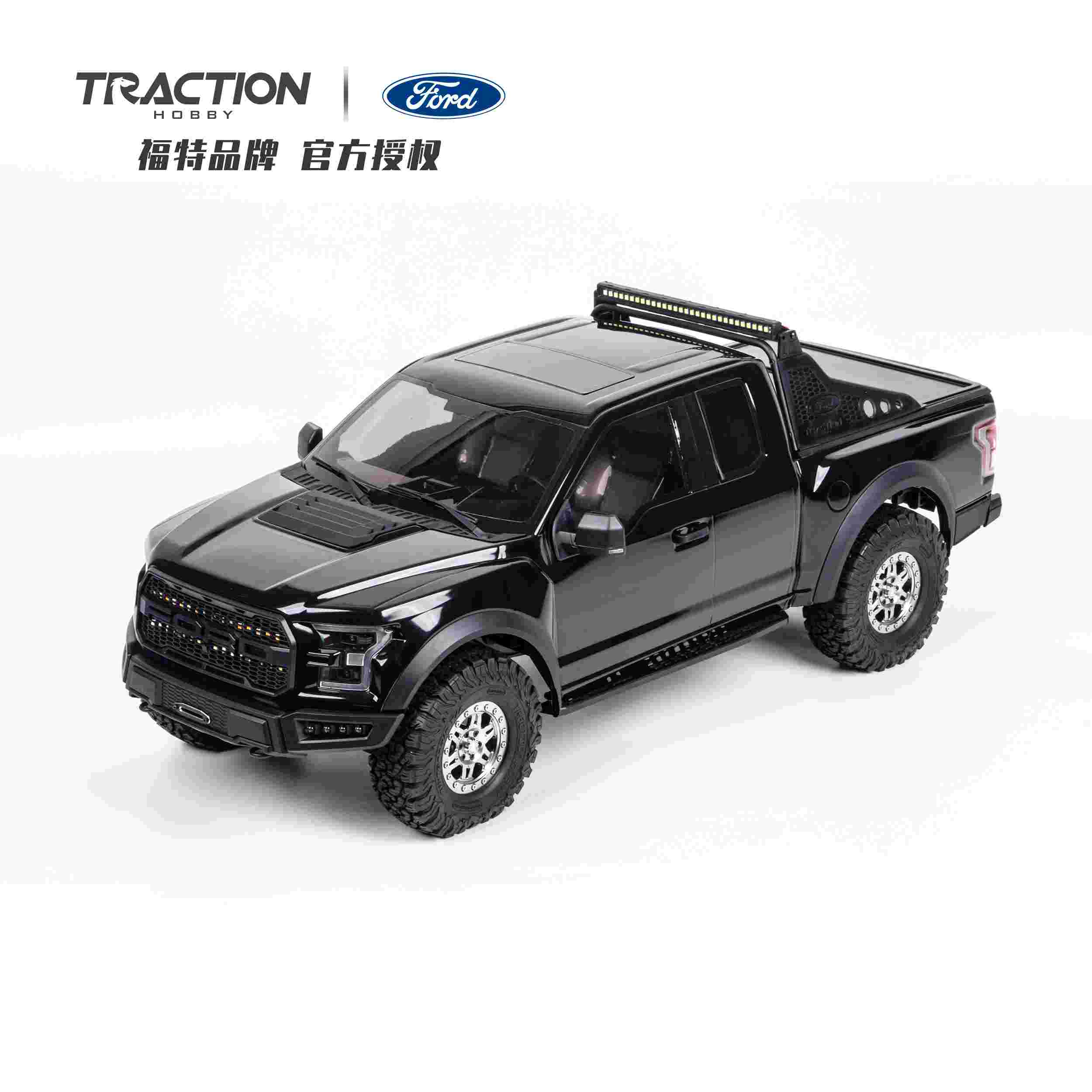

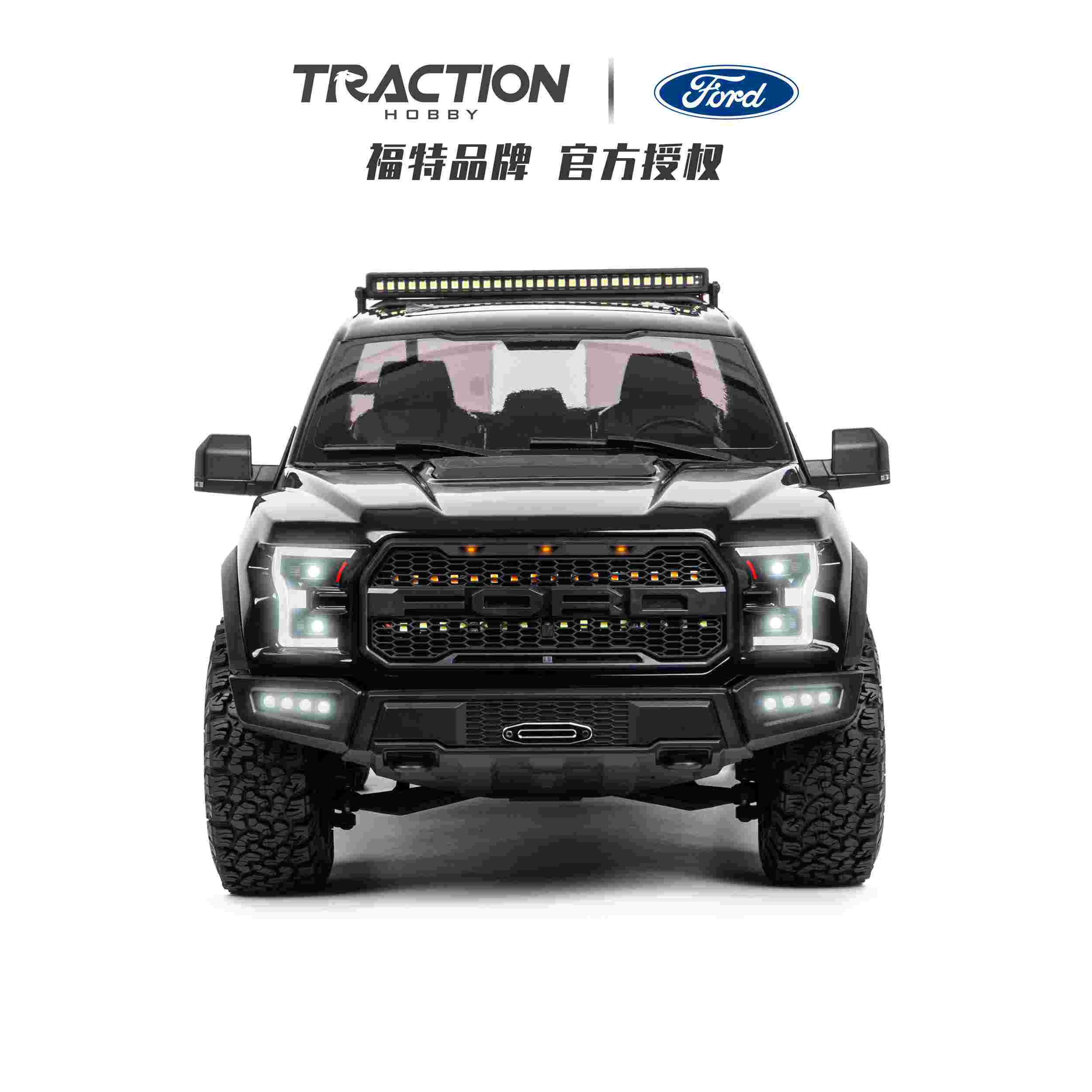

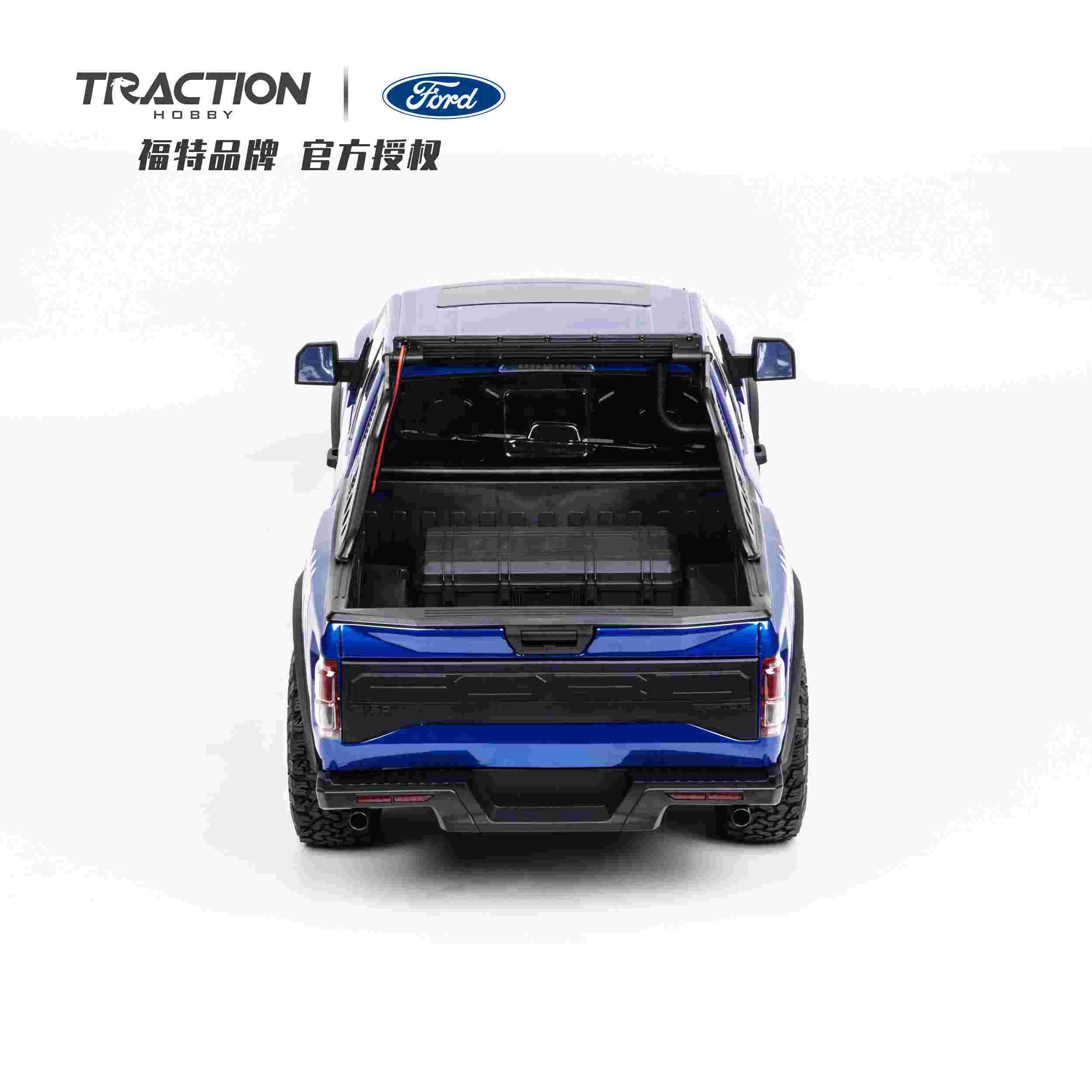

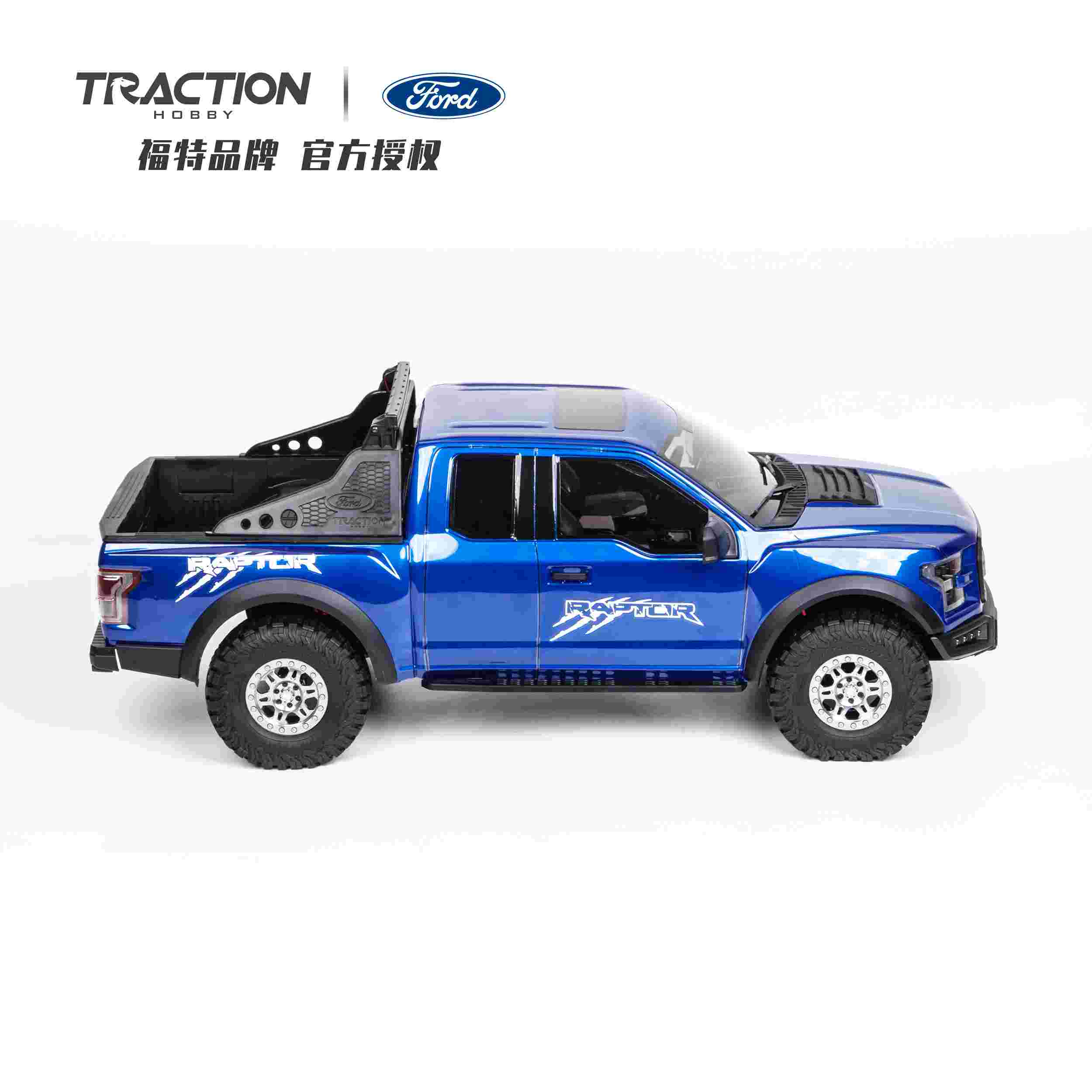

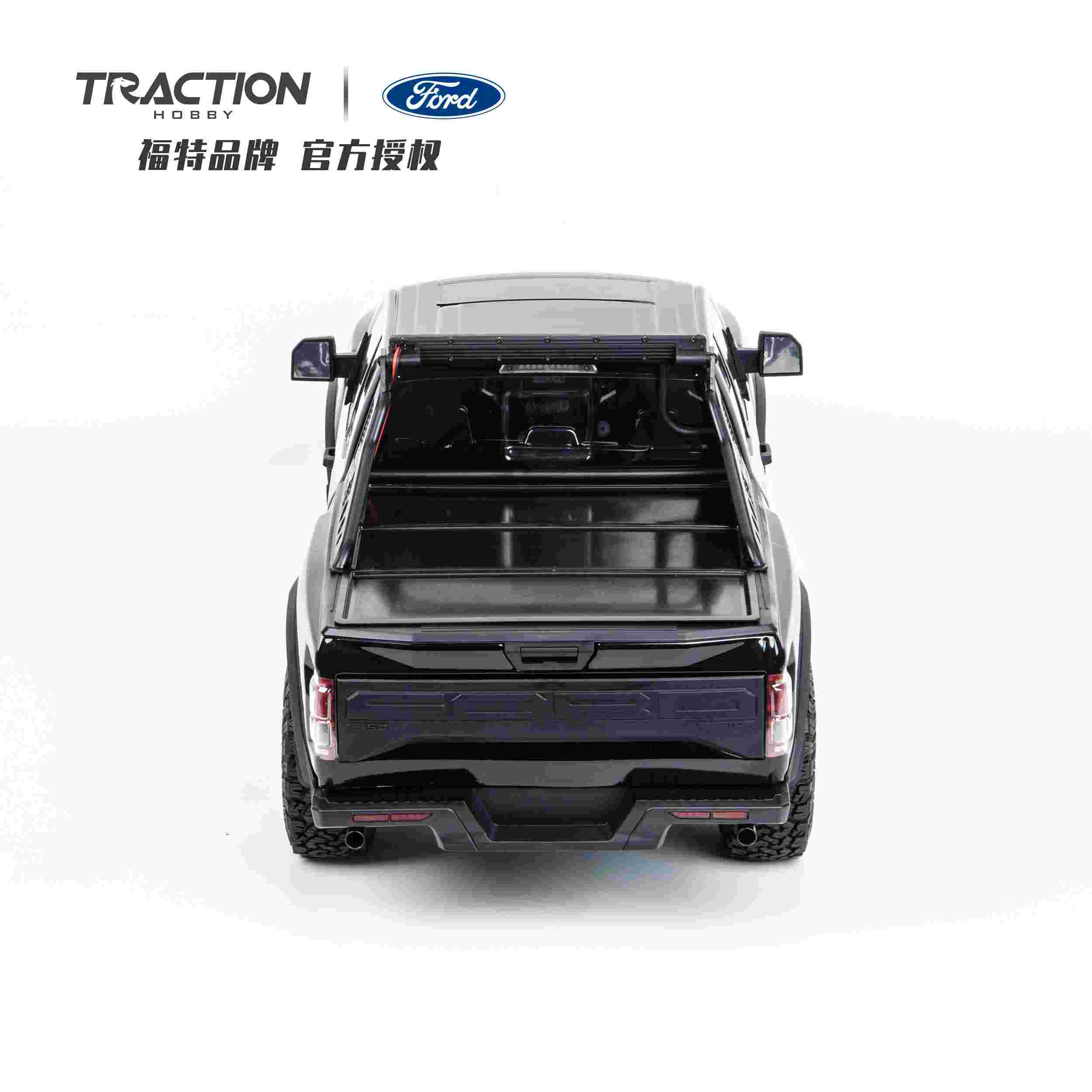

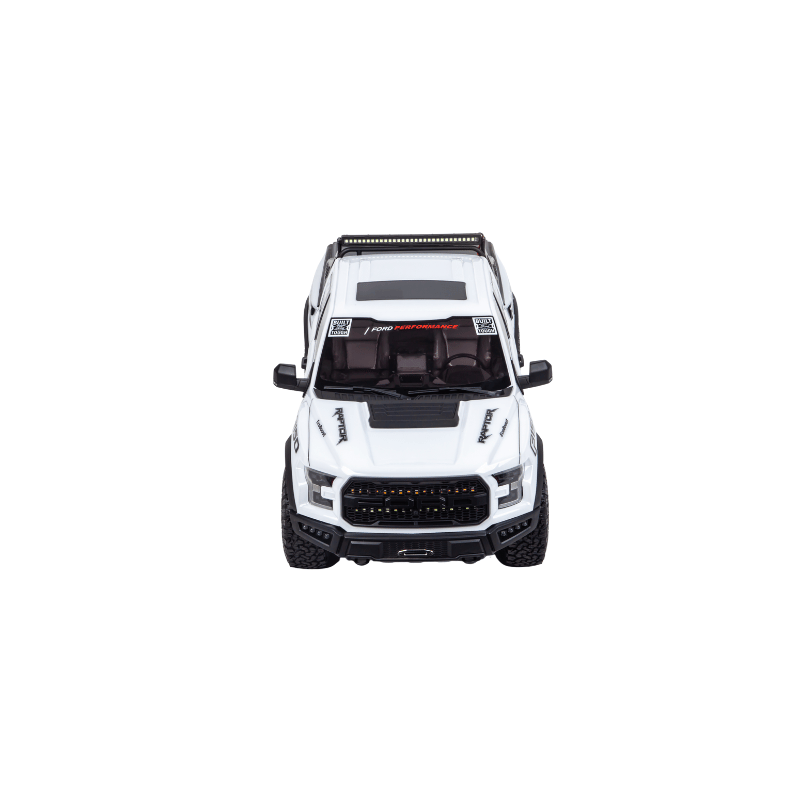

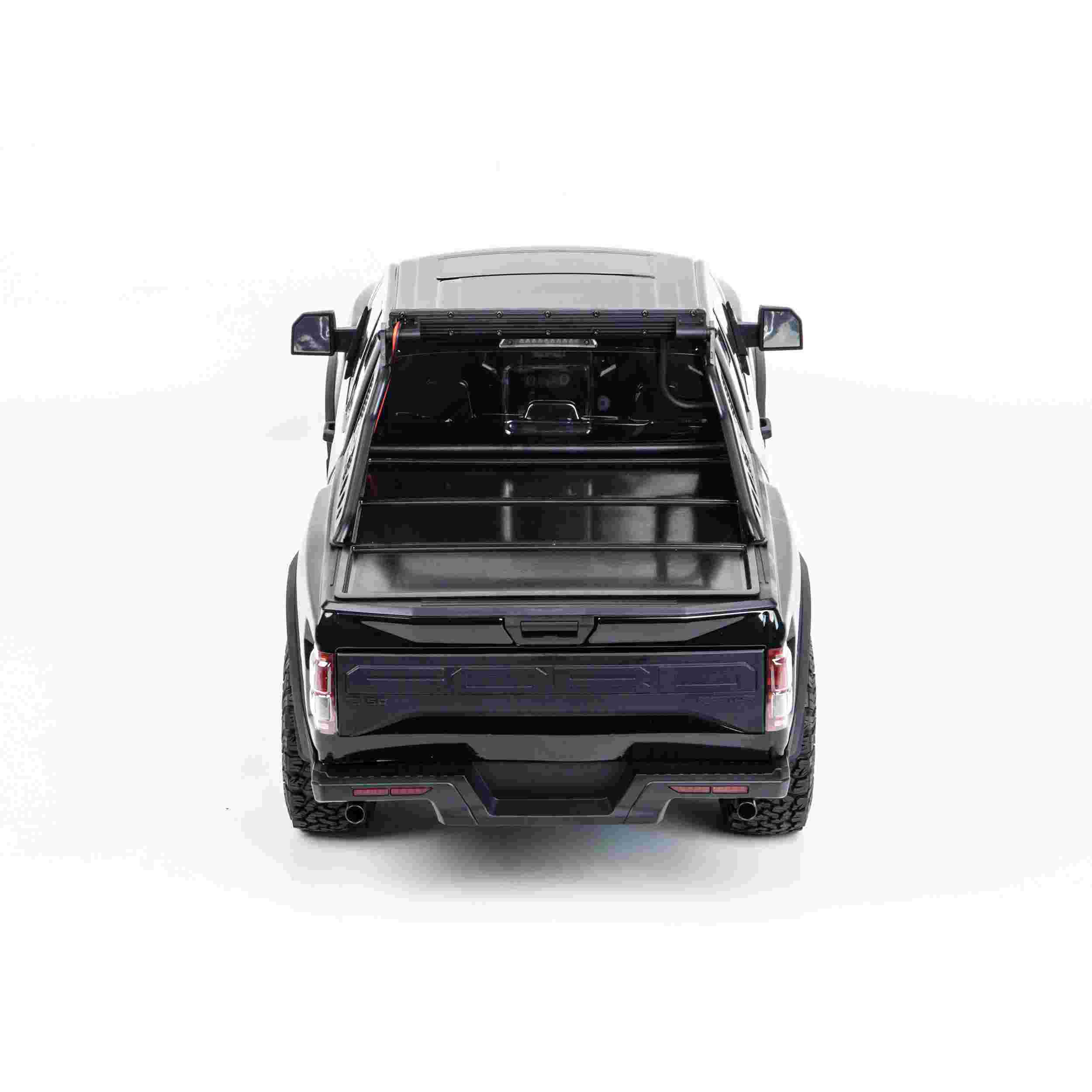

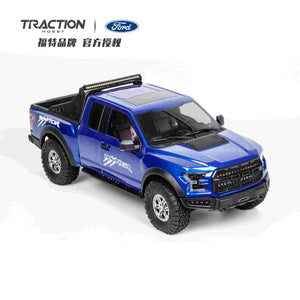

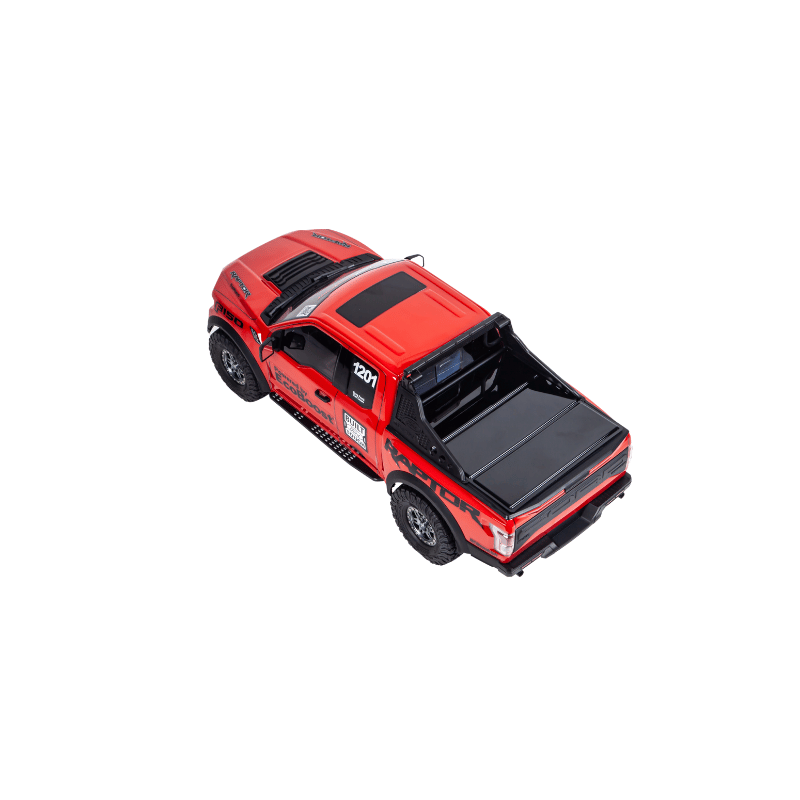

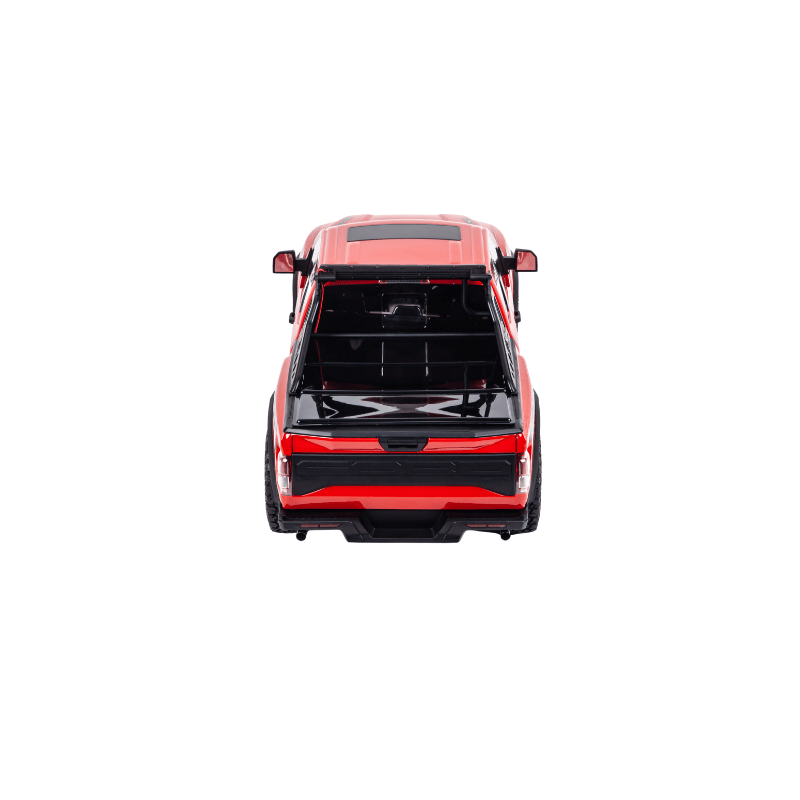

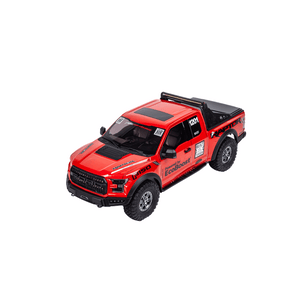

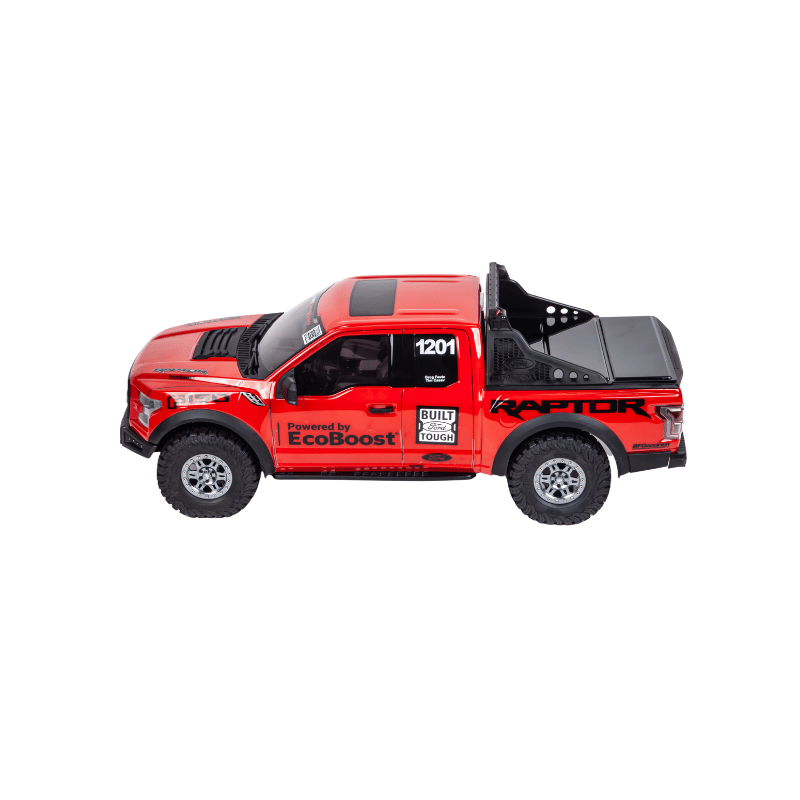

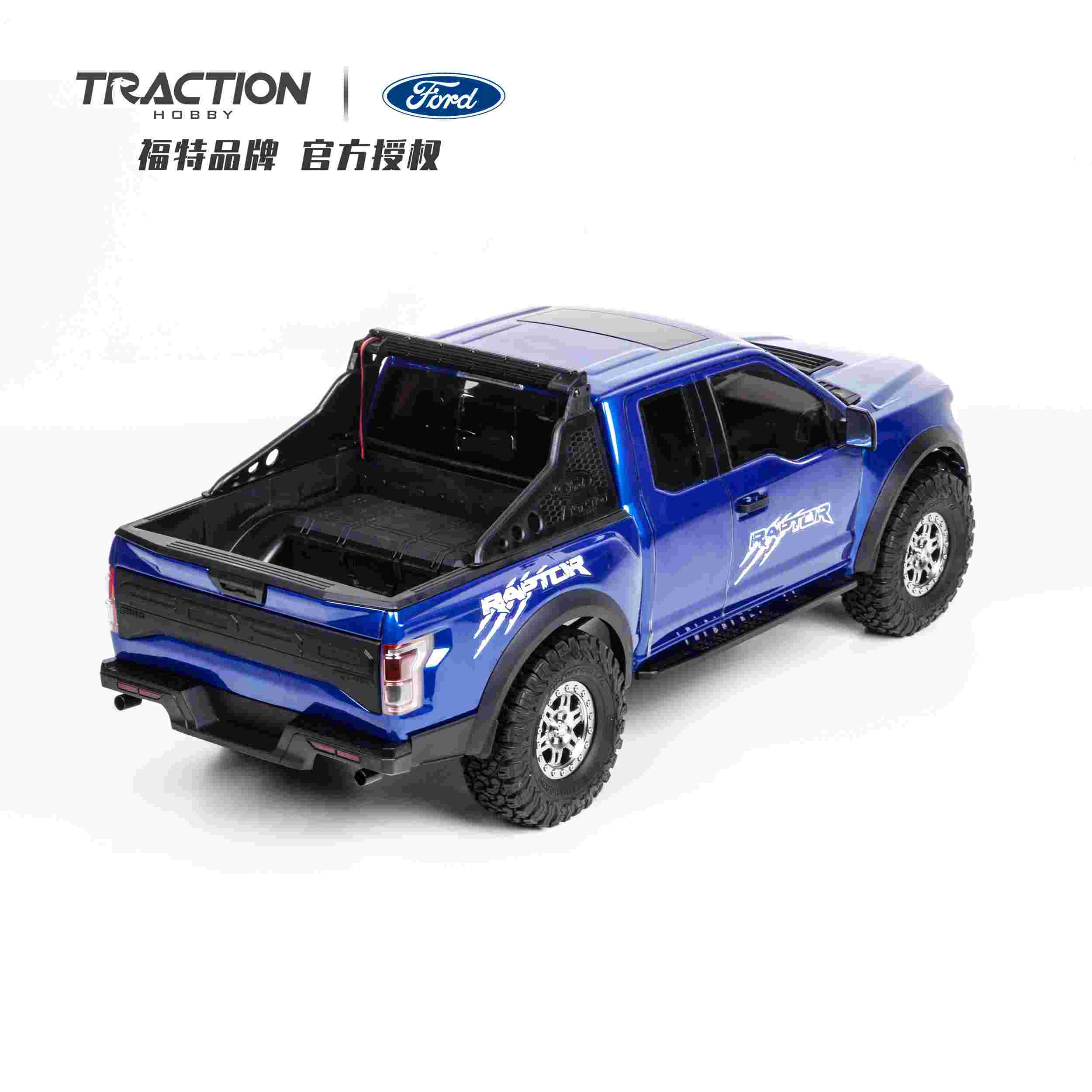

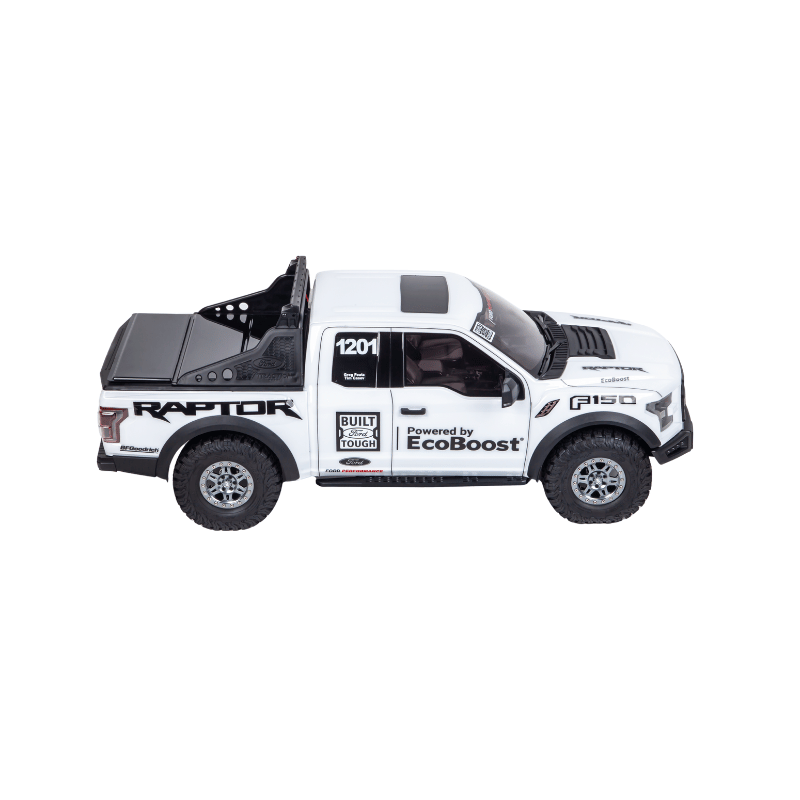

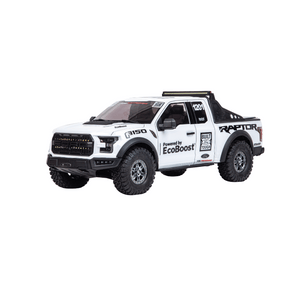

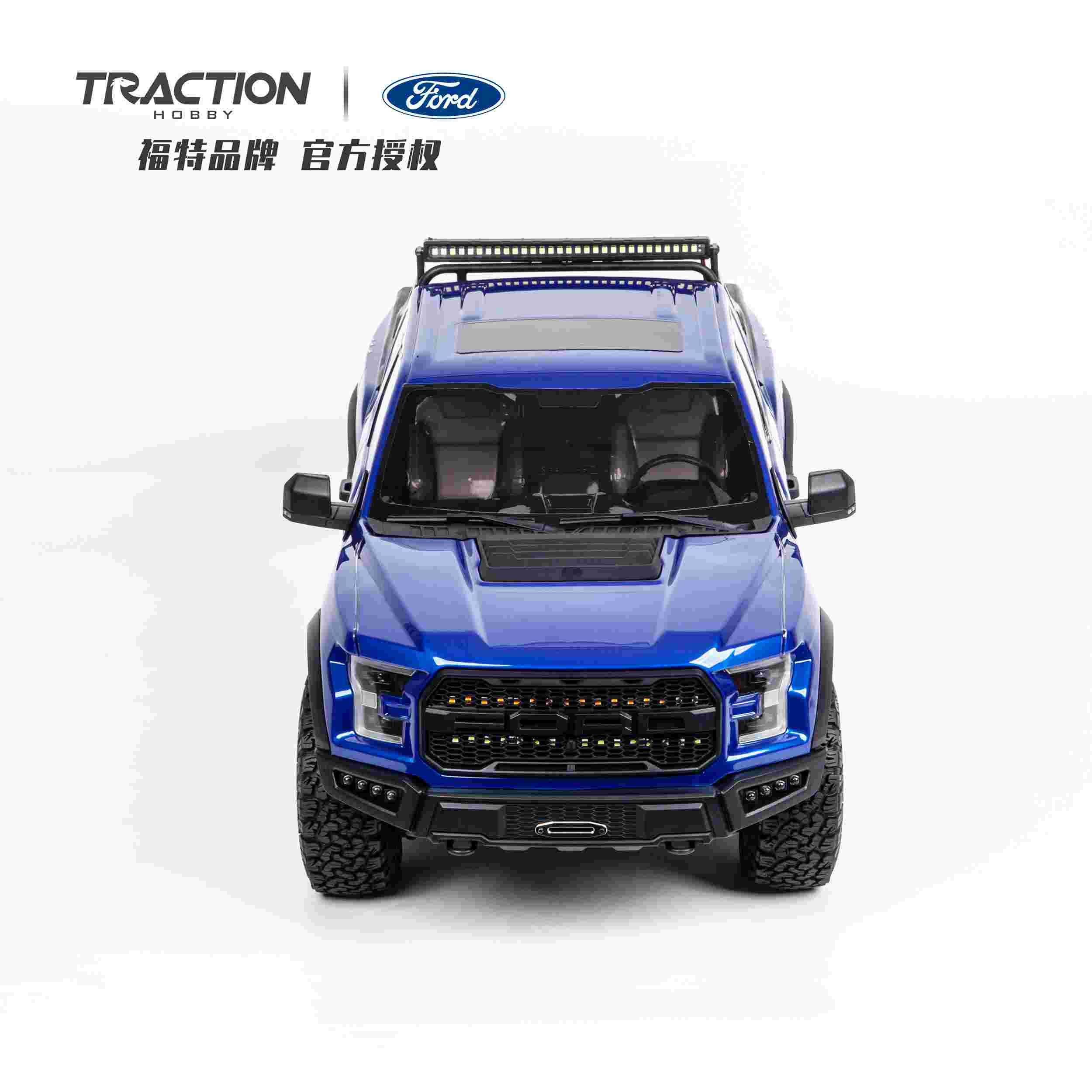

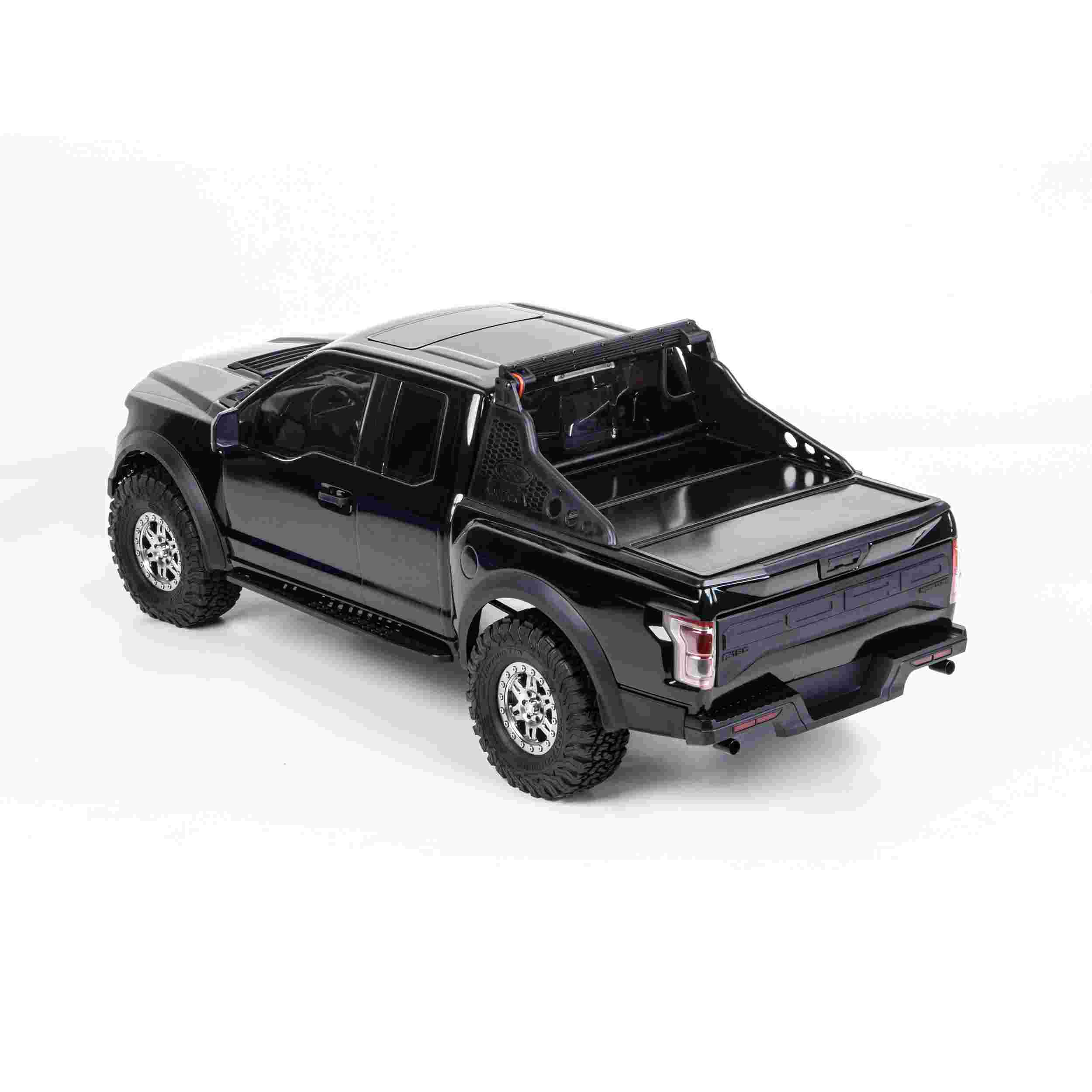

Traction Hobby 1/8 Ford Raptor F150 - Licensed Robust 2WD/4WD Off-Road RC Truck Crawler (Battery & Charger Not Included)

Sale price $749.99 USD

1. Take on rugged trails with the officially licensed Ford Raptor F150 1/8 scale crawler by Traction Hobby.

2. This high-detail RC truck combines scale realism with serious crawling performance, thanks to a robust metal chassis, independent front suspension, rear solid axle with lockable diffs, and a feature-packed electronic system.

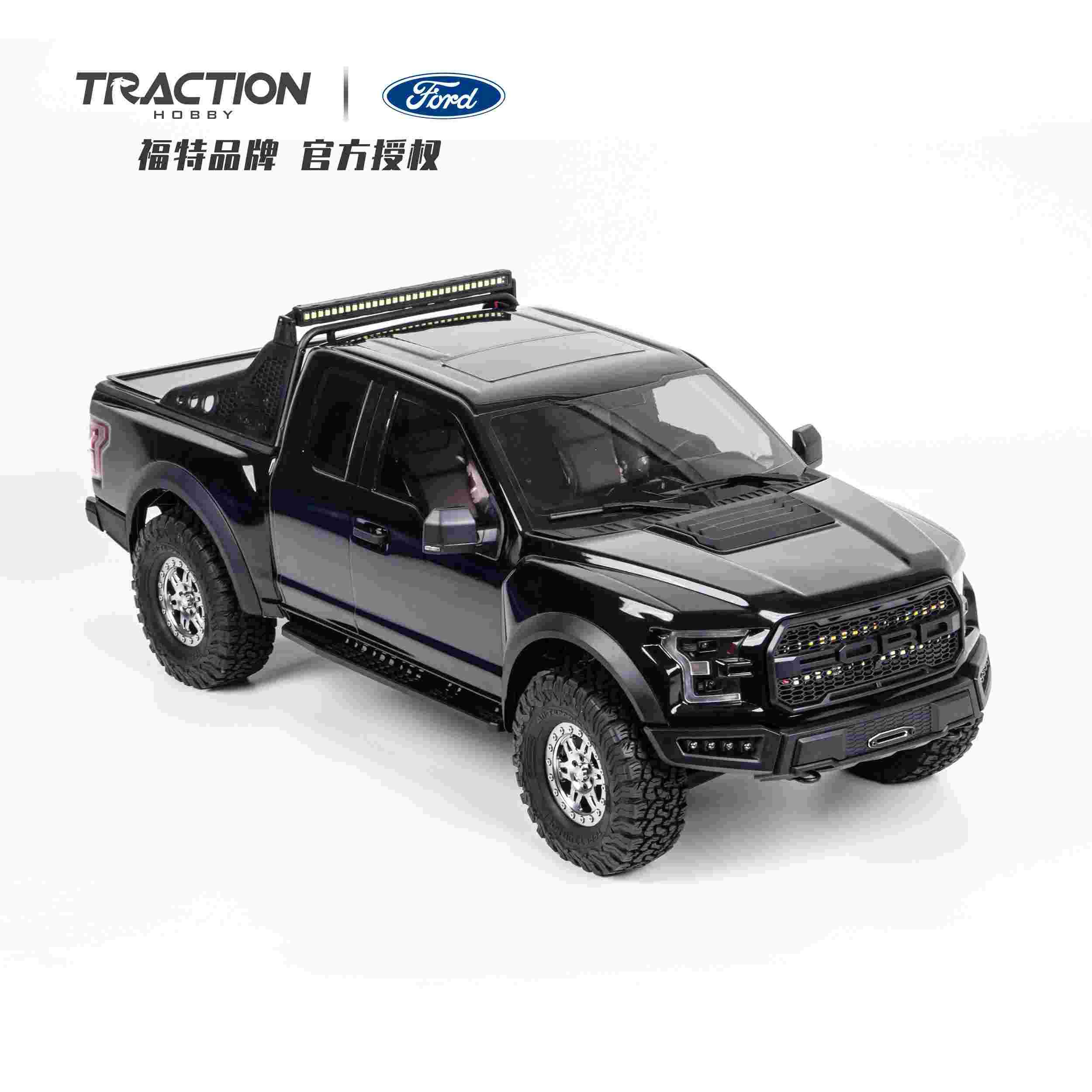

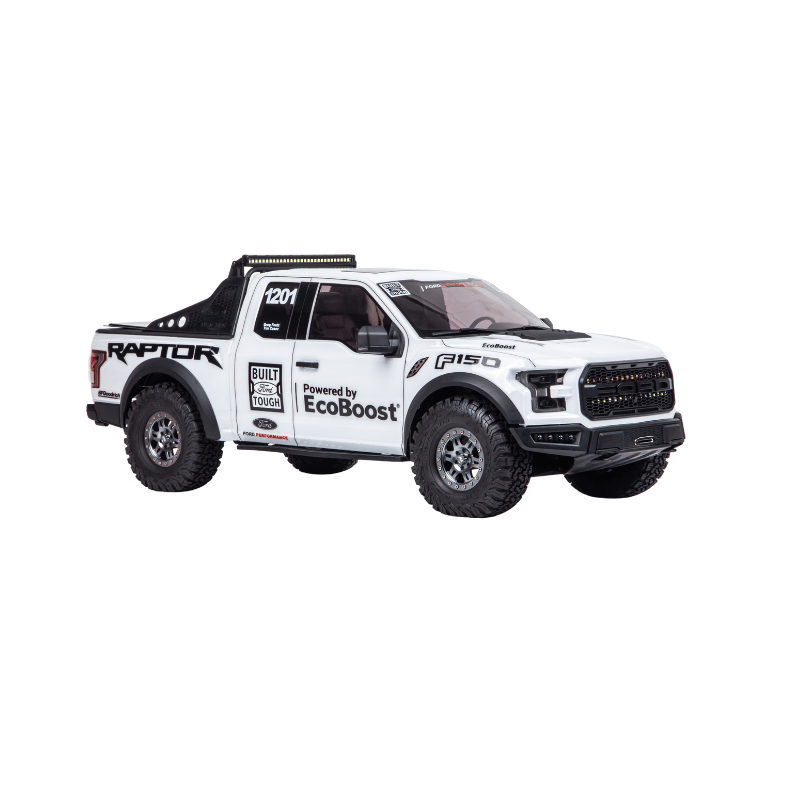

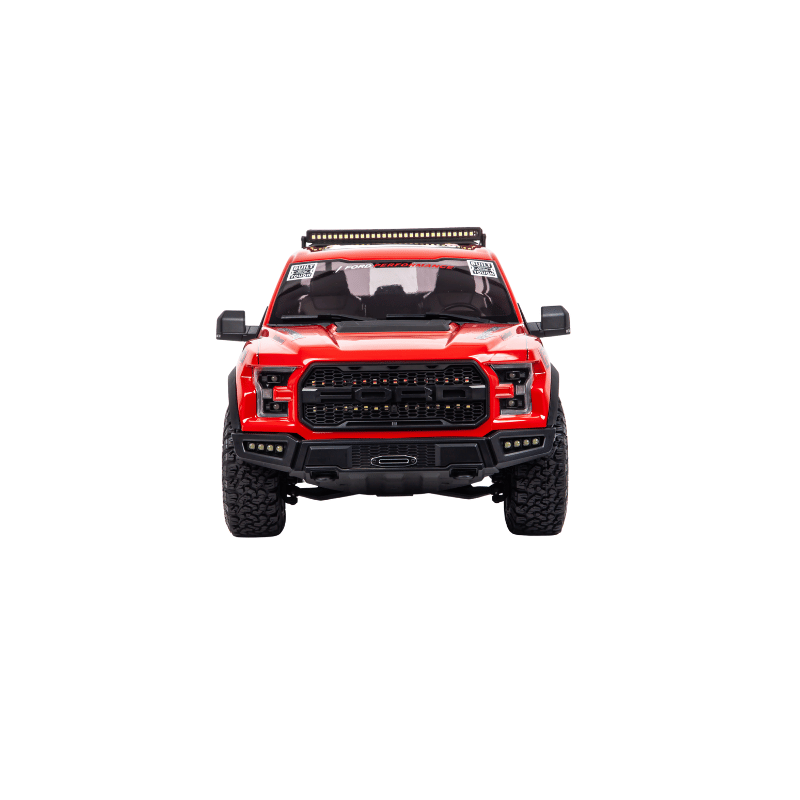

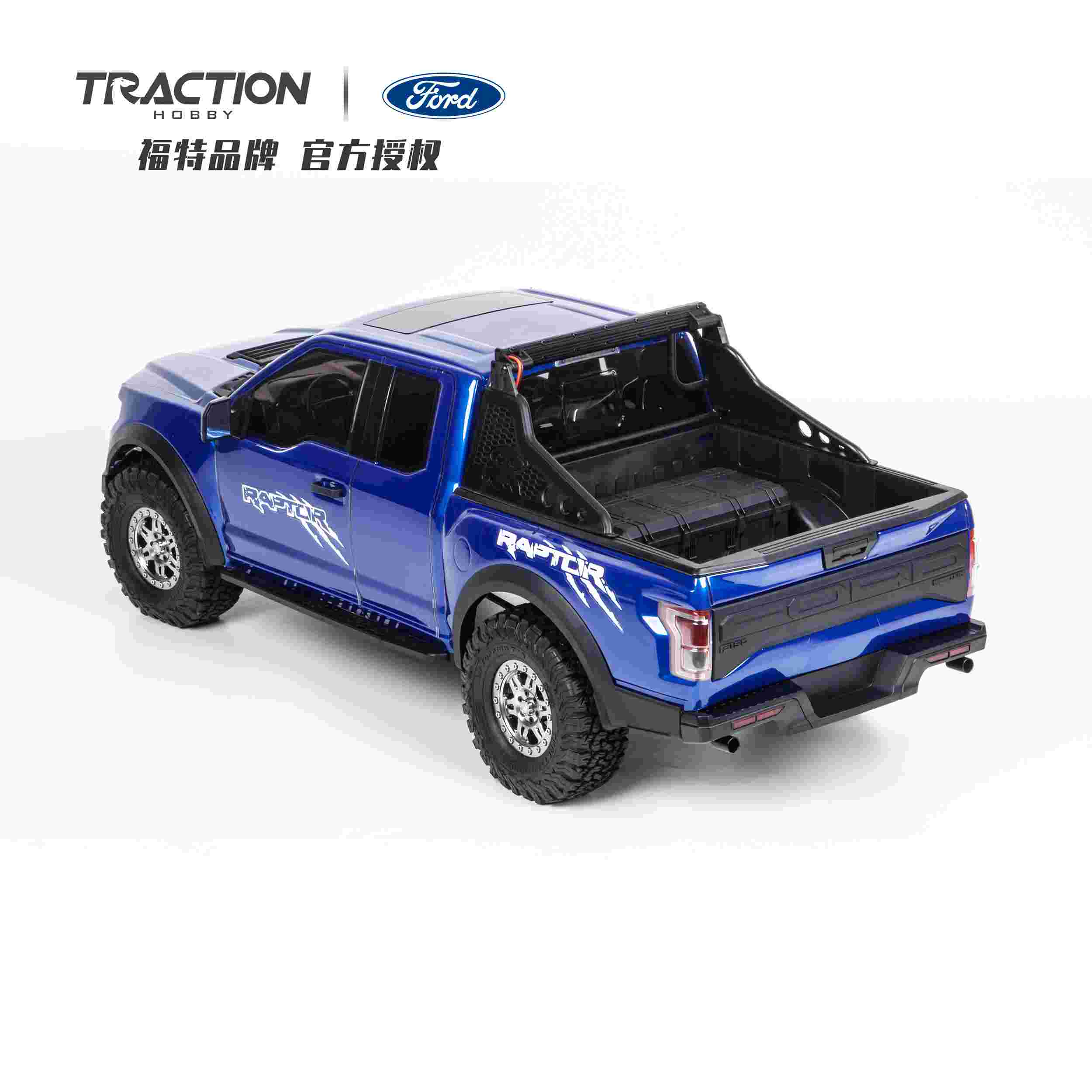

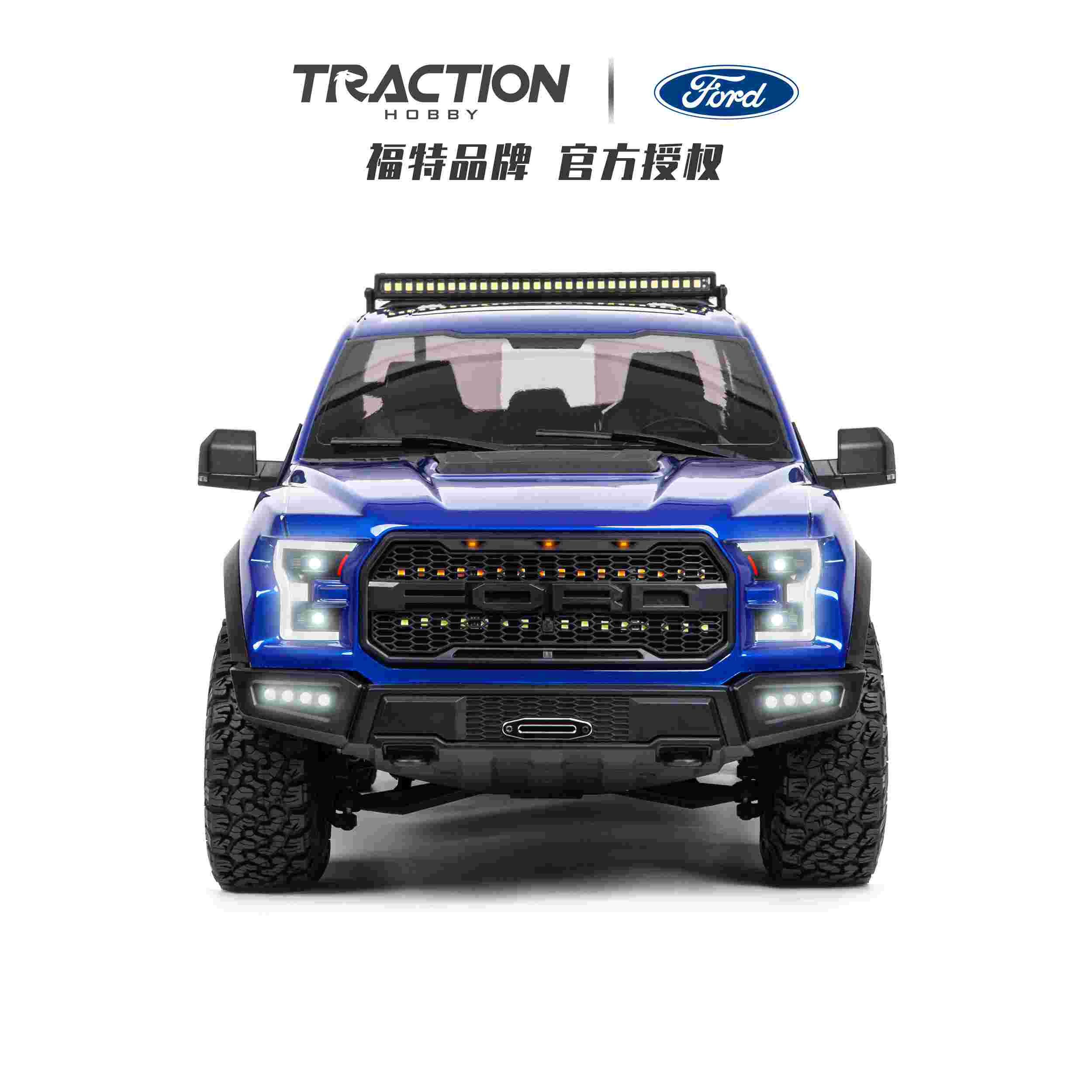

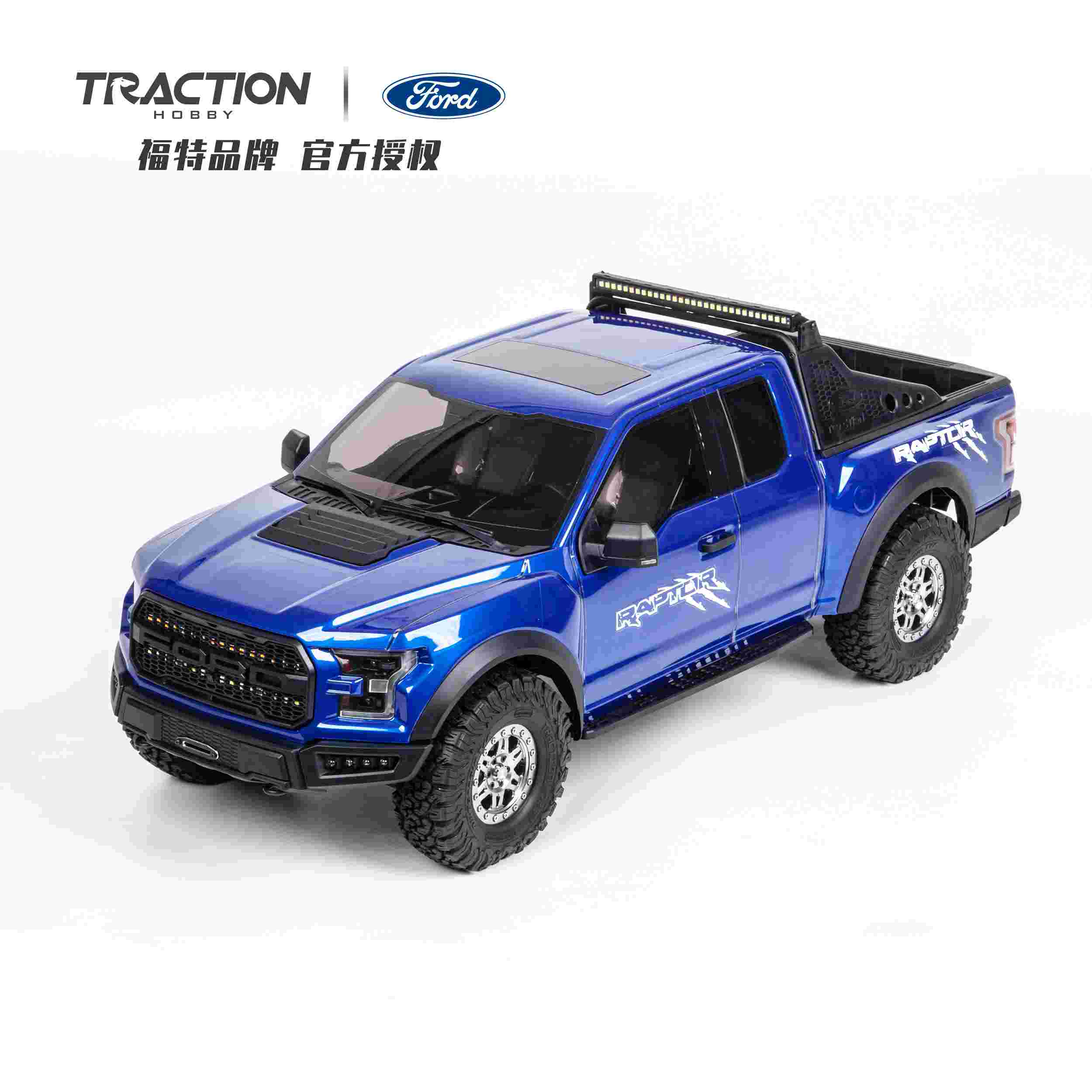

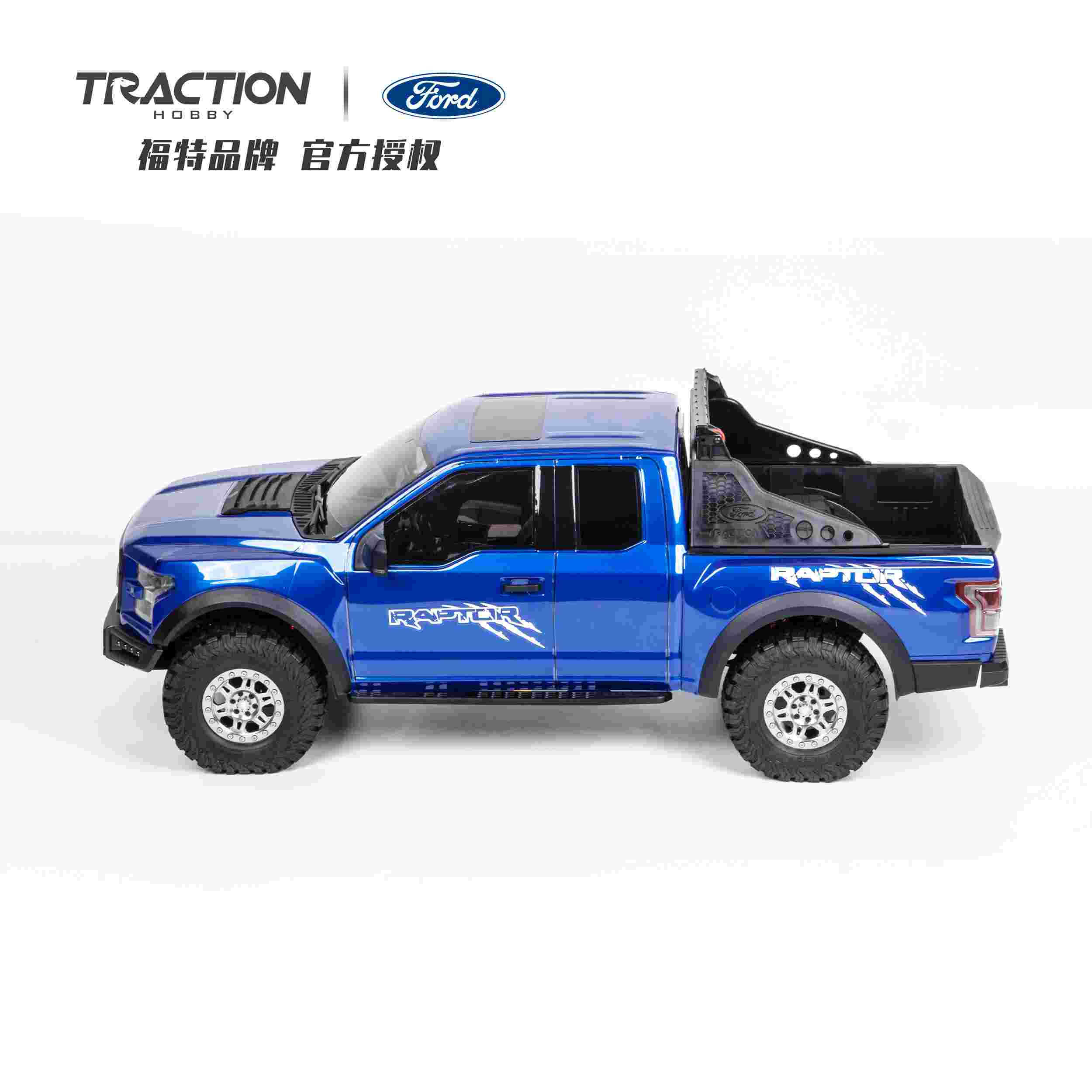

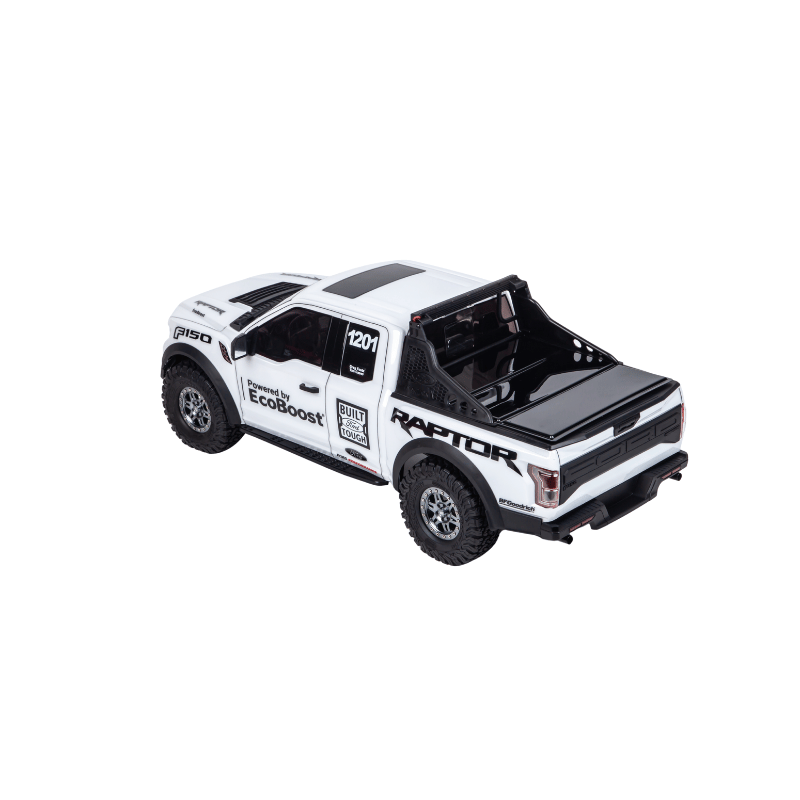

3. Official Ford License: Realistic 1.5 mm vacuum-formed PC body with scale details in Silver, Blue, Black, Red, or White.

4. Heavy-Duty Chassis: 1.5 mm steel C-channel frame rails for durability.

5. Suspension Setup: Front independent suspension and rear solid axle with CNC bridge covers, supporting differential locks.

6. 2.2" CNC Aluminum Wheels: Fitted with KO2-style 120 mm × 42 mm tires for aggressive grip.

Shell Color: Red
Shipping Method: Sea freight (20-40 days)
Add to Wishlist Add to Compare

Traction Hobby 1/8 Ford Raptor F150 - Licensed Robust 2WD/4WD Off-Road RC Truck Crawler (Battery & Charger Not Included)

Traction Hobby 1/8 Ford Raptor F150 - Licensed Robust 2WD/4WD Off-Road RC Truck Crawler (Battery & Charger Not Included)
Description

Note: If sea freight is not available for your country after placing the order, we will contact you directly. Please make sure to check your email.

Traction Hobby 1/8 Ford Raptor F150 – Licensed Off-Road Crawler

(Battery & Charger Not Included)



Key Features



  • Advanced Drivetrain: Switchable 2WD/4WD, selectable front/rear/4WD modes via transmitter.
  • Integrated Transmission: Two-speed gearbox with reverse, metal gears, and selectable drive modes.
  • Powerful Electronics: RS775 brushed motor with 880 high-voltage splash-proof ESC, XT60 connector.
  • 23 KG High-Torque Servo: CNC multi-link steering system with metal servo horn.
  • Premium Suspension: Full-metal coilover shocks filled with 550CST oil (Front: 81 mm / Rear: 93 mm).
  • Metal Drivetrain: 7 mm metal driveshafts, 5 mm alloy steel links, metal gears throughout.
  • Scale Detail: Functional LED light kit, wipers, door handles, interior details, removable bed, quick-release body system.



Electronic System

  • Transmitter: Small Elephant DDF-350, 10-channel 2.4 GHz with color screen and gyro assist.
  • Motor: RS775 Mabuchi brushed (21000 rpm), upgradable to 1/8 brushless.
  • ESC: Custom 880 high-voltage splash-proof with 7.4 V BEC.
  • Servos: 1 × 23 KG TH1623 steering, 4 × 4 KG TH1036 function servos for shifting, front/rear diff locks, drive selection.
  • Lighting: Combined LED and SMD light set, LED roof bar (battery/charger not included).



Dimensions and Specifications

  • Body Size: 695 × 280 × 255 mm (packaged 770 × 360 × 330 mm)
  • Wheelbase: 421 mm
  • Ground Clearance: 222 mm
  • Track Width: 374 mm
  • Approach / Breakover / Departure Angles: 36° / 32° / 27°
  • Net/Gross/Volume Weight: 6.5 kg / 10.2 kg / 19 kg
  • Battery Bay Size: 150 × 46 × 40 mm (2–4 S compatible)



Radio Channel Configuration (Factory)

  • CH1: Steering
  • CH2: Throttle
  • CH3: Lights
  • CH4: High/Low Gear
  • CH7: Drive Mode (FWD/4WD/RWD)
  • CH9: Front Diff Lock
  • CH10: Rear Diff Lock
  • CH5-6-8: Spare/Customizable
