Notes

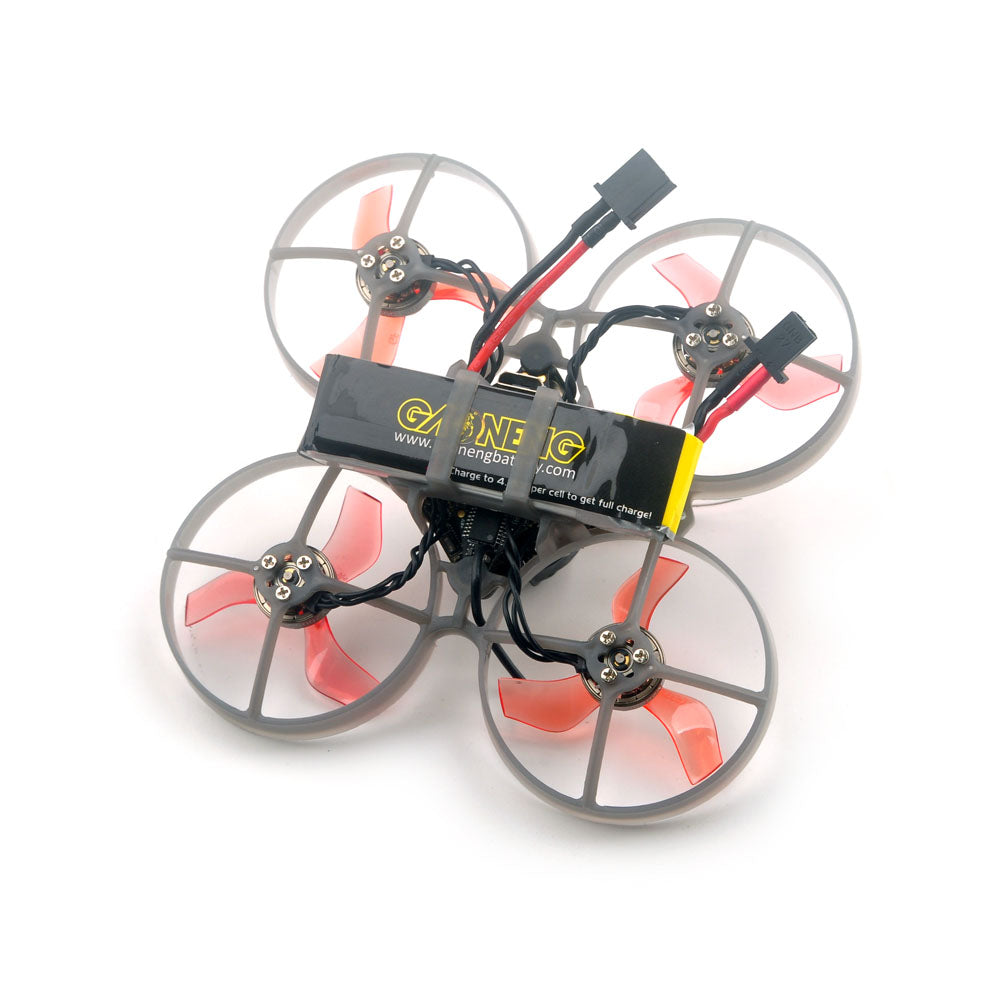

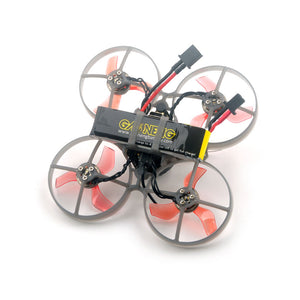

• Recommend use the battery with lead wire.

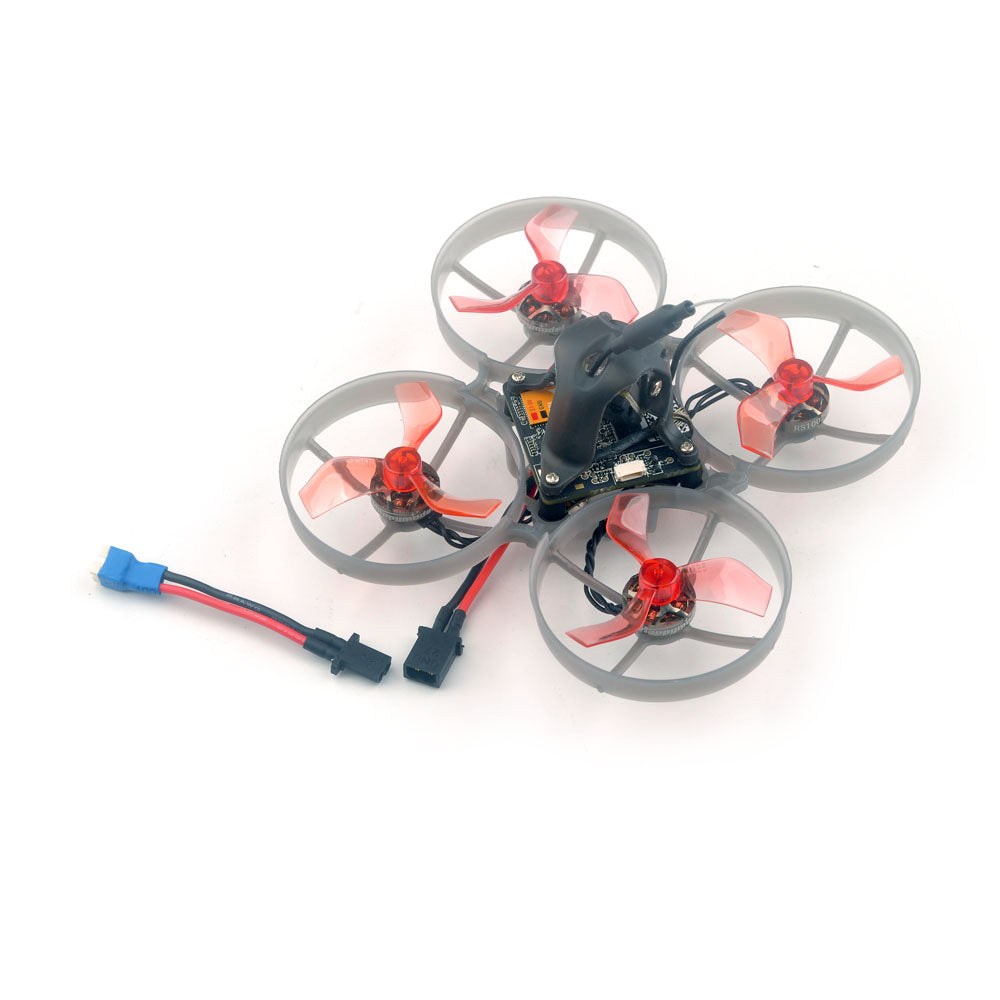

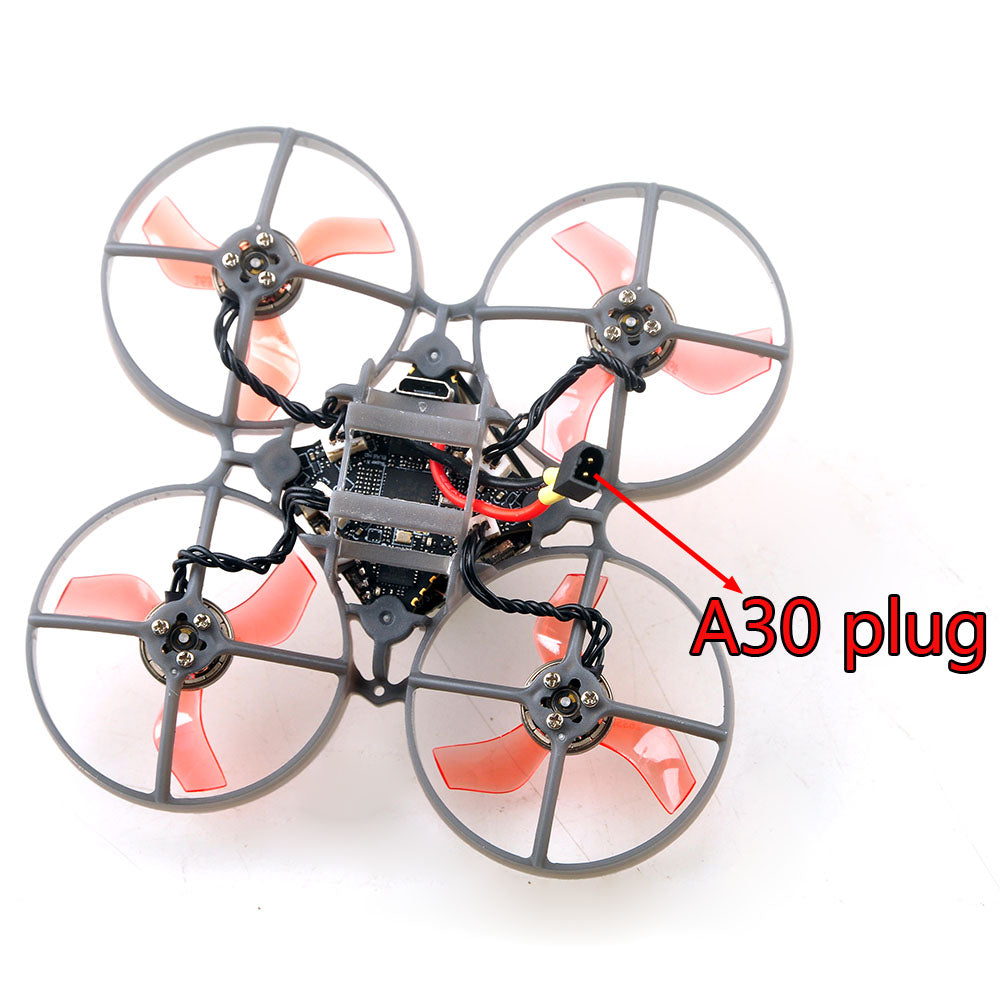

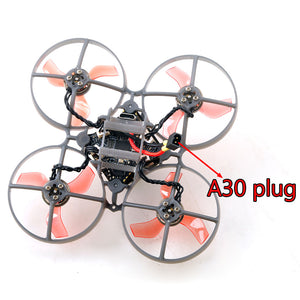

• Both A30 and BT2.0 plug battery are compatible.

Specifications

• Brand Name: Happymodel

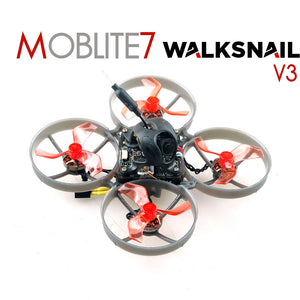

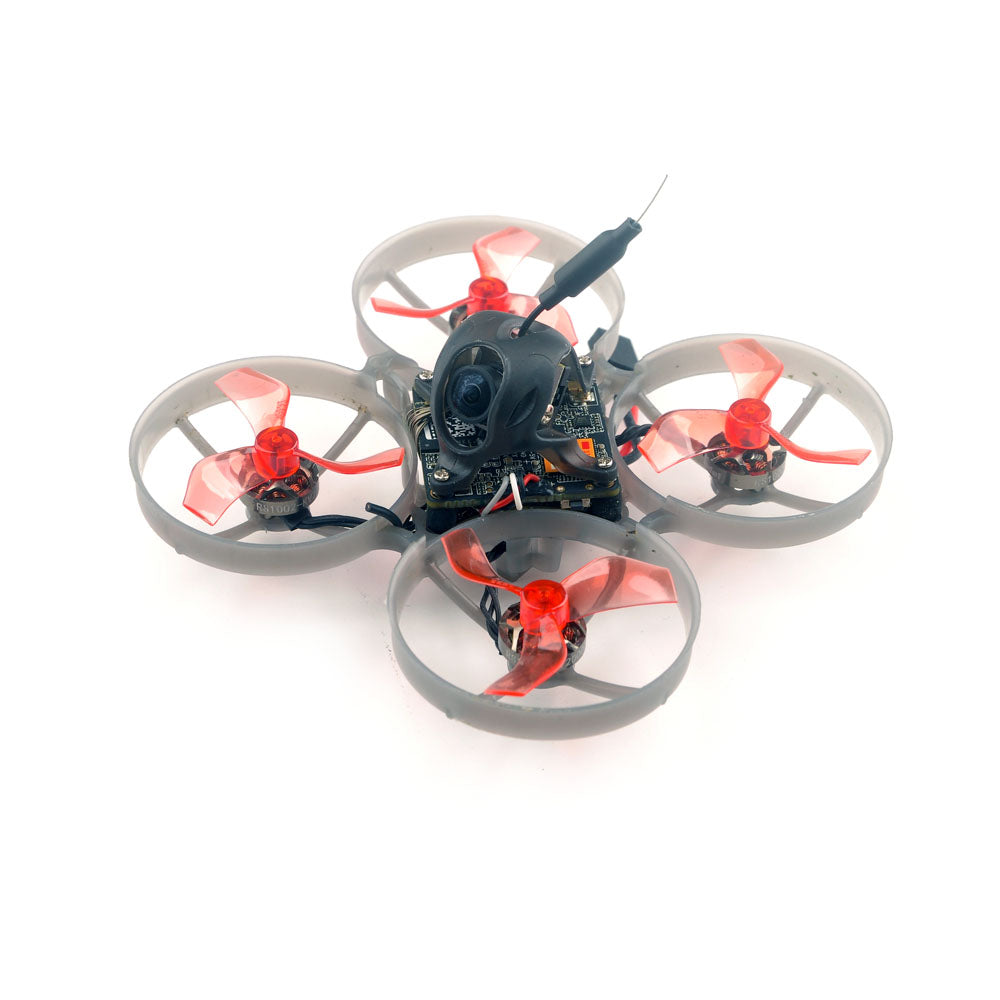

• Model: Moblite7 Walksnail V3
• Frame Wheelbase: 75mm

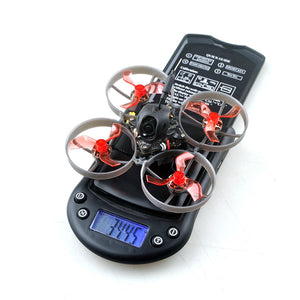

• Weight: 34.5g (without battery)
• Size: 98mm × 98mm × 48mm
• UART ELRS: v3.0 Ready
• Battery Compatibility: 1S Lipo / Lihv
• Battery Plug: GNB A30
• Onboard Blackbox: Ready

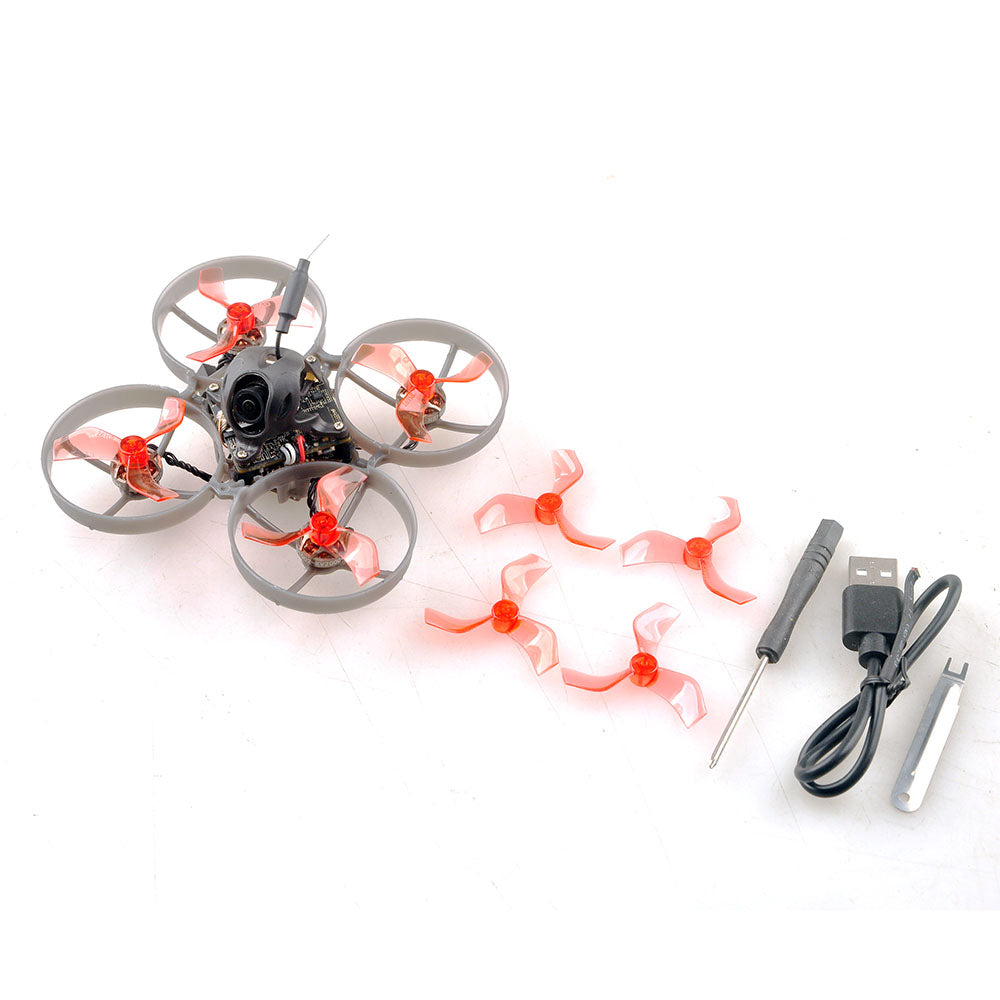

Package Includes

Flight Controller: SuperX HD ELRS

• Betaflight 4.4.2 Ready
• Firmware Target: CRAZYBEEF4DX
• MCU: STM32F411CEU6 (100MHz, 512K FLASH)
• Sensor: BMI270 or ICM42688P (SPI)
• Power Supply: 1-2S Lipo / Lihv (DC 2.8V~8.7V) – Only 1S supported for this drone
• Built-in: 12A Blheli_S 4in1 ESC (DSHOT300), 5V 1A BEC, UART ELRS receiver (ELRS v3.0 ready), Voltage detection
• Bluejay ESC Firmware Ready

Onboard 4in1 ESC

• Support: 1-2S Lipo / Lihv
• Current: 12A Continuous / 15A Peak (3s)
• Factory Firmware: Z-H-30 – Bluejay, 0.19, 48kHz
• Support ESC-Configurator / BLHeli_S Suite

Onboard UART ExpressLRS 2.4GHz Receiver

• RF Frequency: 2.4GHz
• Antenna: 31mm enameled copper wire
• Telemetry Output Power: <12dBm
• Protocol: CRSF
• Firmware Version: ExpressLRS v3.0.1
• Supports updates via ExpressLRS Configurator / WIFI / Betaflight pass-through

Motor: 1002 20000KV

• Configuration: 9N12P
• Stator: 10mm Diameter, 2mm Length
• Shaft Diameter: Φ1.5mm
• Dimensions: Φ13.5mm × 12.5mm
• Weight: 2.5g
• Voltage: 1S Only

Propeller: Gemfan 1610-2 Bi-blade

• Weight: 0.24g
• Material: PC
• Pitch: 1 inch
• Diameter: 40mm
• Center Hole: 1.5mm

VTX: Walksnail Avatar Mini 1S

• Frequency: 5.725 – 5.850 GHz
• Transmitter Power (EIRP): FCC: <25.5dBm, CE: <14dBm, SRRC: <20dBm, MIC: <25dBm
• Mounting Holes: 25.5 × 25.5mm
• Dimensions: 33 × 33 × 6.5mm
• Storage: 8GB
• Recording: 1080p / 720p
• OSD: Canvas Mode
• Bitrate: 25Mbps / 50Mbps
• Latency: ~22ms
• Weight: 6.8g
• Power Input: 3.1V – 5V

Camera: Walksnail Avatar Nano

• Sensor: 1/2.7” CMOS
• Resolution: 1080p@60fps, 720p@120fps / 60fps
• Ratio: 16:9 / 4:3
• Lens: 2.1mm (FOV 170°, Aperture F2.0)
• Shutter: Rolling
• Min. Illumination: 0.001Lux
• Weight: 3.5g
• Dimensions: 14 × 14 × 17mm
• Cable: 45mm Coaxial

Manuals:
Moblite7 Walksnail HD 1S SPI ELRS version manual document
Moblite7 Walksnail HD 1S SPI FRSKY version manual document

Dump files for Betaflight 4.3.0:
Moblite7 walksnail frsky dump
Moblite7 Walksnail SPI ELRS dump

Dump files for Betaflight 4.4.2:
Moblite7 Walksnail V2 dump file for betaflight 4.4.2 version
Moblite7 Walksnail V3 dump file for betaflight 4.4.2 version

Firmware:
Betaflight_4.3.0_RC3_STM32F411_Frsky
Betaflight_4.3.1_CRAZYBEEF4SX1280_support_ELRSV2.0
Betaflight_4.3.1_CRAZYBEEF4SX1280_support_ELRSV3.0
Betaflight 4.4.2 firmware for Moblite7 Walksnail V3
