Happymodel EX1002 KV20000 Brushless Motor - For Mobula7 1S, Mobula7 HD 1S, Moblite7 HDZERO, Moblite7 avatar

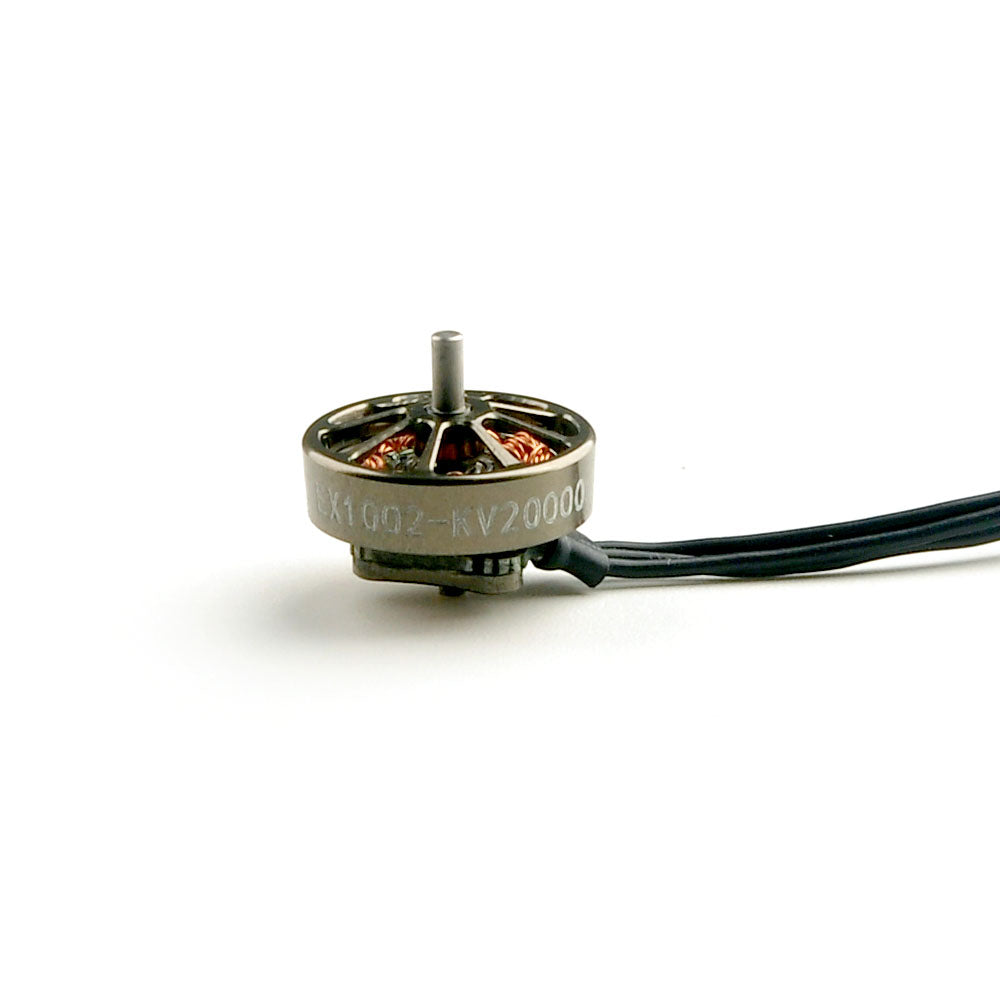

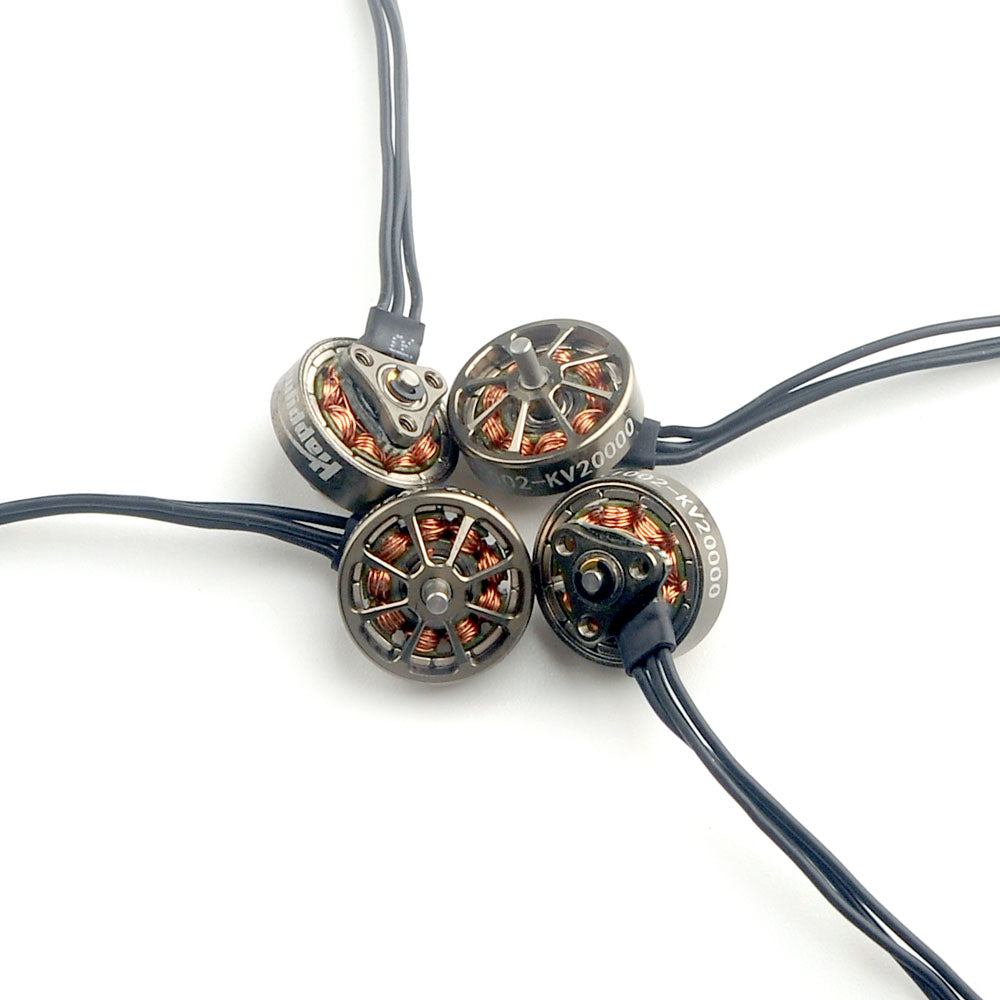

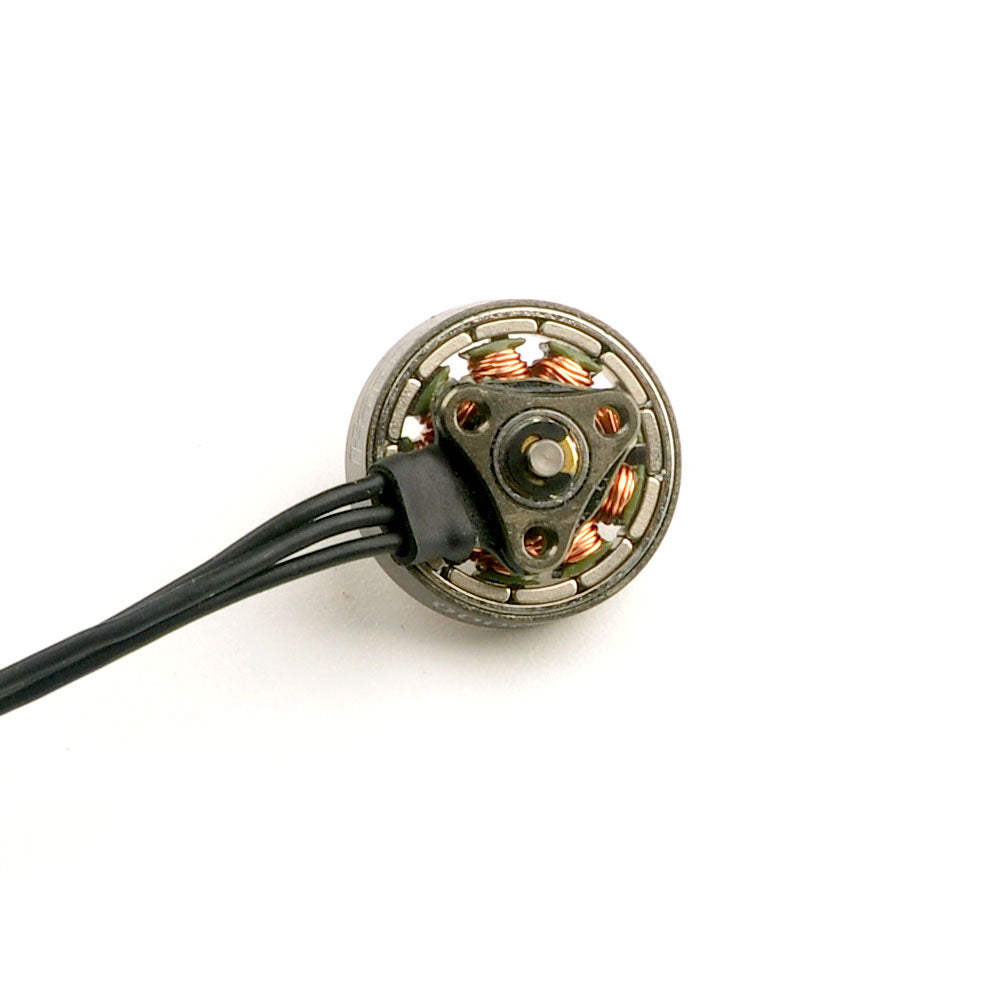

Happymodel EX1002 KV20000 Brushless Motor
The Happymodel EX1002 KV20000 brushless motor is an ultra-lightweight high-performance motor designed for 1S FPV whoops. With precision engineering, durable construction, and compatibility with models like Mobula7 1S, Mobula7 HD 1S, Moblite7 HDZERO, and Moblite7 Avatar, this motor ensures powerful thrust, smooth efficiency, and stable flight control.

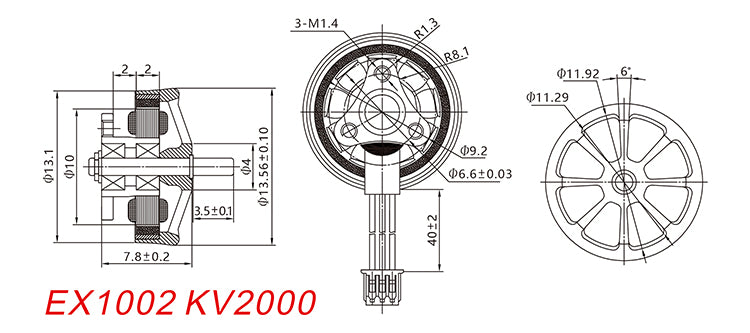

Specifications
| Brand | Happymodel |
|---|---|
| Model | EX1002 Brushless Motor |
| KV Rating | 20000KV |
| Shaft Diameter | 1.5mm |
| Configuration | 9N12P |
| Stator Size | 10mm Diameter × 2mm Length |
| Motor Dimensions | Φ13.5mm × 12.5mm |
| Connector | JST1.25mm |
| Battery Compatibility | 1S LiPo (20000KV version supports only 1S) |
| Wire Length | 40mm (excluding connector) |

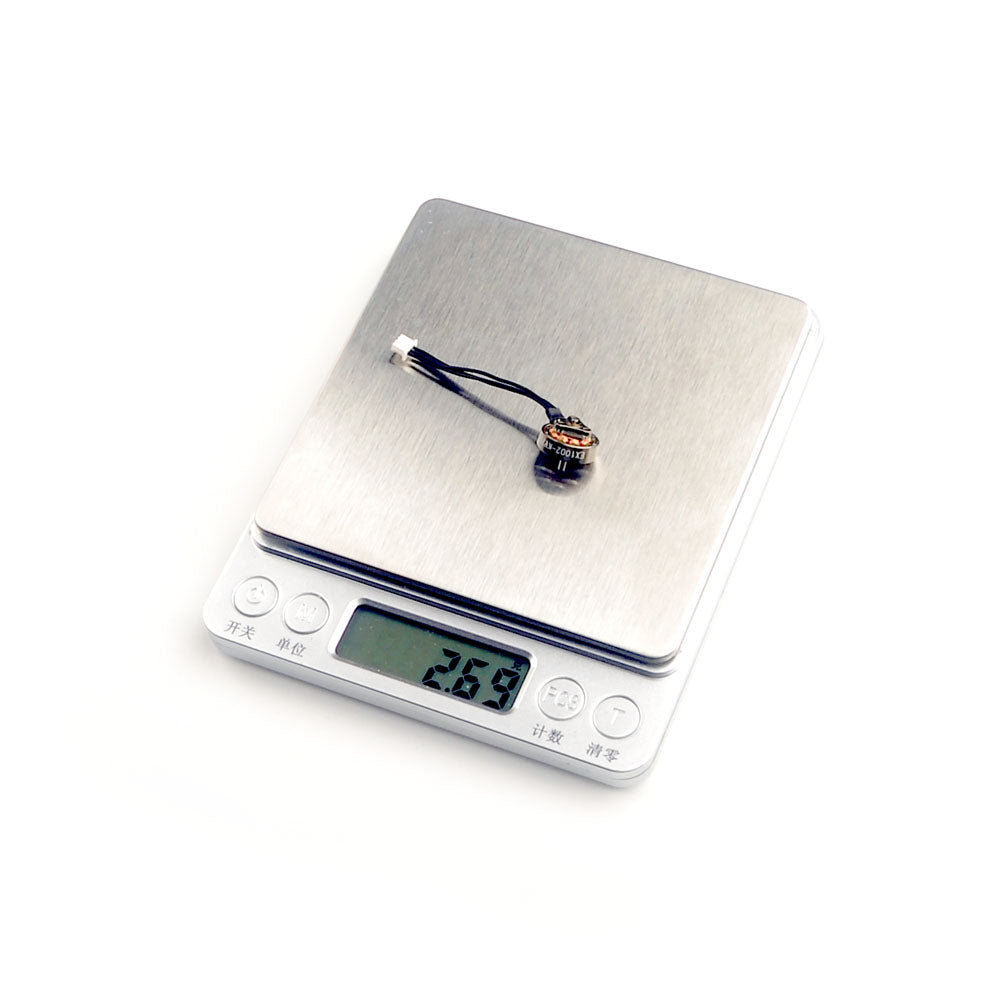

| Weight | 2.45g |
| Compatible Models | Mobula7 1S, Mobula7 HD 1S, Moblite7 HDZERO, Moblite7 Avatar |
Bench Test Data
Happymodel EX1002 KV20000 Brushless Motor - For Mobula7 1S, Mobula7 HD 1S, Moblite7 HDZERO, Moblite7 avatar
Description
Happymodel EX1002 KV20000 Brushless Motor
The Happymodel EX1002 KV20000 brushless motor is an ultra-lightweight high-performance motor designed for 1S FPV whoops. With precision engineering, durable construction, and compatibility with models like Mobula7 1S, Mobula7 HD 1S, Moblite7 HDZERO, and Moblite7 Avatar, this motor ensures powerful thrust, smooth efficiency, and stable flight control.
Specifications
| Brand | Happymodel |
|---|---|
| Model | EX1002 Brushless Motor |
| KV Rating | 20000KV |
| Shaft Diameter | 1.5mm |
| Configuration | 9N12P |
| Stator Size | 10mm Diameter × 2mm Length |
| Motor Dimensions | Φ13.5mm × 12.5mm |
| Connector | JST1.25mm |
| Battery Compatibility | 1S LiPo (20000KV version supports only 1S) |
| Wire Length | 40mm (excluding connector) |
| Weight | 2.45g |
| Compatible Models | Mobula7 1S, Mobula7 HD 1S, Moblite7 HDZERO, Moblite7 Avatar |
