NewBeeDrone Flow 0802 Dual Ball Bearing Whoop motor 27000kv (Pack of 4)
NewBeeDrone Flow 0802 Dual Ball Bearing Whoop motor 27000kv (Pack of 4)
Specifications
Motor KV: 27400
Maximum Current: 6.2Amp
Internal Resistance: 142mΩ
Maximum Power: 24.8W
Stator Diameter: 8.4mm
Overall Dimension:Φ11.6 x 12.2mm
Stator Height: 2mm
Shaft Diameter: Φ1 x 4.2mm
No.of Stator Slots: 9
Lead Wire Size: 30AWG x 50mm
ESC(A): 10Amp
Dynamic Balance: ≤10mg
Rated Voltage: 4.2V(1s)
NO-Load Current: 1.60Amp
Material: 7075 Aluminum
Bearing: NSK Ball Bearing
Weight: with cable and plug -2.15g without cable -1.95g

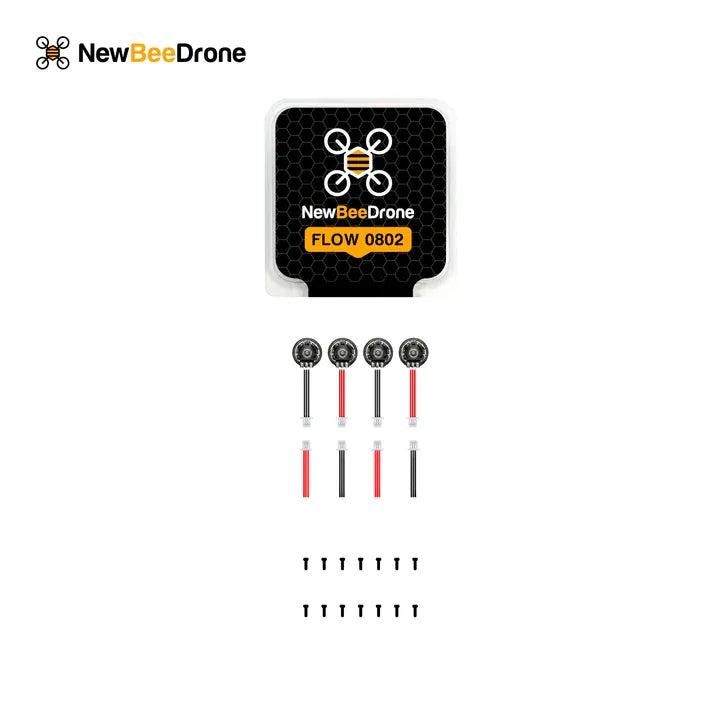

Package Included:
4x flow 0802 Double ball bearing motor 27000kv with JST1.0 plug
4x extra JST1.25 plug cable for compatible with other flight controllers
16x M1.4x3 Screws
