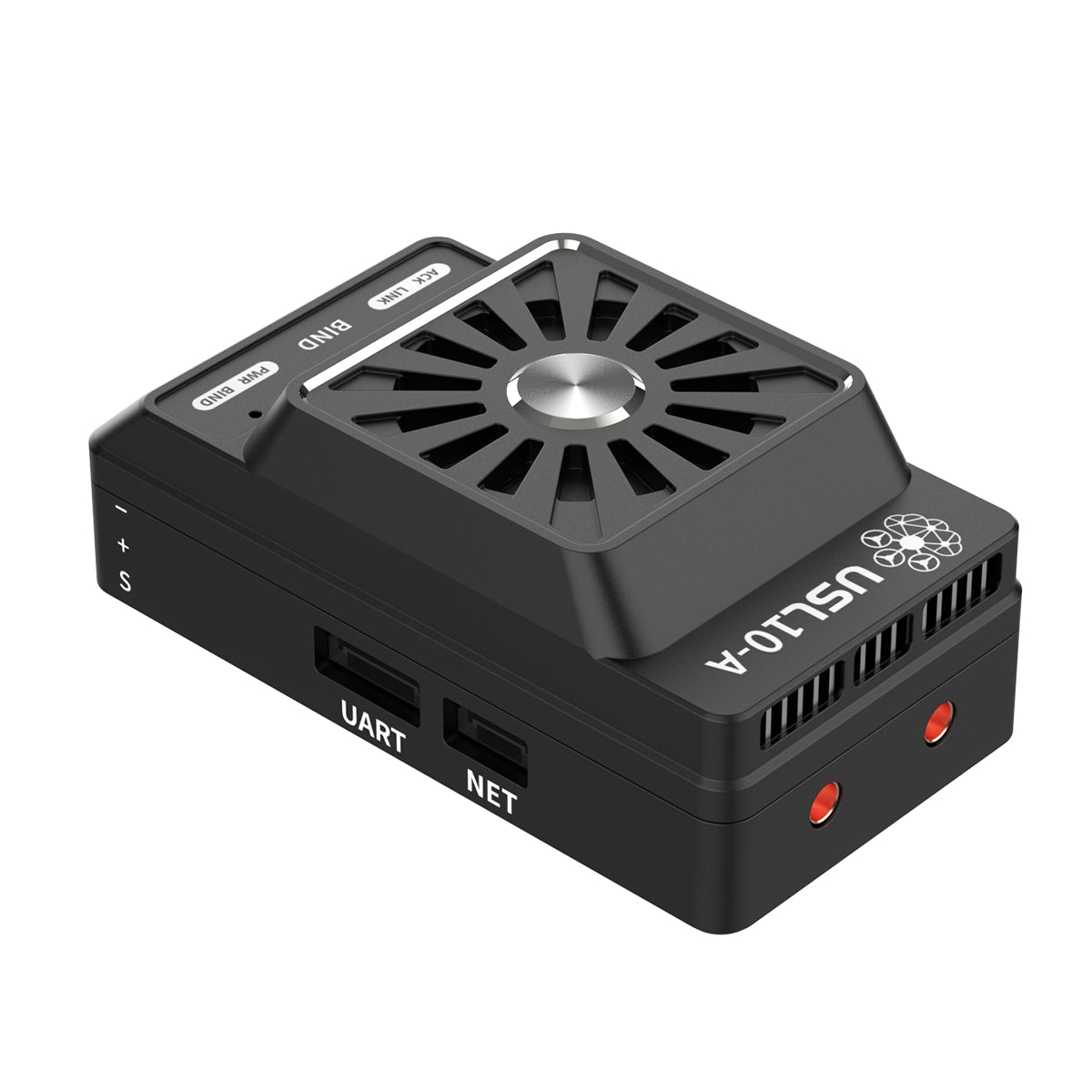

USL10-A Image/Data Transmission Link Sky Side for UAVs

The USL10-A Image/Data Transmission Link Sky Side is an advanced onboard communication module designed for UAVs, enabling seamless, real-time transmission of high-definition video, telemetry, and sensor data. This core component of the integrated image and data transmission system wirelessly encodes and transmits critical flight information while receiving control commands from the ground, offering two-way communication between the UAV and the ground station.

Built to handle complex airspace and various flight scenarios, the USL10-A supports high-quality image transmission, low-latency data transfer, and long-distance communication, making it an essential tool for beyond-line-of-sight (BLOS) control and mission-critical operations. Its interference-resistant transmission architecture ensures stable performance even in challenging environments, allowing for adaptive link adjustments for consistent data flow.

Key Features:

• High-Definition Transmission: Transmits high-quality video streams, flight control telemetry, and sensor data in real time.
• Two-Way Data Interaction: Supports bidirectional communication, receiving control commands and transmitting data to the UAV's systems.
• Low-Latency and Interference-Resistant: Features an advanced wireless transmission architecture for stable communication even in complex environments.
• Long-Distance Communication: Capable of transmitting data up to 10 km, making it ideal for extended range operations.
• Adaptive Link Adjustment: Adjusts automatically to changing conditions to maintain stable communication.
• Encryption Support: Equipped with AES, DES, and 3DES encryption for secure communication.

Specifications:

• Supply Voltage: 12V
• Power Consumption: 3W
• Maximum Transmit Power: 28dBm (2.4GHz), 26dBm (5.8GHz)
• Channel Bandwidth: 1.25MHz / 2.5MHz / 5MHz / 10MHz / 20MHz / 40MHz
• Modulation Method: BPSK / QPSK / 16QAM / 64QAM / 256QAM
• Channel Selection: Adaptive frequency hopping
• Transmission Distance: Up to 10 km
• On-Sky Speed: 200Kbps to 160Mbps
• Encryption Algorithms: AES, DES, 3DES (Hardware)
• Frequency Bands: 2.4~2.48GHz / 5.15~5.87GHz
• Antenna Interface: MMCX*2
• Size: 62.6mm x 35mm x 15mm
• Weight: 45g
• Operating Temperature: -40°C to 85°C

Interfaces:

• IN 12V: Operating voltage input, XT30 connector
• CONFIG: Configuration port, Type-C
• NET: Network port, GH1.25-4P
• UART: Serial port, GH1.25-6P
• BIND: Binding button for frequency pairing
• LINK: Network connection indicator
• PWR: Power indicator
• BIND: Binding status light
• S-BUS: S-BUS signal output
• PWM1~8: PWM control signal outputs
