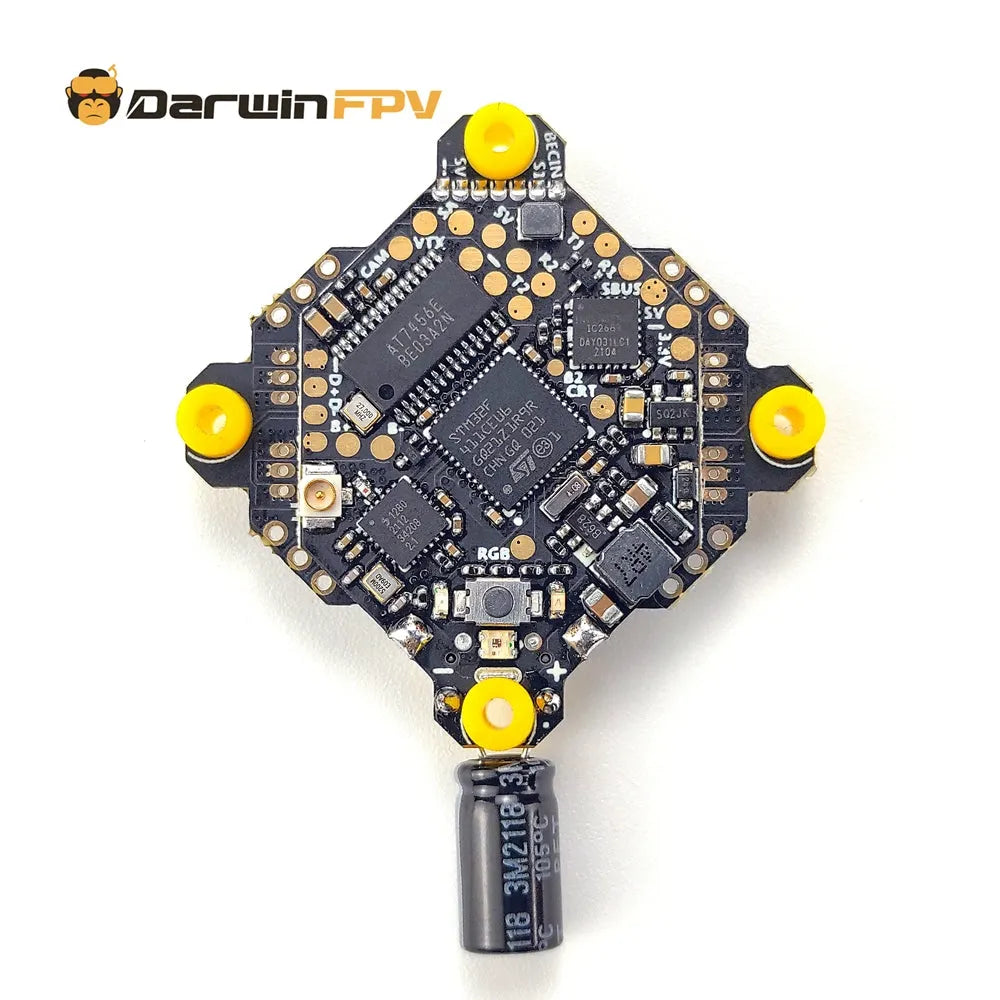

Il s'agit de la version mise à jour du Darwin AIO. Nous avons intégré le récepteur ELRS au contrôleur de vol pour faciliter son utilisation sur le mini-drone. L'ESC adopte le firmware Bluejay et est compatible avec les entrées Lipo 1-3S. Le courant maximal atteint 17 A. Le contrôleur de vol offre deux jeux d'interfaces UART et diverses interfaces pour périphériques externes tels que SBUS, Softserial, CTR, BUZZ, RGB, etc., ce qui résout parfaitement le problème du nombre insuffisant d'UART F411.
Spécification:

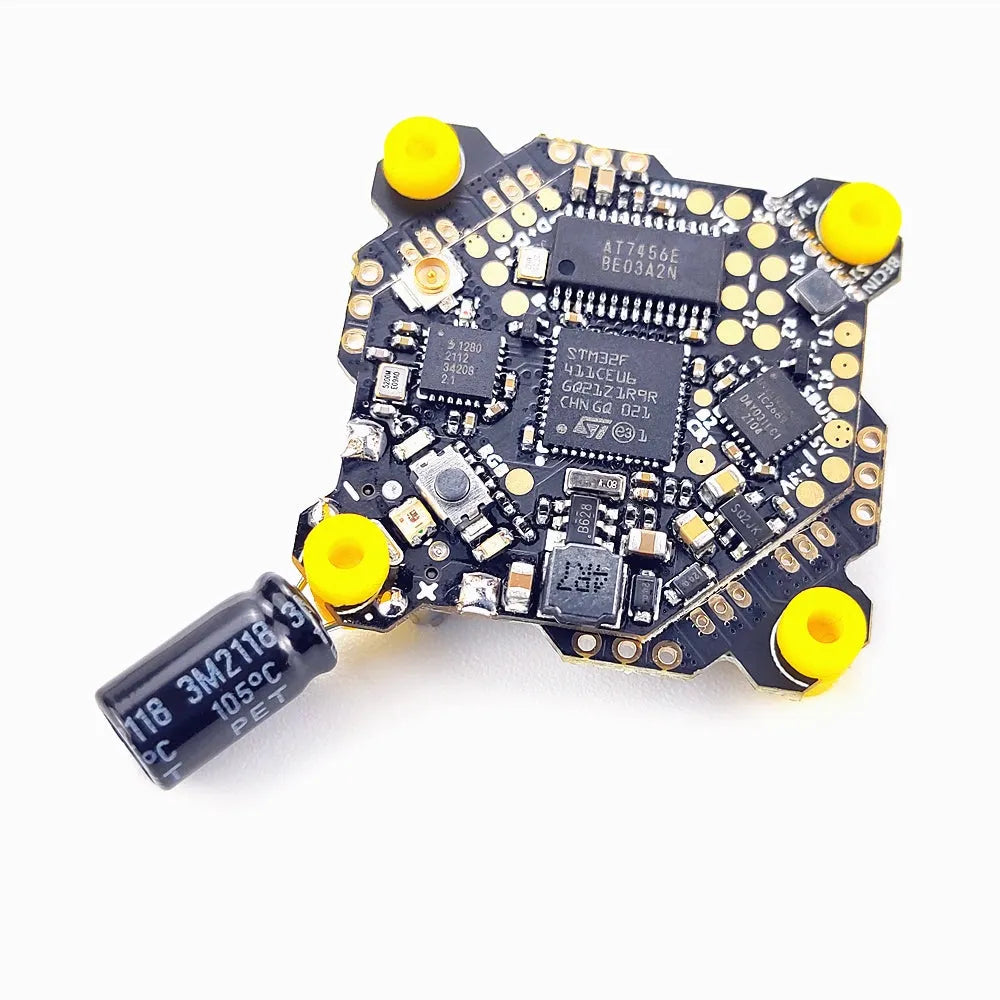

Microcontrôleur FC : STM32F411CEU6 (100 MHz)
Unité de mesure inertielle : ICM-20689 (SPI)
OSD : Betaflight OSD AT7456E
RF : SX1280 (2,4 GHz)
Sortie BEC : 5 V/2 A et 3,3 V/0,2 A
Cible du micrologiciel : betaflight_4.3.0_BETAFPVF4SX1280
2x Uart (1,2)
1x SBUS (onduleur RX1)
1x option Softserial_TX
1x Pad de soudure USB externe
1x CRT (actuel)
1x BUZZ
1x RVB
Microcontrôleur ESC : EFM8BB21F16G
Tension d'entrée : 1-3S LiPo
Courant continu : 15 A
Courant MAX (5 secondes) : 17 A
Objectif ESC : Bluejay_S_H_50_48_v0.14
Taille : 37x36x10,8 mm
Trou d'installation : 25,5 x 25,5 mm (M2)
Poids : 5,0 g

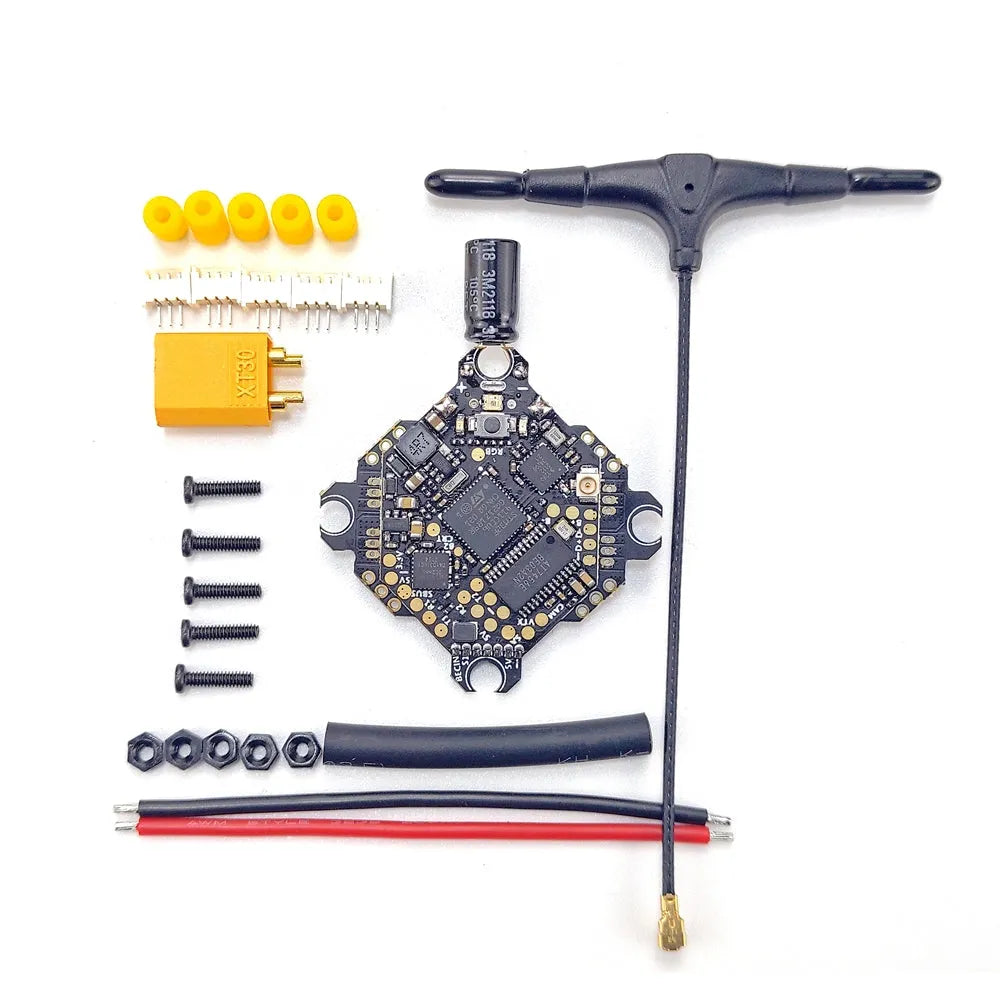

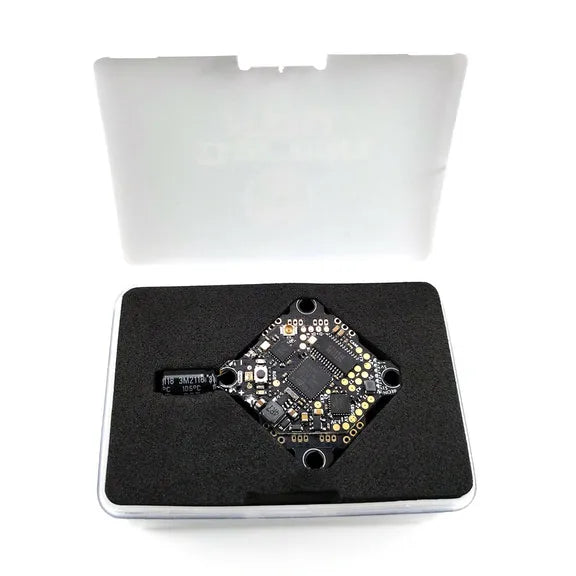

Emballage inclus:
1*ELRS2.0 F411 15A Bluejay AIO
