Hawkeye Firefly X Lite FPV Camera 4K 60FPS 34g Weight for Racing Drone
Features：
4K 60FPS
Only 34g weight
Ambarella H22S85 chipset
Gyro 4.0 Image Stabilization
WiFi + BT4.1 Remote control
SONY IMX377 12 Mega WDR CMOS
Note: Wifi password:12345678
Firefly X Lite FPV Cam firmware upgrade instructions
You can download file from here: Firefly x lite FPV CAM V2.0
The updated functions are as follows:
1.WDR enhancement function is added and opened by default;
The whole image quality has been greatly improved!
2.The synchronous output of gyro data in CSV format is added,
which can be used for computer post stabilization processing;
3.The resolution of 2.7k60 / 30fps 4:3 and 1920 * 1440p60 / 30fps
4:3 are added.
4.The four resolutions switched by pressing the key are 2.5k60fps
EIS on; 1440P 4:3; 4K30FPS Ultra; 2.7K30FPS 4:3; The last three sets
of resolutions will automatically output gyroscope data;
5.Put the Lite_ config document is displayed in the root directory
of the card to facilitate setting camera parameters with the TF card
6.If the card is inserted and there is no video recording, it will
beep twice every 6 seconds to prompt the user to start the video
recording before taking off!
7.Add the function of USB port external parameter adjustment AV
board; Subsequently, firefly cam will launch a parameter
adjustment AV board, which can connect FPV glasses for intuitive
viewfinder and parameter adjustment.
8.By default, the dual file function is enabled. When recording,
two videos with the same content will be generated, A and B. the B
video file is very small, which is used to watch on the Firefly app to
increase the video playback fluency

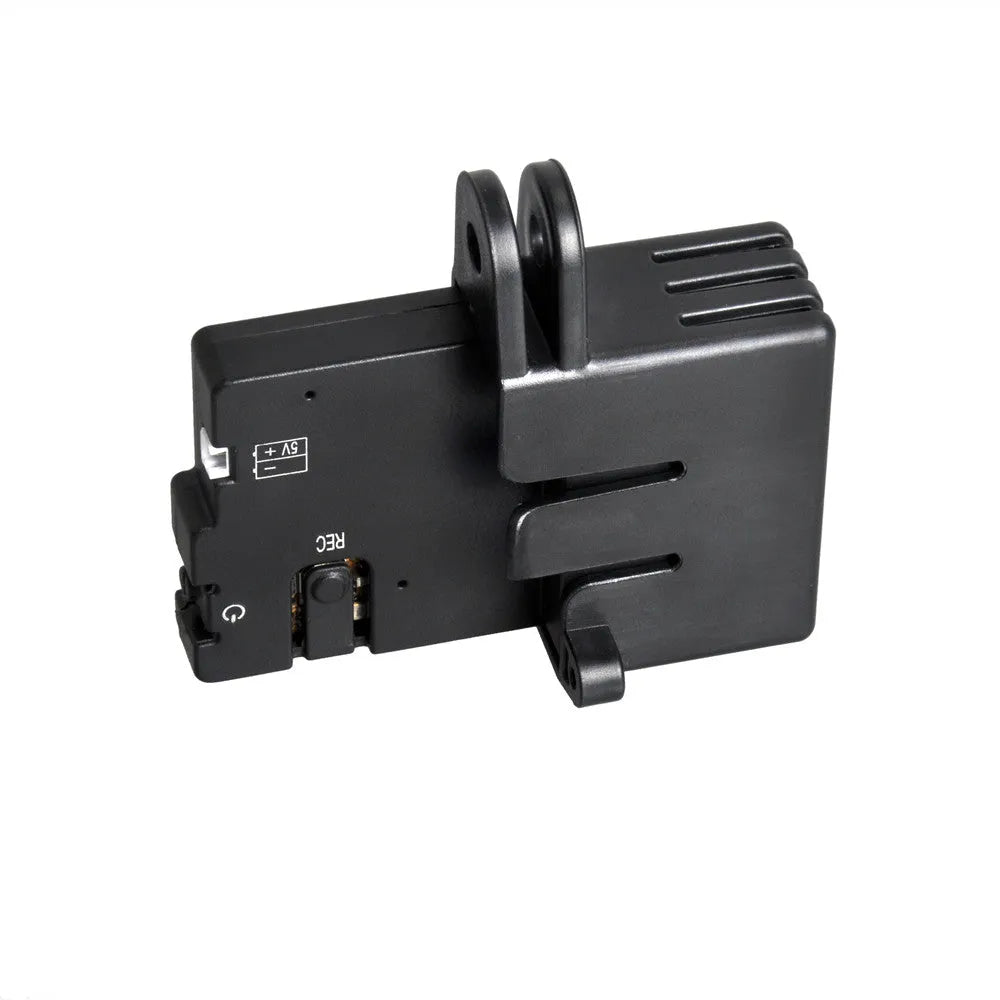

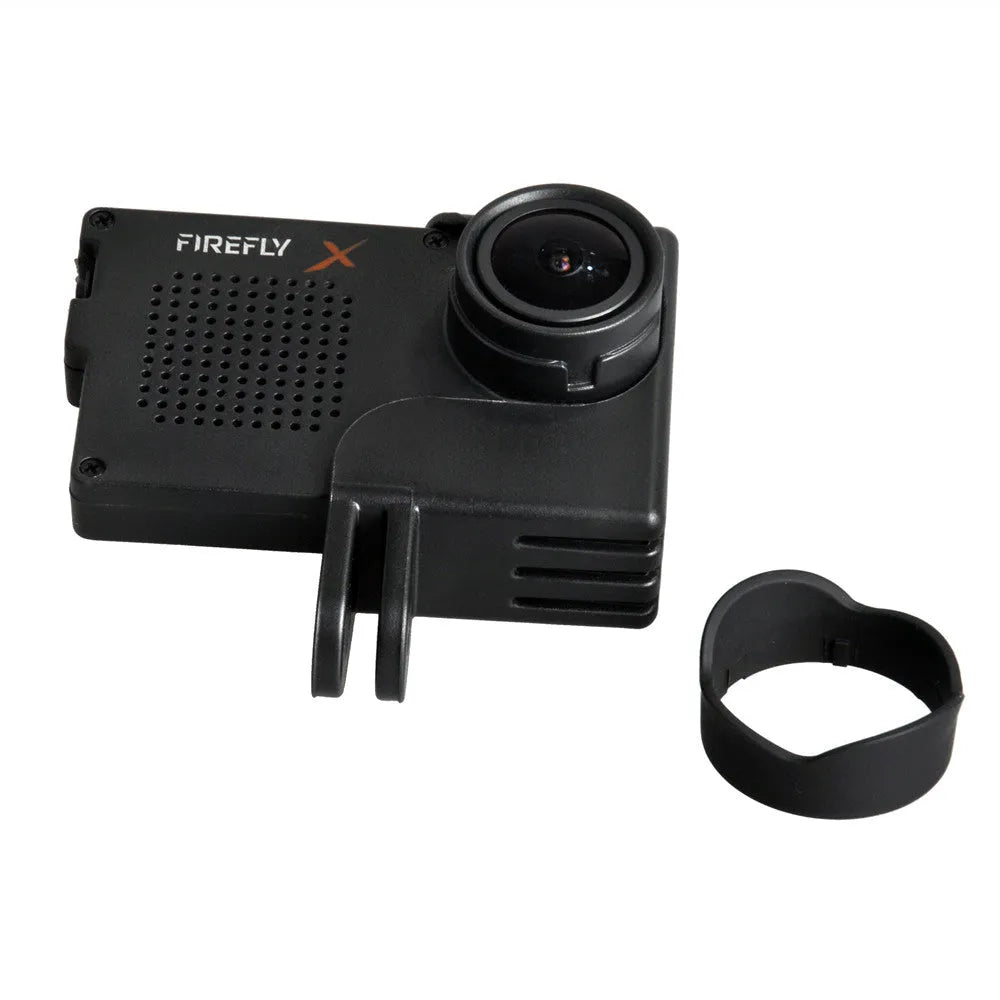

Structure introduction：
- POWER BOTTON；
- Type CUSB port；
- Video indicator（flash when recording；
- record button；
- WiFi indicator（Light on when WiFi is on;
- Lens；
- 2p power port(5V IN)；
- Cooling hole；
- Microphone hole；
- TF card slot；
Resolution:4K60FPS/2.7K60FPS/2.5K60FPS(Default 4k60FPS,can be switched freely)
Lens Diameter:17.5MM
RC and AV OUT:YES
Kind of MicroSD card supported:U3(Note:Low speed sd card will cause unstable)
Maximum size of MicroSD card supported:512G
Camera size:61×38×26 MM
Weight:34g
Compressed format:H.264
Video format :MP4
Diaphragm:F=2.8,7G1IR LENS
Angle:Diagonal 150 degrees
Working Voltage:5V
Power supply:1A
WiFi distance:10M
Waterproof:No
Six axis Gyro video stabalization:Yes
Button Functions
Operating instructions:
Use the 5V power supply on the drone to supply power to the camera, and then press the power button to turn on the camera, and the buzzer will ring three times quickly. When the camera is turned on, the default resolution of the camera is 4k60 frames. If you want to switch the resolution, you can press and hold the Record Button for 3 seconds to switch. The switching sequence is: 4k60 frame (two beeps of the buzzer) / 2.7k60 frame ultra wide angle (three beeps of the buzzer) / 2.5k60 frame on anti shake (four beeps of the buzzer). If the camera needs to flip 180 degrees to install, press the power button for 3 seconds after the camera is turned on, the camera will turn on the image flip function. After the camera is turned on, press the power button briefly to turn on the WiFi function, and then use the mobile phone to connect with the FIREFLY app. You can set camera time and parameters, preview and download videos.

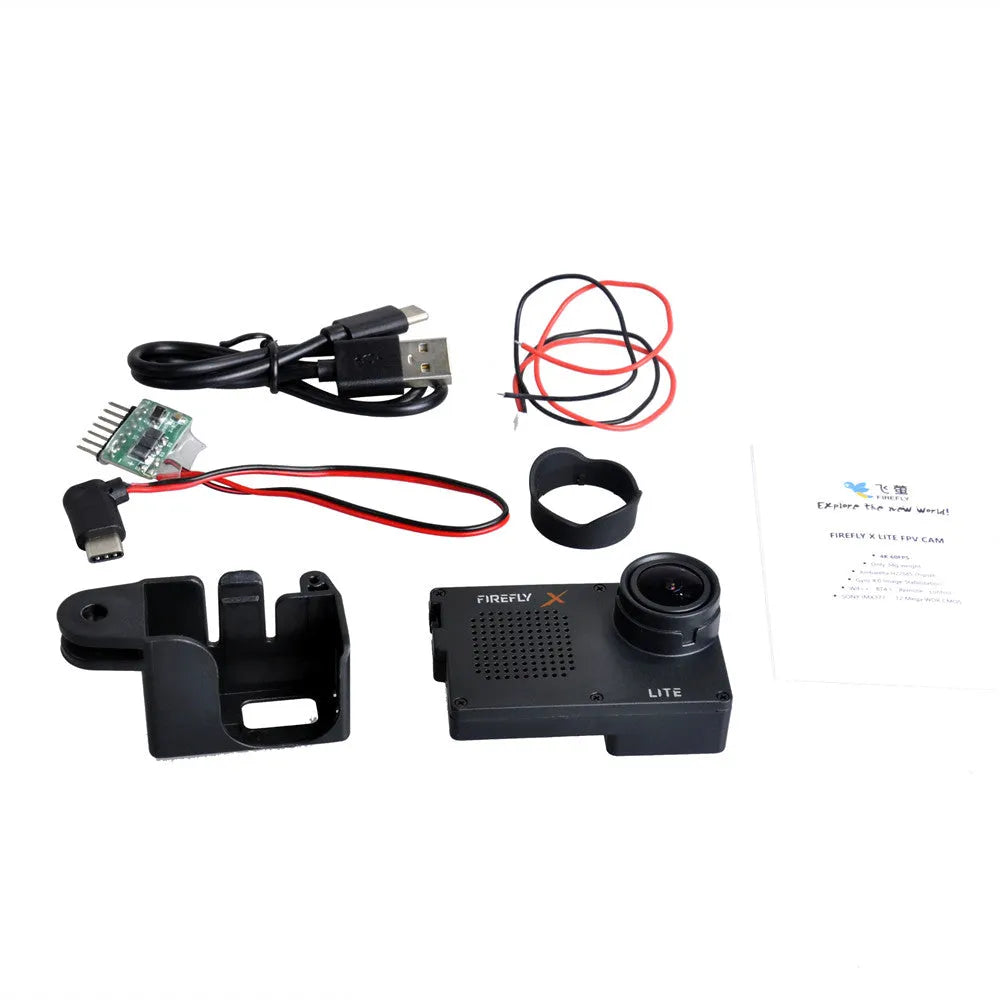

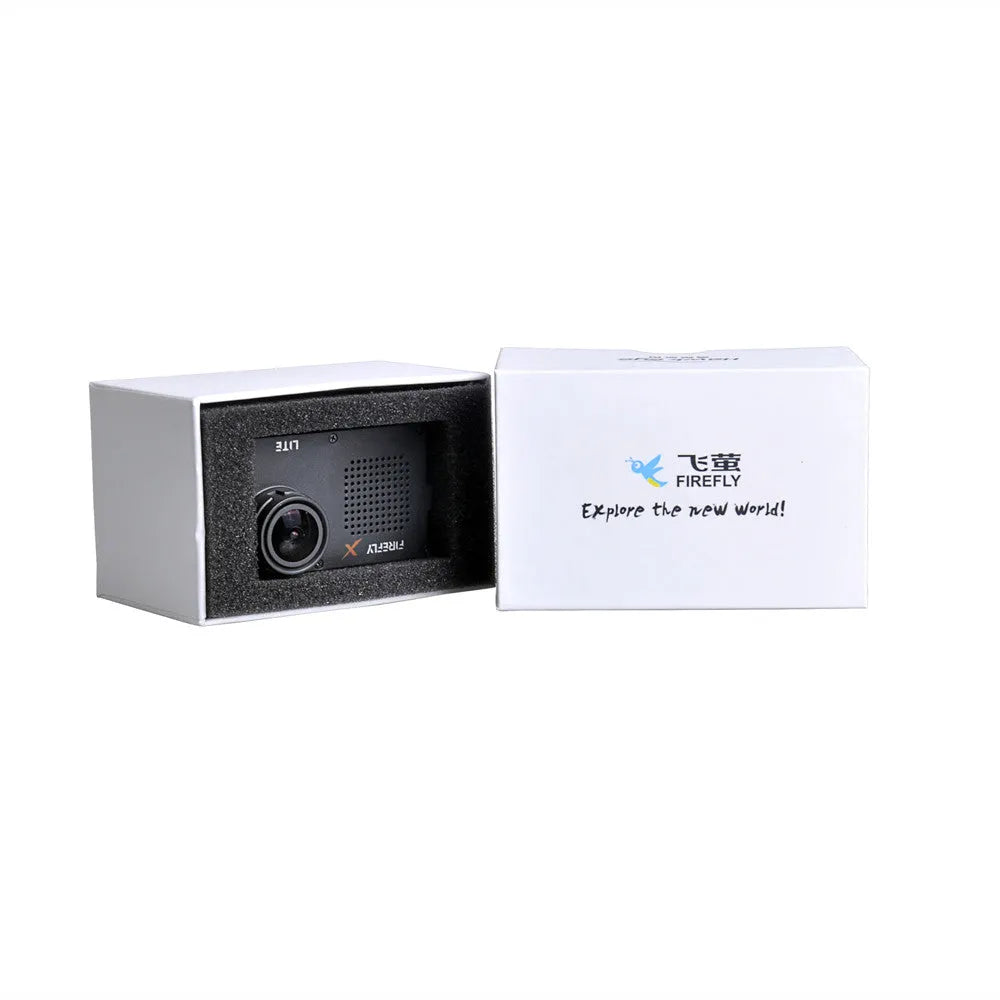

Package Included:
1*Firefly X Lite FPV Camera
1*Bracket
1*Step-down cable
1*2P cable
1*USB cable
1*Light shield
1*User Manual

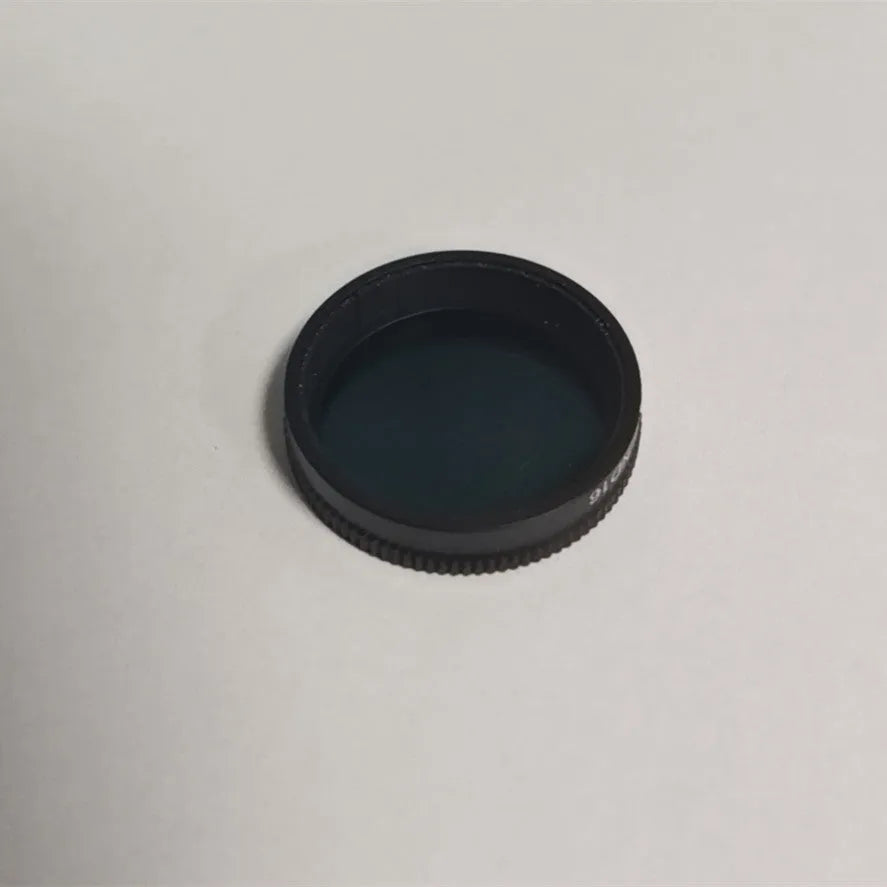

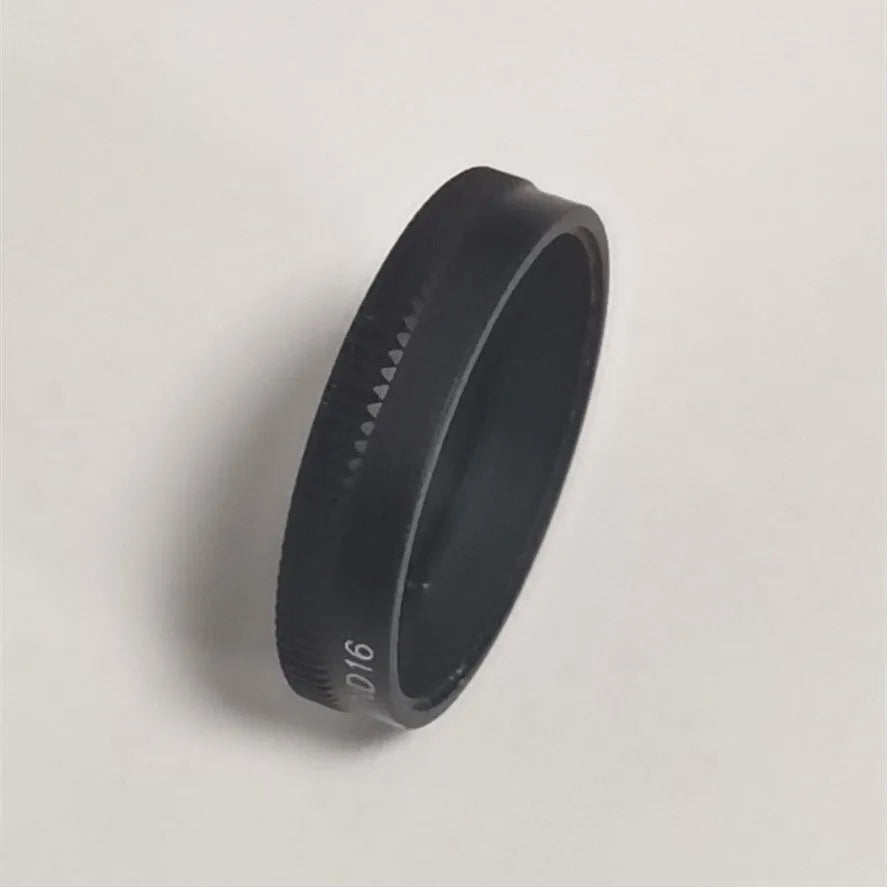

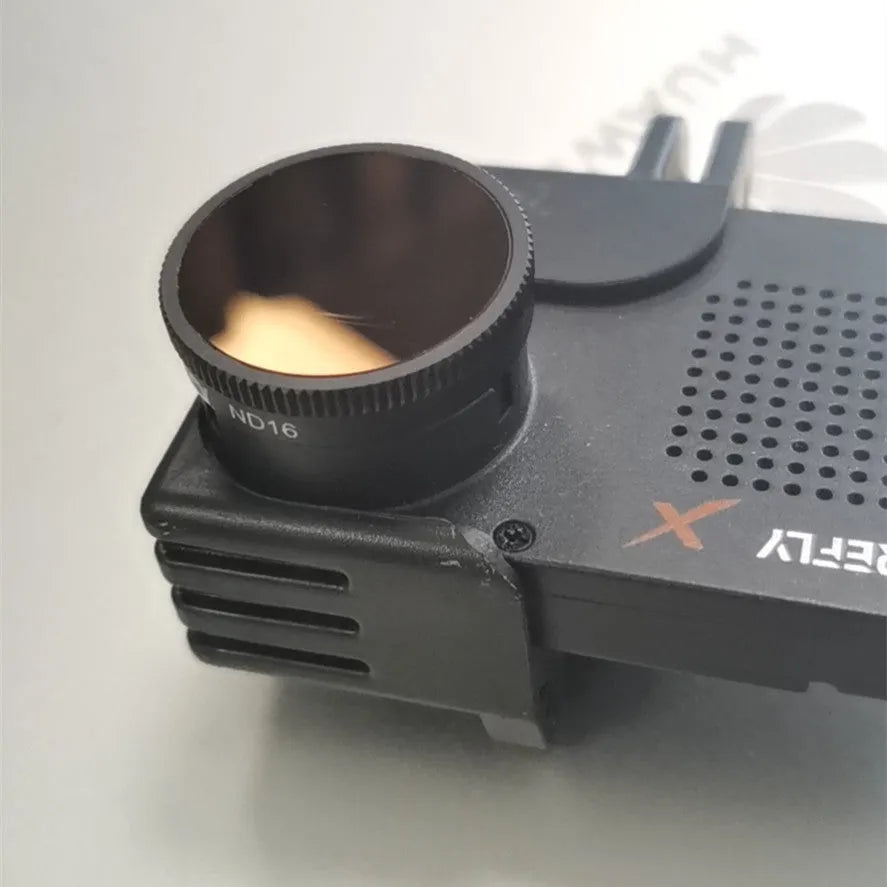

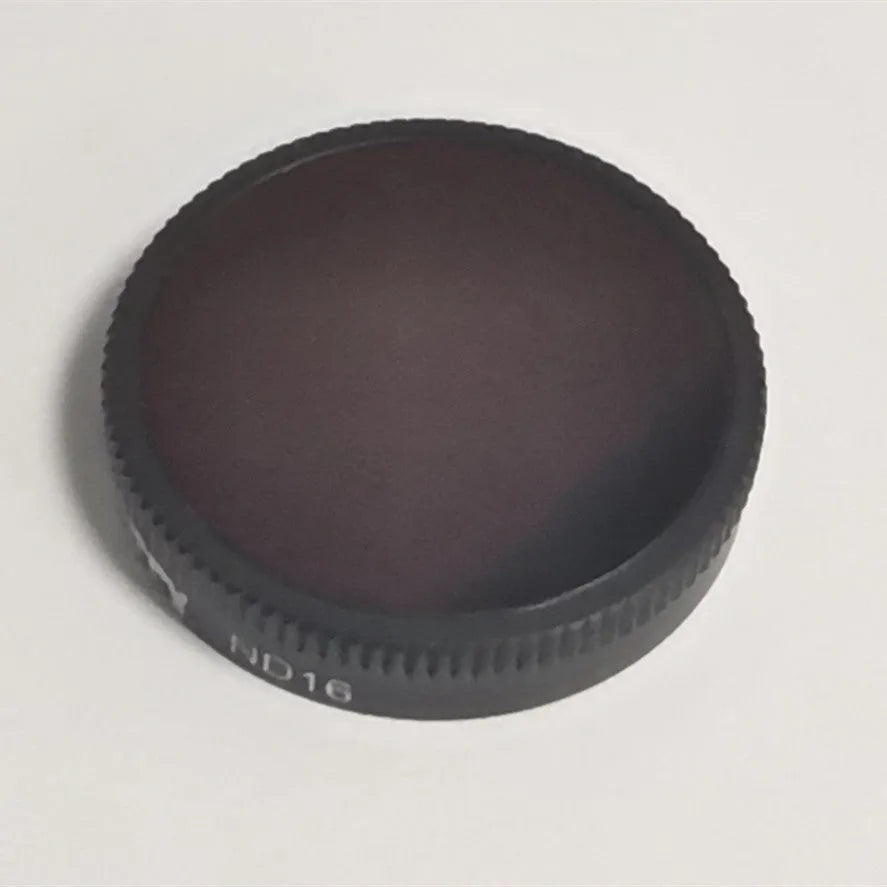

Note:There are 3 options for you select,The camera with ND16 Filter will be more faster.
Click here to download APP：https://www.jianguoyun.com/p/Dcm_vjkQ4rDjBxiv54UC?fbclid=IwAR1IhEdtsukSNHjzp2UQR0JPE7ies5erDLur3aaxTKntDVDwbZ_bvsc3MNM
In order to prevent malicious software from invading, the .dat suffix will be automatically added when downloading the executable file. After downloading, the .dat suffix can be used normally.After downloading, remove the .dat suffix and you can use it normally
Note:How to use power cables?
