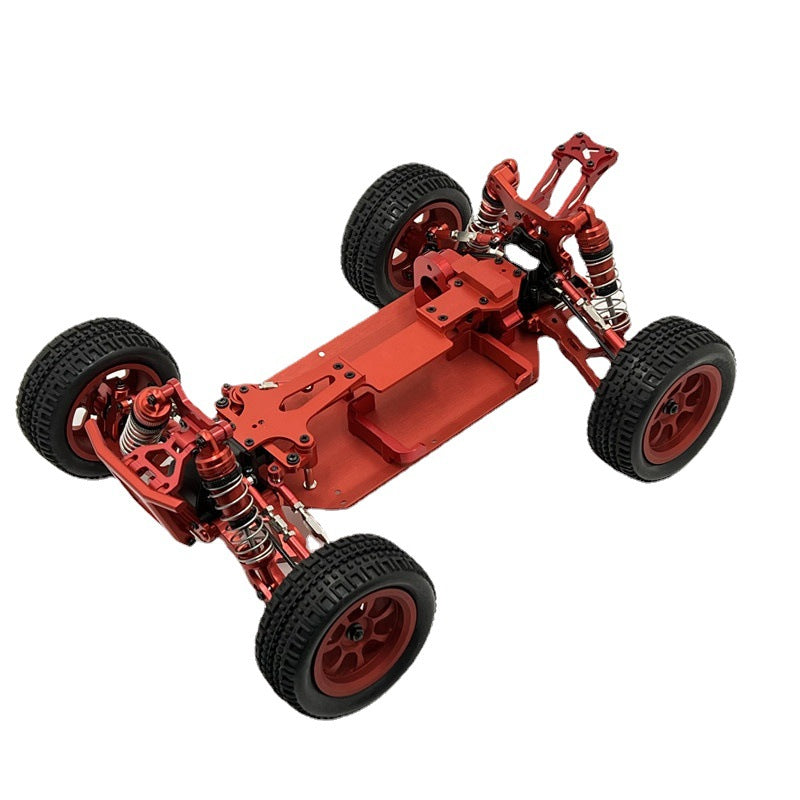

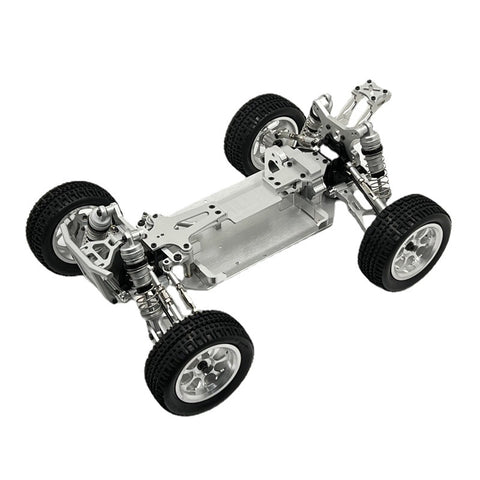

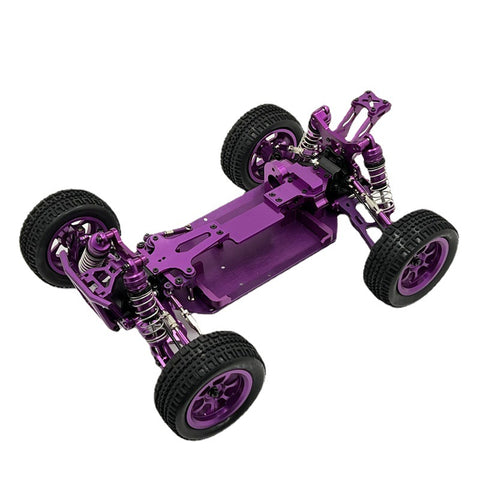

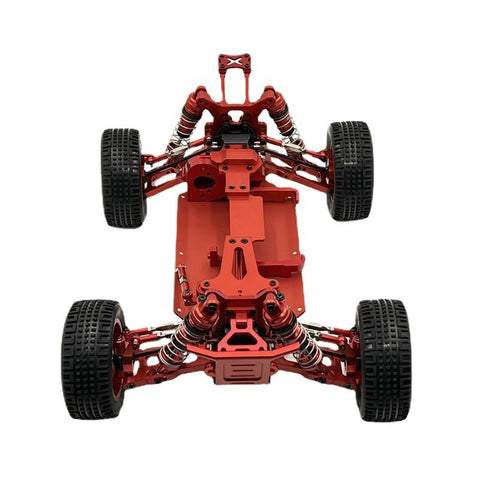

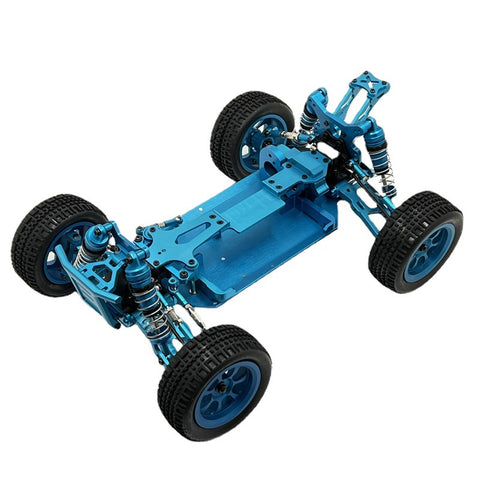

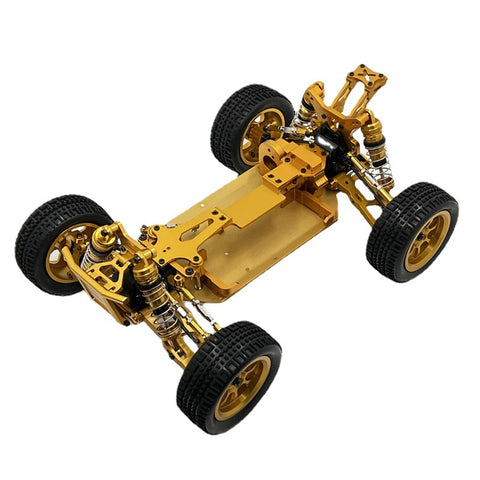

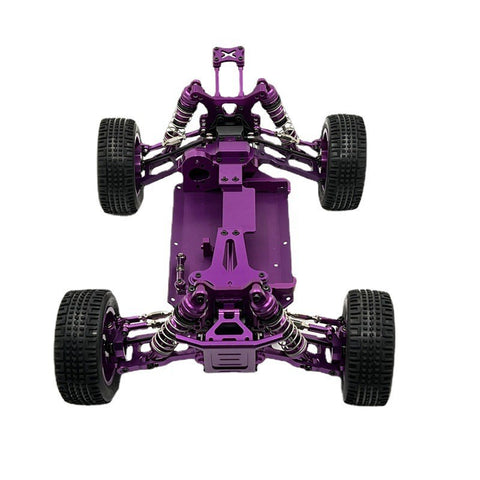

Upgrade or build your WLtoys RC car from the ground up with this fully pre-assembled aluminum chassis kit, designed specifically for WLtoys 1/14 models 144001, 144002, 144010. This 915g kit includes nearly all structural and drivetrain components—excluding electronics.
Note:
This kit does not include motor, battery, ESC, servo, remote, or body shell.
Includes 27T motor pinion gear (3.0mm bore) and 28T servo horn.
Compatible with 144001/144002/144010 shells.
Kit Dimensions: 275×210×100mm
Packaging Size: 290×225×120mm
Total Weight: 915g
Included Components (Pre-Assembled Frame):
Base chassis plate ×1
Battery holder ×1
Motor mount ×1
Gear cover ×1
Steering posts ×2
Center driveshaft ×1
Upper deck ×1
27T motor pinion gear ×1
Spur gear ×1
Metal differentials ×2
Metal gearbox housings ×2
Bearings (4×7×2mm) ×12
Bearings (7×11×3mm) ×9
Servo mounts ×2
Steering assembly ×1
Adjustable link rods ×7
Shock towers ×2
Oil-filled shocks ×4
Front arms ×2
Rear arms ×2
Steering knuckles ×2
Rear hubs ×2
C-hubs ×2
Rear wing ×1
Front bumper ×1
Drive cups ×4
Differential outdrives ×4
Dogbones ×4
Wheels ×4
12mm hex hubs ×4
Arm stiffeners ×4
28T servo horn ×1
A perfect choice for hobbyists looking to upgrade with metal drivetrain, full suspension, and precision steering, all ready to receive their electronics and shell.
