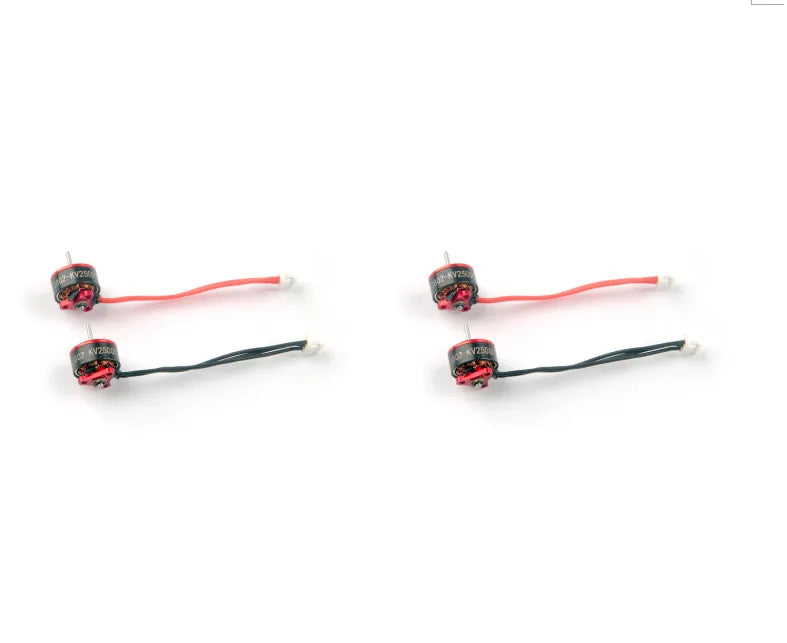

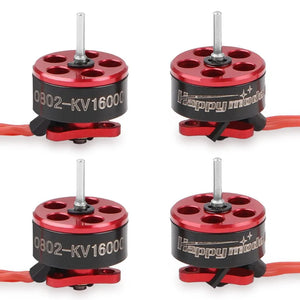

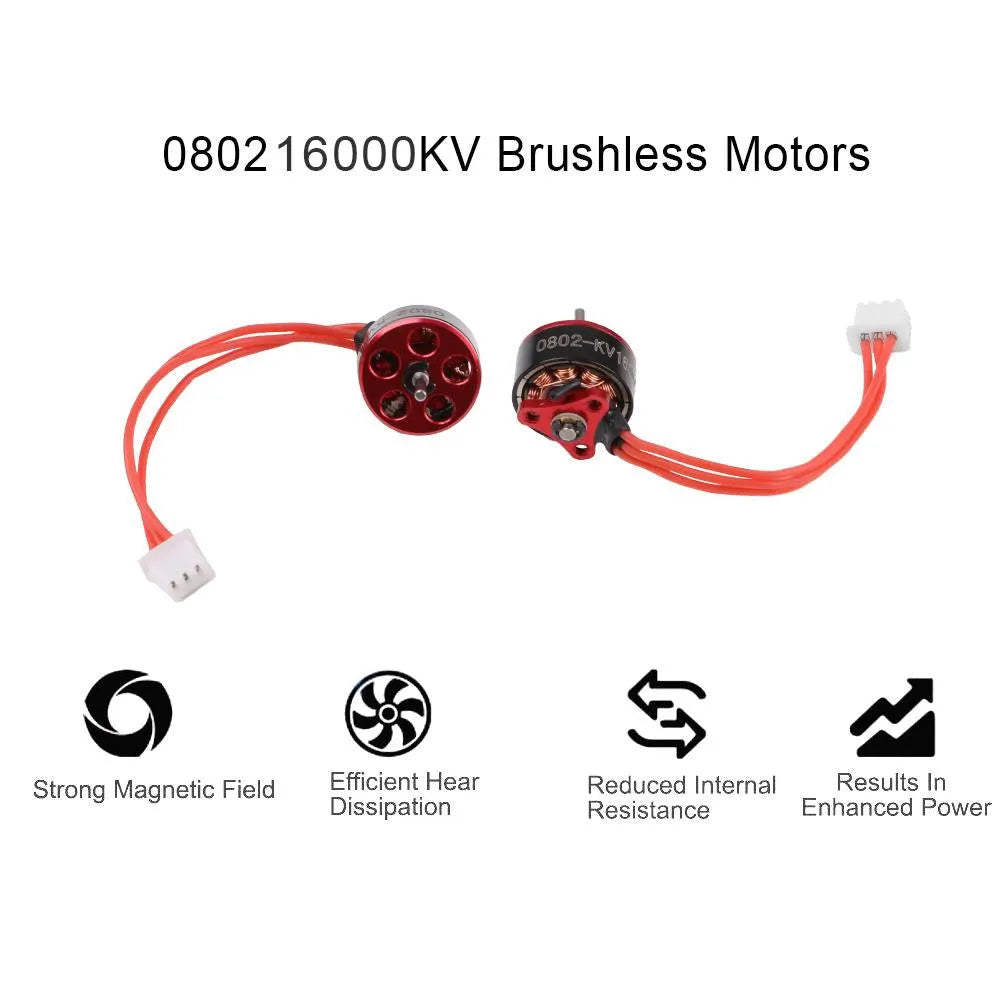

4pcs Happymodel 1-2S SE0802 16000KV/19000KV/25000KV Brushless Motors Micro Drone Motor
Happymodel SE0802 1-2S Brushless Motor Benchmark
| Model | No-load Test | Propellers | Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|---|---|
| SE0802 KV16000 | 0.27A 31150RPM 1.9V 16394.7KV | 31mm 4-blades | 4.20 | 0.96 | 8.20 | 4.032 | 2.034 |
| 4.20 | 2.05 | 14.00 | 8.610 | 1.626 | |||
| 4.20 | 3.18 | 17.40 | 13.356 | 1.303 | |||
| 4.20 | 3.54 | 18.10 | 14.868 | 1.217 | |||
| SE0802 KV16000 | 0.29A 29710RPM 2V 15852KV | 40mm 4-blades | 7.00 | 1.10 | 16.20 | 7.700 | 2.104 |
| 7.00 | 2.00 | 25.30 | 14.000 | 1.807 | |||
| 7.00 | 3.00 | 33.10 | 21.000 | 1.576 | |||
| 7.00 | 4.00 | 38.50 | 28.000 | 1.375 | |||
| 7.00 | 5.00 | 43.10 | 35.000 | 1.231 | |||
| SE0802 KV19000 | 0.24A 28620RPM 1.5V 19080KV | 55mm 2-blades | 3.80 | 1.05 | 11.90 | 3.990 | 2.982 |
| 3.80 | 2.08 | 20.50 | 7.904 | 2.594 | |||
| 3.80 | 3.05 | 27.10 | 11.590 | 2.338 | |||
| 3.80 | 4.11 | 32.30 | 15.618 | 2.068 | |||
| 3.70 | 4.25 | 33.90 | 15.725 | 2.156 | |||
| SE0802 KV19000 | 0.3A 26460RPM 1.5V 18430KV | 31mm 4-blades | 4.20 | 1.18 | 11.40 | 4.956 | 2.300 |
| 4.20 | 1.97 | 16.70 | 8.274 | 2.018 | |||
| 4.20 | 3.15 | 23.90 | 13.230 | 1.807 | |||
| 4.20 | 3.42 | 24.60 | 14.364 | 1.713 | |||
| SE0802 KV22000 | 0.35A 31370RPM 1.5V 21186.6KV | 31mm 4-blades | 3.70 | 1.05 | 8.50 | 3.885 | 2.188 |
| 3.70 | 1.99 | 14.20 | 7.363 | 1.929 | |||
| 3.70 | 2.97 | 21.30 | 10.989 | 1.938 | |||
| 3.70 | 4.02 | 25.50 | 14.874 | 1.714 | |||
| SE0802 KV25000 | 0.45A 50840RPM 2V 25420KV | Gemfan 1219-3 30mm 3-blades | 3.70 | 1.02 | 7.10 | 3.774 | 1.881 |
| 3.70 | 1.95 | 13.50 | 7.215 | 1.871 | |||
| 3.70 | 2.92 | 19.40 | 10.804 | 1.796 | |||
| 3.70 | 4.05 | 25.60 | 14.985 | 1.708 | |||
| 3.70 | 4.34 | 26.70 | 16.058 | 1.663 | |||
| SE0802 KV25000 | 0.45A 50840RPM 2V 25420KV | 40mm 4-blades | 2.60 | 1.02 | 7.60 | 2.652 | 2.866 |
| 2.60 | 1.99 | 13.20 | 5.174 | 2.551 | |||
| 2.60 | 2.99 | 18.90 | 7.774 | 2.431 | |||
| 2.60 | 3.98 | 23.40 | 10.348 | 2.261 | |||
| 2.60 | 4.53 | 25.20 | 11.778 | 2.140 |

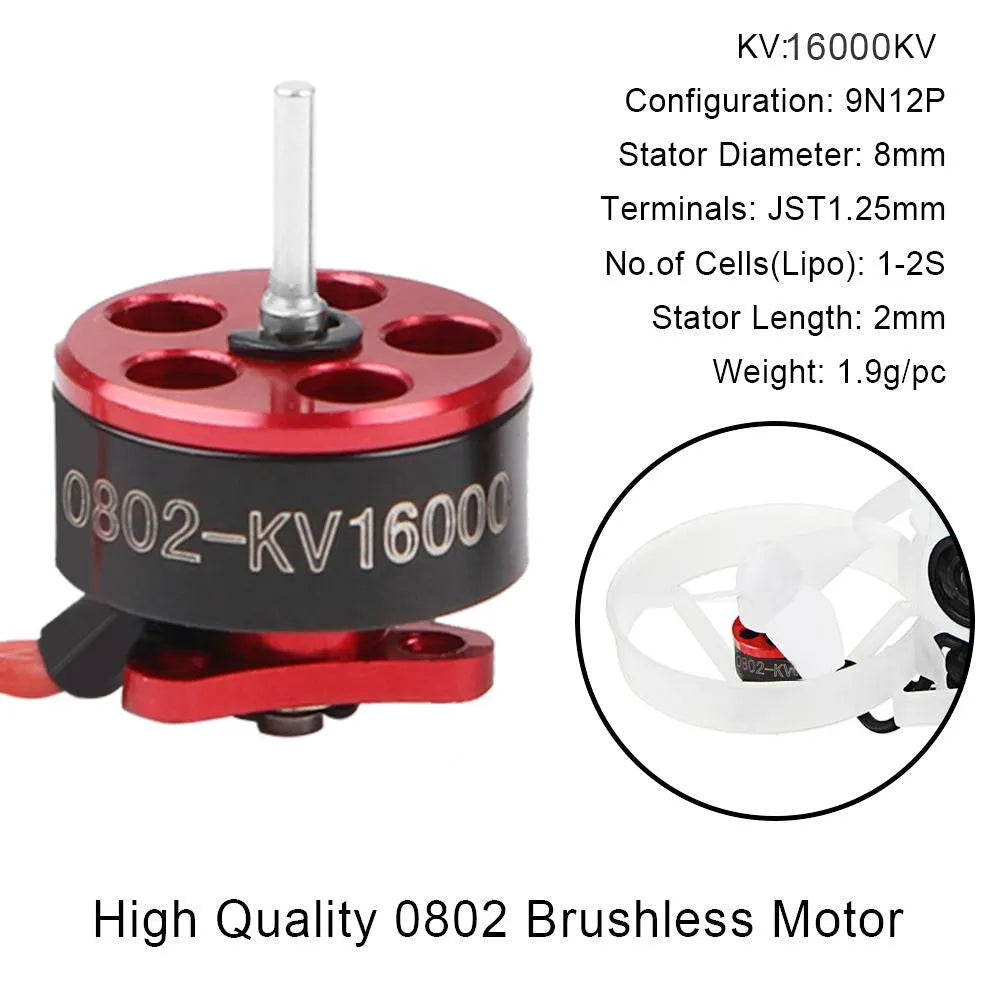

General Specifications
- Brand: Happymodel
- Item: SE0802 1-2S Brushless Motor
- KV Options: 16000KV / 19000KV / 22000KV / 25000KV

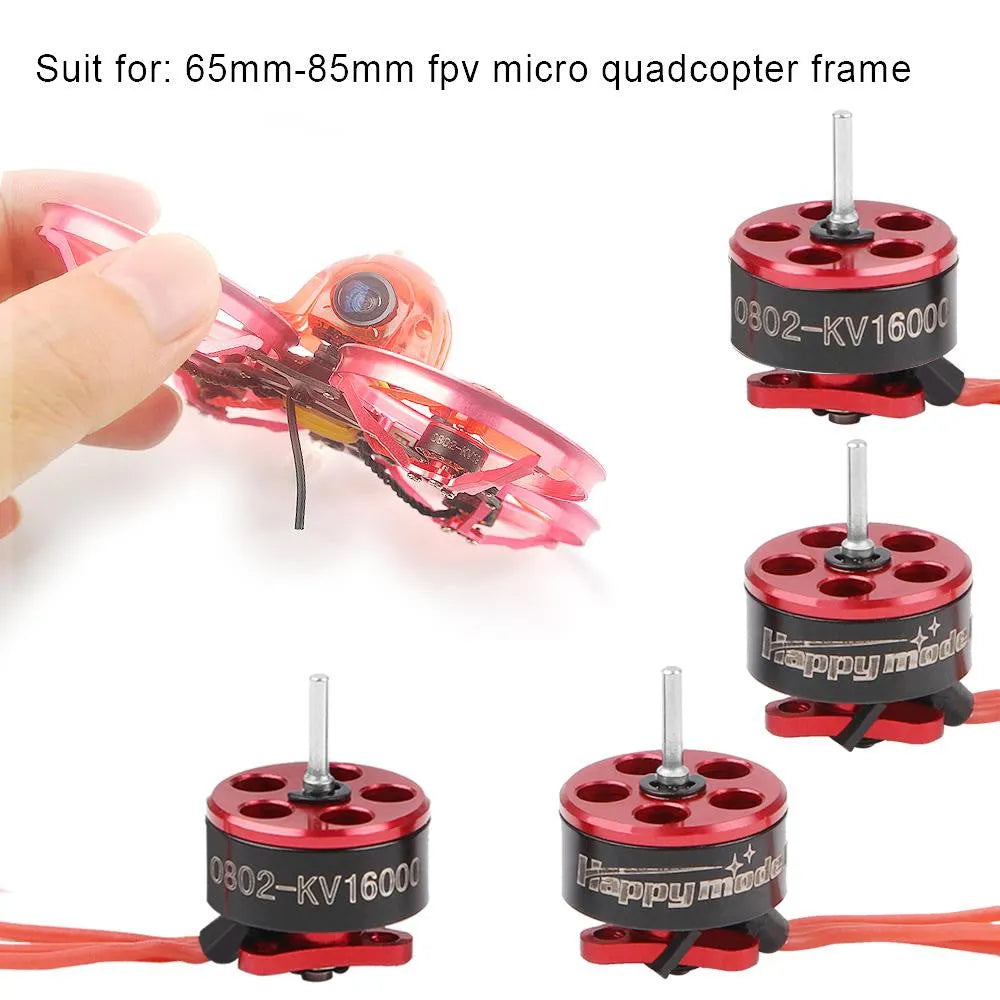

- Applications: 16000KV for Mobula7, 19000KV for Mobula6 Regular, 25000KV for Mobula6 Race
- Shaft Diameter: 1.0mm
- Configuration: 9N12P
- Stator Diameter: 8mm
- Stator Length: 2mm

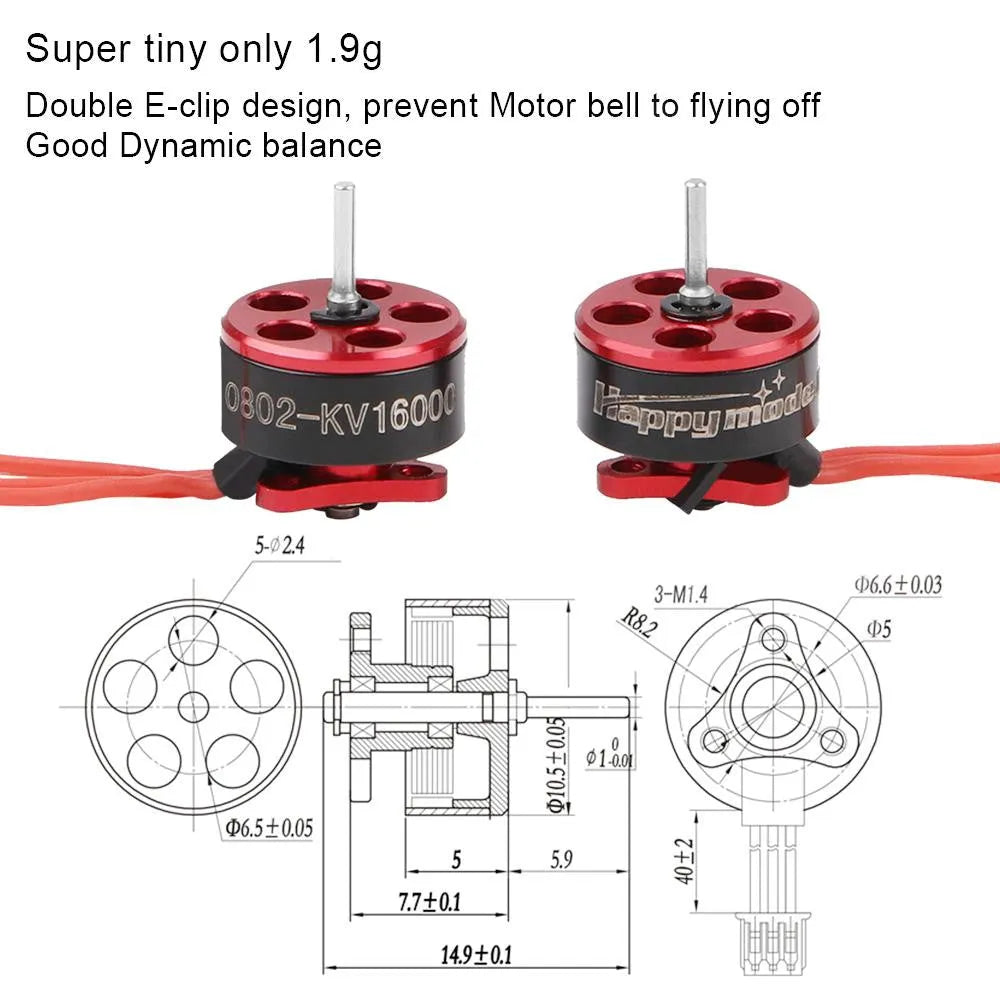

- Dimensions: Φ10.5mm × 14.9mm
- Terminals: JST1.25mm
- Cells: 1-2S Lipo
- Wire length (inc. connector): 16000KV 40mm, 19000KV 30mm, 22000KV 40mm, 25000KV 30mm

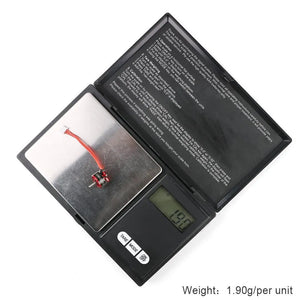

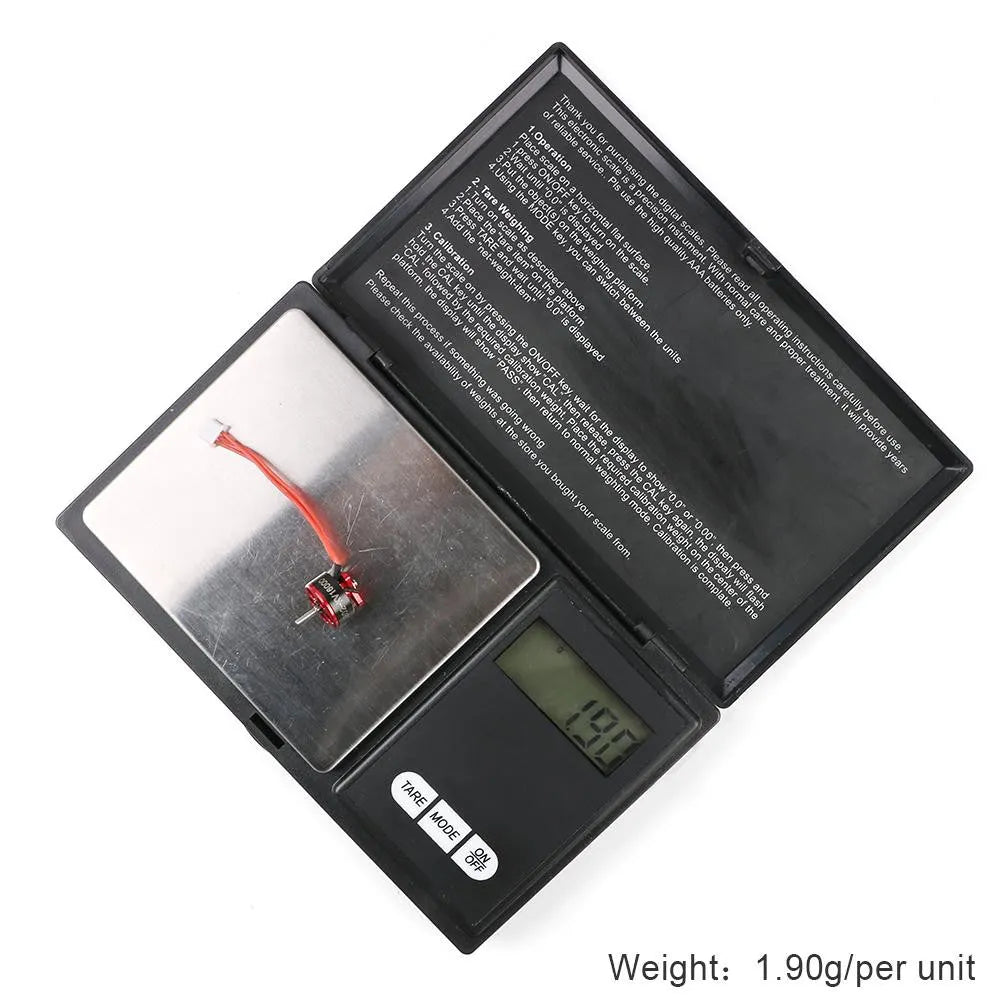

- Weight: 1.9g
Features
- Ultra-lightweight, only 1.9g
- Double E-clip design to prevent motor bell from flying off
- Excellent dynamic balance for smooth flight
