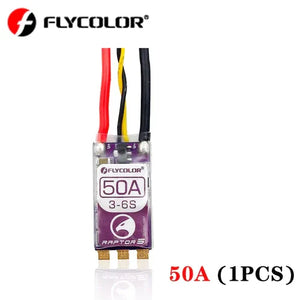

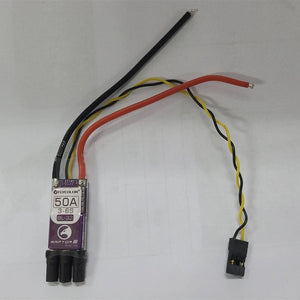

Flycolor Raptor 5 BLHeli-32 3-6S 50A ESC with 3.5mm Banana Female Head 40mm Length Cable

SKU 6203952
Save 13% Save 13%
Original price $37.99
Original price $37.99 - Original price $37.99
Original price $37.99
Current price $32.99
$32.99 - $32.99
Current price $32.99

Flycolor Raptor BLHeli-32 3-6S 50A ESC with 3.5mm Banana Female Head  40mm Length Cable

Features:
- PMW128K/High performance MCU/All Dshot and Proshot signals are supported.
- ARM 32-bit Cortex MCU STM32G071, frequency up to 64 MHZ, 25% higher than the previous generation of MCU.
- BLHeli-32 firmware is designed for superior performance in multirotors and uses hardware generated motor pwm for smooth throttle response and silent operation.
- Supports regular 1-2ms pulse width input, as well as Oneshot125(125-250μs); Oneshot42(41.7-83.3μs) and multshot(5-25μs). The input signal is automatically detected by the ESC upon power up.
- The silicone twisted-pair of the throttle signal cable increase the service life and effectively reduces the crosstalk caused by signal transmission and makes flight more stable.

Specification:
- Item name: Flycolor Raptor 5 brushless ESC
- Continuous current:50A
- Instantaneous current (10S):55A
- BEC: No
- Lithium battery cells: 3-6S(Not included)
- LED light:red
- Typical application:170-450 multi(for reference)
- Size:33x16x6mm(45A 50A)
- Weight (including wire):10.2g(45A 50A)
- Used for RC FPV drone multirotor

Package Included:
1*50A ESC
