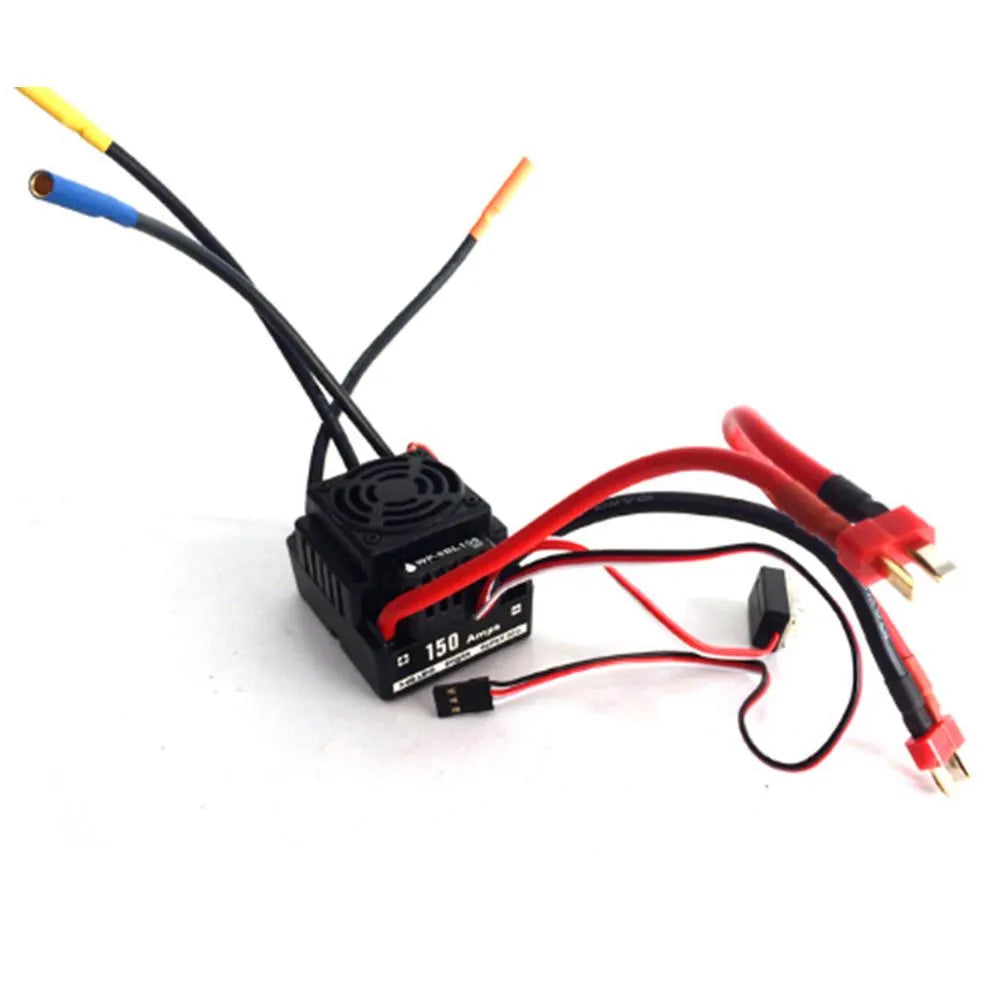

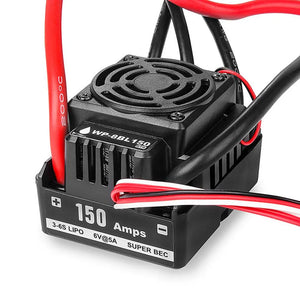

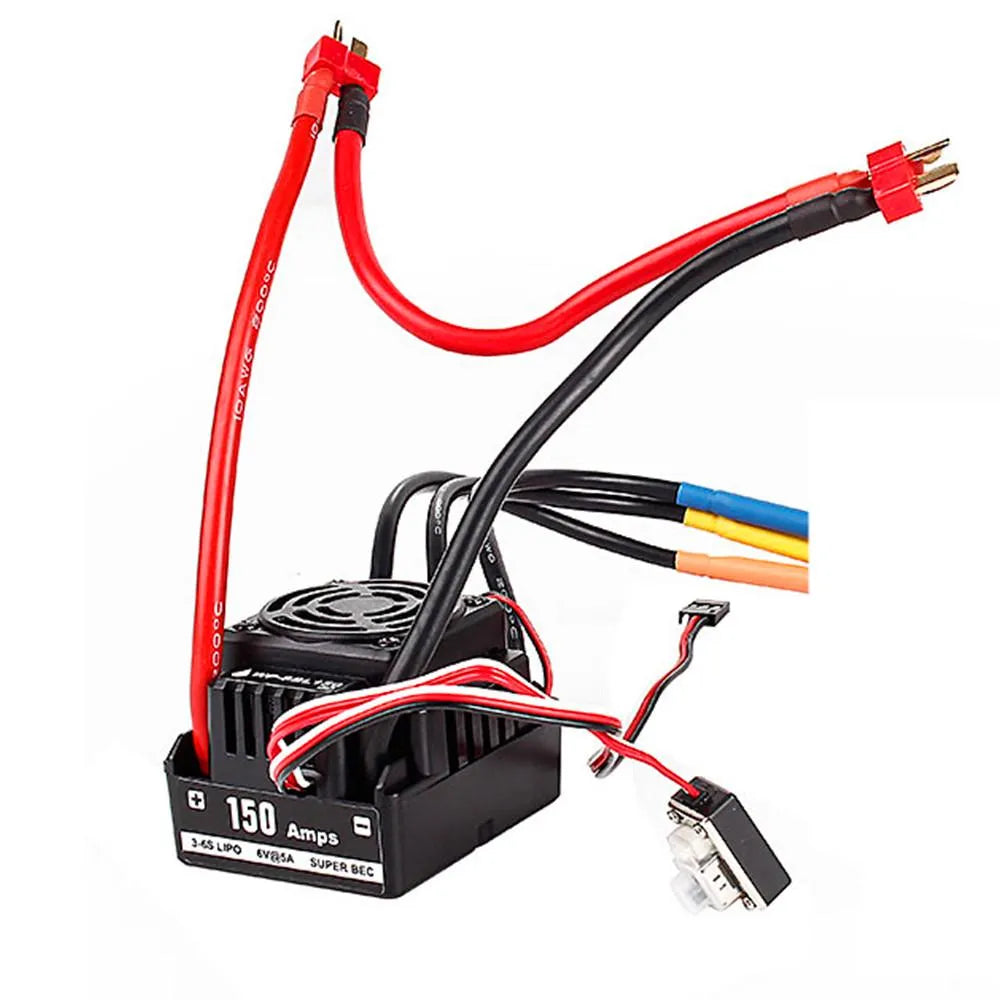

Hobbywing QuicRun-WP-8BL 150A Waterproof Sensorless Brushless ESC for 1/8th Trucks

SKU 6803514
Save 25% Save 25%
Original price $129.99
Original price $129.99 - Original price $129.99
Original price $129.99
Current price $96.99
$96.99 - $96.99
Current price $96.99

Hobbywing QuicRun-WP-8BL 150A Waterproof Sensorless Brushless ESC

Features:

  • External programming port, easy to connect to the LED Program Card (purchase separately) when setting the ESC
  • Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
  • 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
  • Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection/Motor lock-up protection.
  • One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
  • Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

Specification:
Motor Type Supported:Sensorless Brushless Motor (work best with QUICRUN Brushless Motor)
Cont./Peak Current/ Resistance:150A/950A/0.00035Ω
Cont./Peak Current:150A/950A
Input:3-6S LiPo/9-18 Cells NiMH
BEC Output  Switch Mode:6V/3A
Car Applicable:1:8 Buggy/Monster

Motor Limit
For 4S Lipo or 12 cells NiMH:
4274-size or smaller motor with the KV<3000 For 6S Lipo or 18 cells NiMH:
4274-size or smaller motor with the KV<2400

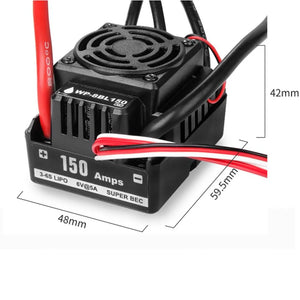

Size/Weight
59.5(L)*48(W)*42(H)/178g

Wires
Power Leads
Red-10AWG-150mm*1/Black-10AWG-150mm*1

Motor Wires
Black-12AWG-100mm*3

Connectors
4mm Gold Bullet Connector (Female)

Programmable Items

Installation&Connection

Package Included:
1*QuicRun-WP-8BL 150A ESC

Note:
Please make sure to uninstall the cooling fan before using this ESC in water
Clean and dry it soon after the use for avoiding the connectors get rusty.)
