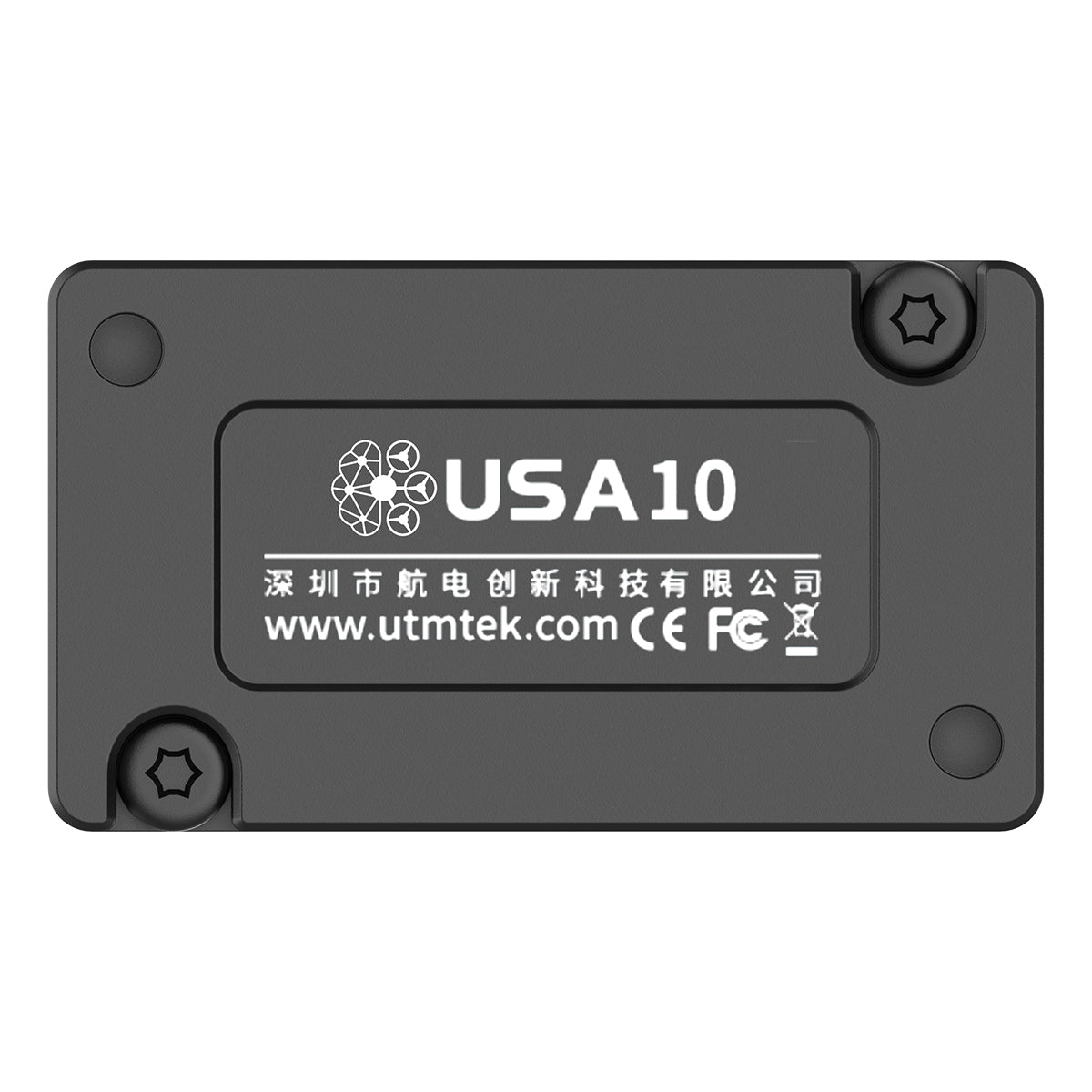

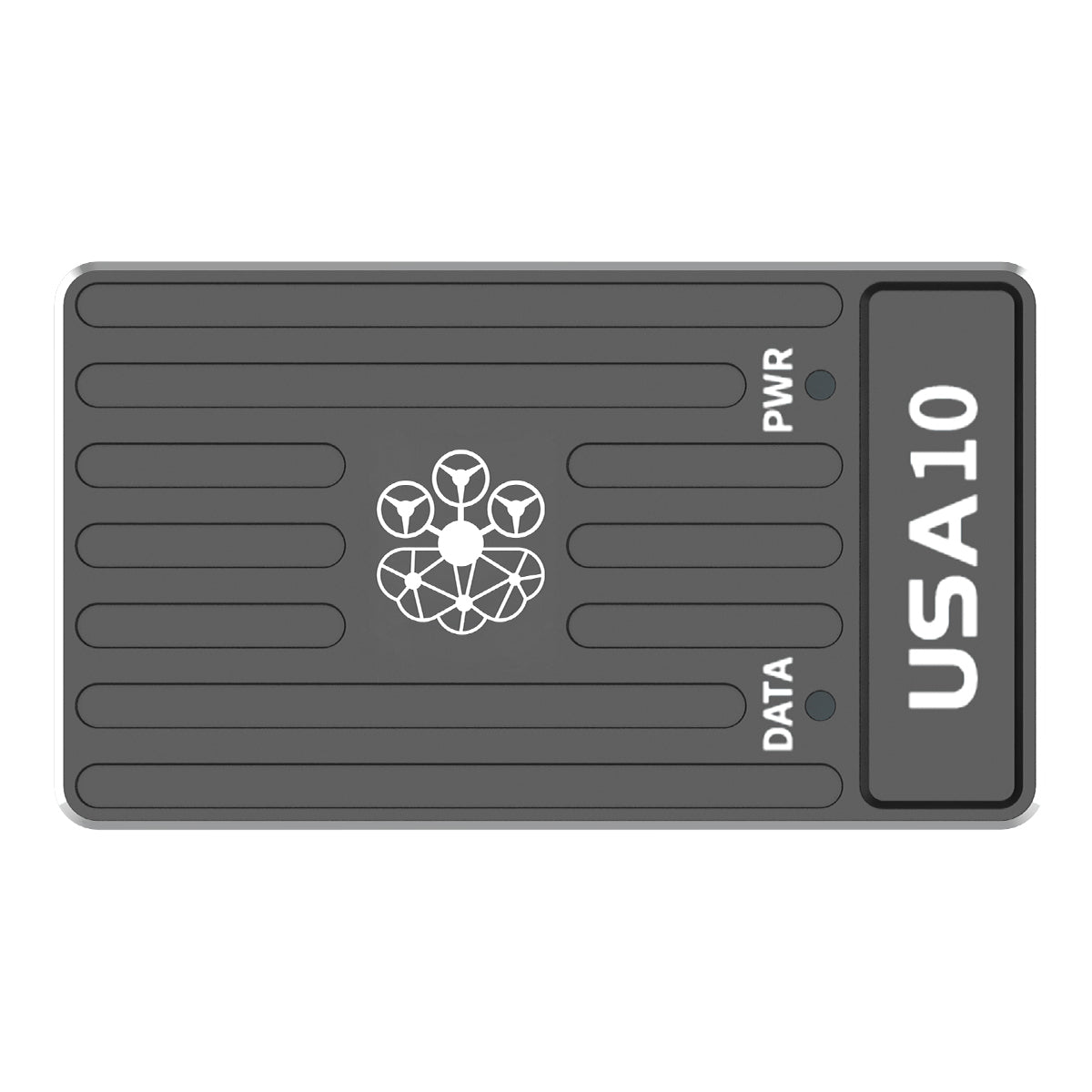

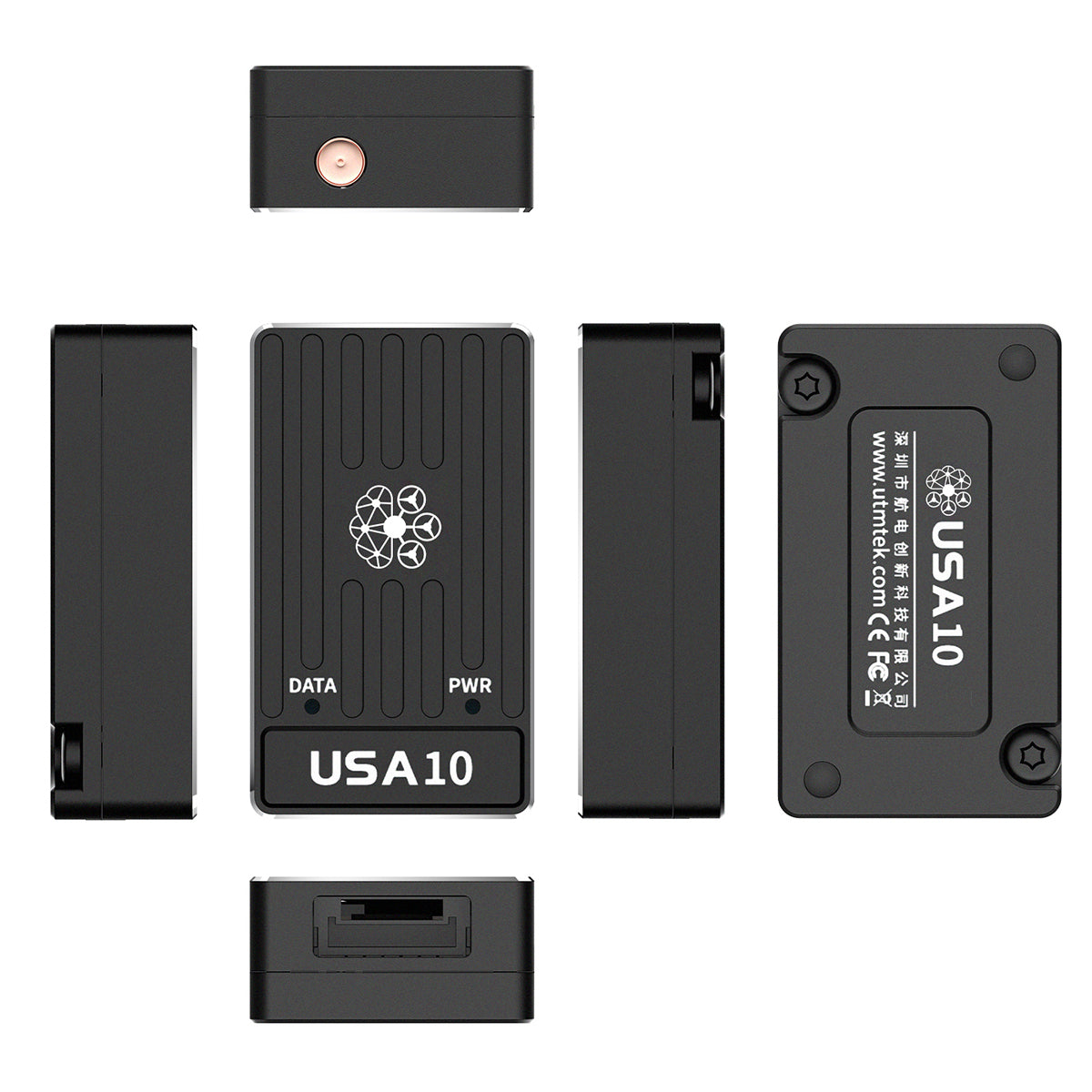

Makerfire UTMSYS USA10 ADS-B Receiver Module
USA10 ADS-B Receiver Module for UAV Flight Safety
The USA10 ADS-B Receiver Module is an essential component for enhancing flight safety in UAVs (Unmanned Aerial Vehicles). Designed to receive real-time broadcast signals from aircraft equipped with ADS-B (Automatic Dependent Surveillance-Broadcast) systems, this module helps UAVs detect nearby aircraft, such as commercial airliners and general aviation planes, improving airspace awareness and collision avoidance.
Key Features:
- Real-time Airspace Awareness: Monitors the surrounding airspace by receiving ADS-B signals from aircraft, ensuring that UAVs can detect nearby flights instantly.
- Advanced Collision Avoidance: Improves UAV navigation by predicting potential collisions and providing timely warnings, helping to avoid accidents in complex airspace.
- Compliance and Safety: Meets regulatory flight requirements while enhancing low-altitude safety management, making it perfect for commercial and recreational UAV users.
Specifications:
- Working Voltage: 5V
- Current Consumption: 55mA
- Receive Sensitivity: -90dBm
- Antenna Input Impedance: 50Ω
- Target Processing Capacity: 100 batches per rack
- Operating Frequency: 1090MHz
- Effective Range: 250km
- Communication Method: UART

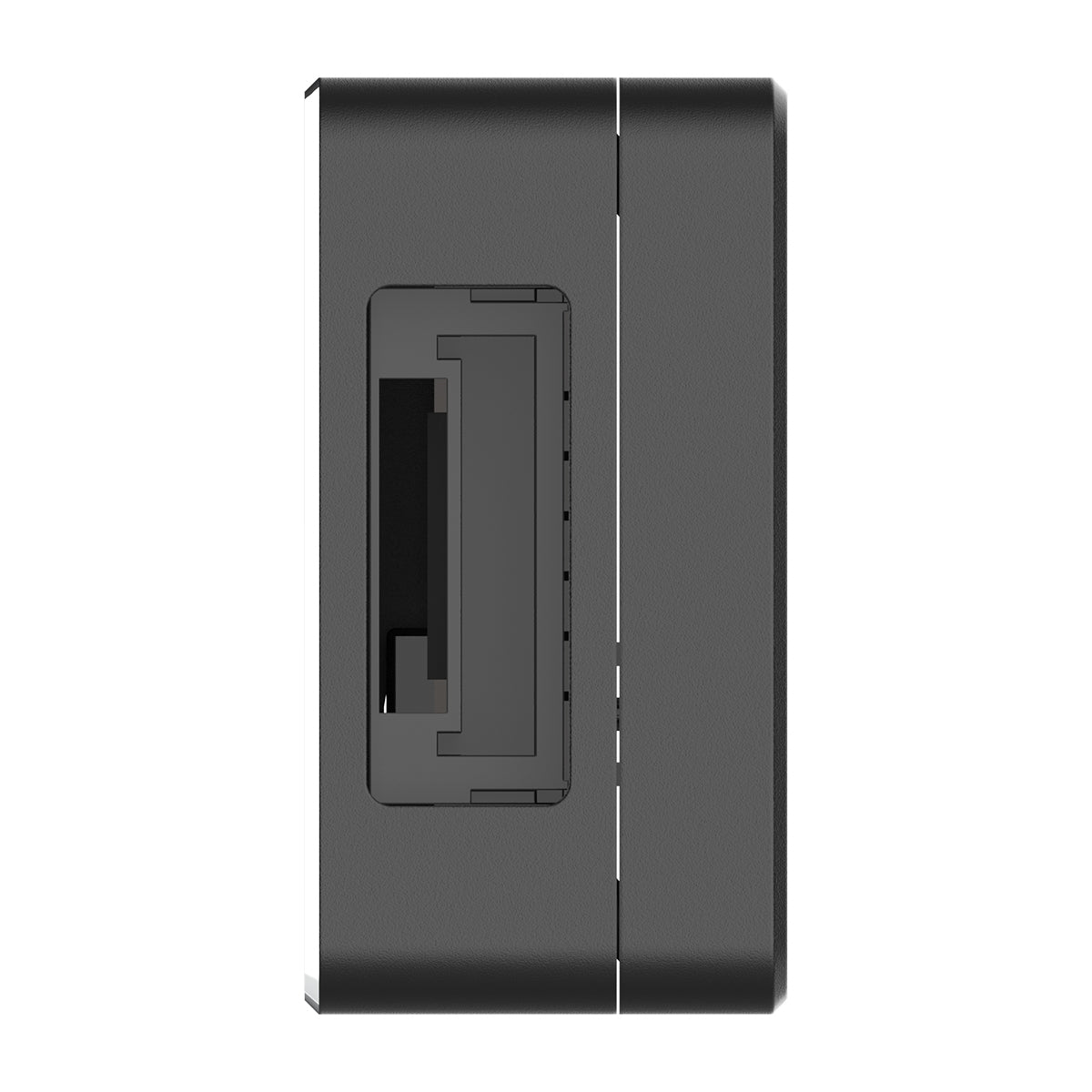

- Data Interface: GH1.25-6P

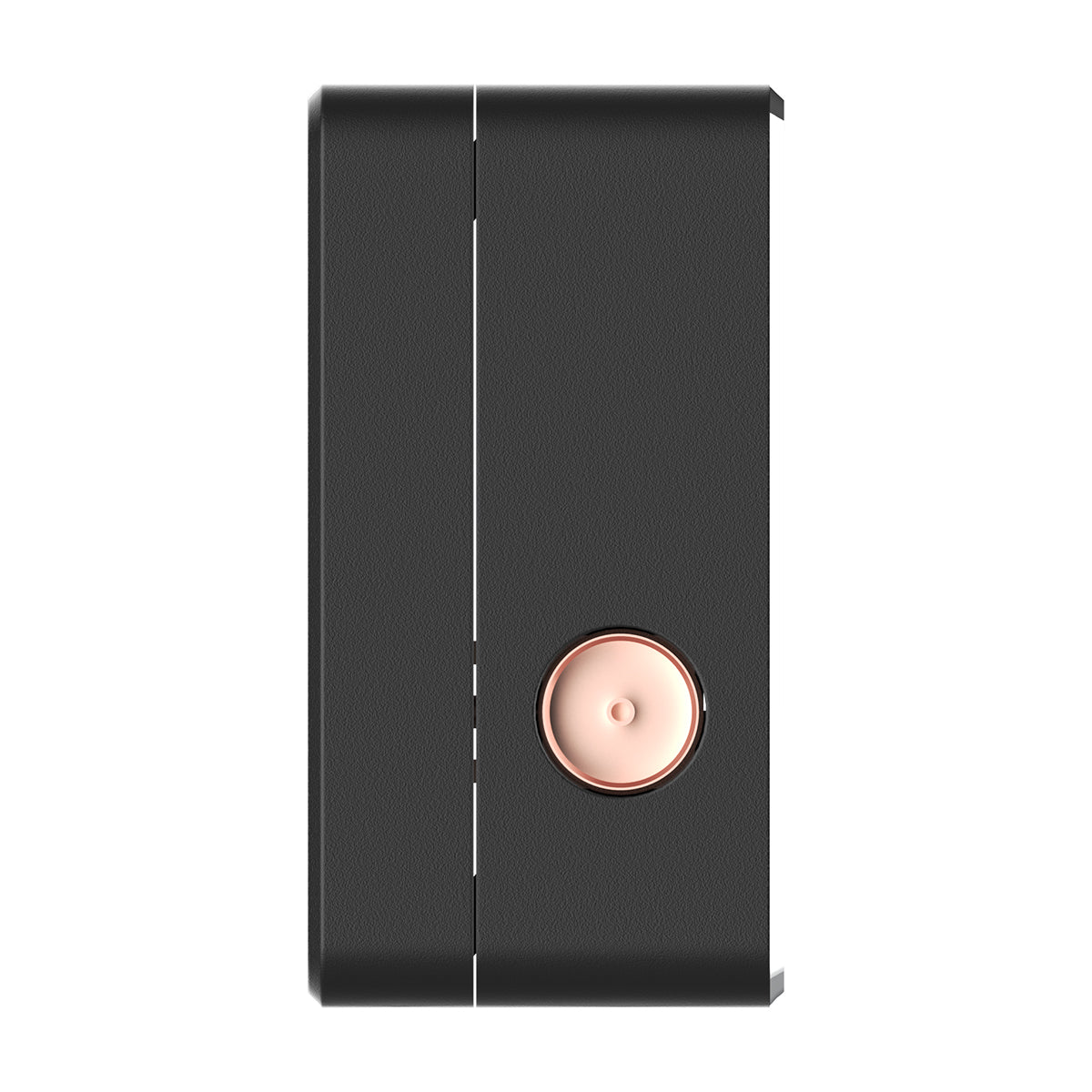

- Antenna Interface: MMCX
- Dimensions: 34mm x 19.5mm x 10mm
- Weight: 9.2g
- Operating Temperature: -20°C to 60°C
Description
USA10 ADS-B Receiver Module for UAV Flight Safety
The USA10 ADS-B Receiver Module is an essential component for enhancing flight safety in UAVs (Unmanned Aerial Vehicles). Designed to receive real-time broadcast signals from aircraft equipped with ADS-B (Automatic Dependent Surveillance-Broadcast) systems, this module helps UAVs detect nearby aircraft, such as commercial airliners and general aviation planes, improving airspace awareness and collision avoidance.
Key Features:
- Real-time Airspace Awareness: Monitors the surrounding airspace by receiving ADS-B signals from aircraft, ensuring that UAVs can detect nearby flights instantly.
- Advanced Collision Avoidance: Improves UAV navigation by predicting potential collisions and providing timely warnings, helping to avoid accidents in complex airspace.
- Compliance and Safety: Meets regulatory flight requirements while enhancing low-altitude safety management, making it perfect for commercial and recreational UAV users.
Specifications:
- Working Voltage: 5V
- Current Consumption: 55mA
- Receive Sensitivity: -90dBm
- Antenna Input Impedance: 50Ω
- Target Processing Capacity: 100 batches per rack
- Operating Frequency: 1090MHz
- Effective Range: 250km
- Communication Method: UART
- Data Interface: GH1.25-6P
- Antenna Interface: MMCX
- Dimensions: 34mm x 19.5mm x 10mm
- Weight: 9.2g
- Operating Temperature: -20°C to 60°C
