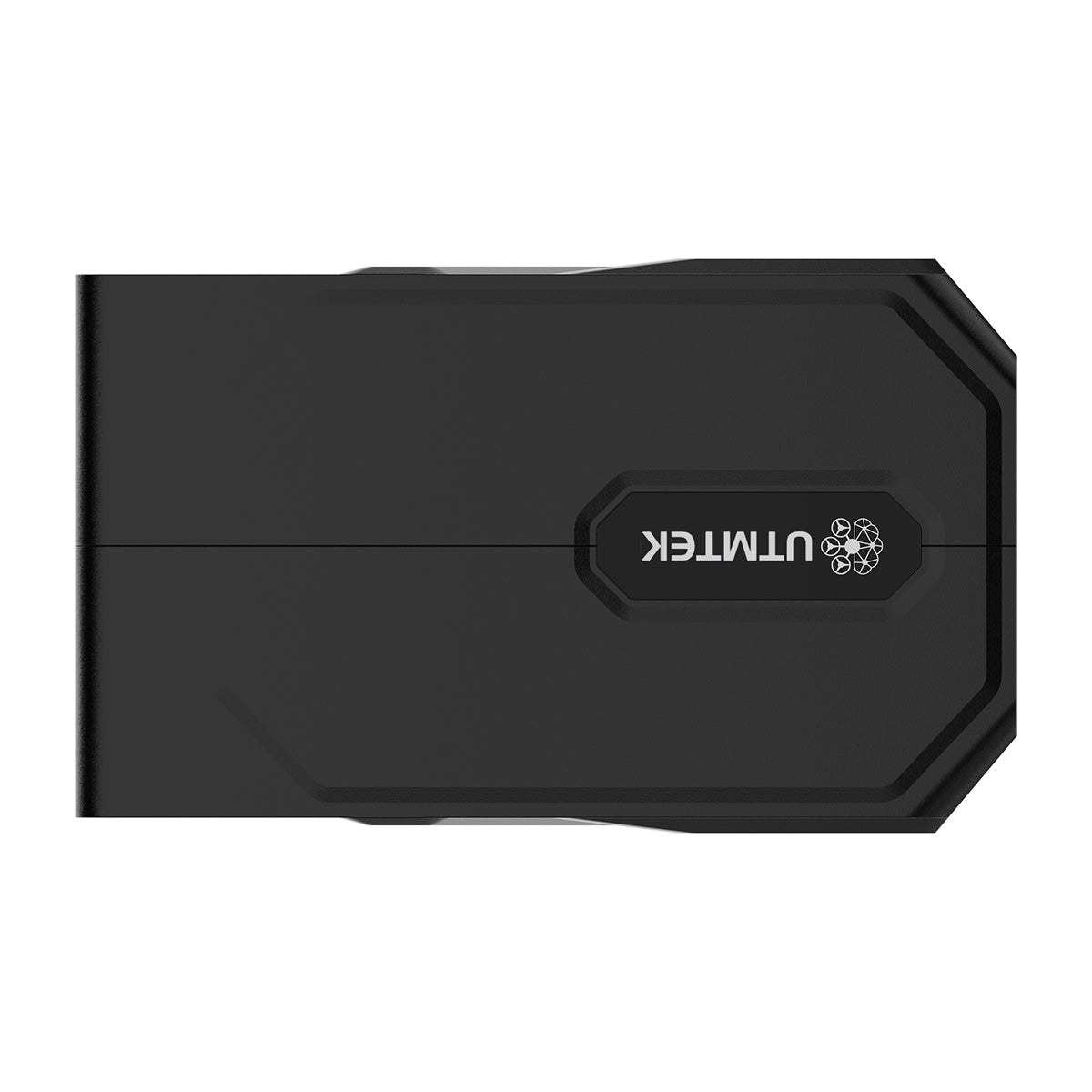

Makerfire UTMSYS USB10 Smart Battery
USB10 Smart Battery for Drones
The USB10 Smart Battery is a high-performance lithium-ion battery designed to provide reliable, long-lasting power for drone systems. Built with cutting-edge technology, it integrates comprehensive charging management, real-time power monitoring, and multiple safety protections to ensure optimal performance in all conditions.
Featuring a polymer lithium battery (high-voltage version) and an intelligent control unit, this smart battery provides safe, efficient, and stable power for your drone. It automatically performs constant current and constant voltage charging, cell balancing, and protects against overcharge, over-discharge, overcurrent, short circuit, and over-temperature. The remaining power and operating status are clearly displayed via LED indicators, ensuring you can monitor the battery’s health in real-time.
With its advanced protection features and long battery life, the USB10 Smart Battery is perfect for UAV operators seeking reliability and peace of mind during flights.
Key Features:
- High Capacity: Rated at 6800mAh and 150Wh, offering extended flight times for your drone.
- Polymer Lithium Battery: Provides high energy density and long cycle life, ensuring durability and efficiency.
- Comprehensive Safety Protections: Overcharge, over-discharge, overcurrent, short circuit, and temperature protections to keep your drone safe.
- Real-Time Power Monitoring: Built-in intelligent control unit monitors voltage, current, and temperature, giving you accurate information on remaining power and estimated flight range.
- Charge Balancing & Protection: Ensures stable and balanced charging, extending the battery's overall lifespan.

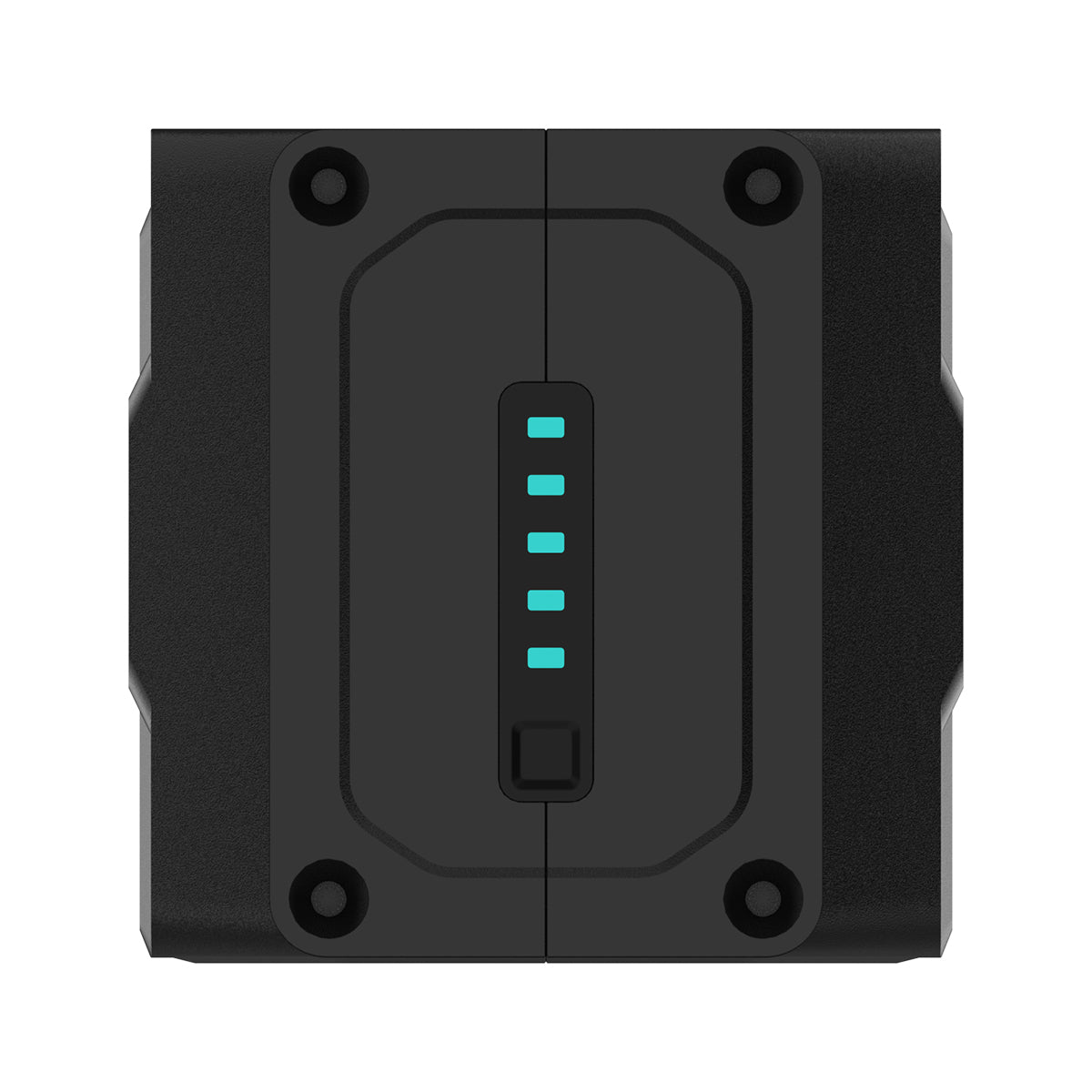

- LED Power Display: Five LED indicators clearly show the remaining power and operational status.
- Operating Temperature Range: Works effectively in temperatures ranging from -20°C to 60°C, making it suitable for various environments.
Specifications:
- Rated Capacity: 6800mAh
- Quota Energy: 150Wh
- Cell Type: Polymer Lithium Battery - High Voltage Version
- Number of Battery Cells: 6
- Single String Nominal Voltage: 3.7V
- Single String Full Voltage: 4.45V
- Total Nominal Voltage: 22.2V
- Charging Voltage Limit: 26.7V
- Communication Interface: CAN
- Power On/Off Method: Short press + Long press
- Battery Indicator Light: 5 LEDs
- Charge Balancing: Yes
- Charging Protection: Yes
- Temperature Protection: Yes
- Size: 75mm x 73mm x 123mm
- Weight: 811g
- Operating Temperature: -20°C to 60°C
