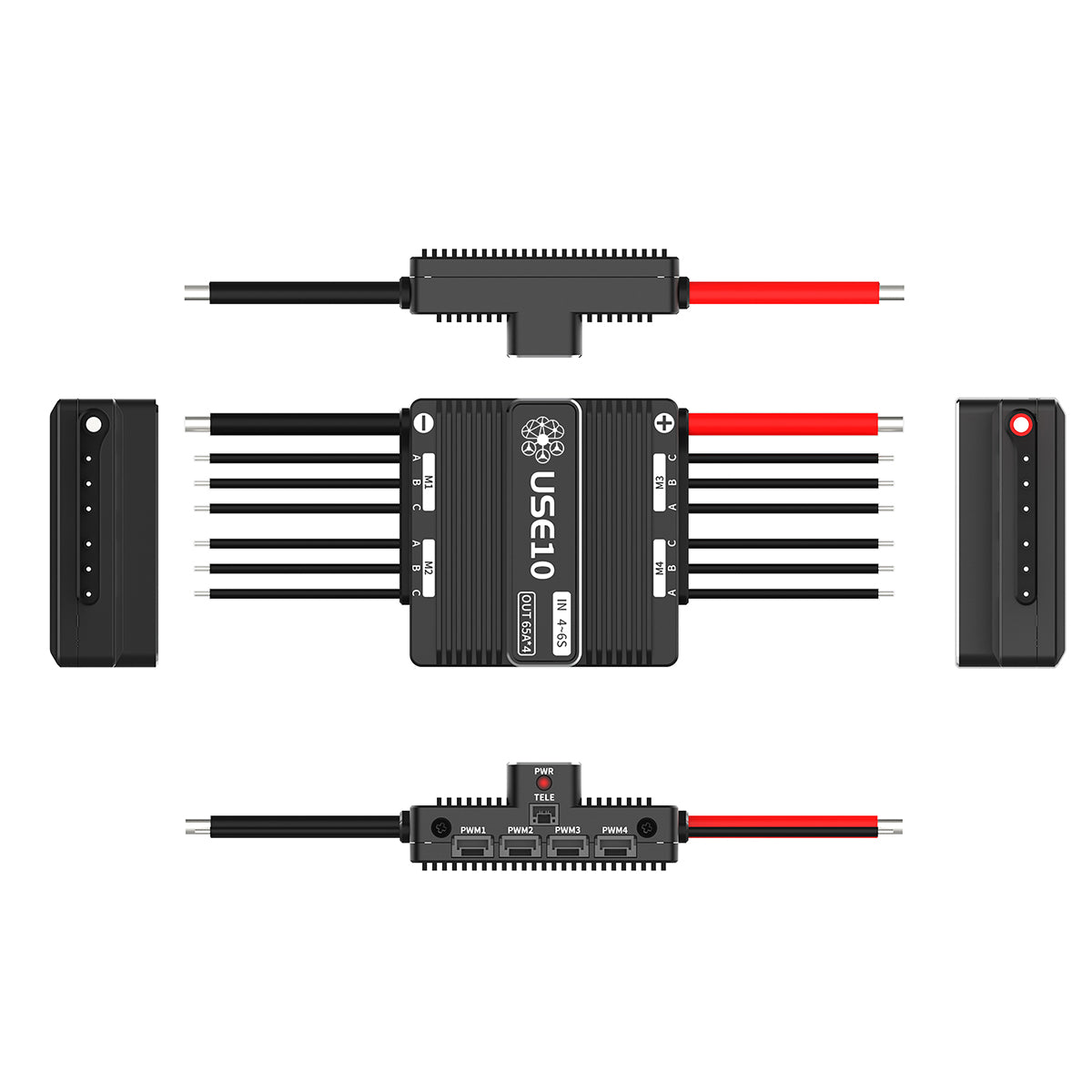

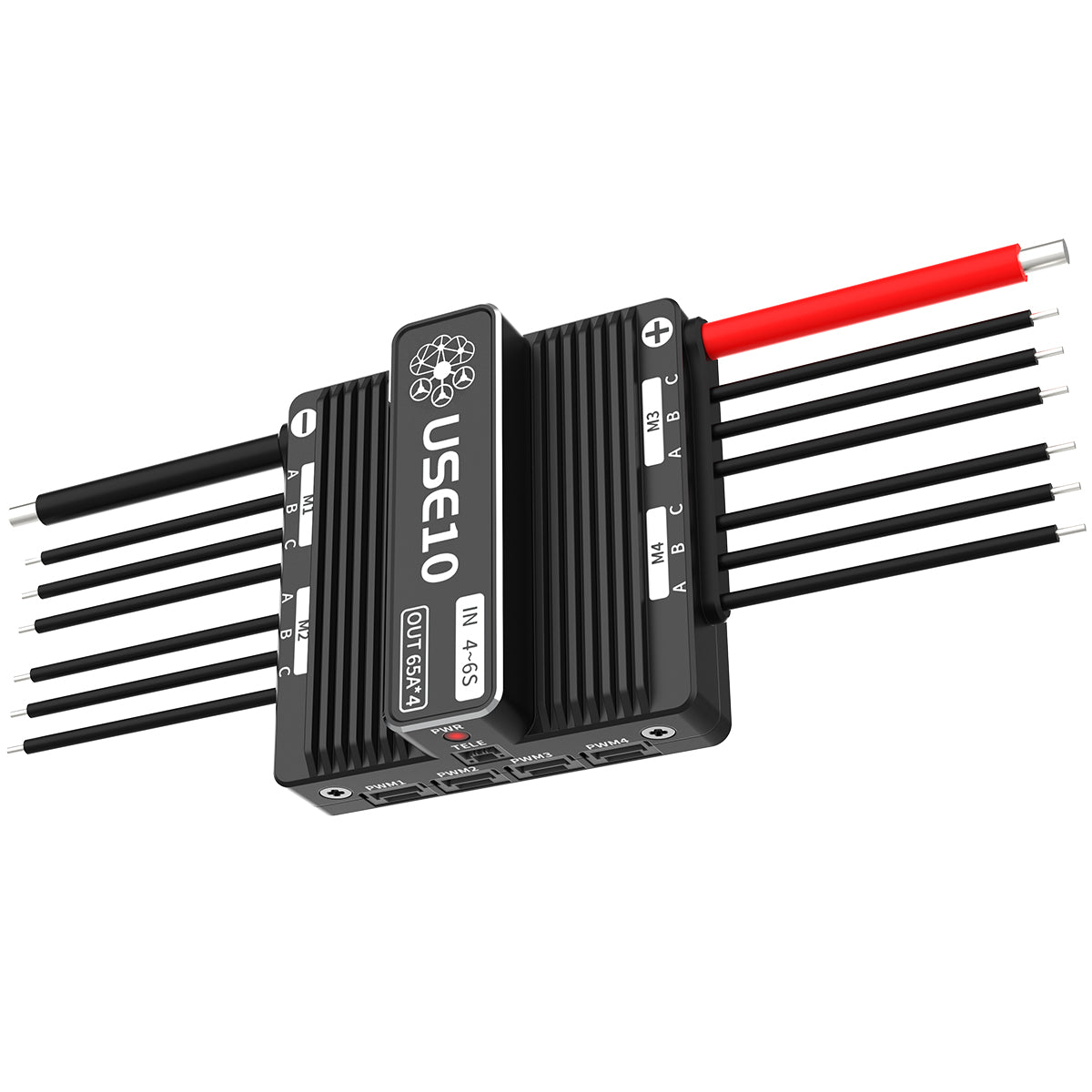

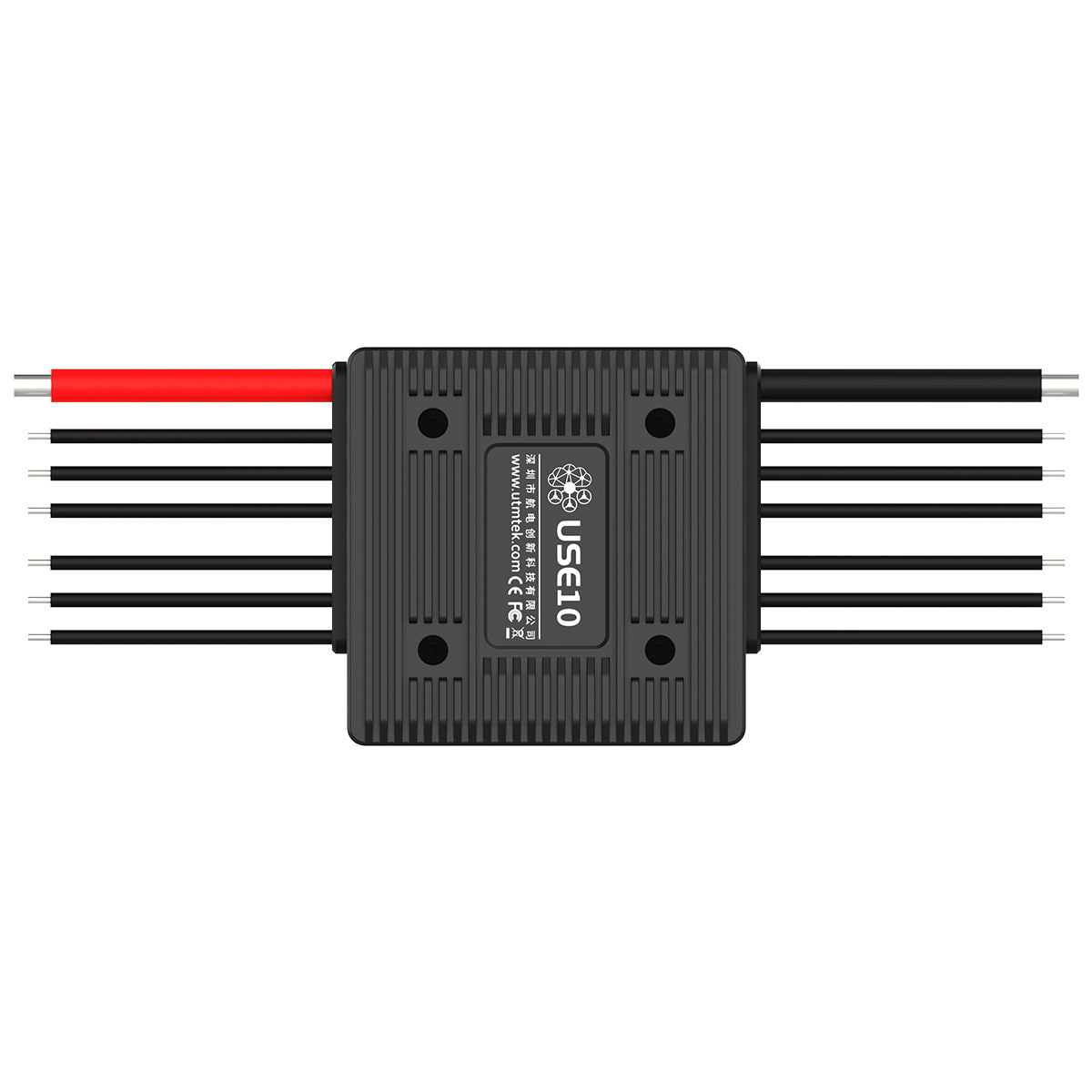

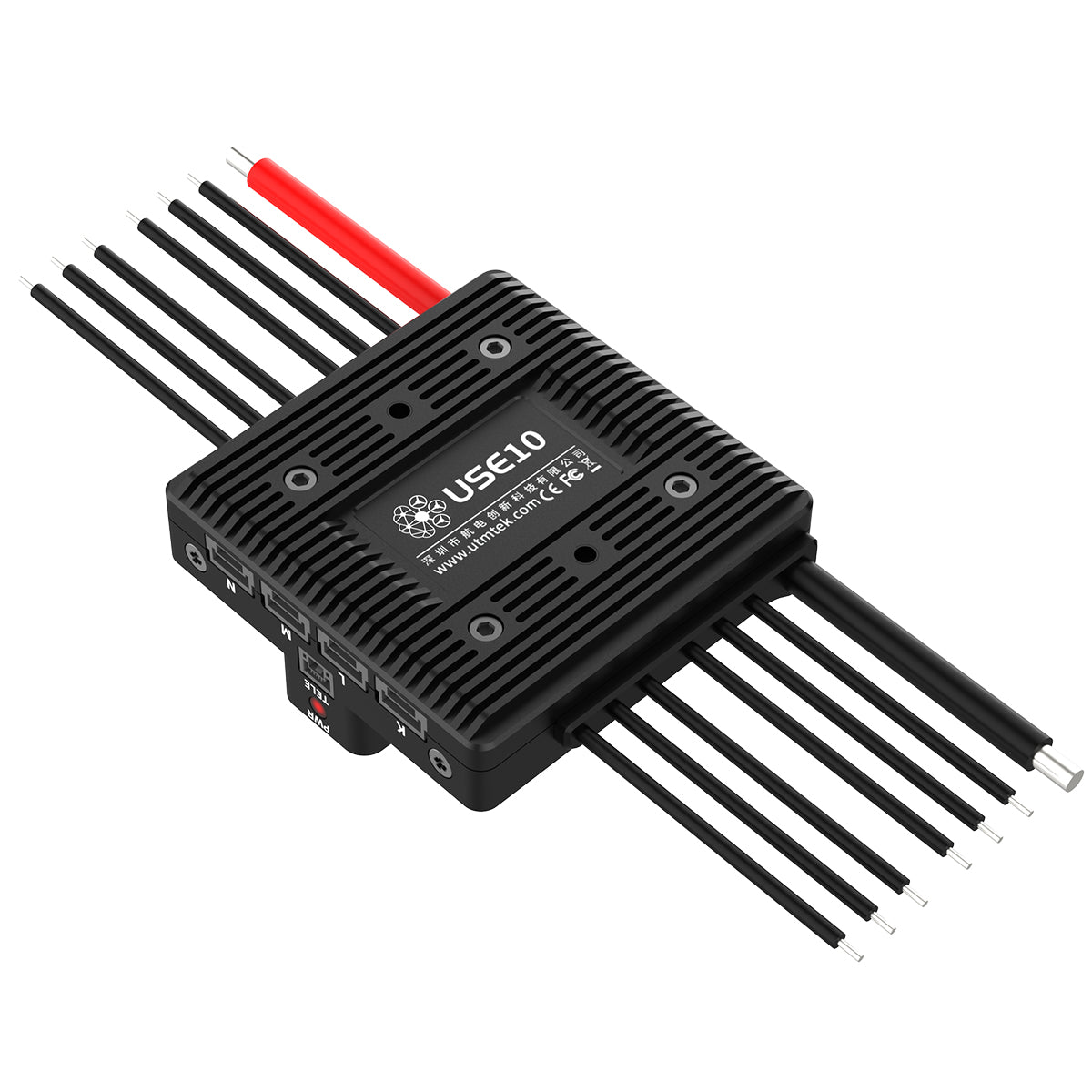

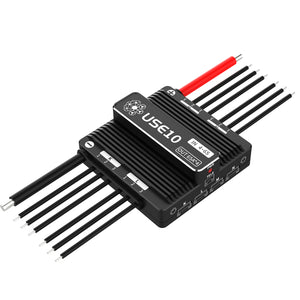

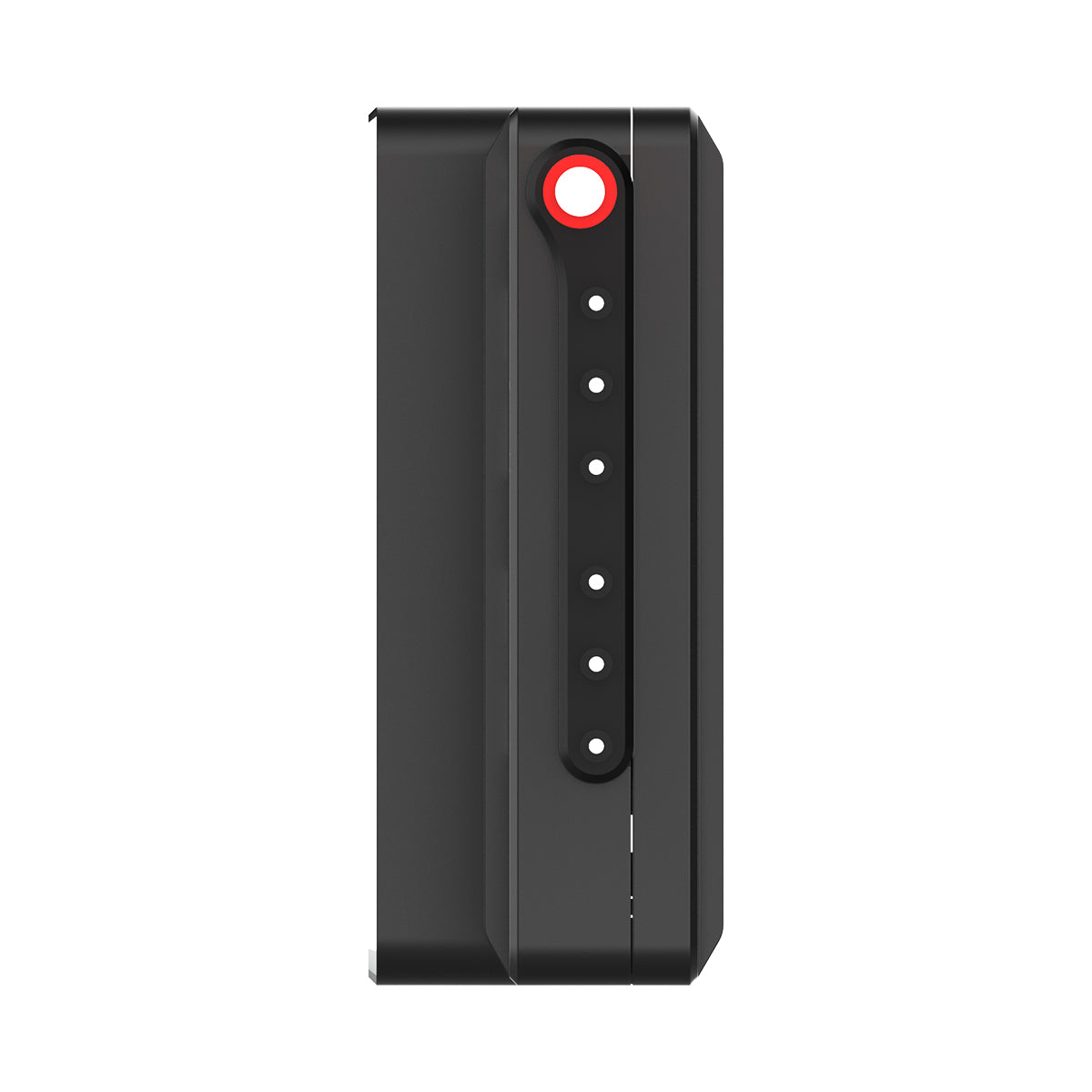

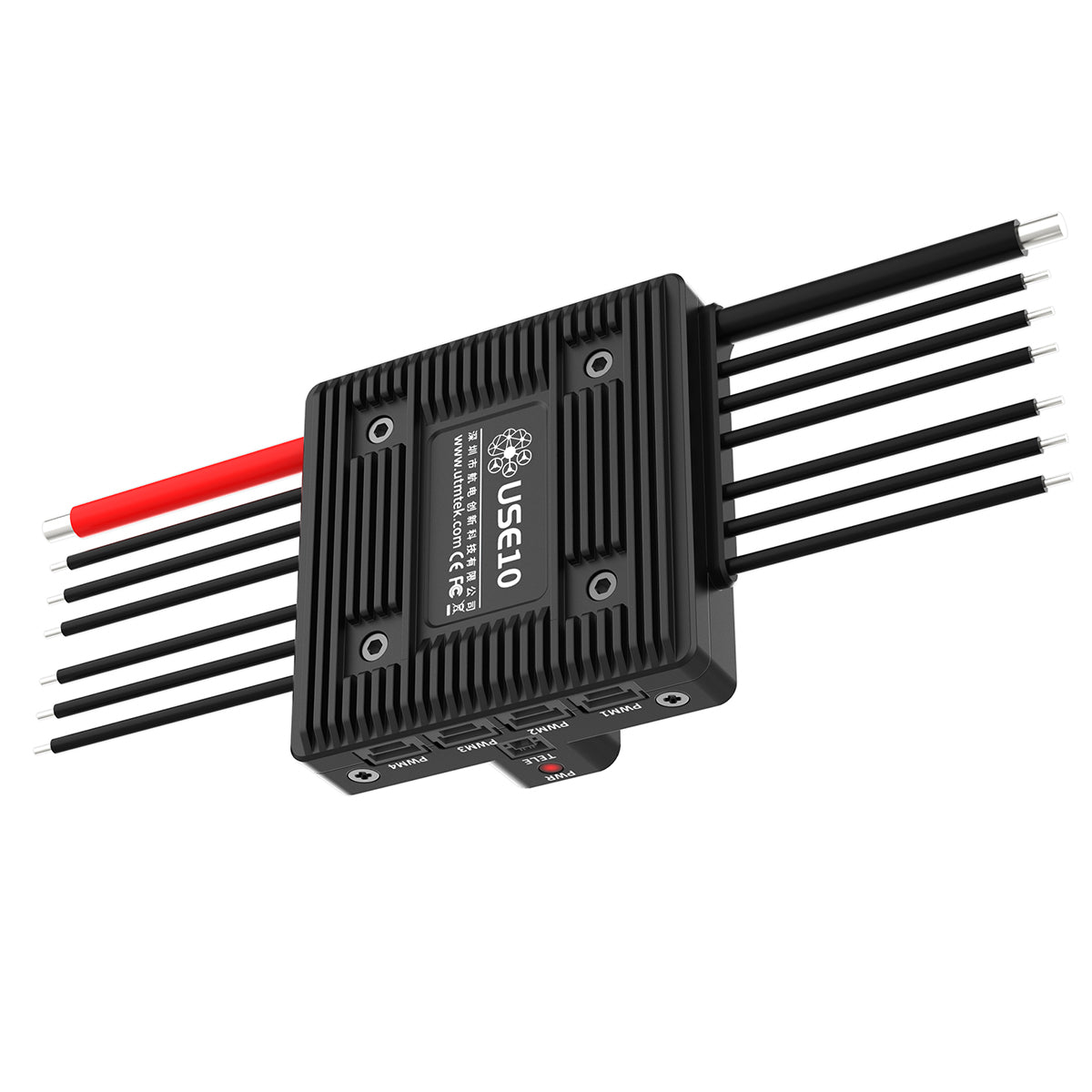

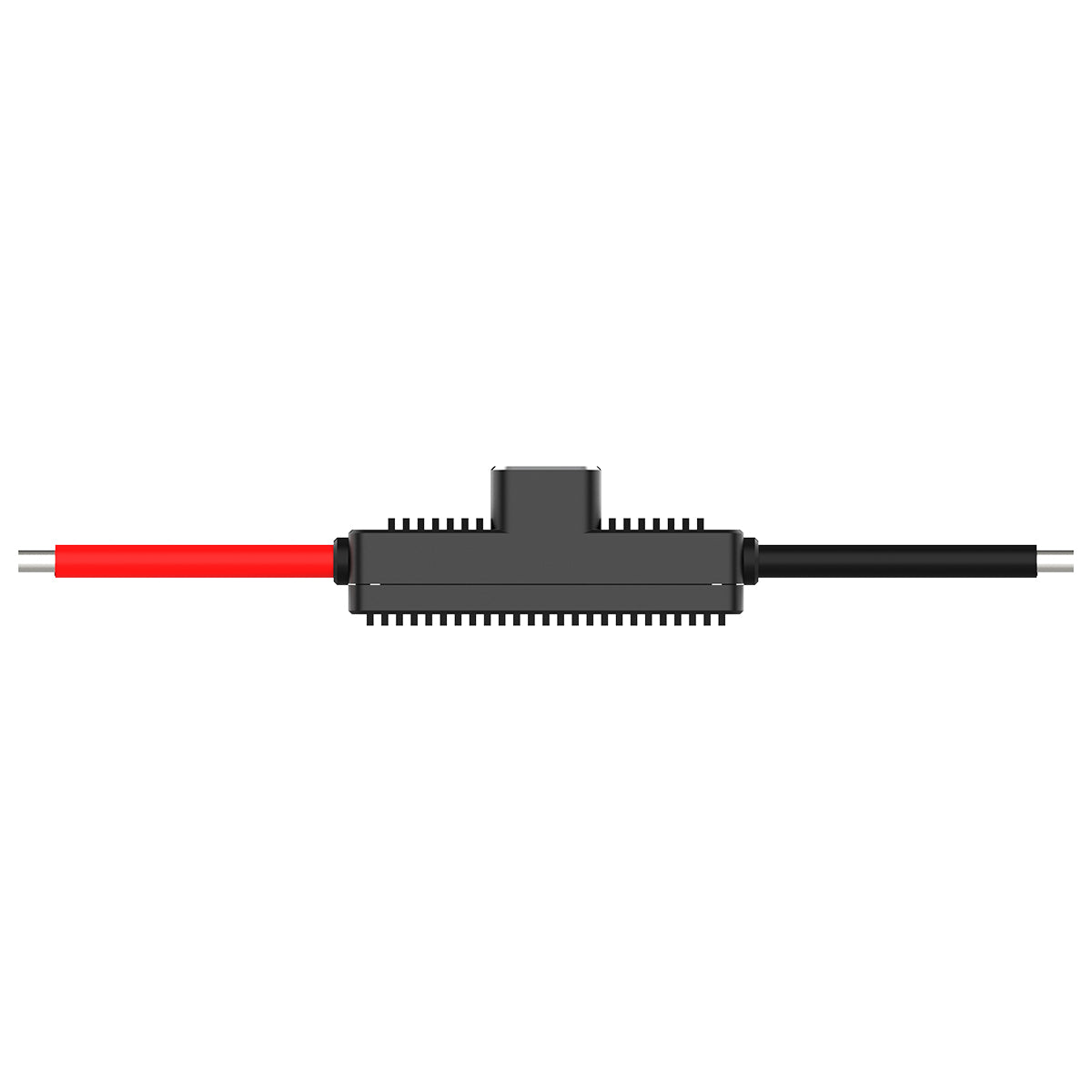

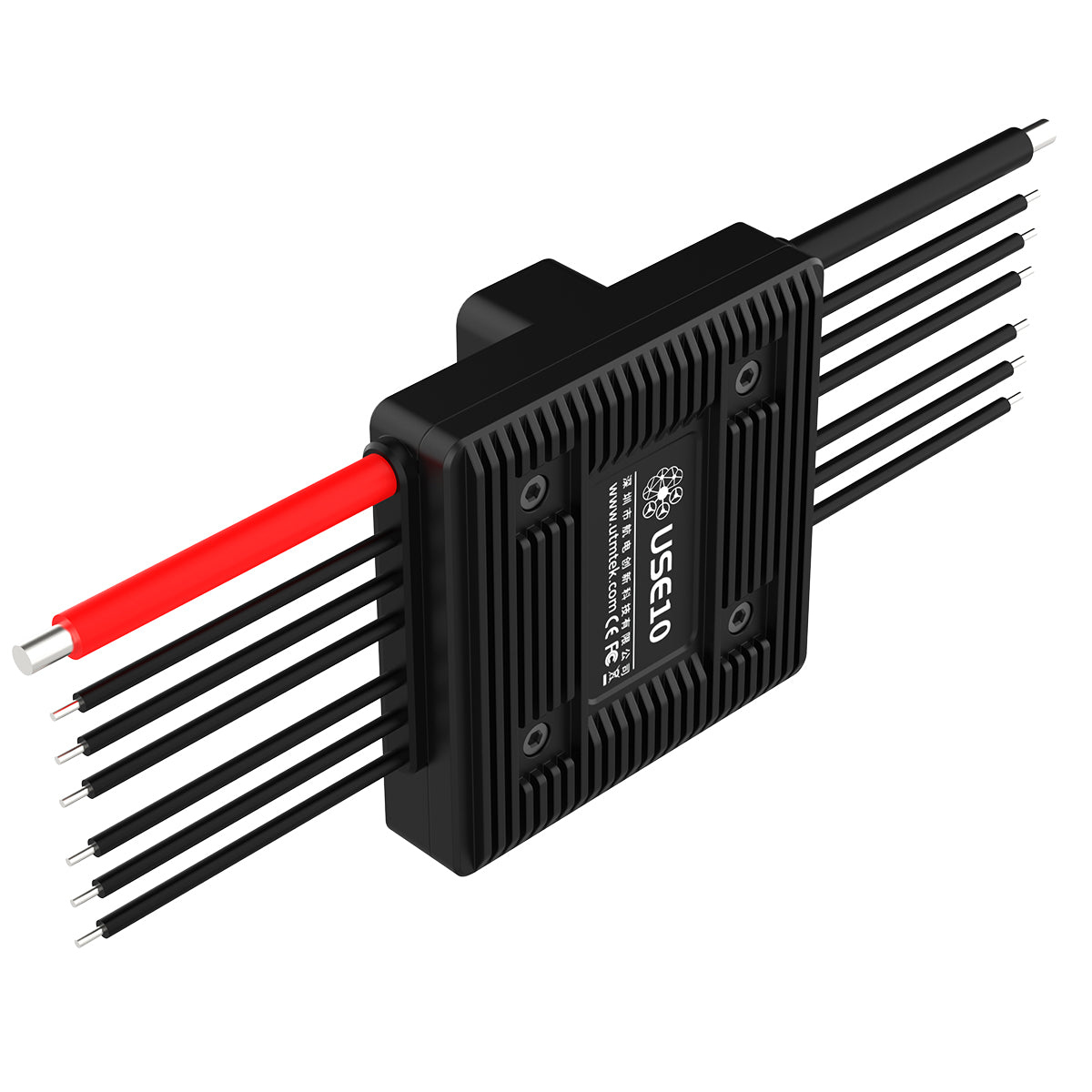

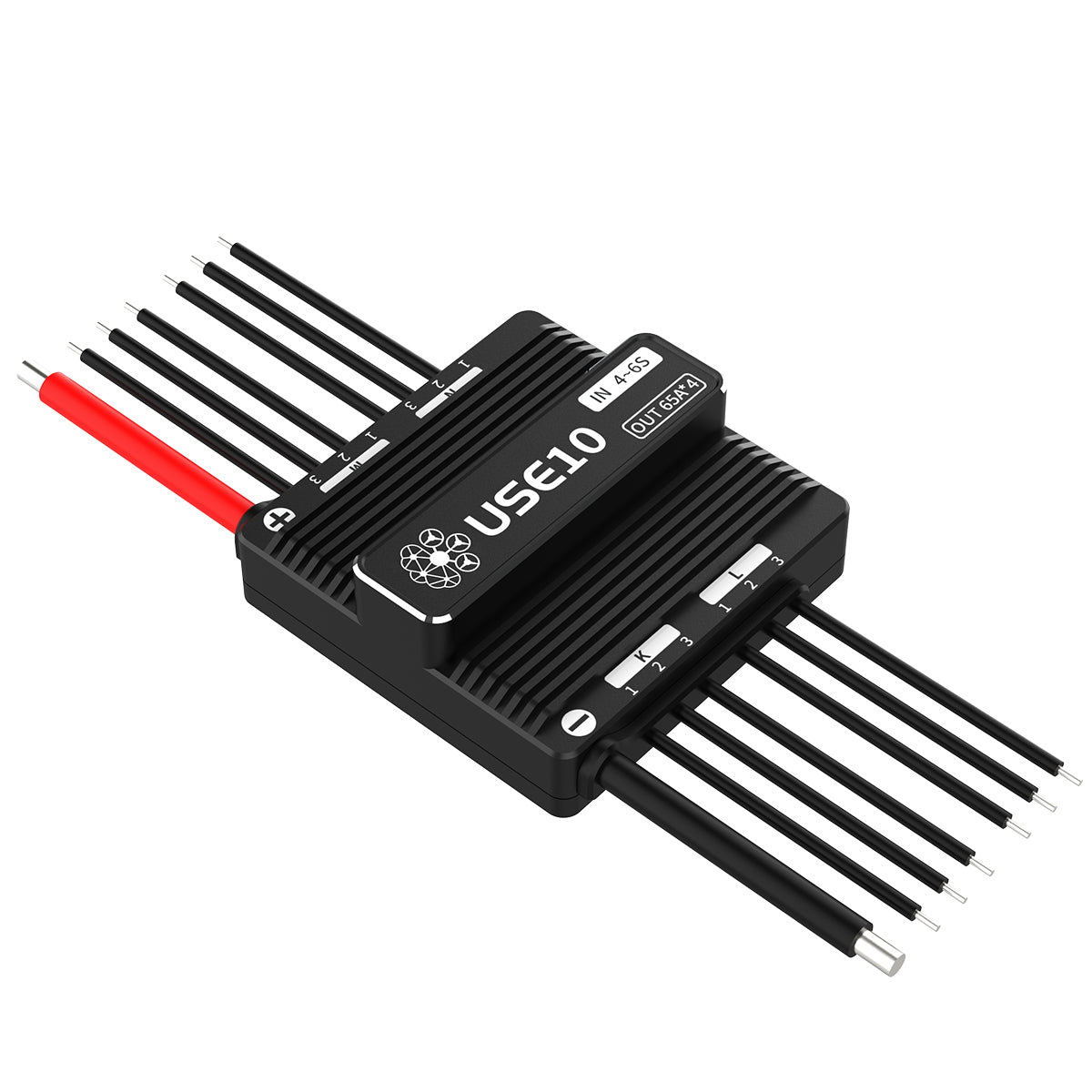

USE10 4-In-1 Electronic Speed Controller for Drones – Brushless Motor Power Control with Overcurrent & Overheat Protection

The USE10 4-In-1 Electronic Speed Controller (ESC) is a high-performance brushless motor speed control module designed specifically for multi-rotor drones. This advanced ESC integrates four drive channels into a single compact unit, receiving flight control signals to precisely regulate motor speed and power output. Whether you're flying in complex environments or performing demanding maneuvers, the USE10 ESC ensures smooth, reliable power control.

Built with safety in mind, the ESC comes with overcurrent, overheat, and stall protection, ensuring that your drone's motors operate safely and efficiently under all conditions. The integrated design minimizes wiring, reduces electromagnetic interference, and offers easy installation for a more streamlined setup. The USE10 ESC delivers stable power control, providing optimal performance for your drone’s motor system, and is an essential component for achieving seamless flight in demanding applications.

Key Features:

• 4-in-1 integrated design for multi-rotor drone power control
• Up to 65A continuous output and 80A instantaneous output per channel
• Overcurrent, overheat, and stall protection for enhanced safety
• PWM input signals for precise control
• Compact and efficient design with minimal wiring
• No BEC (Battery Elimination Circuit)
• Reliable performance in a wide range of temperatures (-20°C to 60°C)

Technical Specifications:

• Input Voltage: 4~6S LiPo
• Number of Channels: 4
• Maximum Continuous Output Current: 65A * 4
• Maximum Instantaneous Output Current: 80A * 4
• BEC: No

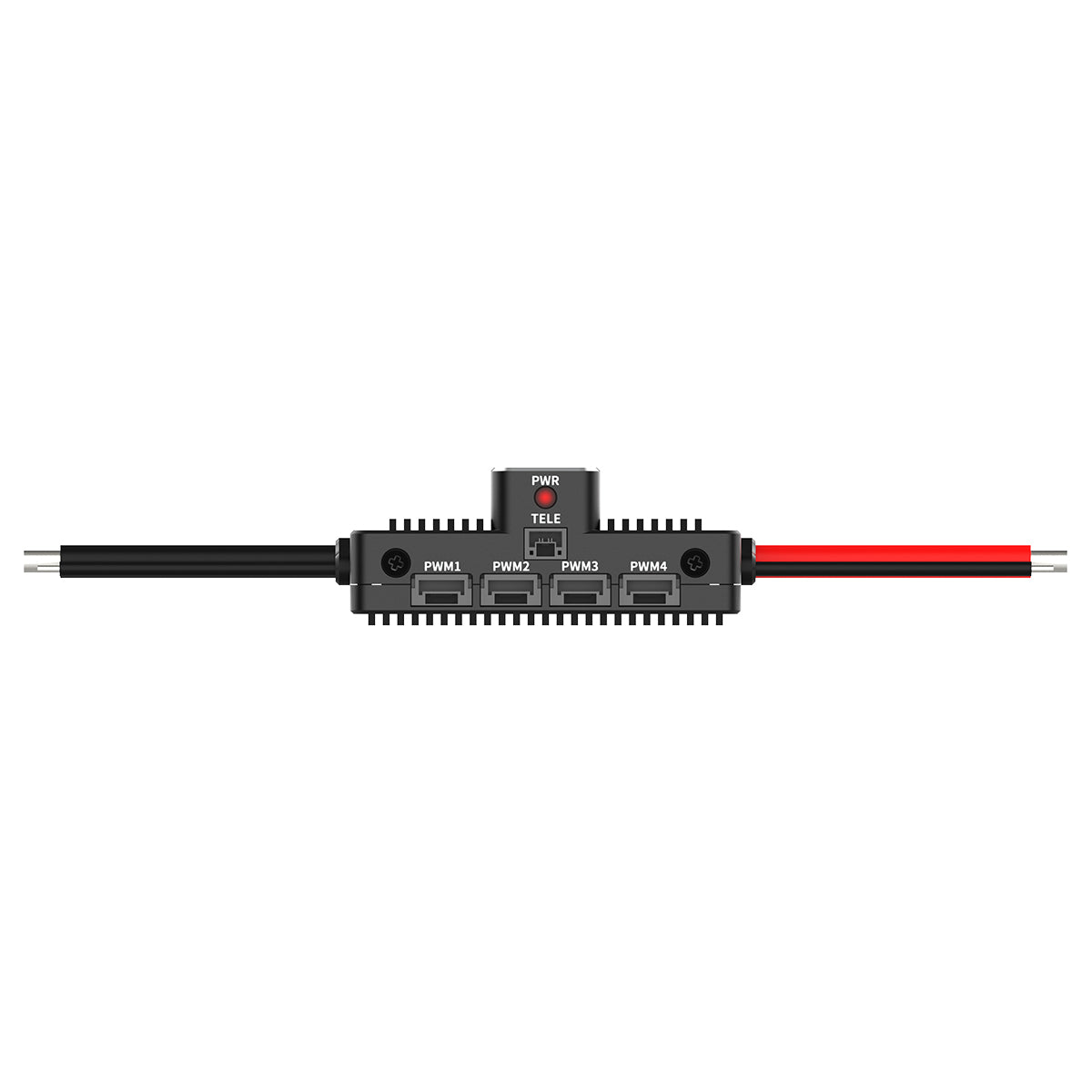

• Input Signal: PWM * 4
• Control Interface: GH1.25-4P * 4
• Digital Interface: GH1.25-2P
• Indicator Light: 1
• Size: 57.6mm x 53.6mm x 21.7mm
• Weight: 87g
• Operating Temperature: -20°C to 60°C
