Happymodel Moblite7 Walksnail 1S 75mm HD ブラシレス フープ

HAPPYMODEL による
SKU 7037241
最大{21%節約 25%割引
元の価格 $319.99
元の価格 $319.99 - 元の価格 $1,039.99
元の価格 $319.99
現在の価格 $239.00
$239.00 - $819.00
現在の価格 $239.00
バージョン: ExpressLRS SPI RX


Specifications:
Brand Name: Happymodel
Model: Moblite7 Walksnail
Frame wheelbase: 75mm

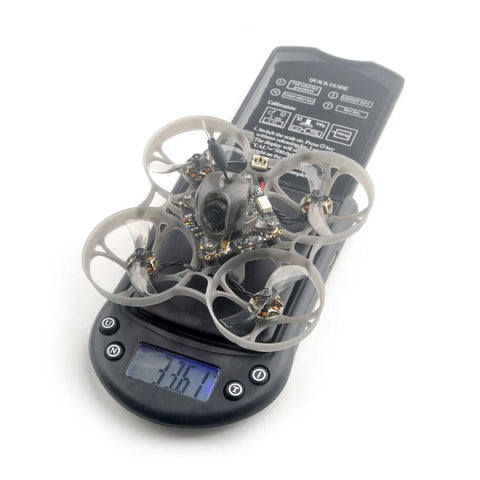

Weight: 33.5 gram without battery
Size: 98mm*98mm*48mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz

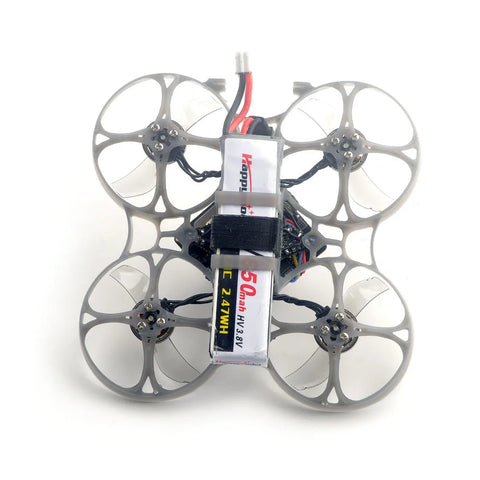

Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0

Flight controller
SuperbeeF4 Lite ELRS/FRSKY
SPI ELRS version Firmware target: CrazybeeF4SX1280
SPI FRSKY version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in SPI Frsky/ExpressLRS receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Telemetry output Power: <12dBmReceiver protocol:  SPI ExpressLRS
Could bind with ELRS V2.0 firmware TX module
Also support ELRS V3.0 , need upgrade betaflight firmware

Onboard Frsky SPI D8 /D16 2.4GHz Receiver
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol

Motor
Model: RS1002 20000KV
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g):2.5g
No.of Cells(Lipo):1S only

Propeller Gemfan 1610-2 Bi-blades
Weight:0.24g
Material: PC
Pitch:1 inchProps Dia:40mm
Center Hole Dia:1.5mm

VTX
Model: Avatar mini 1s module
Communication Frequency: 5.725-5.850 GHz
Transmitter Power(EIRP): FCC:<25.5dBm; CE:<14dBm; SRRC: <20dBm;MIC:<25dBm
l/o Interface: JST1.O*6(Power in)JST1.O*4(USB)
Mounting Holes: 25.5*25.5 mm
Dimensions: 33*33*6.5 mm
Storage: 8G
Recording: 1080p/720p
Weight: 6.8 g
Operating Temperature: -20-40℃
Channels: 8
Wide Power lnput: 3.1V-5V
Supported FC System: Betaflight
OSD: Canvas mode
Bitrate: 25mbps / 50mbps
Latency: Average delay 22ms
Antenna connector: IPEX

Camera
Model: Avatar nano
lmage Sensor: 1/2.7”Inch
Resolution: 1080P/6Ofps,720P/120fps,72OP/6Ofps
Ratio: 16/9 4/3
Lens: 2.1mm
FOV 170°
Aperture: F2.0
Shutter: Rolling shutter
Min.Illumination: 0.001Lux
Weight: 3.5g
Dimensions: 14*14*17mm
Coaxial Cable: 45mm

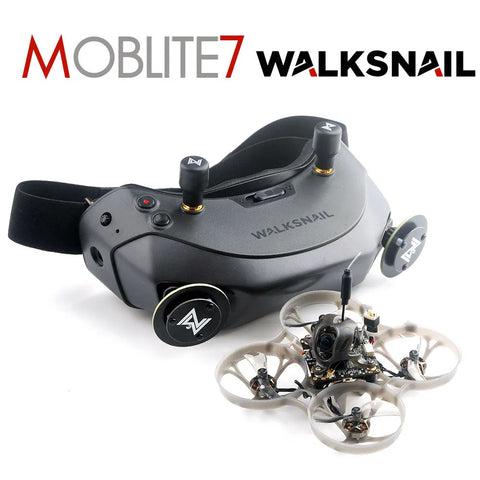

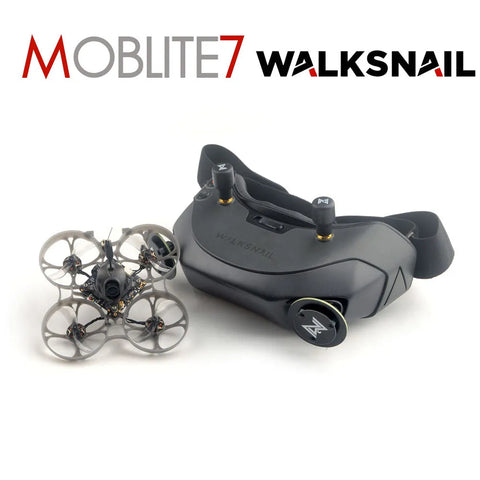

Are you looking for Walksnail Avatar Digital HD FPV Goggles?

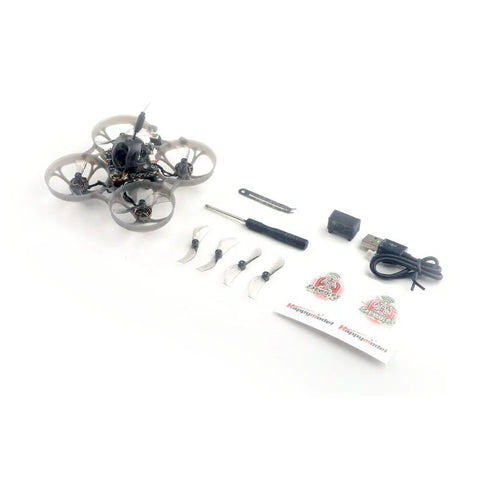

Package Included:
1x Mobula7 v3 75mm frame +Canopy
SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX
SPI Receiver Option2: SuperbeeF4 Lite FC built-in Frsky SPI RX
4x RS1002 KV20000 Unibell brushless motor
1x Gemfan 1610-2 bi-blades propeller(4cw+4ccw)
1x Walksnail Avatar nano HD camera
1x Walksnail Avatar mini 1s tx module
1x Spare Canopy
1x Propeller disassemble tool
1x Screw driver
