RadioMaster TX16S Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Transmitter with TBS MicroTX V2

by RadioMaster

SKU 6539612

Save 23%

$12.99

$12.99 - $369.99

$12.99

$9.99

$9.99 - $320.99

$9.99

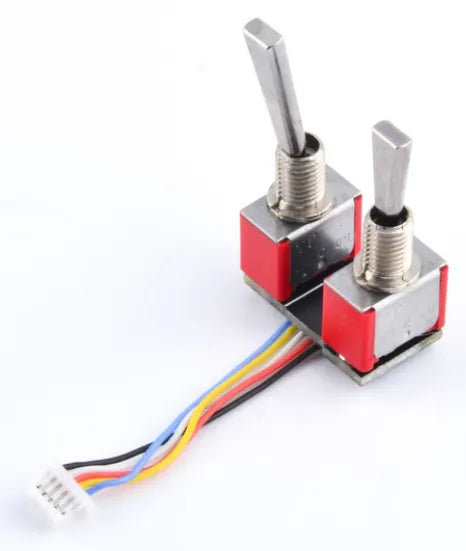

Version: TX16S-SCSD Switch

TX16S without TBS

With TBS MicroTX V2

TX16S-SCSD Switch

Transmitter Mode: Parts for TX16S

Mode 2 - Throttle on the Left

Mode 1 - Throttle on the Right

Parts for TX16S

Warehouse: CN

Quantity

RadioMaster TX16S Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Transmitter with TBS MicroTX V2

Related files:

TX16s User Manual v1.1

TX16S 中文说明书 v1.1

TX16S Manuel de l'Utilisateur v1.1

Latest OpenTX Radio Firmware

Latest Multi-Module Firmware

Factory Firmware Mode 2 / Mode 1

Crossfire Shot Firmware (Experimental)

Crossfire shot will be implemented in the main OpenTX 2.4 branch. An experimental testing version can be downloaded from the TBS website.

Description:

Brand Name: RadioMaster
Item Name: TX16S Transmitter

Channel: 16CH
Mode: Mode2

Size: 183*212*66 mm

Weight: 736g (without battery)

Voltage: DC7-8.4V

Battery Compartment: 25*52*97mm

2 x18650 (tray included) , 21700 7.4v 2s Pack or 7.4v 2s Lipoly (Batteries not included)

Current: 400mah (excluding external module)

External Micro SD slot: Card Included

2 x External UART Expansion Ports

Touch Panel Ready (requires OpenTX 2.4 and Upgrade Panel Sold seperatly)

Features:

STM32F429BIT6 MCU

Industrial grade 4.3 inch 480*272 outdoor readable color screen

Compatible with OpenTX

Wheel menu button

Full Size High Quality HALL sensor gimbals with CNC Aluminum Facias

Internal Multi-protocol RF System

Full Speed Native TBS Crossfire support (400K)

Supports Telemetry (Protocol and Receiver dependent)

Memory 16M (can be expanded by Micro SD card)

Voice function

Vibration reminder function

Improved JR module slot

6-Flight Mode Buttons (Pixhawk and more!)

Three-color LED status display

USB-C Charging port.

USB-C Simulator and PC connection port

External UART ports to expand the capabilities of your radio.

Internal Multi-protocol RF System

Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo

Texas Instruments CC2500: FrSky, Futabas SFHSS

Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan

Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

RF Chip Data

The TX16S internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of today’s prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system. No complicated update procedures.

Package included:
1 x TX16S/TX16S with TBS Crossfire MicroTX (Optional)

1 x USB-C Cable
1 x 18650 Tray
1 x Throttle Return Springs
